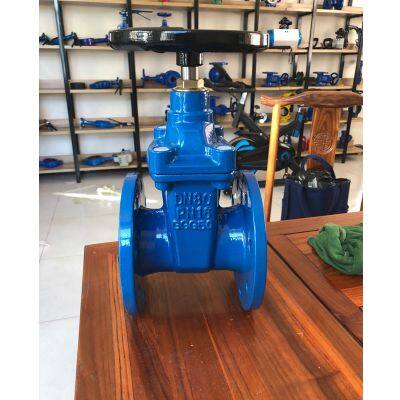

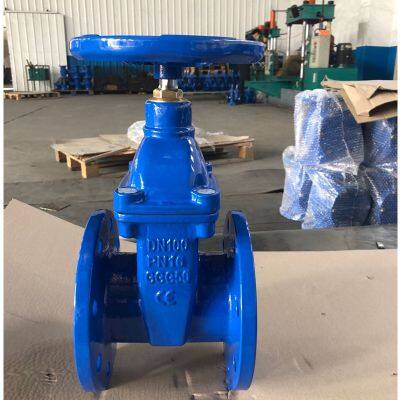

DN150 6'' Resilient Seated Non-Rising Stem Gate Valve BS5163 Side Flange Drilling to BS4504 PN16 Z45X Di Body Gate Valve
US$ 1931.05
1 - 99 Unit
US$ 1379.32
100 - 299 Unit
US$ 689.66
300 - 499 Unit
US$ 344.83
≥500 Unit
Key Specifications
Get Latest Price
application:
General
media:
Water
port size:
DN40-DN600
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non-Rising Stem DN50-DN600 Pn16 Pn10 BS DIN Ductile Iron GGG50 Soft Seal Flange Type Gate ValveUS$ 206.90 - 689.66MOQ: 1 Unit -
BS5163 Pn10/16 Z45X Di Body Disc EPDM Seal 2 1/2" Dn65 Non-Rising Stem Gate Valve Resilient Seat Flange BS Gate ValveUS$ 206.90 - 689.66MOQ: 1 Unit
-
ANSI ASME B16.34 Class 300 DN200 Wcb Carbon Steel Flange Gate Valve Factory Motorized Electric Actuator Gate ValveUS$ 689.66 - 1379.32MOQ: 1 Unit
-
ANSI API Gate Valve Carbon Steel WCB Flange Hard Seal Z41H 150LB High-Pressure /Temperature Steam Manual Bevel GearUS$ 151.73 - 172.42MOQ: 1 Piece
-
API ANSI Gate Valve Carbon Steel WCB Flange Hard Seal Soft Seal 300LB High-Pressure High Temperature Steam Manual Bevel GearUS$ 200.01 - 206.90MOQ: 1 Piece
application
General
media
Water
port size
DN40-DN600
power
Manual
structure
Gate
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
model number
Z45x-16Q
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM
warranty
12 Months
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Body material
Cast Iron,Ductile Iron,Ggg40,Ggg50
Connection type
Flange,Thread,Grooved
Color
Blue, Red, Green, Black, Silver, Grey
Medium
Water Oil Gas
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Usage
Industrial Usage
MOQ
1 Pc
Certification
ISO,EAC,WRAS,CE
Company Profile
Chengxin Valve Co., Ltd.,was founded in 1993 and established as Longyao Chengxin Valve Co., Ltd. In 2005. located in weijiazhuang Industrial Park, Longyao County, Hebei Province,is a professional company for manufacturing and selling valves and castings.
After its establishment, due to the accurate market positioning, excellent quality and standardized internal management, the company has become a modern enterprise with considerable scale, and has a high reputation in the valve and casting industry in China.

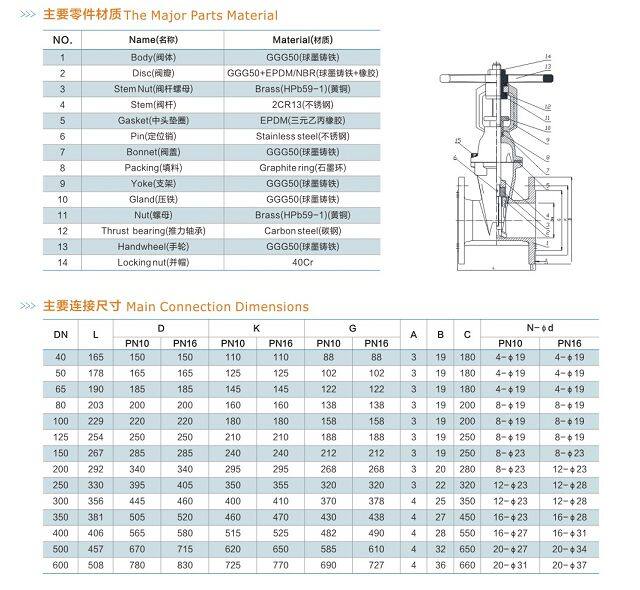

Specification
BS Soft Seal Cast Iron Flanged End Non-Rising Gate Valve Main Material of Parts | ||
Body,Bonnet | EN-GJS-500-7 | |
Stem | 2Cr13/SS304/SS316/Carbon Steel | |
Stem Nut | Brass | |
Disc | EN-GJS-500-7 | |
Seat | EPDM/NBR | |
Hand wheel | EN-GJS-500-7 | |
Packing | EPDM/NBR | |
BS Soft Seal Cast Iron Flanged End Non-Rising Gate Valve Standard | ||
Design Standard | BS5163,BS5150 | |
Face to Face | BS5150 | |
Flange Standard | EN 1092 | |
Testing Standard | EN 12226,ISO 5208 | |
Product Description
Production Processes
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Related Products
Certifications
FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a professional valve factory Located In Hebei, China.
2. Q: What's Execution Standard of products?
A:ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
3. Q: Is there any stock in your factory? And How long is your delivery time?
A: We stock valves with normal sizes. Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
4. Q: Which countries do you export to ?
A: We export directly to vast majority of countries in the world.
5. Q: Can you provide the relevant documentation and certificate?
A: Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test reports according to the customers need.
6.Q: Do you provide samples ? is it free or extra ?
A:Yes, Welcome sample order to test and check the quality of products. The sample amount is less than $100, the product cost isfree, and the customer needs to pay the express delivery fee. If the sample amount is higher than $100, and the sample cost and express delivery fee need to be negotiated by both parties.
7. Q:Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
8.Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
9.Q: How to deal with after sales ?
A:warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. We will provide process guidance services, replacement parts, on-site guidance and maintenance services. (both parties shall negotiate the relevant expenses)
10.Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. You have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
11.Q: Why choose us?
A:1. 20 years of manufacturing and developing experience;
2.A Strong R & D team;
3.Service experience for thousands of customers at home and abroad;
4.Export to 30 countries including Southeast Asia, East Asia, Eastern Europe and Central Asia;
5.Three casting production lines with stable casting quality, high production efficiency and fast delivery time.
