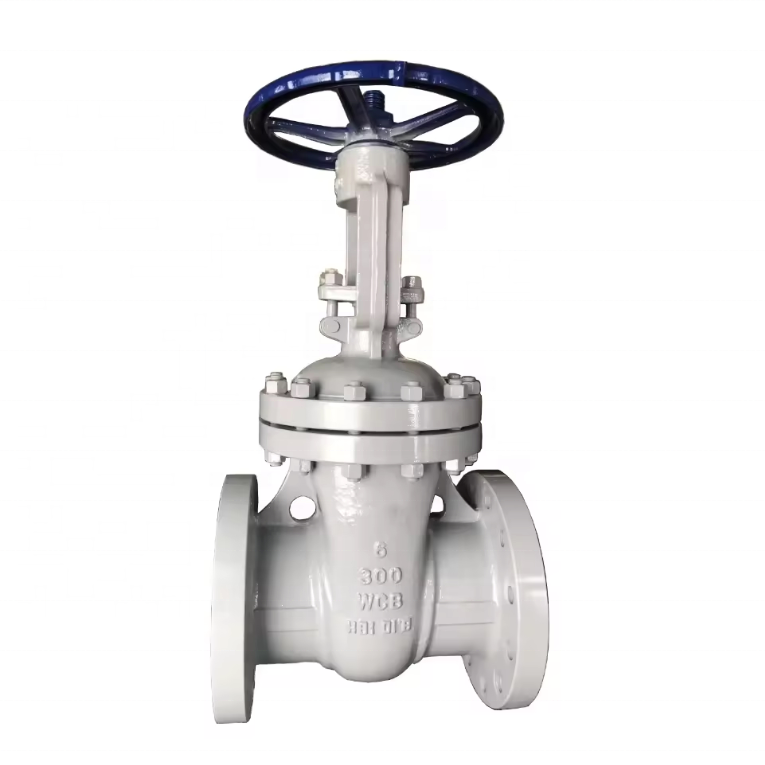

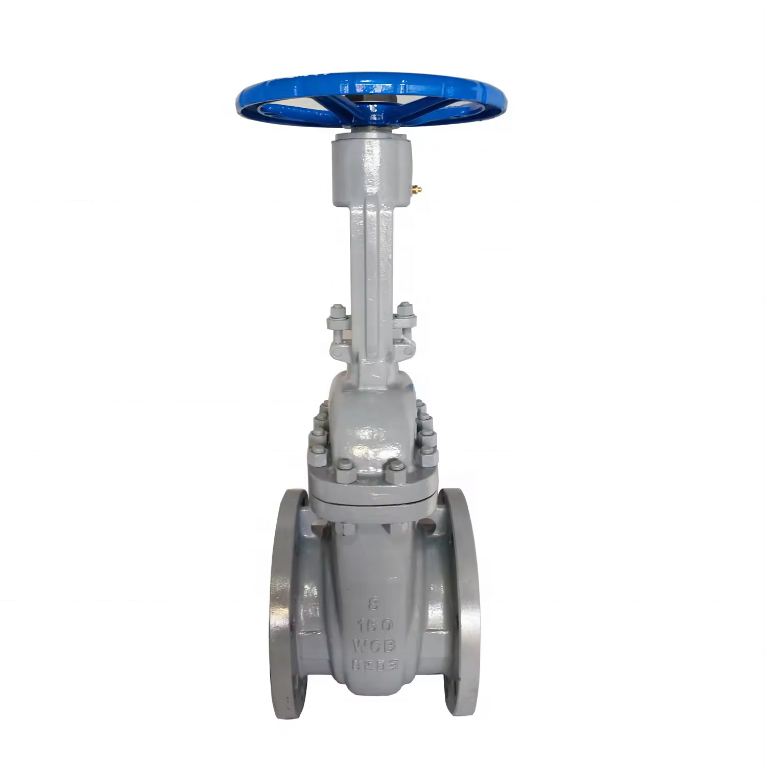

Carbon Steel Flanged Gate Valve API 600 Cast Iron ASTM A216 Wcb Body Material API 6D DN80 Flange 150LB Gate Valve
US$ 551.73
1 - 99 Piece
US$ 413.80
≥100 Piece
Key Specifications
Get Latest Price
Type:
Gate Valves
application:
General
media:
Water
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ANSI WCB 10in 24 Inch 150LB Flange High Pressure American Standard Cast Steel Gate ValveUS$ 586.22 - 620.70MOQ: 1 Piece -
Flange Type DN100 150LB 300LB Non-Rising Stem Resilient Stem Hard Seal WCB Cast Steel Sluice Gate ValveUS$ 620.70 - 827.60MOQ: 1 Piece
-
ASME ANSI Cast Steel WCB Material Wedge Gate Valve 150LB 300LB Rising Stem Manual Stainless Steel Gate ValveUS$ 1241.39 - 1517.26MOQ: 1 Piece
-
ANSI 2'' 4'' 6'' 8'' 10 in Stainless Steel Flange Gate Valve SS 304 Resilient Seat Metal Seal Rising Stem Gate ValveUS$ 551.73 - 682.77MOQ: 1 Piece
-
ASME B16.34 300# 150# Stainless Steel Flange End Gate Valve CF8/CF3/CF8M/CF3m SS304 316 Cast Steel Gate ValveUS$ 551.73 - 682.77MOQ: 1 Piece
application
General
media
Water
port size
DN50-DN800
power
Manual
structure
Gate
temperature of media
Normal Temperature
model number
Z41H 150LB/300LB
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM
warranty
1 year
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Body material
Wcb/Cast Steel/Carbon Steel/Stainless Steel
Connection type
Flange,Thread,Grooved
Color
Blue, Red, Green, Black, Silver, Grey
Medium
Water Oil Gas
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Usage
Industrial Usage
MOQ
1 Pc
Certification
ISO,EAC,WRAS,CE
Specification
ANSI API6d 150# 300# 600# Wcb Gate Valve main material of parts | ||
Body,Bonnet | ASTM A216 WCB/ASTM A351 CF8/ASTM A351CF8M | |
Stem | ASTM A76 420/ASTM A182 F304/ASTM A182 F316 | |
Stem Nut | Brass | |
Disc | ASTM A216 WCB | |
Seat | 13Cr/STM A351 CF8/STM A351 CF8M | |
Hand wheel | ASTM A47 | |
Gasket | Graphite | |
Packing | Graphite | |
ANSI API6d ASME Class 150LB 300LB 600LB Wcb Gate Valve Standard | ||
Design Standard | API600,API6D | |
Face to Face | ASME B16.34 | |
Flange Standard | ASME B16.10 | |
Testing Standard | API598 | |
Product Description
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in Weizhuang industrial zone, which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons.
Both national and international standard products are produced. The national standard has 12 series, more than 3000 specifications. The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, safety valve, balancing vlave, etc. The international standard include DIN, Russian standard, BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru,Russia, Pakistan, Korea, Vietnam, Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Production Processes
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificats.
