Home > Industrial Equipment & Components > Valve > Ball Valve > DIN PN16 Cast Steel/Ductile Iron GGG50 Gate Valve Large Diameter Flange EPDM Rubber Soft Seal Gate Valve Supplier

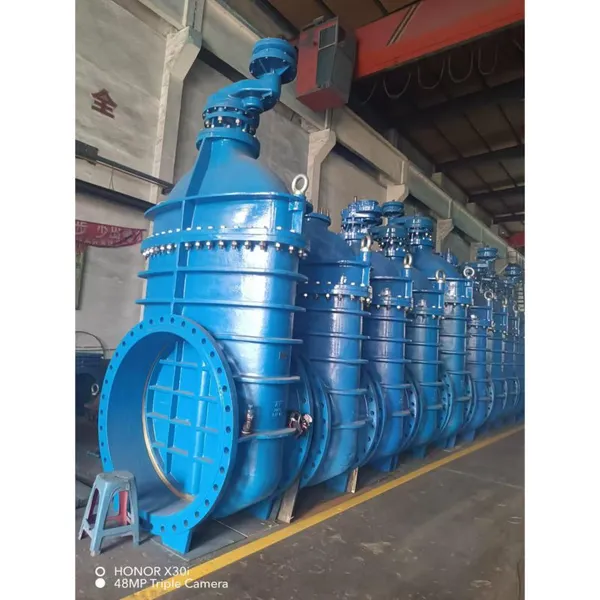

DIN PN16 Cast Steel/Ductile Iron GGG50 Gate Valve Large Diameter Flange EPDM Rubber Soft Seal Gate Valve Supplier
US$ 3448.30
1 - 9 Piece
US$ 3310.37
≥10 Piece
Key Specifications
Get Latest Price
application:
General
media:
Water
port size:
DN50-DN1200
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIN PN16 WCB Cast Steel Flange Electric Gate Valve Resilient Seat Electric Gate Valve With ActuatorUS$ 3310.37 - 3448.30MOQ: 1 Piece -
DIN Cast Iron Electric Motorized Flange Gate Valve Big Diameter Size Soft Seal Electric Actuator Gate ValveUS$ 3310.37 - 3448.30MOQ: 1 Piece
-
DIN EN1092 DN150 PN16 Ductile Iron GGG40 Resilient Seat Flange Gate Valve With Electric ActuatorUS$ 551.73 - 689.66MOQ: 1 Unit
-
Flange Electric Gate Valve GGG50 GGG40 GG25 Ductile Cast Iron DIN PN16 Flange Motorized Actuator Gate ValveUS$ 3310.37 - 3448.30MOQ: 1 Piece
-
DIN PN16 GGG50 Cast Iron Ductile Iron Flange Gate Valve DN200 OS&Y Rising Stem Metal Hard Seal Gate ValveUS$ 544.84 - 682.77MOQ: 1 Piece
application
General
media
Water
port size
DN50-DN1200
power
Electric
structure
Gate
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
model number
PN16
brand name
CHX
place of origin
Hebei, China
customized support
OEM, ODM
warranty
1 year
Body material
Cast Iron,Ductile Iron,GGG40,GGG50
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Connection type
Flange
Color
Blue, Red, Green, Black, Silver, Grey
Medium
Water Oil Gas Steam
Drive Way
Worm Gear, Pneumatic, Manual, Hydraulic, Electric
Usage
Industrial Usage
MOQ
1 Pc
Certification
ISO,EAC,WRAS,CE
Product name
Gate Valves
Specification
DIN Standard Gate Valve Main material of parts | ||
Design Standard | DIN3352 | |
Face to Face | DIN 3202 F4,F5 | |
Flange Standard | DIN 2501/2 EN 1092 | |
Testing Standard | EN 12226/ISO5208 | |
Pressure | PN10,PN16 | |
Body | GGG40/50 | |
Stem | 2Cr13,SS304,SS316,Carbon Steel | |
Seat | GGG40/50 | |
Disc | GGG40/50 | |
Product Description
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in Weizhuang industrial zone, which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons.
Both national and international standard products are produced. The national standard has 12 series, more than 3000 specifications. The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The international standard include DIN, Russian standard, BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificats.
Production Processes
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificats.
FAQ
Q: What is your payment term?
A: 1.T/T,30% down payment, balance to be paid before shipment.
2.L/C.
Q: What is your main market?
A: Southeast Asia,Middle East ,North America,South America,Europe etc.
Q: How about your capacity?
A: As you know,we have 100 staff,own 30 CNC machines,and five person
in charge of quality inspection. So please believe us we can delivery valves
to you in time.
Q: Can you give me a discount?
A: As you know,we are manufactory,so please believe us our price is competitive.
If the quantity is big,we can consider give you a discount.
Q: Can i get free samples from your factory?
A: Yes,samples can be free,however,you pay freight.
Q: If products have some quality problem,how would you deal with?
A: We will responsible for all the quality problems.
A: 1.T/T,30% down payment, balance to be paid before shipment.
2.L/C.
Q: What is your main market?
A: Southeast Asia,Middle East ,North America,South America,Europe etc.
Q: How about your capacity?
A: As you know,we have 100 staff,own 30 CNC machines,and five person
in charge of quality inspection. So please believe us we can delivery valves
to you in time.
Q: Can you give me a discount?
A: As you know,we are manufactory,so please believe us our price is competitive.
If the quantity is big,we can consider give you a discount.
Q: Can i get free samples from your factory?
A: Yes,samples can be free,however,you pay freight.
Q: If products have some quality problem,how would you deal with?
A: We will responsible for all the quality problems.
