Home > Industrial Equipment & Components > Valve > Ball Valve > ASME B16.34 WCB Valve Body 150LB 300LB Flange High Pressure Relief Safety Valve Pressure Reducing Valve

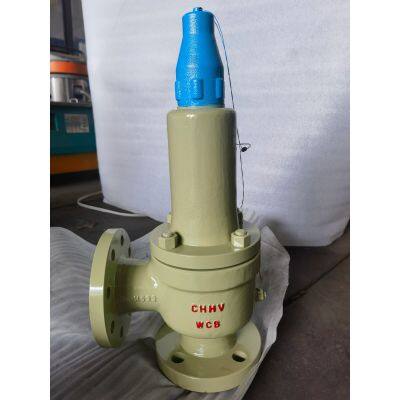

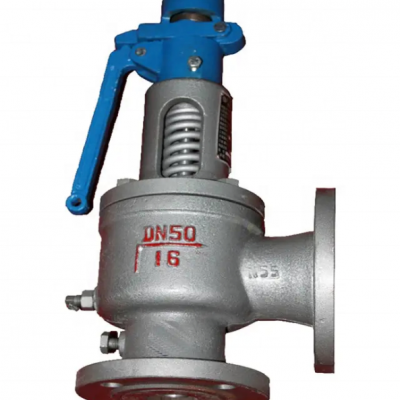

ASME B16.34 WCB Valve Body 150LB 300LB Flange High Pressure Relief Safety Valve Pressure Reducing Valve
US$ 552.49
1 - 9 Piece
US$ 517.96
≥10 Piece
Key Specifications
Get Latest Price
Connection Type:
Flange
media:
Water
port size:
DN25-DN300
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Temperature Pressure Flange Release Valve WCB Cast Carbon Steel Boiler Steam Relief Safety ValveUS$ 656.08 - 676.80MOQ: 1 Piece -
High Quality American Standard Cast Steel WCB Flange Full Open High Pressure Relief Safety ValveUS$ 690.61MOQ: 1 Set
-
ANSI Safety Valve Flange Carbon Steel WCB Pressure Reducing Regulators for Boiler Low Lift Spring Loaded Safety ValveUS$ 1374.32 - 1381.22MOQ: 1 Piece
-
High Quality A48Y-16C Carbon Steel Safety Valve Spring-open Closed Safety Valve Flange Boiler Steam Adjustable Relief ValveUS$ 690.61MOQ: 1 Set
-
ANSI Safety Valve Flange Carbon Steel Pressure Reducing WCB Gas Regulators for Boiler Pound-Grade Low Lift Spring LoadedUS$ 62.16 - 69.07MOQ: 1 Piece
Connection Type
Flange
media
Water
port size
DN25-DN300
structure
Safety
model number
A42Y-16C/25/40
brand name
CHX
place of origin
Hebei, China
application
General
customized support
OEM, ODM
Inlet Connection Size
1 in
Mounting Orientation
Horizontal, Vertical
power
Manual
Sealing Material
Epdm, Metal
temperature of media
Normal Temperature
warranty
1 year
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Body material
WCB/Stainless Steel/Carbon Steel
Connection type
Flange
Color
Blue, Red, Green, Black, Silver, Grey
Medium
Water,Steam,Oil
Usage
Industrial Usage
MOQ
1 Pc
Certification
ISO,EAC,WRAS,CE
Specification
ANSI Flange End Carbon Steel Safety Valve main material of parts | ||
Body,Bonnet | WCB/WC6/WC9/LCB/CF8/CF8M | |
Stem | SS420/SUS 304/SUS316 | |
Disc | SS304/SS316/Monel/H.C/H.B | |
Seat | SS304/SS316/Monel/H.C/H.B | |
Nozzie Ring | CF8M | |
Guide | SUS304 | |
Spring | Alloy Steel | |
Cap | WCB | |
Plug | Carbon Steel | |
ANSI Flange End Carbon Steel Safety Valve Standard | ||
Design Standard | MSS SP-70 | |
Face to Face | ANSI B16.10 | |
Flange Standard | ANSI B16.1,ASME 16.5,JIS 10K,EN1092 | |
Testing Standard | MSS SP-70,API 598 | |
Product Description
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in Weizhuang industrial zone, which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons.
Both national and international standard products are produced. The national standard has 12 series, more than 3000 specifications. The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The international standard include DIN,Russian standard,BS,ANSI,JIS. Many prodcuts have been exported to many countries such as Ireland, Peru,Russia, Pakistan, Korea, Vietnam, Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Production Processes
Certifications
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificats.
Packing & Delivery
Meet the customer's requirements of a variety of packaging methods, non fumigation packaging boxes, pallets, cartons, containers in a variety of ways.
FAQ
Q: What is your payment term?
A: 1.T/T,30% down payment, balance to be paid before shipment.
2.L/C.
Q: What is your main market?
A: Southeast Asia,Middle East ,North America,South America,Europe etc.
Q: How about your capacity?
A: As you know,we have 100 staff,own 30 CNC machines,and five person
in charge of quality inspection. So please believe us we can delivery valves
to you in time.
Q: Can you give me a discount?
A: As you know,we are manufactory,so please believe us our price is competitive.
If the quantity is big,we can consider give you a discount.
Q: Can i get free samples from your factory?
A: Yes,samples can be free,however,you pay freight.
Q: If products have some quality problem,how would you deal with?
A: We will responsible for all the quality problems.
A: 1.T/T,30% down payment, balance to be paid before shipment.
2.L/C.
Q: What is your main market?
A: Southeast Asia,Middle East ,North America,South America,Europe etc.
Q: How about your capacity?
A: As you know,we have 100 staff,own 30 CNC machines,and five person
in charge of quality inspection. So please believe us we can delivery valves
to you in time.
Q: Can you give me a discount?
A: As you know,we are manufactory,so please believe us our price is competitive.
If the quantity is big,we can consider give you a discount.
Q: Can i get free samples from your factory?
A: Yes,samples can be free,however,you pay freight.
Q: If products have some quality problem,how would you deal with?
A: We will responsible for all the quality problems.
