Home > Industrial Equipment & Components > Valve > Ball Valve > DN65 DN20 Threaded Plug Valve PN10 PN16 WCB Plug Valve Stainless Steel SS304 316 CF8 CF8M Threaded Plug Valve

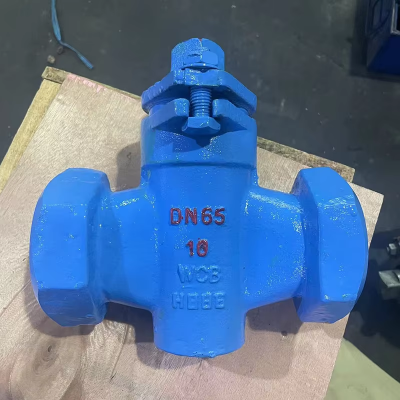

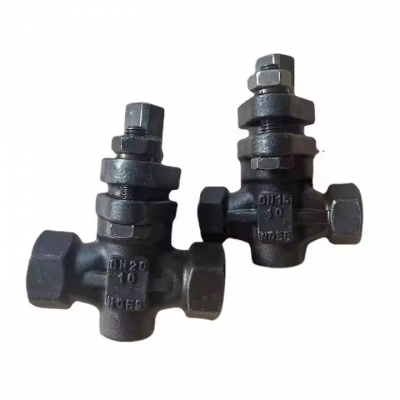

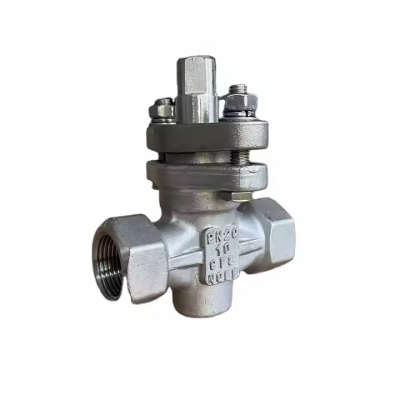

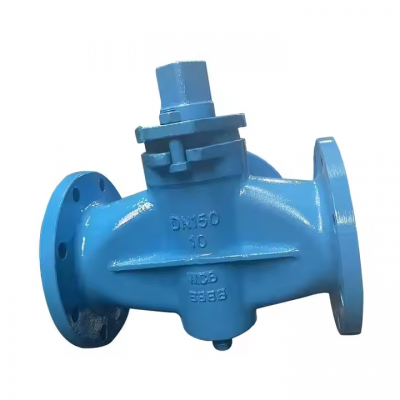

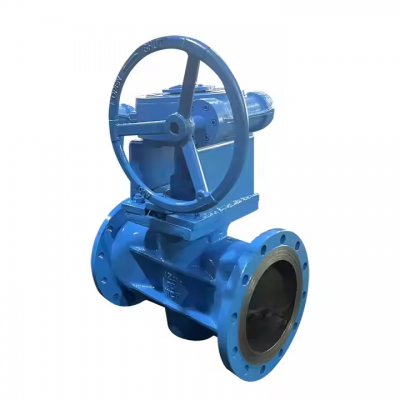

DN65 DN20 Threaded Plug Valve PN10 PN16 WCB Plug Valve Stainless Steel SS304 316 CF8 CF8M Threaded Plug Valve
US$ 68.92
≥1 Piece
Key Specifications
Get Latest Price
port size:
DN15-DN300
structure:
Plug
type:
PLUG VALVES
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API WCB Cast Steel Threaded/Flange Plug Valve 150# PN16 Cast Iron 2/3-Way Female Threaded Plug ValveUS$ 68.92MOQ: 1 Piece -
Balancing Valve With Linear Flow Control Locking Shut-off, and Precise Adjustment Features Flange Static Balance ValveUS$ 68.85 - 68.92MOQ: 1 Piece
-
GOST Balancing Valve With Linear Flow Control Locking Shut-off, and Precise Adjustment Features Flange Static Balance ValveUS$ 199.87MOQ: 1 Piece
-
DN65 DN20 Threaded Plug Valve PN10 PN16 WCB Stainless Steel SS304 316 CF8 CF8M DN300 Plug ValveUS$ 68.85 - 68.92MOQ: 1 Piece
-
Casting Hydraulic Control Valve for Water in Die Casting ApplicationsUS$ 199.87MOQ: 1 Piece
port size
DN15-DN300
structure
Plug
type
PLUG VALVES
model number
X43W/X44W, X43W/X44W
brand name
CHX, brand name CHX
place of origin
Hebei, China
application
General
customized support
OEM, ODM
media
Water
power
Manual, Manual
temperature of media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature, High / Low/Medium / Normal Temperature
warranty
1 years, 12 months
Certification
ISO,EAC,WRAS,CE
Keyword
Plug Valv
Connection type
Flange,Thread,Welding
Pressure
JIS10-20K, ANSI Class 150-900, Pn1.0-32.0MPa
Body material
Cast /Carbon Steel WCB SS304SS316
Specification
API Flange Plug Valve main material of parts | ||
Body,Bonnet | ASTM A216 WCB/ASTM A351 CF8/ASTM A351CF8M | |
Stem | ASTM A76 420/ASTM A182 F304/ASTM A182 F316 | |
Stem Nut | Brass | |
Disc | ASTM A216 WCB | |
Seat | 13Cr/STM A351 CF8/STM A351 CF8M | |
Hand wheel | ASTM A47 | |
Gasket | Graphite | |
Packing | Graphite | |
API Flange Plug Valve Standard | ||
Design Standard | API 6D/API 600/API 603 | |
Face to Face | ASME B16.10 | |
Flange Standard | ASME B16.5 | |
Testing Standard | API598 | |
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings. It is located in
Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons.Both national and international standard products are produced.The national standard has 12 series, more than 3000 specifications.
The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The
international standard include DIN, GOST(Russian standard), BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on. A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering, technical staff and senior management of more than 60 pesons. The annual out put is over 20000 tons.Both national and international standard products are produced.The national standard has 12 series, more than 3000 specifications.
The products covers gate valve, globe valve, check valve, ball valve, butterfly valve, strainer, balancing vlave, etc. The
international standard include DIN, GOST(Russian standard), BS, ANSI, JIS. Many prodcuts have been exported to many countries such as Ireland, Peru, Russia, Pakistan, Korea, Vietnam, Indonesia and so on. A complete quality control system is set for each working procedure from raw material to finish products. Totally 28 tests are run through to ensure stable quality. Currently the modern physical and chemical laboratories has been built. The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system, EAC and WRAS certificats.
FAQ
1.Q: Are you a manufacturer or trading company ?
A: We are a professional valve factory Located In Hebei, China.
2. Q: What's Execution Standard of products?
A:ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
3. Q: Is there any stock in your factory? And How long is your delivery time?
A: We stock valves with normal sizes. Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
4. Q: Can you provide the relevant documentation and certificate?
A: Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test
reports according to the customers need.
5. Q:Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
6.Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
7.Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. If you have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share.
A: We are a professional valve factory Located In Hebei, China.
2. Q: What's Execution Standard of products?
A:ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
3. Q: Is there any stock in your factory? And How long is your delivery time?
A: We stock valves with normal sizes. Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
4. Q: Can you provide the relevant documentation and certificate?
A: Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test
reports according to the customers need.
5. Q:Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
6.Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
7.Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. If you have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share.
