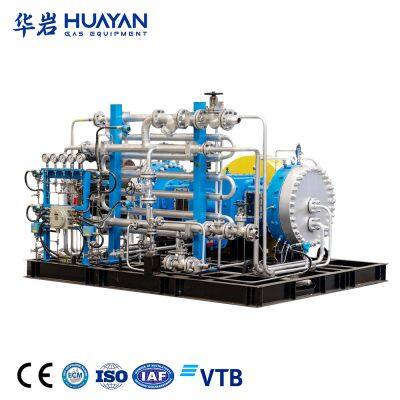

Help CenterFactory Direct Zero Leakage 99.999% Rare Gas Helium Neon Argon Diaphragm Compressor
Related Products
-
GD-100/7-150 High Pressure Gas Booster Hydrogen Chloride Methane Biogas Diaphragm CompressorUS$ 30000 - 65000MOQ: 1 Set -
GD-500/15-35 Hydrogen Chloride Oxygen Ammonia Gd Series Diaphragm CompressorUS$ 30000 - 65000MOQ: 1 Set
-
GD-150/2-20 High Pressure Neon Argon Gas Compressor Gd Diaphragm CompressorUS$ 30000 - 65000MOQ: 1 Set
-
GD-100/5.5-200 GD Diaphragm Compressor Hydrogen Sulfide Tetrafluoroethylene CompressorUS$ 30000 - 65000MOQ: 1 Set
-
GD-130/0.98-11 Large Size Oxygen Argon Nitrogen Diaphragm Compressor GD SeriesUS$ 30000 - 65000MOQ: 1 Set
About Us

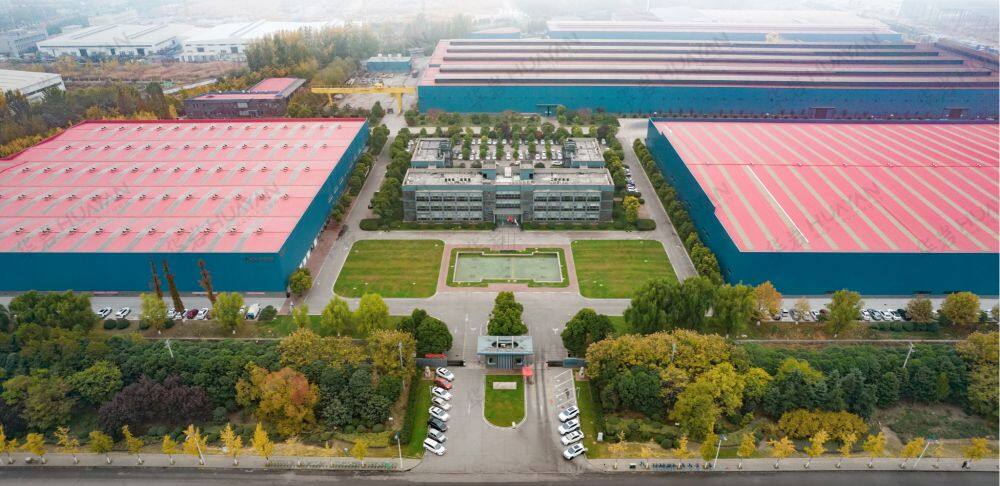

Xuzhou Huayan Gas Equipment Co., Ltd. is a premier global provider of gas compression solutions. With accumulated expertise in design and manufacturing spanning decades, our company possesses comprehensive production capabilities encompassing professional forging, casting, heat treatment, welding, precision machining, assembly testing, and quality verification processes. Supported by a dedicated technical team of 120 professionals and a sprawling 90,000 m² manufacturing facility, we maintain advanced technical testing equipment and rigorous quality control methods to ensure superior product performance.
Capable of custom-designing, manufacturing, and installing equipment according to specific customer parameters, we currently achieve an annual production capacity of 500 gas compressor units. Our technical excellence enables the development of compressors with discharge pressures up to 100MPa, meeting the most demanding industrial requirements.
With a global footprint extending to over 50 countries across five continents, including key markets such as Indonesia, Egypt, Vietnam, South Korea, Thailand, Finland, Australia, Czech Republic, Ukraine, and Russia, we deliver complete turnkey solutions for clients worldwide. Our commitment to operational excellence ensures every customer receives high-performance equipment paired with professional technical support and responsive service.
Process Principle

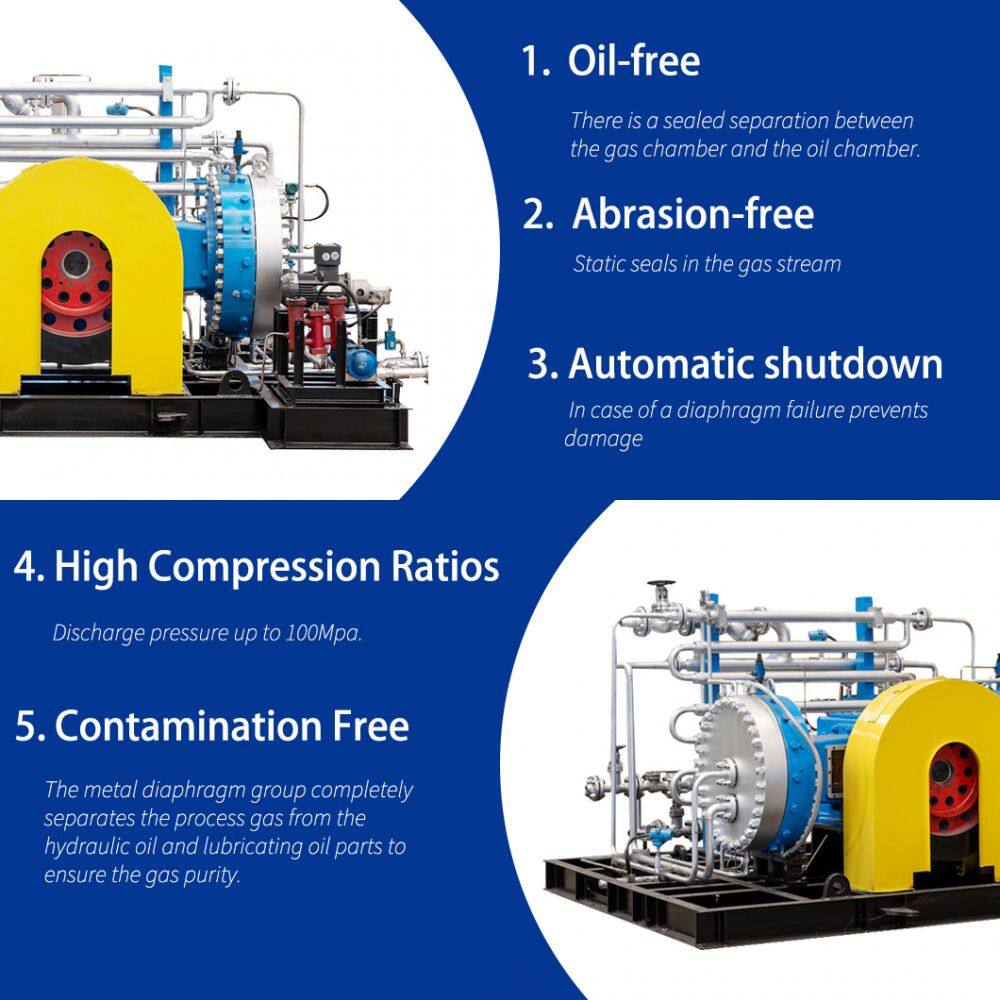

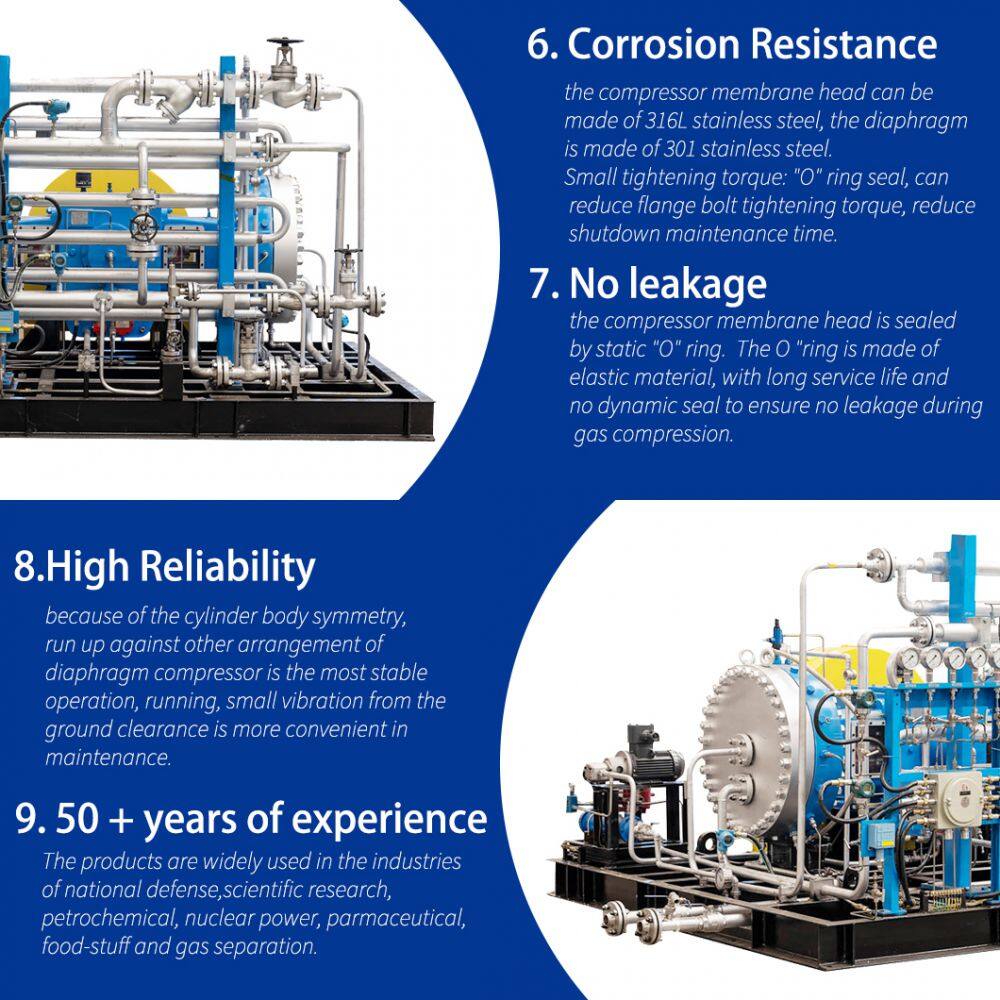

Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.
Main Structure

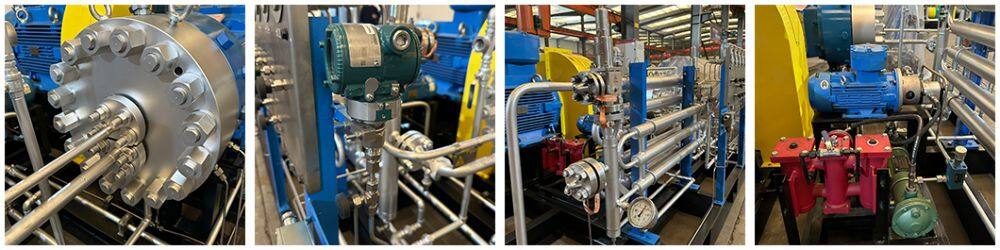

Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Gas Media
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.(Nitrogen diaphragm compressor,bottle filling compressor,oxygen diaphragm compressor)

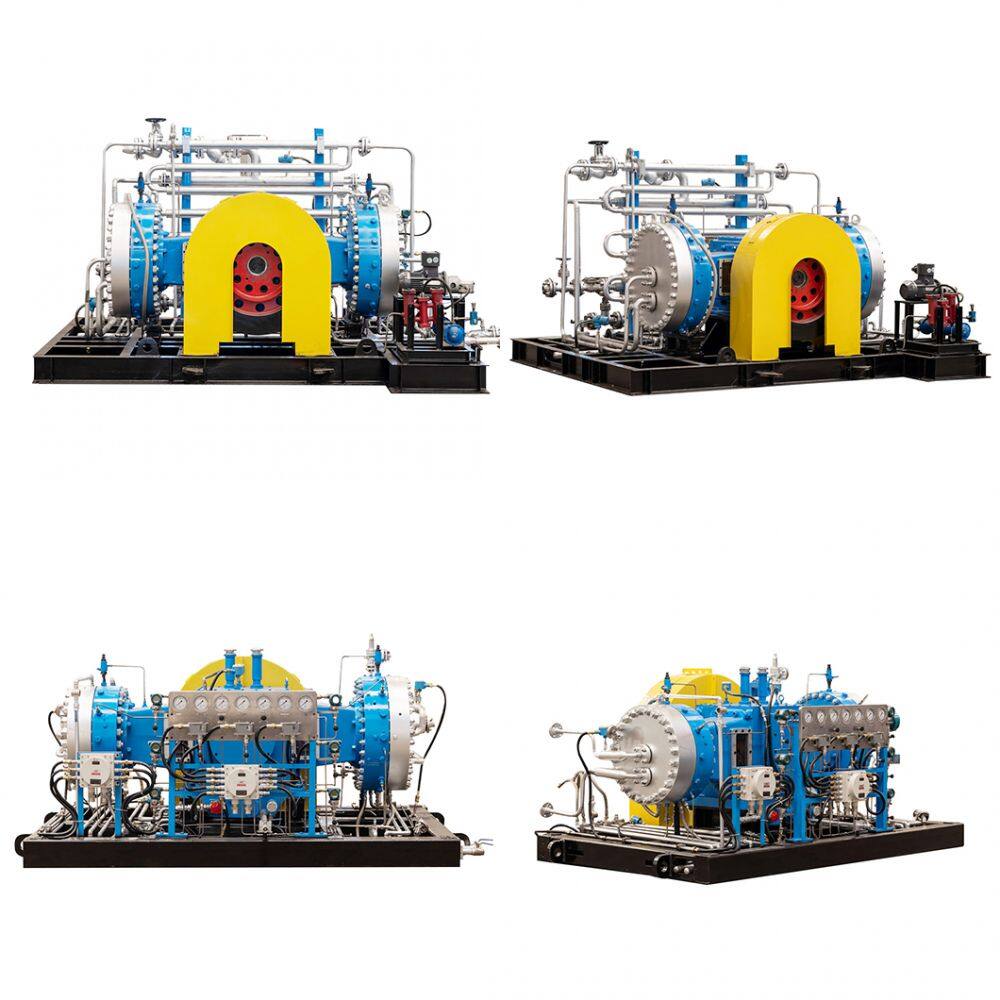

GD series diaphragm compressor :
Structure type : D type
Piston Travel : 130-210mm
Max Piston force : 40KN-160KN
Max discharge Pressure : 100MPa
Flow Rate Range :30-2000Nm3/h
Motor Power : 22KW-200KW
Product Description
| structure | vertical opposite balance |
| vertical opposite balancestroke | 130mm~210mm |
| max piston force | 40KN~160KN |
| max discharge pressure | 100MPa |
| flow range | 30~2000Nm³/h |
| motor power | 22KW~200KW |
| speed | 420rpm |
| cooling method | air/water |
Contact us for more product model and parameter details, support customization
Model | Cooling water (L/h) | Flow (Nm³/h) | Inlet pressure (MPa) | Outlet pressure (MPa) | Dimensions L×W×H(mm) | Weight (Kg) | Motor Power (kW) | |
1 | GD-120/4-80 | 3000 | 120 | 0.4 | 8.0 | 3000×1600×1400 | 4000 | 30 |
2 | GD-130/0.98-11 | 3000 | 130 | 0.098 | 1.1 | 3000×1800×1600 | 4000 | 30 |
3 | GD-150/2-20 | 3000 | 150 | 0.2 | 2.0 | 3000×1800×1600 | 4000 | 37 |
4 | GD-100/0.1-5 | 4000 | 100 | 0.01 | 0.5 | 2800×1500×1500 | 3000 | 18.5 |
5 | GD-100/5.5-200 | 5000 | 100 | 0.55 | 20 | 3200×2000×1600 | 4500 | 45 |
6 | GD-80/0.12-4 | 5000 | 80 | 0.012 | 0.4 | 2800×1600× 1500 | 3800 | 15 |
7 | GD-60/0.3-6 | 4000 | 60 | 0.03 | 0.6 | 2800×1600×1500 | 4000 | 15 |
8 | GD-70/0.1-8 | ,3800 | 70 | 0.01 | 0.8 | 3000×1600×1250 | 5000 | 18.5 |
9 | GD-40/0.02-160 | 5000 | 40 | 0.02 | 16 | 2800×1460×1530 | 3000 | 22 |
10 | GD-100/0.5-6 | 2000 | 100 | 0.05 | 0.6 | 3000×2000×1560 | 6000 | 18.5 |
11 | GD-36/1-150 | 4000 | 36 | 0.1 | 15 | 3000×1500×1500 | 4000 | 45 |
12 | GD-35/0.7-300 | 4000 | 35 | 0.07 | 30 | 3000×1600×1500 | 4000 | 22 |
Why Choose Us
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.
Our customers
Company Profile
About us
Xuzhou Huayan Gas Equipment Co., Ltd.,is a leading gas compressors provider, Our company has accumulated rich design and manufacturing experience. Has professional forging, casting, heat treatment, welding, machining , assembly test and other production and processing capabilities, And complete technical testing equipment and methods. We can design, manufacture and install products according to the parameters of customers.
An annual output of 500 sets of various gas compressors has been formed. At present, the compressor outlet pressure produced by the company can reach up to 50MPa. Our products have been exported to dozens of countries around the world, Mainly: Indonesia, Egypt, Vietnam, South Korea, Thailand, Finland, Australia, Czech Republic, Ukraine, Russia and other countries, We can provide complete one-stop solutions for every customer around the world, Our company guarantees that every customer is assured with high-quality products and excellent service attitude.
CERTIDICATION
Patent certificate
Our company's products have passed ISO9001, 14001 and CE certificates, and we can also provide relevant certificates that meet customer national requirements.
Packing & Delivery

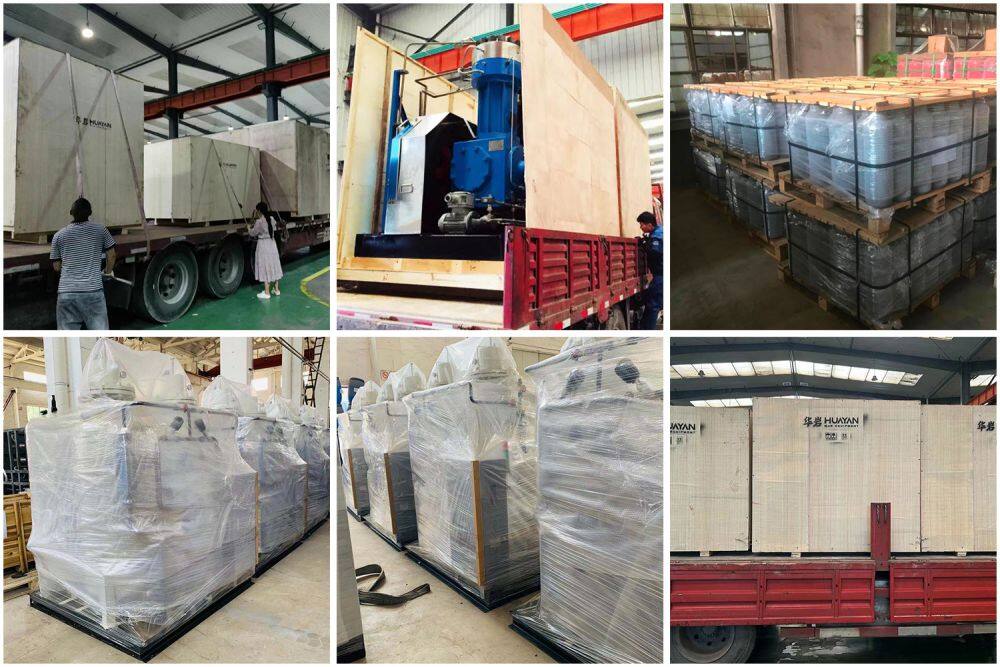

Package
We use sturdy wooden packaging to ensure that our products are delivered to you safely and in good condition.
Customized is accepted , Pls provide the following information to us :
1.Flow rate: _______Nm3/h
2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas ?
3.Inlet pressure: ___bar(g)
4.Inlet temperature:_____ºC
5.Outlet pressure:____bar(g)
6.Outlet temperature:____ºC
7.Installation location: _____indoor or outdoor?
8.Location ambient temperature: ____ºC
9.Power supply: _V/ _Hz/ _3Ph?
10.Cooling method for gas: air cooling or water cooing?
Wide variety and types of diaphragm compressor can be manufactured by our company such as hydrogen compressor , nitrogen compressor , helium compressor , natural gas compressor and etc .
Outlet pressure at 50bar 200 bar, 350 bar (5000 psi), 450 bar, 500 bar, 700 bar (10,000 psi), 900 bar (13,000 psi) and other pressure can be customized .
FAQ :
Q1.How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.
Q2.What's payment term?
A: T/T, L/C, D/P, Western Union, Trade Assurance and etc. Also we could accept USD, RMB, GBP, Euro and other currency.
Q3 : How long is your air compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.
