Home > Instruments & Meters > Other Instruments & Meters > Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing

Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing

Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing thumbnail-1
Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing thumbnail-2
Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing thumbnail-3
Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing photo-1
Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing photo-2
Ultrasonic Test Block Csk-ia, Manufactured by Jining High-tech Dongfang Mold Manufacturing photo-3
US$ 150.77 ≥1 Piece
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Jining, Shandong, China
Contact Supplier Request Quote Chat Now
Jining Gaoxin Orient Mold Manufacturing Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

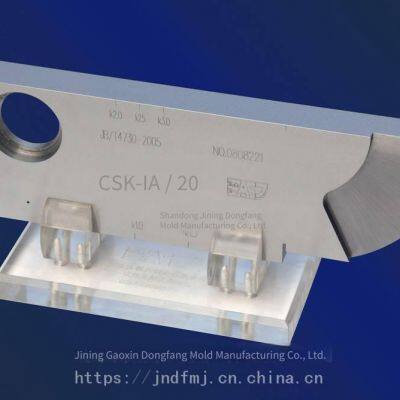

  The CSK-IA test block is improved based on the IIW test block. Its main uses are as follows: 1. Use the R100mm curved surface to measure the incident point and front length of the oblique probe; 2. Use the 50 and 1.5mm round holes to measure the refraction angle of the oblique probe; 3. Use the right - angled edge of the test block to measure the deviation of the sound beam axis of the oblique probe; 4. Use the 25mm thickness to measure the horizontal linearity, vertical linearity and dynamic range of the flaw detector; 5. Use the 25mm thickness to adjust the longitudinal wave detection range and scanning speed; 6. Use the R50 and R100mm curved surfaces to adjust the transverse wave detection range and scanning speed; 7. Use the three stepped holes of 50, 44 and 40mm to measure the resolution of the oblique probe.


Contact person: Ms. Wu: 17660165258 (WeChat same number) 0537 - 2351412


Product Tags: Ultrasonic test block , Test block , Weld test block
