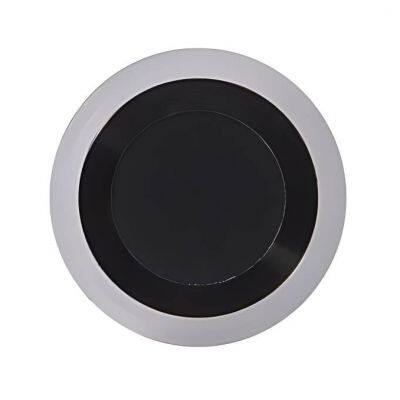

The capacitive fingerprint sensor module ID1016 is a compact and high-performance semiconductor fingerprint recognition solution designed for embedded and integrated devices. Powered by a Cortex-M4 core processor running at 240MHz, this module delivers fast processing speed, stable performance, and excellent fingerprint recognition accuracy.
By adopting advanced capacitive fingerprint sensing technology, the module captures clear and detailed fingerprint images, providing reliable recognition for dry, wet, and rough fingers. Its small form factor, low power consumption, and simple development interface make it ideal for large-scale commercial and industrial applications.
Key Features
High-resolution capacitive fingerprint sensor for clear and stable imaging
Compact design for easy integration into various terminal devices
Accurate recognition for dry, wet, and rough fingerprints
Supports up to 500 fingerprint templates
Low false acceptance rate and high recognition accuracy
Fast fingerprint acquisition and matching speed
Supports Windows and Android development environments
Technical Specifications
| Product Model | ID1016 |
| Sensor Type | Capacitive |
| Effective Acquisition Window | 8 × 8 mm |
| Image Size | 160 × 160 pixels |
| Image Resolution | 508 DPI |
| Fingerprint Storage Capacity | 500 templates |
| False Acceptance Rate (FAR) | <0.001% (Security Level 3) |
| False Rejection Rate (FRR) | <2% (Security Level 3) |
| Matching Method | 1:1 and 1:N |
| Fingerprint Template Size | 1008 bytes |
| Security Level | Level 1 to Level 5 (Default: Level 3) |
| Matching Speed | 1:N (200 fingerprints) <0.6 s |
| Communication Interface | UART, 3.3V TTL |
| Baud Rate | 9600 – 115200 bps (Default: 115200) |
| Operating Voltage | DC 3.3V ±10% |
| Operating Current | <40 mA |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 20% to 80% RH |
| Supported Operating Systems | Windows, Android |
Applications
Fingerprint door locks
Fingerprint safes and lockers
Access control systems
Attendance and time tracking systems
Smart home and IoT devices
FAQ
What is a capacitive fingerprint sensor module?
A capacitive fingerprint sensor module uses semiconductor technology to detect fingerprint ridges and valleys through electrical capacitance differences, offering high accuracy and strong resistance to wear.
How many fingerprints can this module store?
The capacitive fingerprint module ID1016 supports the storage of up to 500 fingerprint templates, making it suitable for small to medium-scale access control applications.
Does this capacitive fingerprint scanner work with dry or rough fingers?
Yes. The sensor is optimized to capture high-quality images from dry, wet, and rough fingers, ensuring reliable recognition for diverse users.
Is development support available?
Yes. The module supports Windows and Android platforms and provides development documentation to simplify integration and secondary development.
What interfaces does the fingerprint sensor support?
The module communicates via UART with a 3.3V TTL logic level, making it easy to connect to microcontrollers and embedded systems.
Why Choose Our Capacitive Fingerprint Sensor Module
With its compact design, fast recognition speed, low power consumption, and stable performance, this capacitive fingerprint sensor module is a reliable solution for manufacturers seeking secure and cost-effective biometric identification technology.
