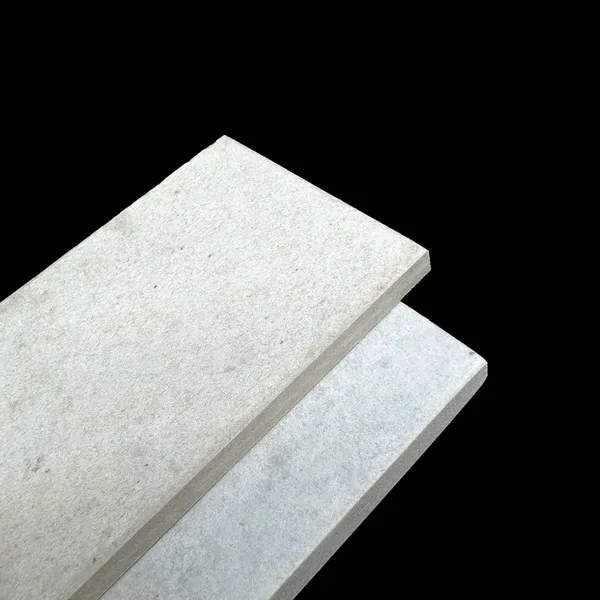

Low Thermal Conductivity Calcium Silicate Board for Enhanced Thermal Insulation Performance
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Calcium Silicate
Fire Rating:
Other, Class A Non-combustible
Thickness:
Customizable (5-100mm typical)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Moisture-Resistant Calcium Silicate Board Suitable for High Humidity Environments and Clean RoomsNegotiableMOQ: 100 Pieces -
Durable Calcium Silicate Board 2440x1220mm for Industrial Furnaces and High-Temperature ApplicationsNegotiableMOQ: 100 Pieces
-
High Density Calcium Silicate Board 10-15mm Thickness Thermal Insulation Wall PanelNegotiableMOQ: 500 Pieces
-
Precision Cut Calcium Silicate Sheets Smooth Surface for Interior Decoration 9mm-20mmNegotiableMOQ: 500 Pieces
-
A1 Fire Rated Calcium Silicate Board Moisture Resistant for Commercial BuildingsNegotiableMOQ: 500 Pieces
Material
Other, Calcium Silicate
Fire Rating
Other, Class A Non-combustible
Thickness
Customizable (5-100mm typical)
Application
Industrial Furnaces, Pipe Insulation
Thermal Conductivity
Low (Specific value available upon request)
Certification
ISO9001, ISO14000
Max Service Temperature
1000°C (1832°F)
Density
170-220 kg/m³ (Customizable)
As a leading manufacturer certified with ISO9001 and ISO14001, Shanxi Pano Building Materials leverages our 30,000-50,000 sqm production facility to deliver premium Calcium Silicate Insulation Boards engineered for exceptional thermal management. With over US$2.5 million in annual exports to 15+ global markets including North America and Europe, our products meet rigorous international standards for industrial applications where energy efficiency and safety are paramount.
This specialized board features:
- Ultra-Low Thermal Conductivity – Minimizes heat transfer in high-temperature environments up to 1000°C (1832°F)
- Precise Dimensional Stability – Maintains structural integrity under thermal cycling
- Non-Combustible Composition – Meets Class A fire safety requirements
- Corrosion Resistance – Withstands chemical exposure in harsh industrial settings
Technical specifications for standard grades:
| Property | Standard Value | Custom Range |
|---|---|---|
| Density | 220 kg/m³ | 170-250 kg/m³ |
| Compressive Strength | ≥0.5 MPa | 0.3-1.2 MPa |
| Linear Shrinkage (1000°C) | ≤2% | Adjustable |
| Thermal Conductivity | 0.055 W/(m·K) @ 200°C | Optimizable |
Key operational benefits include:
- Energy Savings – Reduces heat loss by up to 40% compared to conventional materials
- Installation Efficiency – Lightweight design (30% lighter than cement boards) cuts labor costs
- Long Service Life – Resists degradation in temperatures from -40°C to 1000°C
- Environmental Compliance – Asbestos-free formulation aligns with global safety regulations
Backed by our 200+ skilled workforce and major port shipment capabilities via Tianjin/Qingdao, we guarantee batch-to-batch consistency for critical infrastructure projects across power plants, refineries, and marine applications. Our technical support team provides application-specific guidance to optimize your insulation performance while meeting regional compliance requirements in target markets like Oceania and South America.
FAQ:
-
Q: What is the maximum temperature tolerance?
A: Standard boards withstand continuous exposure up to 1000°C (1832°F), with higher grades available upon request. -
Q: Are custom sizes available?
A: Yes, we produce boards in thicknesses from 5mm to 100mm and panel dimensions up to 1200x600mm. -
Q: How does this compare to ceramic fiber boards?
A: Our calcium silicate boards offer superior mechanical strength and lower dust emission during handling. -
Q: What certifications do you provide?
A: All shipments include ISO9001/14001 certificates. Additional documentation like test reports is available. -
Q: What is the lead time for export orders?
A: Standard orders ship within 15 days from Tianjin/Qingdao ports. Expedited production is possible. -
Q: Can these boards be used in humid environments?
A: Yes, they feature hydrophobic properties with optional moisture-resistant treatments.
