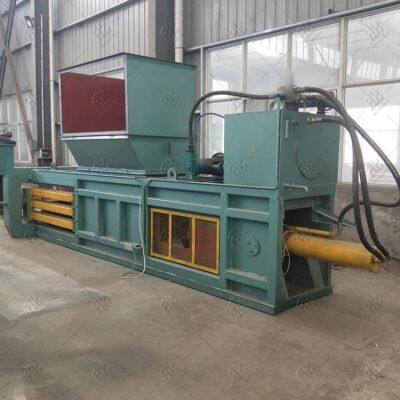

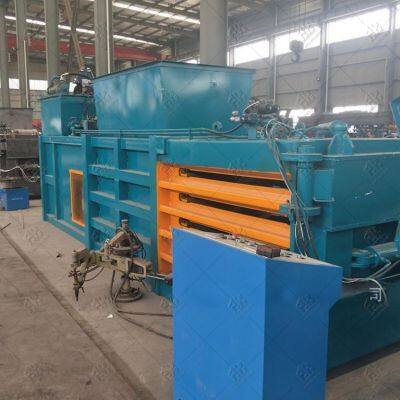

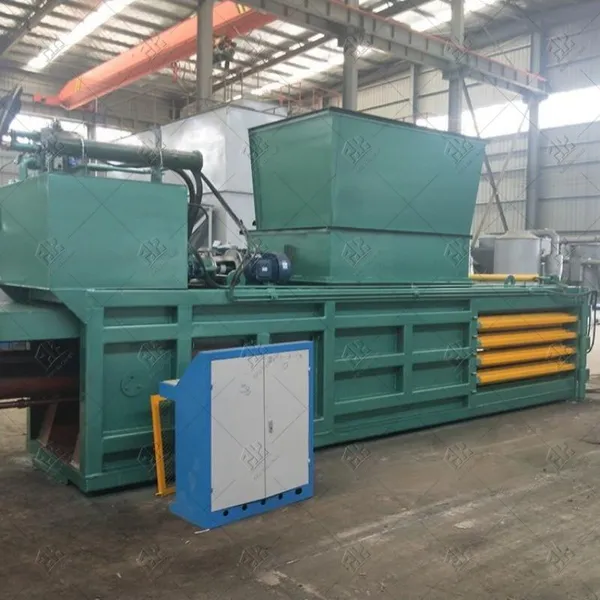

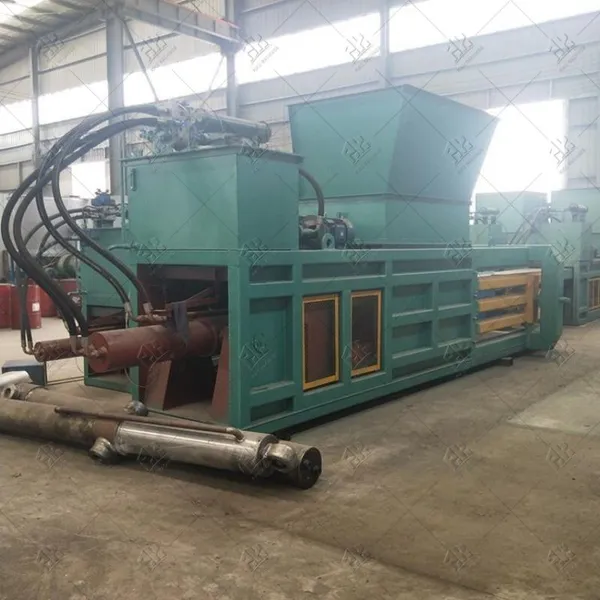

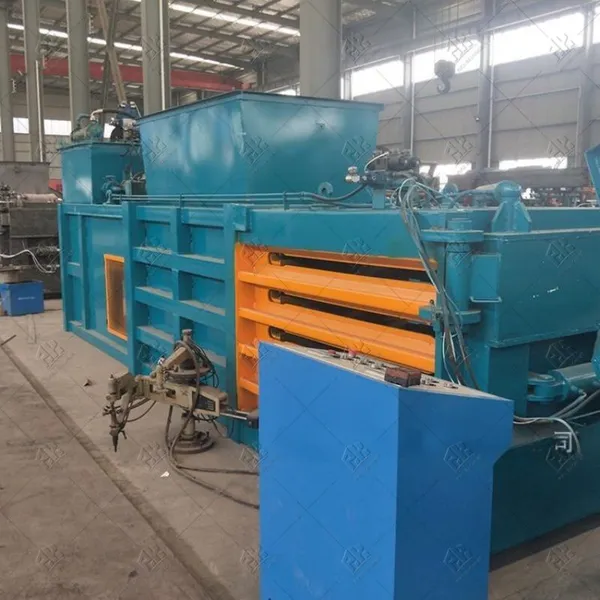

Help CenterAutomatic Horizontal Hydraulic Carton Compress Scrap Cardboard Baler Machine
Related Products
-
Horizontal Baling Machine Paper Scrap Carton Cardboard Baler Cardboard Box Waste BalerUS$ 4500 - 6800MOQ: 1 Set -
Waste Plastic Compressor Machine Waste Paper Baler Machine Hydraulic Horizontal BalerUS$ 4500 - 6800MOQ: 1 Set
-
Factory Waste Foam Textile Press Baler MachineUS$ 4500 - 6800MOQ: 1 Set
-
Mafanucturer Waste Fabric Leather Press Baler MachineUS$ 4500 - 6800MOQ: 1 Set
-
Mafanucturer Waste Biomass Straw Press Baling Machine Rice Straw BalerUS$ 4500 - 6800MOQ: 1 Set
Waste paper baler is a kind of mechanical equipment used to compress the scattered waste paper into a tight package, through the hydraulic system and mechanical structure design, the waste paper will be compressed and baled into shape, so as to reduce the volume, save the transport cost and improve the processing efficiency.Waste paper baler series products are: automatic waste paper baler, semi-automatic waste paper baler, automatic waste paper baler, pressurised waste paper baler, hydraulic waste paper baler, waste paper baler, horizontal waste paper baler, small waste paper baler, semi-automatic hydraulic waste paper baler, semi-automatic horizontal waste paper baler, metal waste paper baler, automatic waste paper baler, etc., baler products through CE, SO9001 and other domestic and international certification, quality assurance, first-class service. Baler price offer moderate, cost-effective! structure :
Waste paper baler is a mechatronic product, mainly composed of mechanical system, control system, feeding system and power system. The whole baling process consists of auxiliary time such as bale pressure, return, box lifting, box transfer, bale out upward, bale out downward, and bale receiving.
the waste paper baler on the market is mainly divided into horizontal and vertical two kinds, vertical waste paper baler is relatively small, because the baling size is also relatively small, and the efficiency is not high. The horizontal waste paper baler is huge compared to the vertical baler, but its compression force is also larger than the vertical baler, the size of the bales is relatively large, the efficiency of the bales is high, and it is easy to automate the operation, because the general waste paper baler adopts the horizontal form. Horizontal waste paper baler is easy to automate, can improve the total efficiency of baling, saving baling labour costs!
working principe:
Waste paper hydraulic baler wire frame is mounted on a frame of 4 sets of wire devices, the entire wire frame hanging compression frame on a central axis, under the action of the hydraulic motor relative to the compression frame for the horizontal direction of movement, compression frame for the welded components, the bottom is equipped with wheels, driven by hydraulic cylinders can be along the main slide for horizontal movement. The lifting platform is mainly made of two horizontal beams bolted together, and the lifting platform can move up and down along the vertical direction under the impetus of two hydraulic cylinders.
Compression frame and compression frame structure is basically similar, but above the arrangement of 4 baling head, a set of feeding line device. Hydraulic baler baling head (a total of 4) is the most complex structure of the whole device, the action of the most interlocking components, each hydraulic baler baler baling head structure is exactly the same, can be interchanged. There are 4 sets of line feeding device, each set corresponds to one baling head, each set includes baling line conveying device and baling line anti-tensioning device. Waste paper hydraulic baler main rail seat is mainly composed of two wear-resistant rails on the surface. Pressure frame wheels are guided along the outside of the two rails to run, push the pressure frame running hydraulic cylinders are arranged in it. In addition, there is a complete hydraulic station in addition to the mechanical components. As can be seen from the above description, the hydraulic baler of waste paper by the fluid power to complete a variety of movements
Technical parameters
| model | RK80 | RK100 | RK120 | RK160 | RK180 | RK200 |
| DRIVING SYSTEM | High and low pressure design of hydraulic system | |||||
| motor | 15kw hydraulic pump*1 | 22kw hydraulic pump*1 | 22kw+15 kw hydraulic pump *2 | |||
| rated engine capacity | 63 ml/r | 80ml /r | 100ml /r | 230 ml/r | ||
| rated press | 31.5 Mpa | |||||
| Nominal push | 800 KN | 1000KN | 1200 KN | 1600KN | 1800KN | 2000 KN |
| System hydraulic | 28 Mpa | |||||
| controller | PLC , raw materail expore, Auto/ manual | |||||
| hydraulic oil | #46 antiwear hydraulic oil | |||||
| port (W*H) mm | 1300*720 | 1500*820 | 1700*1020 | 2000*1020 | 2000*1020 | 2000*1020 |
| bale size (w*h) mm | 700*800 | 900*1000 | 1100*900 | 1100*1200 | 1100*1300 | 1100*1400 |
| Bale density kg/m3 | ≥400 | |||||
| capacity | 4-6 bale | 4-10 bale | ||||
| strapping | tempered wire diameter 2.8 or 3.2 mm. 4-wire/line | |||||
