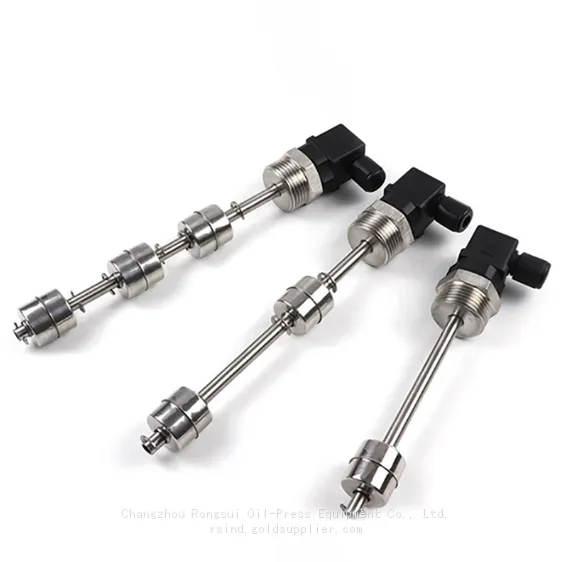

Help CenterFloat Switch Husman Type
Related Products
-
Float Switch Straight Out Line TypeNegotiableMOQ: 1 Unit -
Conventional Liquid Level SensorNegotiableMOQ: 1 Unit
-
Pressure and Temperature Sensors (dual Output: Simultaneously Testing Pressure and Temperature)NegotiableMOQ: 1 Unit
-
Replace Danfoss Pressure SensorsNegotiableMOQ: 1 Unit
-
Pressure Sensor/transmitter Hirschman TypeNegotiableMOQ: 1 Unit

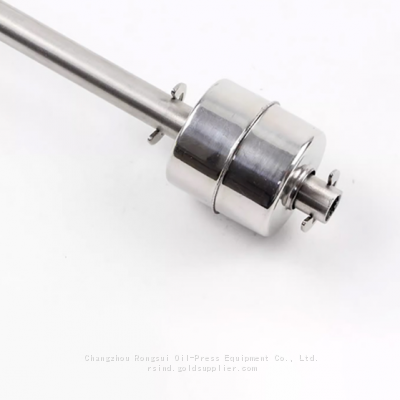

The liquid level float switch is mainly composed of a magnetic spring switch and a float ball. The float ball contains magnetic material, and one or more magnetic spring switches are installed in a closed non-magnetic metal or plastic tube. Then, the conduit is passed through one or more float balls with magnetic material, and a fixed double ring is used to control the float ball and the magnetic spring switch in the relevant position. As the liquid rises or falls, the float ball uses the contact point near the beginning of the magnetic spring inside the ball to produce on/off actions, which control or indicate the liquid level (when the float ball approaches the magnetic spring switch, it is conductive; when it leaves, the switch is disconnected). The liquid level float switch can be used as a water level sensor for water heating equipment such as water dispensers, water purifiers, water heaters, solar energy, air conditioners, humidifiers, coffee machines, small refrigerators, etc. It is widely used in automobiles, industrial equipment, agricultural equipment, and household appliances.
