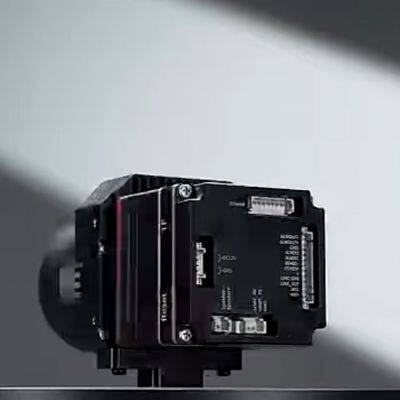

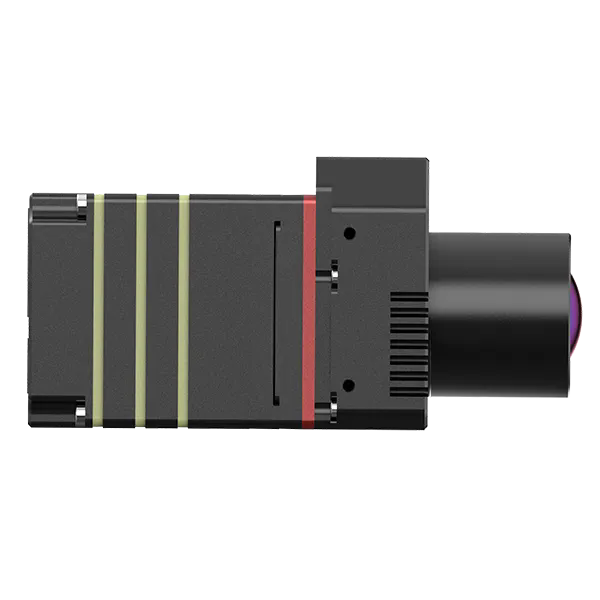

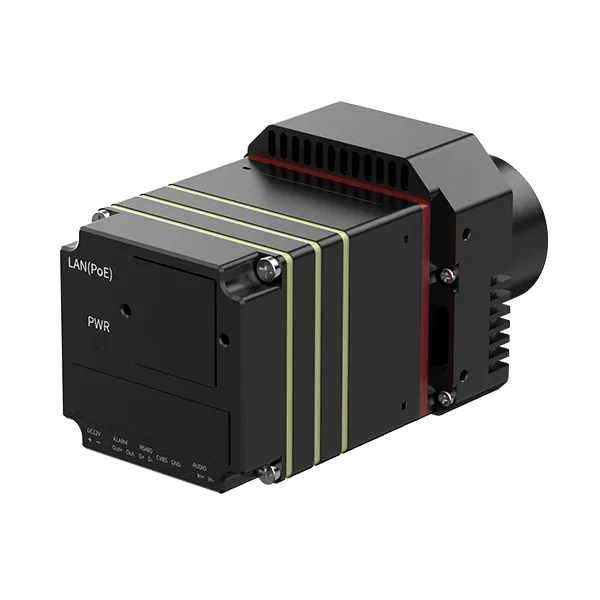

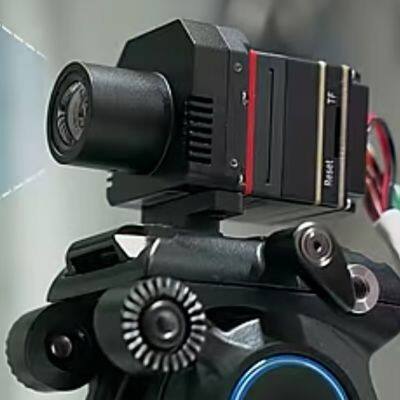

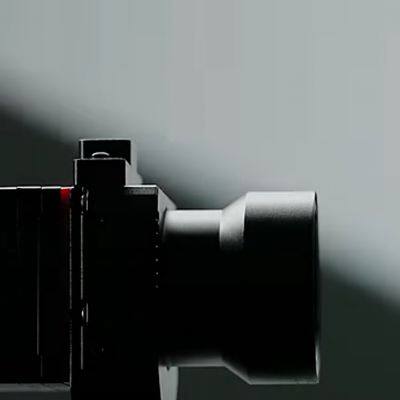

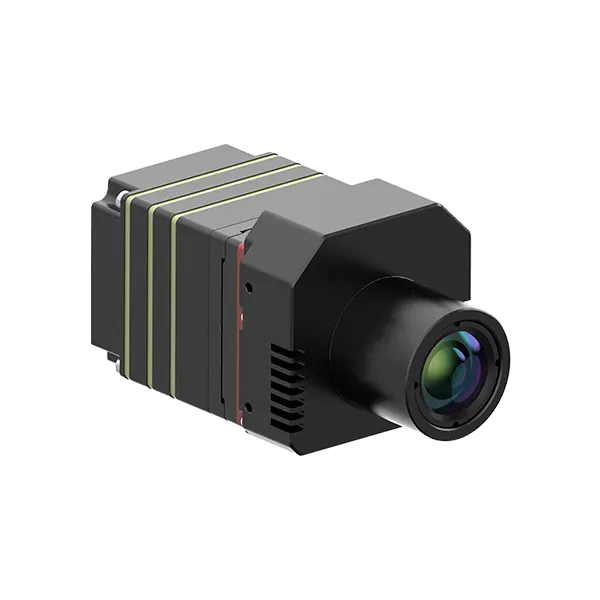

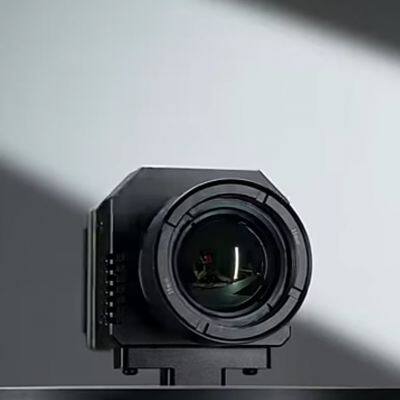

TN430 Fixed-Mount Thermal Camera
TN430 is a high-performance and high-precision network type temperature measurement thermal imager that uses a uncooled focal plane detector and offers multiple lens options.
Supports multiple protocols such as Modbus and Onvif, equipped with professional application software and universal SDK development package, with small size and low power consumption, making it easy to integrate industrial automation applications.
Feature
High-Quality Image Output
TN430 can output high-quality infrared images with a resolution of 384×288, providing clear and delicate infrared thermal images for temperature data analysis and determination.
High-Speed Frame Rate And Real-Time Data Transmission
With a frame rate of up to 50Hz, TN430 can capture temperature changes at a very high speed. It is very suitable for applications requiring real-time monitoring of temperature changes. It enables synchronous temperature data output, easy for secondary analysis based on the site conditions.
Wide Measurement Range And Multiple Lens Options
With a wide measurement range from -20°C to +650°C, TN430 is suitable for industrial scenarios with various temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.
Specification
| Thermal Imaging Parameters | |
|---|---|
| DetectorUncooled VOx detectorInfrared Resolution384×288Pixel pitch12μmSpectral Band7.5μm~14μmThermal Sensitivity (NETD)≤40mK | |
| Temperature Measurement Function | |
| Measurement Range-20℃~+150℃, 0~650℃Measurement Accuracy±2°C or ±2% of readings, whichever is greater.Temperature Measurement CorrectionReflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distanceMeasurement ToolSettings of measurement rules for a total of 12 points, 12 lines, and 12 areas,support isotherm settingTemperature Width StretchSupport temperature width stretch | |
| Image and Video | |
| Frame Rate50HzPalettes20 color palettes including black-hot, white-hot, iron red, rainbow, etc.Video StandardsH.264, H.265Thermal Image CaptureSupport thermal image capture and secondary analysisMirror ImageHorizontal/Vertical/DiagonalDigital Zoom1.0~8.0 continuous zoom (step size: 0.1) | |
| System Interface | |
| Communication interfaceRJ45, supporting Gigabit network.1-channel RS485, supporting Pelco-D protocol expansion (optional).Audio Interface1-channel audio input, 1-channel audio outputVideo Interface1-channel analog videoAlarm Interface1-channel alarm input, 1-channel alarm outputStorage InterfaceSupport TF cardNetwork ProtocolIPv4, HTTP, HTTPS, SMTP, FTP, UPnP, DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCPInterface ProtocolModbus TCP, ONVIF, GB28181, MQTT | |
| Device Specifications | |
| Operating Temperature-40°C~+70℃Power supply mode9V-15V DC, optional POE power supplyTypical Power Consumption2.4WDimensions45mm×44mm×60mm (without lens)WeightAbout 110g (without lens) | |
Application Scenarios
| Industrial Manufacturing | Machine Vision | Power Monitoring | Railway Inspection |
