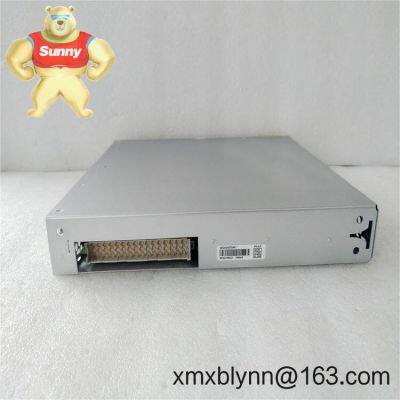

Help CenterABB 3BDS005799R1 – OEM Control Board for ABB DCS/800xA Platforms, Like‑for‑Like Replacement
Related Products
-
ABB 3BSE008500R1 – S800 I/O Series Module for 800xA / AC 800M SystemsUS$ 2560.00MOQ: 1 Blade -
ABB 3BSE013220R1 – S800 I/O Terminal/Base Unit for 800xA / AC 800M InstallationsUS$ 2560.00MOQ: 1 Blade
-
ABB 3BSE066485R1 – System 800xA/S800 I/O Spare Module for Fast, Form-Fit ReplacementUS$ 2560.00MOQ: 1 Blade
-
ABB PM857K01 (3BSE088385R1) — AC 800M Controller CPU for Reliable Process Automation and 800xA UpgradesUS$ 2560.00MOQ: 1 Blade
-
ABB PM857K02 (3BSE088386R1) – High‑performance AC 800M Controller Kit for 800xA Process ControlUS$ 2560.00MOQ: 1 Blade
Order Placement Process and Guarantees
Warranty: 365 days
Delivery: 1 week when in stock; no more than one month at the latest
Payment: 50% advance payment, full payment for delivery
Express options: fedex, UPS, DHL
Key Features
Genuine ABB spare: Supplied as an OEM board assembly for like‑for‑like replacement, minimizing validation effort.
Plug-and-play in existing racks: Typically installed into the original slot with no wiring or cabinet changes.
Backplane powered: Draws power from the host rack, so there’s no need for a separate supply line.
Lifecycle-friendly: Helps extend system availability during phased upgrades or hot‑spare strategies.
ESD-safe packaging and traceability: Shipped sealed with identifiable part/serial for maintenance records and compliance.
No application rework: Keeps the same signal handling and interfaces as the board it replaces, which in most cases avoids software edits.
Technical Specifications
| Brand / Model | ABB 3BDS005799R1 |
| Product Type | OEM board-level spare for ABB DCS/800xA cabinet installations |
| HS Code | 8537.10 |
| Power Requirements | Powered via system backplane of the host ABB rack (24 VDC rack supply, typical) |
| Operating Temperature | Typically 0…55°C when installed in a ventilated industrial control cabinet |
| Signal I/O Types | Matches the original slot function in the system (no change to field wiring) |
| Communication Interfaces | As per the board it replaces; uses the existing backplane/system bus interfaces |
| Installation Method | Plug-in replacement in the designated ABB rack slot; ESD-safe handling required |
Related or Supporting Products
ABB PM864A (3BSE018161R1) – AC 800M CPU module; for plants standardizing on System 800xA control processors.
ABB CI854A (3BSE025751R1) – PROFIBUS DP communication interface; used when fieldbus integration is required.
ABB TU810V1 (3BSE013230R1) – S800 I/O termination unit; common in cabinet retrofits and expansions.
24 VDC DIN-rail power supplies (industrial) – Stabilized supplies for racks and auxiliary loads, typically 120/240 VAC input.
If your installation sits on System 800xA or Advant, these modules are often seen together during expansions or lifecycle upgrades. One thing I appreciate is how they keep cabinet wiring tidy and predictable across revisions.
Installation & Maintenance
Cabinet environment: Mount in a clean, dry, ventilated enclosure. Follow IEC/UL cabinet standards and maintain airflow to keep internal temps stable.
Wiring & grounding: Verify protective earth continuity and backplane seating. From my experience, reseating connectors and inspecting backplane pins prevents intermittent faults.
ESD precautions: Use wrist straps, antistatic mats, and handle only by edges.
Commissioning: Power down the rack if required by your site procedures, insert the board firmly, then restore power and run system diagnostics.
Routine maintenance: Quarterly dust removal with dry air, check cabinet filters, and review system logs. Firmware or configuration is typically inherited from the rack; apply updates per site change control.
Spares strategy: Keep one tested hot spare on-site; label the slot ID and firmware baseline for quick swap-outs.
Quality & Certifications
Conformity: CE-compliant; RoHS-compliant in most cases for board-level spares
Standards: Manufactured under ISO 9001 quality systems; many ABB control components are UL Recognized
Warranty: 365-day warranty from delivery
If you need confirmation of fit for a specific cabinet slot or software revision, share the controller type, rack ID, and current part code on site—the matching check usually takes just a few minutes and helps avoid repeat trips to the panel.
