Help CenterEmerson Fuse 10a 250v G4a01098c for Appliance Wire Speed
Related Products
-
us Nevada Nano Mps Mini Flammable Gas Sensor for Gas Detection, Small Model for MethaneUS$ 123.08MOQ: 10 Pieces -
Original and Authentic us Nevada Nano Mps Flammable Gas Sensor for Gas Detection of Methane and Butane With Ultra-low Power ConsumptionUS$ 276.92MOQ: 10 Pieces
-
Johnson Electric Automotive Brushless Motors, Industrial Motors, Automotive Motor Cooling, Communication Equipment Johnson Electric / Parlex CorporationUS$ -MOQ: 0
-
Emerson 69t Series Temperature Controller, Temperature Control Device for Home Appliances and Barbecue ProbeUS$ -MOQ: 0 Piece
-
Therm - o - Disc (formerly Emerson) 58t Series 58t1v, 58t1vd Thermostats for Commercial Water Heaters and Fan HeatersUS$ 46.15MOQ: 1 Piece

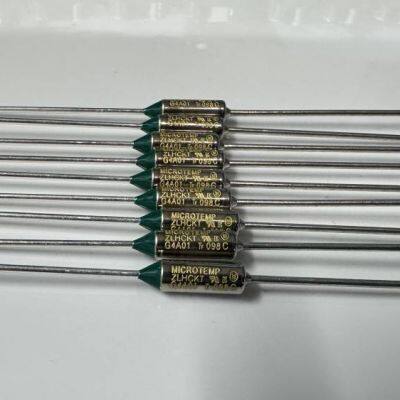

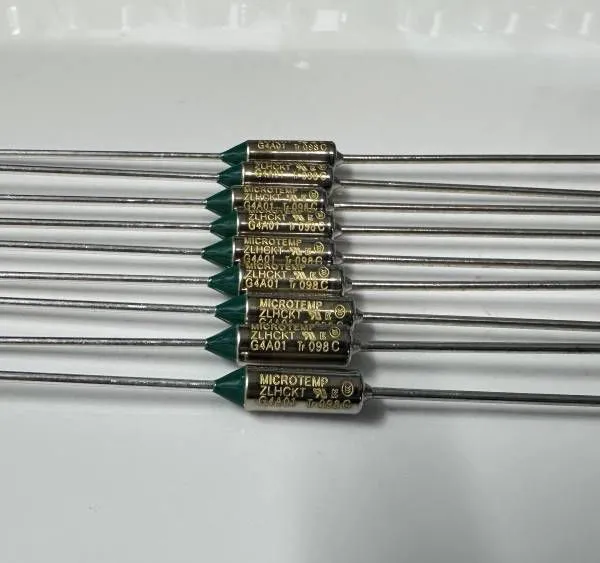

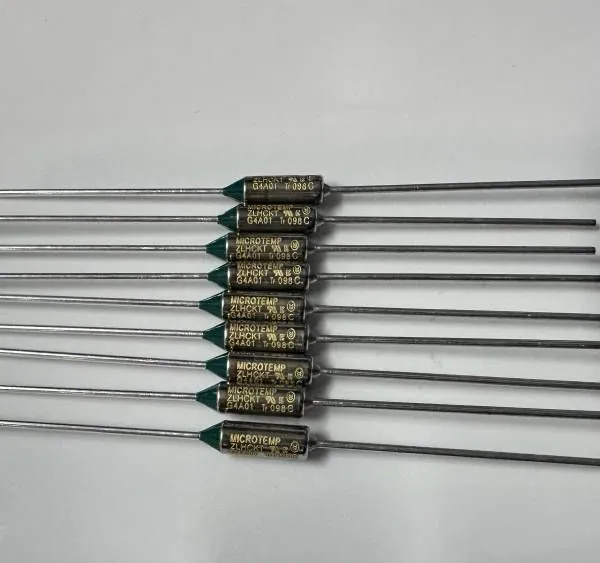

THERM-O-DISCproducedMICROTEMP G4orE4series thermal fuses, with a rated operating current of up to10Aat a voltage ofAC250V(the operating current is15AatAC120Vand5AatDC24V), can provide reliable overheat protection.The G4series thermal fuses are widely used in various global instruments, personal appliances, office equipment, portable heaters, and industrial heating equipment every year, providing overheat protection for them and reliable backup protection for internal temperature controllers.
Performance parameters:
Function: One-time fuse
Rated disconnection temperature range: 72°C – 257°C (162°F – 495°F)
Large electrical rating: 250VAC 10A, 120VAC 15A
Electrical load and safety regulations:
UL/CSA --10A/250VAC, 15A/120VAC,5A/24VDC
VDE -- 10A/250VAC
CCC -- 10A/250VAC
PSE JET -- 10A/250VAC
KC -- 10A/250VAC
Total length: 63.8mm (G4A00TTTC), 82.9mm (G4A01TTTC)
UL (US standard) standard specifications:
MICROTEMP
Zxxxxx cUL CCC
G4A00 TFXXXC
MICROTEMP
Zxxxxx cUL CCC
G4A01 TFXXXC
MICROTEMP
Zxxxxx cUL CCC
E4A00 TFXXXC
MICROTEMP
Zxxxxx cUL CCC
E4A01 TFXXXC
Specific models: G4A01072C, G4A00072C, G4A01073C, G4A00073C, G4A01077C, G4A00077C, G4A01084C, G4A00084C, G4A01093C, G4A00093C, G4A01098C, G4A00098C, G4A01104C, G4A00104C, G4A01110C, G4A00110C, G4A01117C, G4A00117C, G4A01121C, G4A00121C, G4A01128C, G4A00128C, G4A01134C, G4A00134C, G4A01141C, G4A00141C, G4A01144C, G4A00144C, G4A01152C, G4A00152C, G4A01158C, G4A00158C, G4A01167C, G4A00167C, G4A01172C, G4A00172C, G4A01184C, G4A00184C, G4A01190C, G4A00190C, G4A01192C, G4A00192C, G4A01205C, G4A00205C, G4A01216C, G4A00216C, G4A01229C, G4A00229C, G4A01240C, G4A00240C, G4A01257C, G4A00257C
E4A01072C, E4A00072C, E4A01073C, E4A00073C, E4A01077C, E4A00077C, E4A01084C, E4A00084C, E4A01093C, E4A00093C, E4A01098C, E4A00098C, E4A01104C, E4A00104C, E4A01110C, E4A00104C, E4A01110C, E4A00110C, E4A01117C, E4A00117C, E4A01121C, E4A00121C, E4A01128C, E4A00128C, E4A01134C, E4A00134C, E4A01141C, E4A00141C, E4A01144C, E4A00144C, E4A01152C, E4A00152C, E4A01158C, E4A00158C, E4A01167C, E4A00167C, E4A01172C, E4A00172C, E4A01184C, E4A00184C, E4A01190C, E4A00190C, E4A01192C, E4A00192C, E4A01205C, E4A00205C, E4A01216C, E4A00216C, E4A01229C, E4A00229C, E4A01240C, E4A00240C, E4A01257C, E4A00257C
JSE/PSE (Japanese standard) Standard specifications:
MICROTEMP 250~
Zxxxxx 10A CCC
E4A50 TFXXXC
MICROTEMP 250~
Zxxxxx 10A CCC
E4A51 TFXXXC
MICROTEMP 250~
Zxxxxx 10A CCC
G4A50 TFXXXC
MICROTEMP 250~
Zxxxxx 10A CCC
G4A51 TFXXXC
Specific models: E4A51072C, E4A50072C, E4A51073C, E4A50073C, E4A51077C, E4A50077C, E4A51084C, E4A50084C, E4A51093C, E4A50093C, E4A51098C, E4A50098C, E4A51104C, E4A50104C, E4A51110C, E4A50110C, E4A51117C, E4A50117C, E4A51121C, E4A50121C, E4A51128C, E4A50128C, E4A51134C, E4A50134C, E4A51141C, E4A50141C, E4A51144C, E4A50144C, E4A51152C, E4A50152C, E4A51158C, E4A50158C, E4A51167C, E4A50167C, E4A51172C, E4A50172C, E4A51184C, E4A50184C, E4A51190C, E4A50190C, E4A51192C, E4A50192C, E4A51205C, E4A50205C, E4A51216C, E4A50216C, E4A51229C, E4A50229C, E4A51240C, E4A50240C, E4A51257C, E4A50257C
G4A51072C, G4A50072C, G4A51073C, G4A50073C, G4A51077C, G4A50077C, G4A51084C, G4A50084C, G4A51093C, G4A50093C, G4A51098C, G4A50098C, G4A51104C, G4A50104C, G4A51110C, G4A50110C, G4A51117C, G4A50117C, G4A51121C, G4A50121C, G4A51128C, G4A50128C, G4A51134C, G4A50134C, G4A51141C, G4A50141C, G4A51144C, G4A50144C, G4A51152C, G4A50152C, G4A51158C, G4A50158C, G4A51167C, G4A50167C, G4A51172C, G4A50172C, G4A51184C, G4A50184C, G4A51190C, G4A50190C, G4A51192C, G4A50192C, G4A51205C, G4A50205C, G4A51216C, G4A50216C, G4A51229C, G4A50229C, G4A51240C, G4A50240C, G4A51257C, G4A50257C
