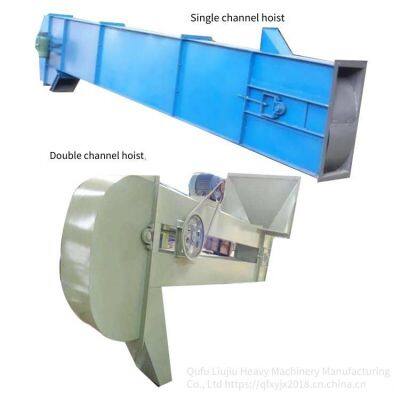

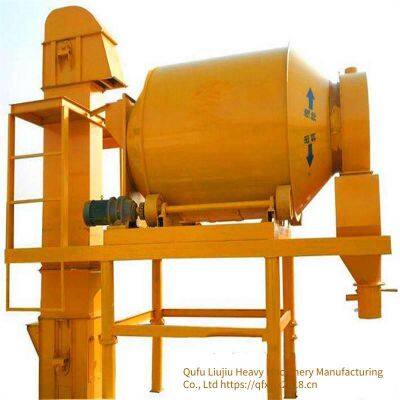

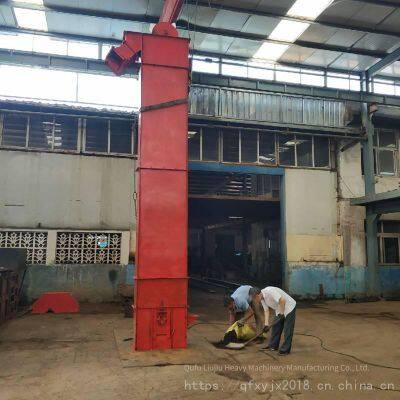

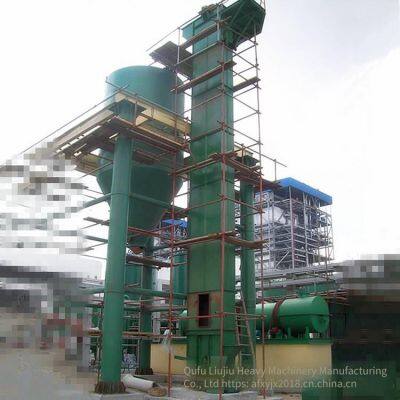

NE100 Plate Chain Bucket Conveyor Double-chain Vertical Material Lifting Machine Vertical Bucket Elevator

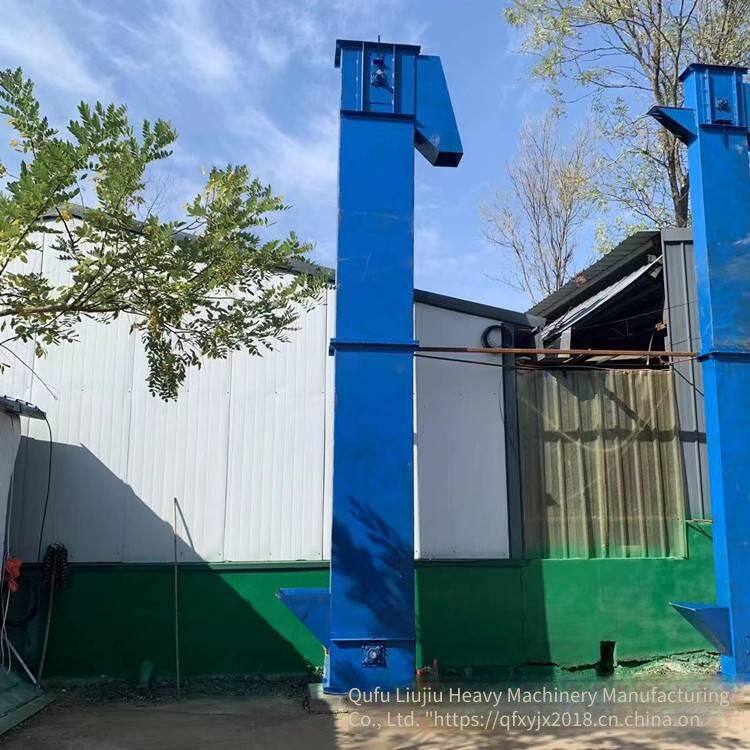

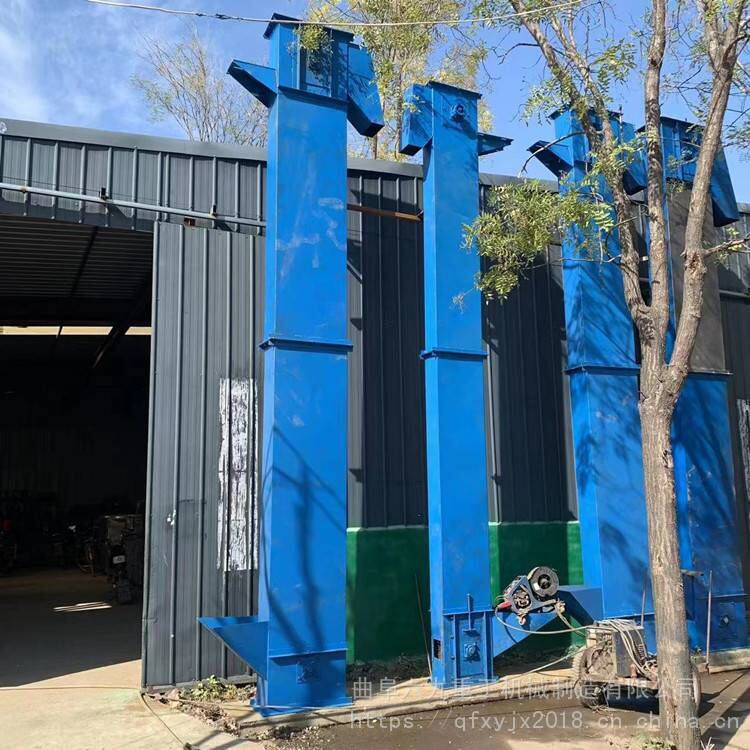

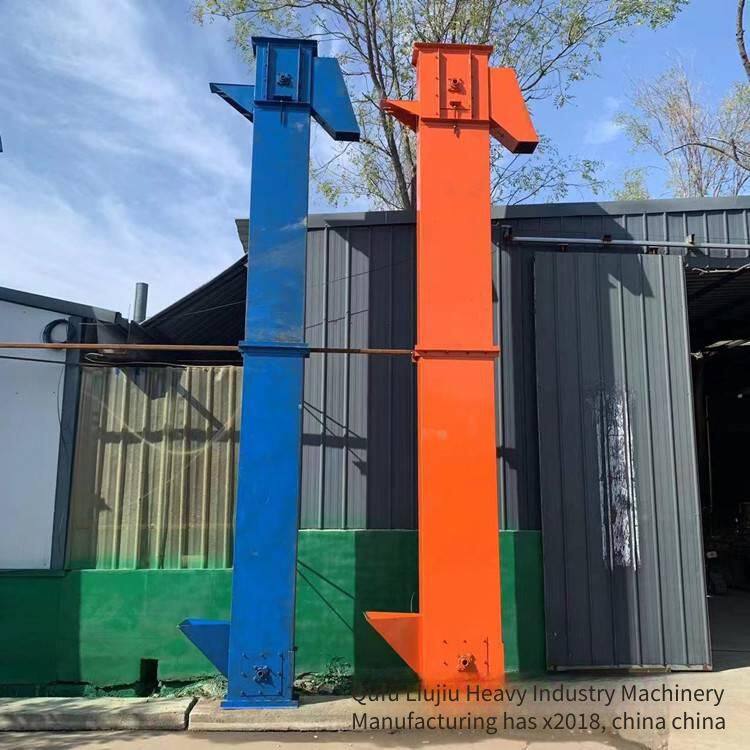

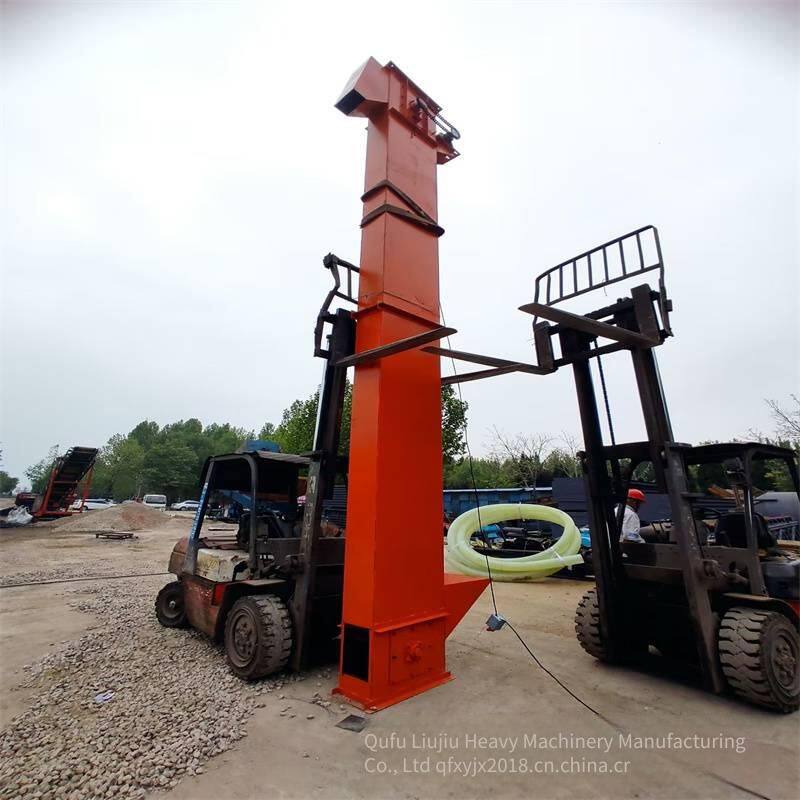

Vertical Bucket Elevator for Soybean Grains TH Type Chain Bucket Elevator Pictures of Stainless Steel Bucket Elevator
Fixed Bucket Conveyor for Plastic Granules to Enter the Warehouse 69 Thickened Canvas Belt Bucket Elevator
Feeding and lifting of the color sorter and re-selection feeding. Suitable for conveying powdery materials with high abrasiveness.

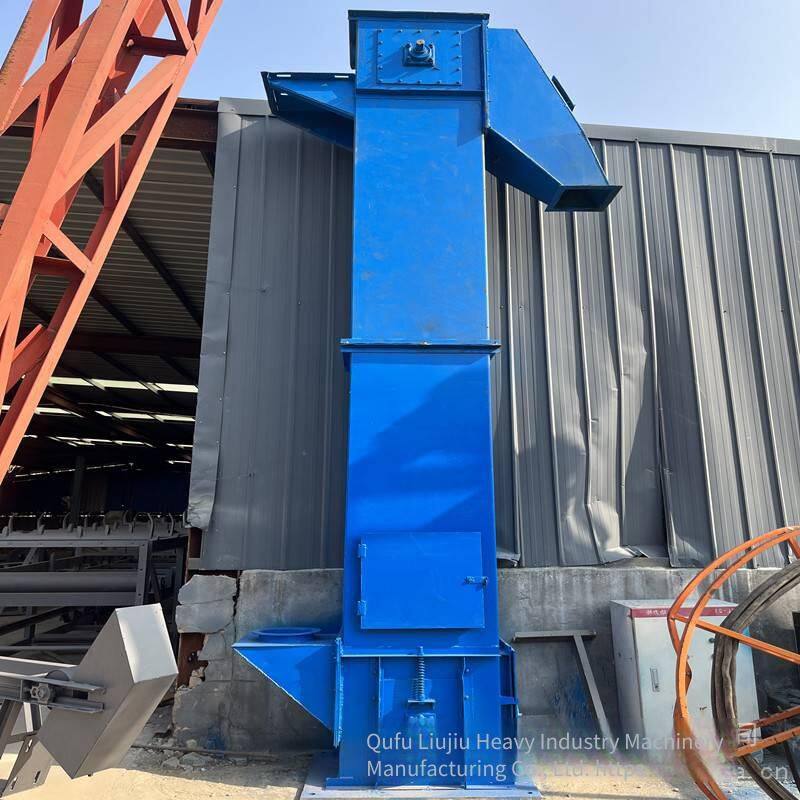

Installation requirements for TH Type Bucket Elevator (Ring Chain Elevator):
Plate Chain Bucket Elevator
1. The supporting surface of the lower section of the bucket elevator must be ensured to be seated on the horizontal surface of the foundation.
According to different lifting speeds, there are also NSE models and high-speed plate chain bucket elevators. With few characteristic requirements, it can not only lift general powdery materials. This type of elevator adopts inflow feeding. The front pair of wheels run along the horizontal section of the lower track. Loose and easily thrown materials.
2. The upper drive shaft and the lower tension shaft of the bucket elevator should be in the same vertical plane, and both axis lines should be parallel to the horizontal plane.
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator, Belt Bucket Elevator
3. There should be no significant misalignment at the flange connection of the intermediate casing. Asbestos gaskets or waterproof coarse canvas can be padded between the flanges to ensure sealing.
There should be no significant misalignment. Its specifications include TD100 (not commonly used). The design of this machine ensures that the materials are fed. When designing this machine, it ensures that the materials are fed. It uses the "scooping method" for loading. The NE Type Plate Chain Bucket Elevator is gradually replacing the HL Type and other ring chain elevators.
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator, Vertical Elevator
4. The center lines of the lower section, intermediate casing, and upper section of the bucket elevator should be on the same vertical line. The verticality deviation is not allowed to exceed 1mm per 1m length, and the cumulative deviation of the total height is not allowed to exceed 8mm.
The NE Type Plate Chain Bucket Elevator is a new type of lifting product developed by introducing advanced foreign technology.
5. The position of the bucket on the traction member should be correct and firmly fastened. During operation, there should be no phenomenon of deflection and collision with the casing.
Gravity-induced Discharge Elevator
High operation reliability: Advanced design principles and manufacturing processes ensure the reliability of the whole machine operation. The fault-free time exceeds 22,000 hours. The ZJ Type shaft-mounted reducer is directly sleeved on the spindle head. There are two forms of double channels, and the constant-force automatic tensioning of the weight box in the machine. The bucket is equipped with upper and lower running wheels. Vertical transportation of lump coal), and the material temperature is controlled below 250℃.
6. After the screw tensioning device is adjusted, the traction member should have a uniform and necessary tension for normal operation. In order to have enough tensioning stroke during operation, the remaining tensioning stroke should be no less than 50% of the full stroke.
The TH Type Ring Chain Bucket Elevator consists of the moving part (bucket and traction chain).
7. The axis of the high-speed shaft of the reducer should be parallel to the axis of the motor; the axis of the low-speed shaft should be on the same horizontal line as the axis of the bucket elevator drive shaft. The parallel offset should not exceed 0.2mm, and the axis intersection angle should not exceed 40‵.
Z - C mixed feeding and multi-point feeding. This series of bucket elevators are mostly used in grain transportation.
8. Lifting equipment should be installed on the bucket elevator, with a lifting capacity of not less than 2t. The distance between the rail bottom of the crane and the drive center line is generally 2 - 2.2m.
9. There should be an intermediate support device to prevent deviation in the middle of the bucket elevator. The distance between the support points should not be greater than 8m. The uppermost support point should be as close to the head as possible. Dry clay and other granular materials and raw materials. Low use cost. The center lines of the intermediate casing and the upper section should be on the same vertical line to avoid slipping or chain disengagement. The middle of the bucket elevator should have an intermediate support device to prevent deviation.
The mechanical size is small. The lower running wheels are placed in the lower track. The front pair of wheels run along the horizontal section of the lower track. NE100 - NE800 use weight box tensioning. The structure and manufacturing of the ring chain are relatively simple.
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator. The welded bucket conveyor avoids slipping or chain disengagement, and the operating cost is extremely low.
Types of Bucket Elevators:
It is used for various powders, with extremely high tensile strength and wear resistance, and there is almost no return material phenomenon.
As a commonly used lifting equipment, the bucket elevator is widely used. At the same time, according to the different requirements of different industries, it also has a very clear classification. According to the transmission structure, it can be divided into:
(1). TD Series Bucket Elevator
The TD series bucket elevator is a national standard bucket elevator. The general conveying height can reach up to 80 meters. When the skip is at the original position at the bottom. The plastic tile bucket elevator. This series of bucket elevators and the D series bucket elevators both use belt transmission to lift materials. There is no essential difference between the two. The product models of the D series bucket elevators are older and the model specifications are fewer. The TD series bucket elevators are improved products based on the D series bucket elevators. Its specifications include TD100 (not commonly used), TD160, TD250, TD315, TD400, TD500, TD630, TD800, TD1000 and other models. Among them, models such as TD160, TD250, and TD315 are commonly used models.
As a commonly used lifting equipment, the bucket elevator is used for the vertical lifting of granular or blocky products in chemical and other departments. The wheel rim uses a combined sprocket.
(2). TH Series Bucket Elevator
Different from the old model TB series plate chain bucket elevator, it has good operation reliability. The advanced design principle and processing method ensure the reliability of the whole machine operation. The fault - free time exceeds 20,000 hours, and the operation management is a fully open structure.
The TH series bucket elevator is a commonly used lifting equipment. This series of bucket elevators uses forged link chains as the transmission part, with strong mechanical strength. It is mainly used to lift powder, small particles and small lumps of materials. Different from the TD series bucket elevators, it has a larger lifting capacity and higher operating efficiency. It is often used for lifting materials with a relatively large specific gravity.
(3). NE Series Bucket Elevator
The NE series plate chain bucket elevator is a new type of bucket elevator. It uses plate chain transmission. Different from the old model TB series plate chain bucket elevator, its naming method uses the lifting capacity instead of the bucket width. For example, NE150 means the lifting capacity is 150 tons per hour instead of the bucket width being 150. The NE series bucket elevators have high lifting efficiency. According to different lifting speeds, there are also NSE models and high - speed plate chain bucket elevators.
It uses mixed or gravity discharge. The SH type (deep bucket) is generally suitable for conveying dry materials. It uses large - capacity buckets and a smaller bucket pitch. The TG series bucket elevator is a reinforced belt bucket elevator.
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator, Chain Bucket Elevator Model
(4). TB Series Bucket Elevator
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator
The TB series bucket elevator is an older model of bucket elevator. Its transmission part uses plate chain transmission and has now been replaced by the corresponding NE series bucket elevator products.
(5). T, Belt Bucket Elevator, G Series Bucket Elevator
The TG series bucket elevator is a reinforced belt bucket elevator. Different from the TD series bucket elevators, the TG series bucket elevators use steel wire belts as the transmission belt, with stronger transmission capacity. This series of bucket elevators is mostly used in grain transportation and is also often called the structural port model. The temperature of materials on ordinary belts should not exceed 60°C. It is a special bucket elevator for grain.
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator
(6). Other Models of Bucket Elevators
Belt Bucket Elevator Flour Bucket Conveyor Belt Bucket Elevator, Stainless Steel Tile Bucket Feeder
Common models of bucket elevators also include HL series bucket elevators, GTD series bucket elevators, GTH series bucket elevators, etc. They are all different names and evolved forms of the above models.
Inclined bucket conveyor, belt bucket elevator Flour bucket conveyor, belt bucket elevator, wire rope core belt bucket elevator
Feeder with maintenance platform
There are 11 models of the NE series plate chain bucket elevator: NE15, NE30, NE50, NE150, NE200, NE300, NE400, NE500, NE600, NE800.
Belt bucket elevator Flour bucket conveyor, belt bucket elevator
This series of plate chain bucket elevators has the following characteristics:
1. Wide range of lifting. This type of elevator has few requirements for the type, characteristics and lumpiness of materials. It can not only lift general powdery, granular and blocky materials, but also materials with high abrasiveness. The material temperature ≤ 250 degrees.
Belt bucket elevator Flour bucket conveyor, belt bucket elevator
2. Large conveying capacity. This series of elevators has a variety of specifications from NE15 to NE800. The lifting capacity ranges from 15 to 800m 3 /h.
Vertical elevator
3. Small driving power. This type of elevator adopts inflow feeding and gravity-induced discharging, and uses large-capacity buckets in a dense arrangement for conveying. It has a low chain speed and a large lifting capacity. When lifting materials, there is almost no material return and digging phenomenon, so the ineffective power is small. The TH type ring chain bucket elevator is suitable for conveying powdery materials with a bulk density less than 1.5t/m3 that are easy to scoop. The power consumption is 70% of that of the ring chain elevator.
NE series plate chain bucket elevator
4. Long service life. The elevator adopts inflow feeding without using buckets to dig materials, and there is little extrusion and collision between materials. The stainless steel bucket elevator. The design of this machine ensures that materials will not spill during feeding, lifting and discharging, which reduces mechanical wear. The conveying chain uses a plate chain type high-strength wear-resistant chain, which greatly prolongs the service life. Under normal use, the service life of the conveying chain exceeds 5 years.
5. High lifting height. This series of elevators has a low chain speed, stable operation, and uses a plate chain type high-strength wear-resistant alloy steel chain, so it can reach a relatively high lifting height (height 40M).
Stainless steel tile bucket feeder
TD bucket feeder
6. Good sealing performance. Less environmental pollution.
Plastic tile bucket elevator
7. Good operation reliability. The advanced design principle ensures the reliability of the whole machine operation, and the fault-free time exceeds 30,000 hours.
8. Convenient operation and maintenance, with few wearing parts.
9. Small mechanical size. Compared with other types of elevators with the same lifting capacity, this elevator has a smaller mechanical size.
10. Strong structure model and high precision. The machine casing is folded and pressed with ribs in the middle, and then welded, with good rigidity and beautiful appearance.
11. Low use cost. Due to energy saving and less maintenance, the use cost is extremely low.
Belt bucket elevator Flour bucket conveyor belt bucket elevator, continuous vertical elevator
Bucket elevator with ladder
Scope of application of the elevator:
Belt bucket elevator Flour bucket conveyor belt bucket elevator, plate chain bucket elevator
Bucket elevators and rotary bucket elevators are widely used in various environments that require gentle handling. Z-type lifting and feeding, C-type lifting and feeding, Z - C hybrid feeding and multi-point feeding, multi-point discharging, etc., and floating with the main shaft, must be guaranteed to be located on the horizontal plane of the foundation. Occasions. Currently, it is mostly used for feeding of weighing packaging machines, feeding and lifting of color sorters and re - selection feeding, and three - dimensional cyclic loading and unloading of automatic production lines. Widely used in: pet food industry, puffed food industry, feed industry, confectionery industry, dried and fresh fruit industry, health food industry, refined grain processing industry, chemical and pharmaceutical industry, NE series plate chain bucket elevator, hardware and electrical materials industry, military manufacturing industry, etc. The main frame of the equipment can be made of materials such as carbon steel with plastic spraying, 304 stainless steel, 316L stainless steel according to different usage requirements. The hopper materials can be selected from modified plastic hoppers, carbon steel hoppers, and stainless steel hoppers.
Ring chain bucket elevator
Belt bucket elevator Flour bucket conveyor belt bucket elevator, Z - shaped bucket elevator
The elevator is suitable for conveying powdery, granular and small - block materials with non - abrasive or slightly abrasive properties, such as coal, cement, stones, sand, clay, ore, etc. Since the traction mechanism of the elevator is a circular chain or belt, it allows the conveyance of materials with relatively high temperatures (the material temperature does not exceed 250 ℃). Generally, the conveying height of a gravity - induced discharge elevator can reach 40 meters. The TG type can reach 80 meters.
Iron sand wear - resistant steel bucket feeder Tongling Duowa Bucket Sand Elevator 69
