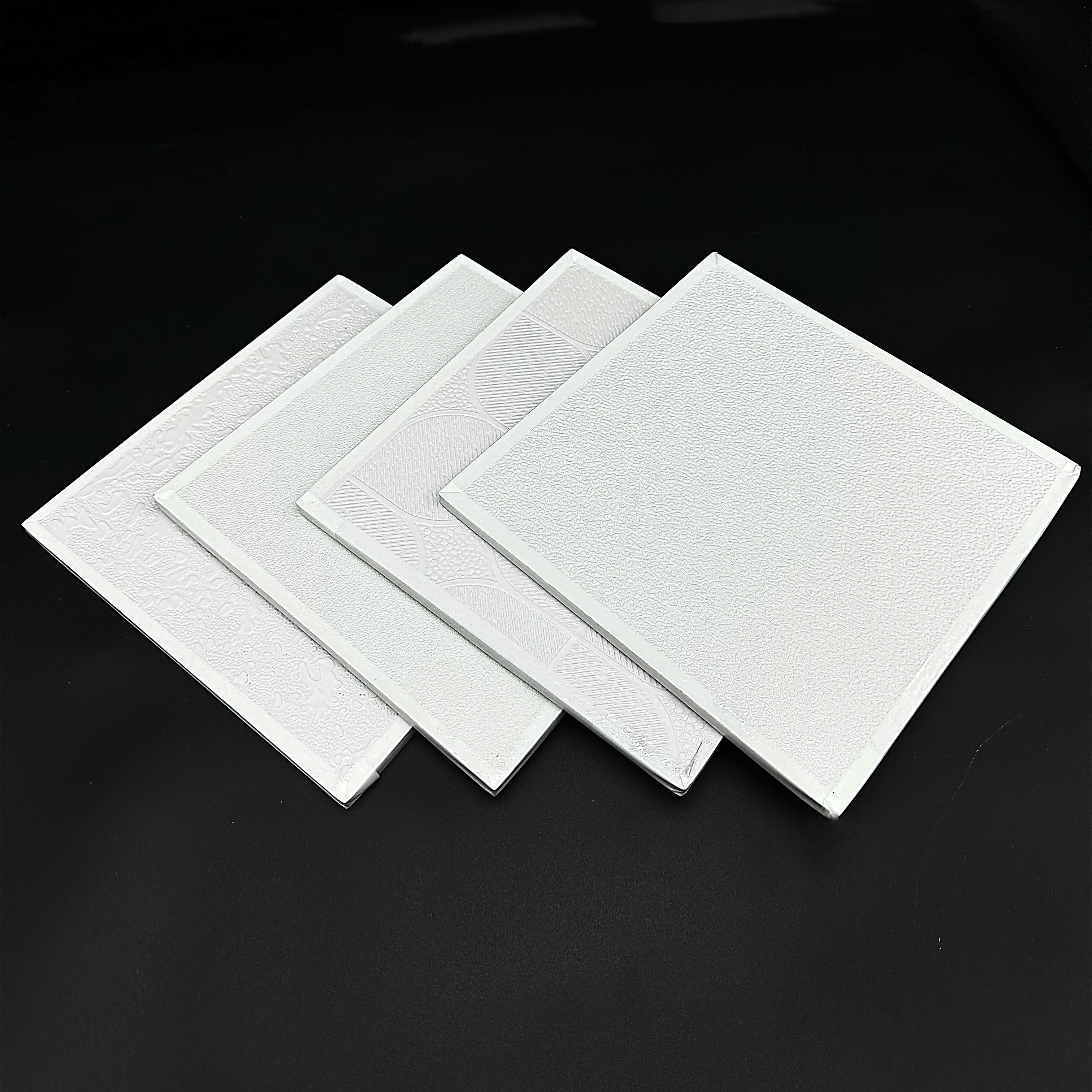

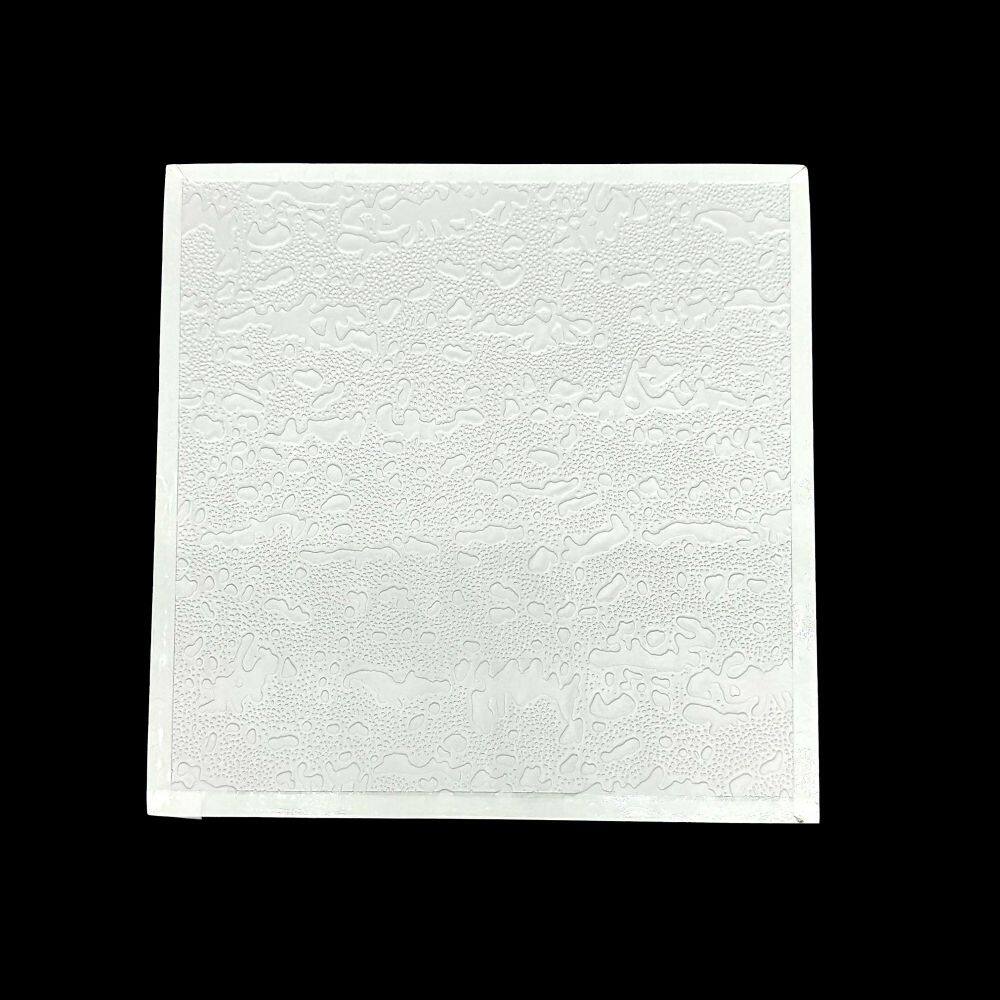

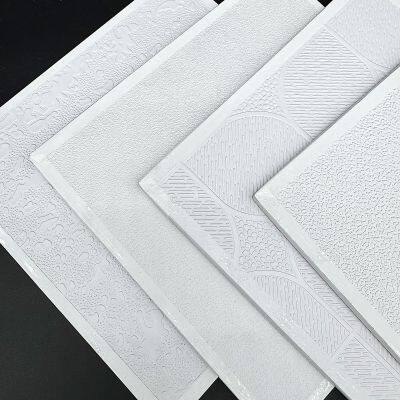

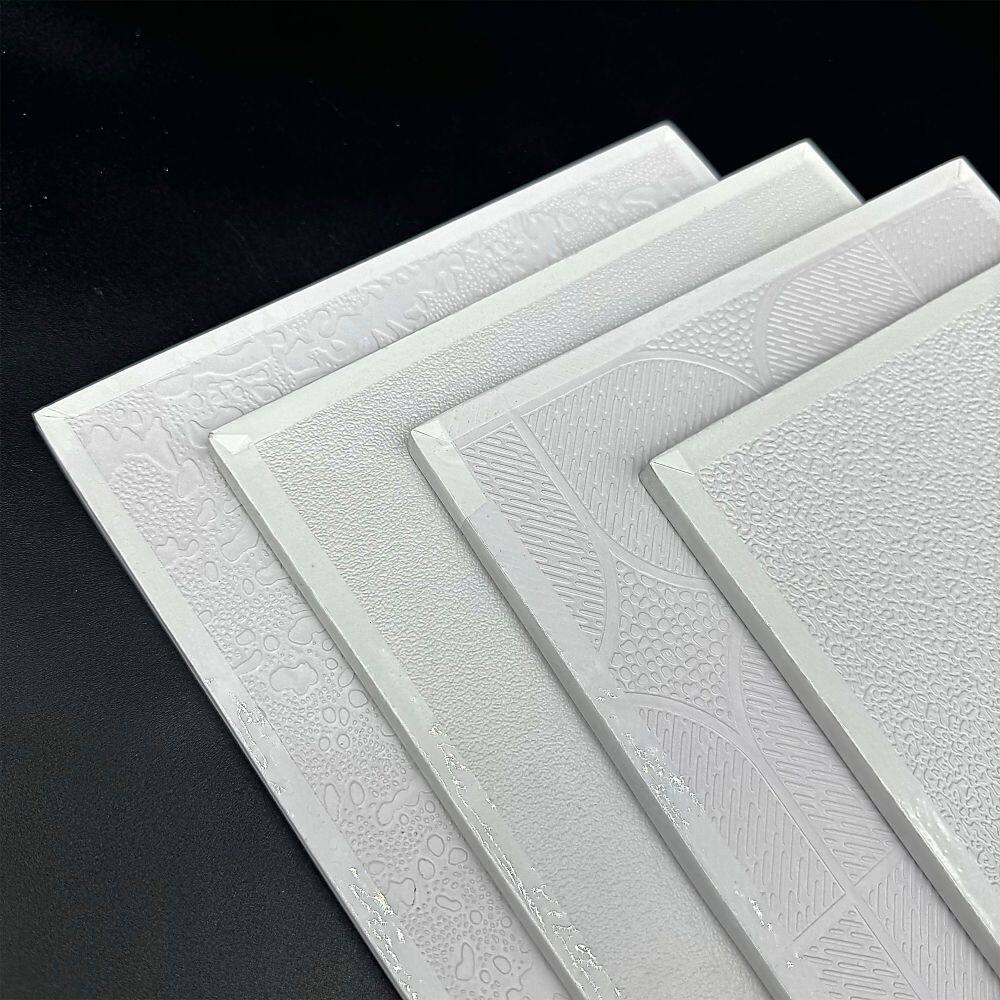

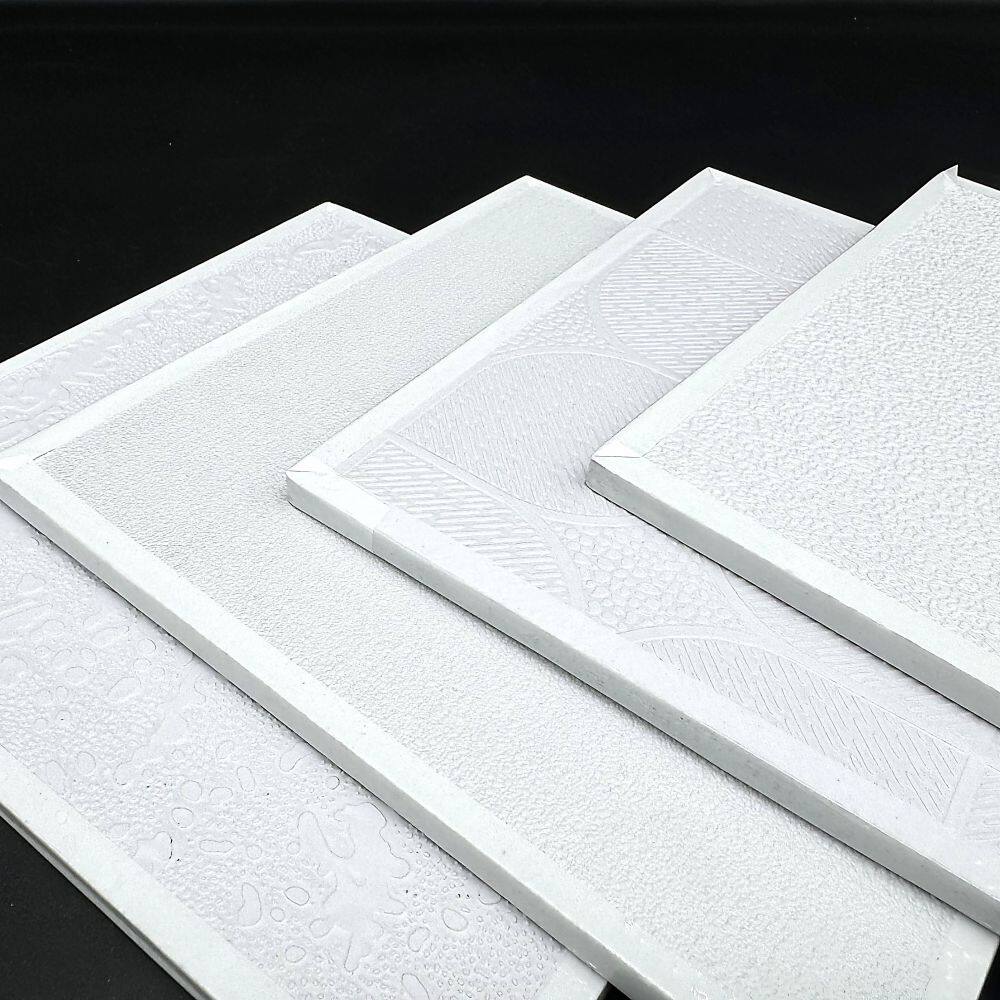

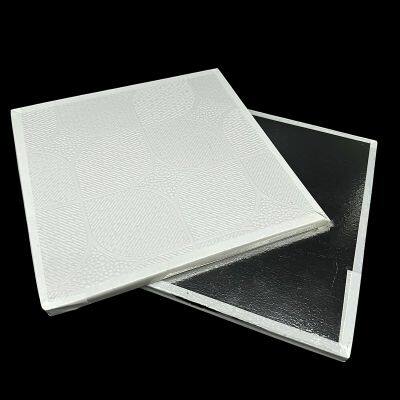

Help CenterWaterproof PVC Laminated Gypsum Ceiling Tile 595x595mm for Commercial Buildings Moisture Resistance
Related Products
-
Eco-Friendly PVC Laminated Gypsum Ceiling Tile 595x595mm With Low Formaldehyde Emission for Healthy EnvironmentNegotiableMOQ: 1000 Square Meters -
PVC Film Faced Gypsum Ceiling Panel 595x595x9.5mm for High Humidity Areas Like Bathrooms and KitchensNegotiableMOQ: 1000 Square Meters
-
Fireproof PVC Coated Gypsum Ceiling Board 603x603mm Size With Lightweight Design for Easy InstallationNegotiableMOQ: 1000 Square Meters
-
White Color PVC Laminated Gypsum Ceiling Panel Heat Insulation for High Traffic Areas With Impact Resistance SurfaceNegotiableMOQ: 1000 Pieces
-
600x600mm White PVC Gypsum Ceiling Panel - Low Maintenance & High Impact ResistanceNegotiableMOQ: 1000 Pieces
Shanxi Pano Building Materials Co., Ltd, established in 2021 as a professional manufacturer, proudly presents our premium Waterproof PVC Laminated Gypsum Ceiling Tile engineered for demanding commercial environments. With a 30,000-50,000 sqm factory and rigorous ISO9001/ISO14000 certified production, we deliver moisture-resistant solutions trusted by clients across North America, Europe, Asia, and beyond. This tile combines exceptional durability with aesthetic flexibility, addressing critical needs in high-humidity spaces like hospitals, malls, and kitchens where standard ceilings fail.
Our 595x595mm tile features an advanced PVC-film laminated surface permanently bonded to a high-density gypsum core. This fusion creates an impervious barrier against steam, splashes, and humidity – effectively preventing warping, mold growth, and staining. Unlike conventional options, it maintains structural integrity even in 85% relative humidity conditions. The non-porous surface also allows effortless cleaning with disinfectants, reducing long-term maintenance costs by up to 40% according to facility manager feedback.
Technical Advantages & Specifications:
- Multi-Layer Protection: 0.2mm premium PVC film + moisture-resistant gypsum core + anti-fungal additives
- Enhanced Load Capacity: Supports up to 35kg/sqm distributed weight (tested per ASTM E1264)
- Hygienic Design: Zero formaldehyde emission (E1 grade) with antimicrobial treatment
- Thermal & Acoustic Performance: 0.15 W/m·K thermal conductivity with optional acoustic backing
| Parameter | Standard Value | Optional |
|---|---|---|
| Thickness | 9.5mm / 12mm | 15mm |
| Weight | 8.5kg/sqm (9.5mm) | 11kg/sqm (12mm) |
| Fire Rating | Class A (GB8624) | Euroclass B available |
| Water Absorption | <5% (24h immersion) | - |
| Edge Detail | Tapered edge | Square edge |
Installation efficiency is maximized through precision-cut edges ensuring seamless alignment in standard 600x600mm grid systems. Contractors report 30% faster project completion versus traditional wet-area ceilings. With over 20 matte/semi-gloss finishes – from pure white to woodgrain effects – designers achieve visual consistency across lobbies, washrooms, and food service areas without compromising functionality.
Backed by our annual export volume of US$2.5-5 million to 50+ countries, we guarantee batch consistency even for 40-container orders shipped via Tianjin/Qingdao ports. Our 101-200 strong workforce includes dedicated QC teams conducting 4-stage inspections: raw material screening, production monitoring, pre-shipment testing, and loading supervision. Partner with Shanxi Pano to access reliable, code-compliant ceiling solutions that reduce replacement cycles by 7-10 years. Request samples today to experience how our waterproof technology protects your reputation and budget.
Frequently Asked Questions:
-
Q: Can these tiles be installed in outdoor covered areas?
A: They are designed for indoor high-humidity zones only. Direct weather exposure requires specialized outdoor panels. -
Q: What grid system is compatible?
A: Works with standard 24mm/15mm concealed T-grid systems. Consult our technical drawings for profiles. -
Q: How do I clean chemical spills?
A: Wipe immediately with water or mild detergent. Avoid abrasive cleaners or solvents that may damage PVC film. -
Q: Is cutting required for irregular layouts?
A: Minimal cutting needed due to modular design. Use fine-tooth saws for clean edges when necessary. -
Q: Can lighting fixtures be integrated?
A: Yes, supports recessed LED lights ≤5kg. Reinforced framing recommended for heavier fixtures. -
Q: What’s the lead time for 2,000 sqm?
A: Standard colors ship in 15 days. Custom orders require 25 days. Expedited options available. -
Q: Do you provide installation guides?
A> Comprehensive manuals with load diagrams and moisture-prevention protocols are included. -
Q: Are there recycled materials used?
A: Gypsum core contains ≥30% recycled content. PVC film is virgin material for moisture integrity.
