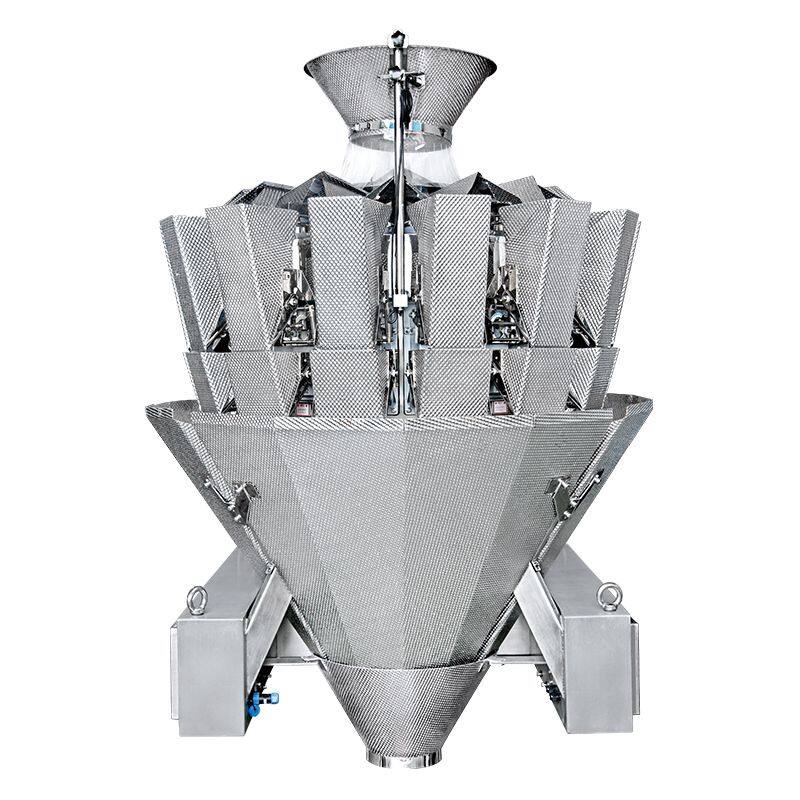

Help Center14 Heads Anchovy Fish Multihead Weigher
Related Products
-
Waterproof Multihead Weigher for Weighing Frozen Salad Cooked FoodUS$ 5800 - 10800MOQ: 1 Set -
Multi Heads Weigher for Stick-shaped ProductUS$ 15060 - 27100MOQ: 1 Set
-
Feeding-control Multihead Weigher for Potato Small Packs FruitsUS$ 5500 - 10580MOQ: 1 Set
-
Standard 10/14 Heads Multihead WeigherUS$ 4500 - 9500MOQ: 1 Set
-
Mini Multihead Weigher(High Precision)US$ 4860 - 8860MOQ: 1 Set
Product Description
Features
Special load cell with high precision and high standard.
Program recovery function can reduce operation failures, support multi-segment weight calibration.
No products auto pause function can improve weighing stability.
Many languages are available for global markets.
100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.
Mechanical Character
1.Enhanced electromagnetic induction vibrator speeds up material feeding.
2.Inclined special linear vibration pan to ensure smooth flowing of materials.

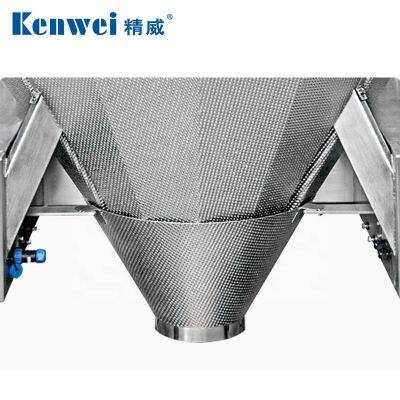

3.Discharged chute with small angle is better to the falling of materials, effective control of sticking problem.

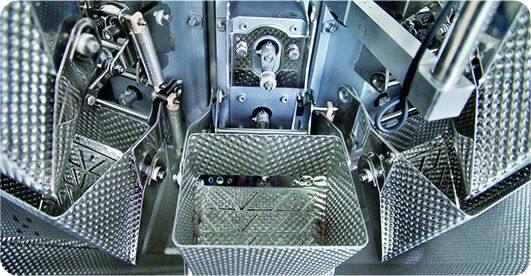

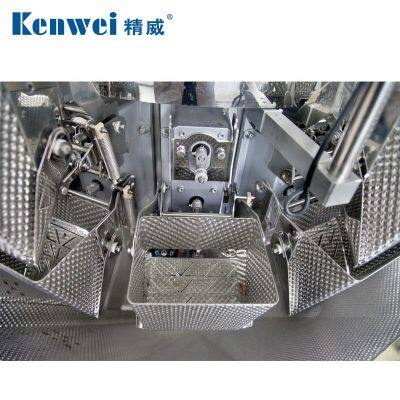

4.Special single-door open hopper, anti-adhesive design structure to ensure smooth flowing of materials, prevent sticking, and ensure weighing accuracy. 5.Weighing detection is optional, make accurate control of feeding time and thickness of material, ensure weighing accuracy.
Technical Specification
| Model/Identify code | JW-A10 / A10-16 | JW-A14 / A14-16 |
| Weighing range | 10-1000g | 10-1000g |
| Accuracy | X(0.5) | X(0.5) |
| Max.Speed | 40P/M | 60P/M |
| Hopper volume | 1.6 L | 1.6 L |
| Control Panel / Driving System | 7"Touch screen / Step Motor | 7"Touch screen / Step Motor |
| Options | Timing Hopper/Printer/Reject Device | Timing Hopper/Printer/Reject Device |
| Power Requipment | 110/220V / 1000W / 50/60Hz / 8A | 110/220V / 1500W / 50/60Hz / 10A |

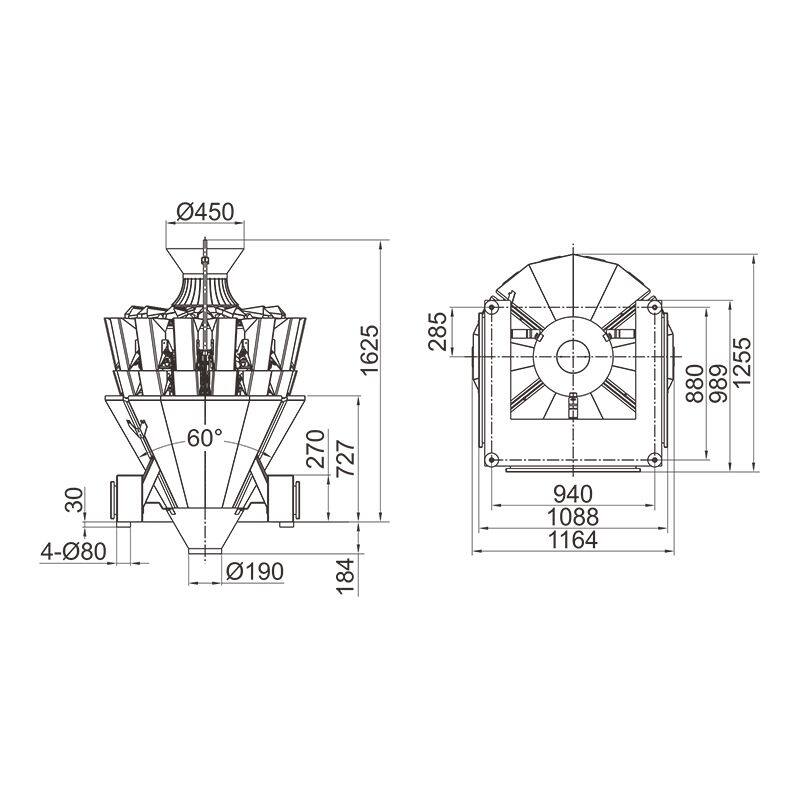

| Packing Dimension(mm) | 1620(L)x1100(W)x1420(H) | 1750(L)x1160(W)x1420(H) |
| Gross Weight | 380kg | 490kg |

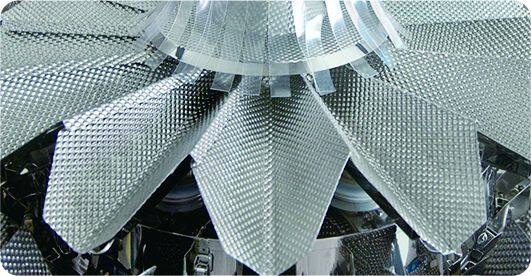

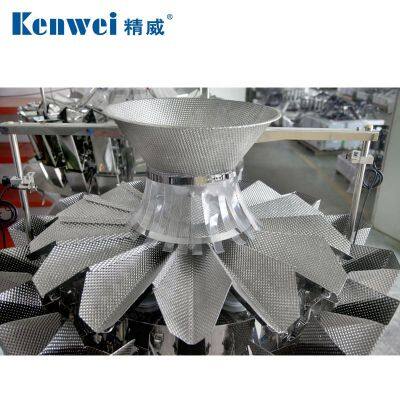

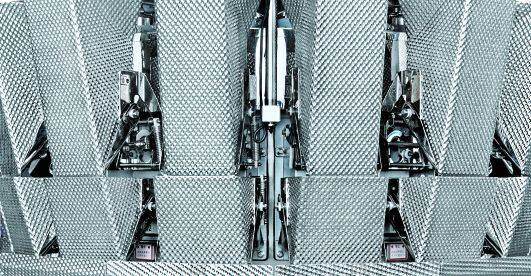

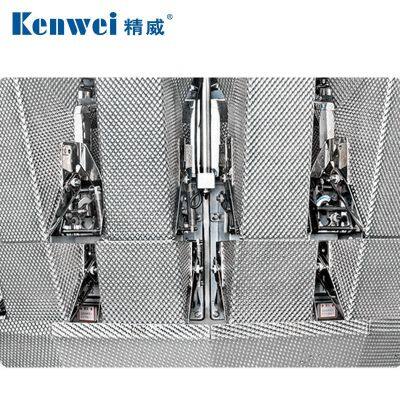

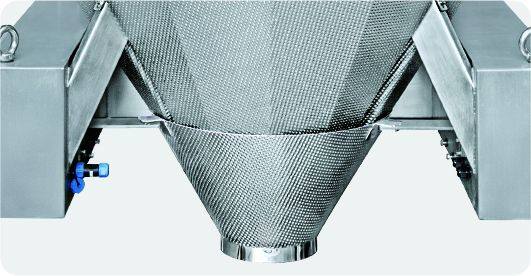

Detailed Images
Application
It is suitable for materials with high viscosity and with much oil,it easy to stick on the hopper and material that can slide in the 60-angle discharged chute,such as spicy fish,sauce duck,etc.
Product manufacturing process
Guangdong Kenwei Intellectualized Machinery Co.,Ltd. is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
Kenwei, located in Hi-tech Industrial Zone, owns modern workshop over 21000 square meterwith annual production capacity of more than 5,000 sets of multihead weigher . We have a high-quality team that professional technicians more than 30% with comprehensive capacity from design and development, manufacturing, marketing, installation and commissioning, technical training,after-sales services and providing automatic weighing packaging system customization.With the development of international markets, more and more marketing and service networks are established all over the world. We won trusts and good reputations for good and fast services, which also help us to establish good brand image in the packaging machinery industry We are now selling machines to more than 80 countries in the world.
Certification
Exhibition
Service
Pre-sale Inquiry
We will help you customize an appropriate weighing and packing solution based on your requirements and specific circumstances.
Installation Service
We will send professional technicians for on-site installation and commissioning upon request.
Maintenance Service
Kenwei provides long term maintenance service,any maintenance parts are free within the warranty period and only charge parts expensed if your warranty has expired.
Employee Training
Kenwei offers free technical training for our clients to fully master correct product maintenance techniques.
Custom Service
Kenwei designs custom production lines for our clients according to specific weighing and packing products,output,packing styles,factory area and other factors.
FAQ
Q1: How to know which one packing machine is suitable for us ?
You can first tell business representative which equipment you want to know, what material is the product, how many grams to weigh, and the range of accuracy and speed requirements. Our engineers then recommend suitable packaging machines based on these data and product characteristics.
Q2: How to operate it?
Many languages are available for global markets. There are not only detailed instructions, but also machine video for reference learning.
Q3: Why we should choose your company?
We have many years of industry production and management experience, professional R & D, sales, after-sales team. It can perfectly solve all the problems that customers encounter from purchase to sale.
Q4: How to cooperate with you?
You only need to contact our business representative, and they will be patient to guide you through the whole process
Q5: What's your payment way?
T/T by our bank account directly
Q6: How about the delivery and after-sales service?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small multihead weigher,For the large-scale machine, it takes longer.
Warranty :2years(Electric accessories) and free life time maintenance.
If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
