Product Description
Demister pad, also called mist pad, wire mesh demister, mesh mist eliminator, catching mist, mist eliminator, is used in gas entrained mist separation column to guarantee the filtering efficiency.
Wire mesh demister is also called mist eliminator. It is a highly efficient separation device, widely used in chemical, petroleum, sulfuric acid, medicine, light industry, metallurgy, machinery, construction, aviation, shipbuilding, environmental protection and other industries to remove droplets from gas or steam flow. Wire mesh demister can capture liquid particles with a diameter of 2 to 5 microns, and its efficiency can reach 99%.
Features of stainless steel demister pad
* High corrosion and rust resistance.
* Acid, alkali and salty resistance.
* High mechanical strength.
* High filtering efficiency.
* Durable and long service life.
* Various types for choice.
* Convenient for installing and transporting.
Specification
Materials |
304, 304L, 316, 316L 430, 410 stainless steel wire, copper wire |
Wire diameter |
0.07-0.55mm |
Ordinary wire diameter: 0.2mm-0.25mm |
|
Opening size |
(2x3mm) to (4x5mm) to (12x6mm) The hole size can also be fine-tuned according to customer requirements. The cutout form of the |

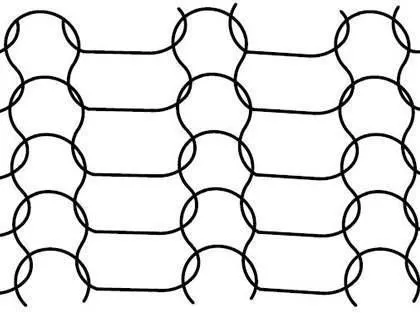

Weaving style |

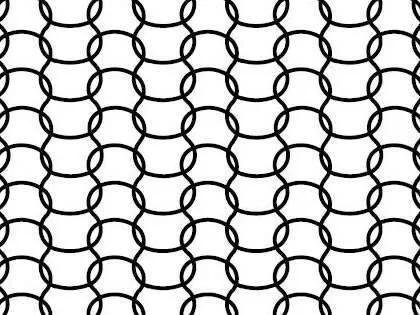

Single wire weaving |

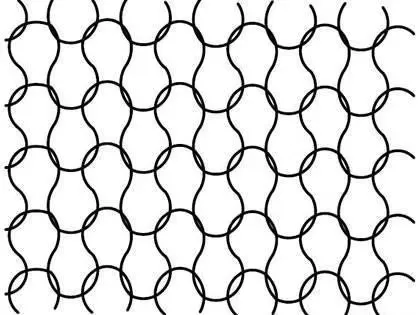

Double wire weaving |
|
Several wires weavingStandard |
SP type demister pad.
Standard wire specification
0.1 mm + 0.03 mm × 0.4 mm
DP type demister pad.
Standard wire specification
0.1 mm + 0.02 mm × 0.3 mm
HR/HP type demister pad.
Standard wire specification
HR : 0.23 mm + 0.03 mm × 0.4 mm.
HP : 0.1 mm + 0.03 mm × 0.4 mm
Demister pad forms have four categories: standard type, efficient type, high penetration type and shock absorber type.
Specifications of standard type demister pad |
||||||||||||
Item |
Wire Type |
Wire Size |
Wire Width Tolerance |
Bulk Density |
Specific Surface Area |
Porosity |
||||||
01 |
Flat wire |
0.1 × 0.4 |
|
|
475 |
|
||||||
02 |
Round wire |
0.23 |
320 |
|||||||||
Note: every 100 mm thick mat has 25 layers wire mesh. |
||||||||||||
Specifications of standard type demister pad |
||||||||||||
Item |
Wire Type |
Wire Size |
Wire Width Tolerance |
Bulk Density |
Specific Surface Area |
Porosity |
||||||
01 |
Flat wire |
0.1 × 0.4 |
|
|
475 |
|
||||||
02 |
Round wire |
0.23 |
320 |
|||||||||
Note: every 100 mm thick mat has 25 layers wire mesh. |
||||||||||||
Specifications of standard type demister pad |
||||||||||||
Item |
Wire Type |
Wire Size |
Wire Width Tolerance |
Bulk Density |
Specific Surface Area |
Porosity |
||||||
01 |
Flat wire |
0.1 × 0.4 |
|
|
475 |
|
||||||
02 |
Round wire |
0.23 |
320 |
|||||||||
Note: every 100 mm thick mat has 25 layers wire mesh. |
||||||||||||
Types of stainless steel demister pad
Stainless steel demister pad can be made into different types to suit different equipment and devices. Stainless steel demister pad can be made into round shapes, rectangular shapes, ring shapes and various customized shapes.
Stainless steel demister pad can also be made into drawer types and wavelike types. Drawer types for easy transporting and installing, wavelike types for larger contact area and higher filtering efficiency.

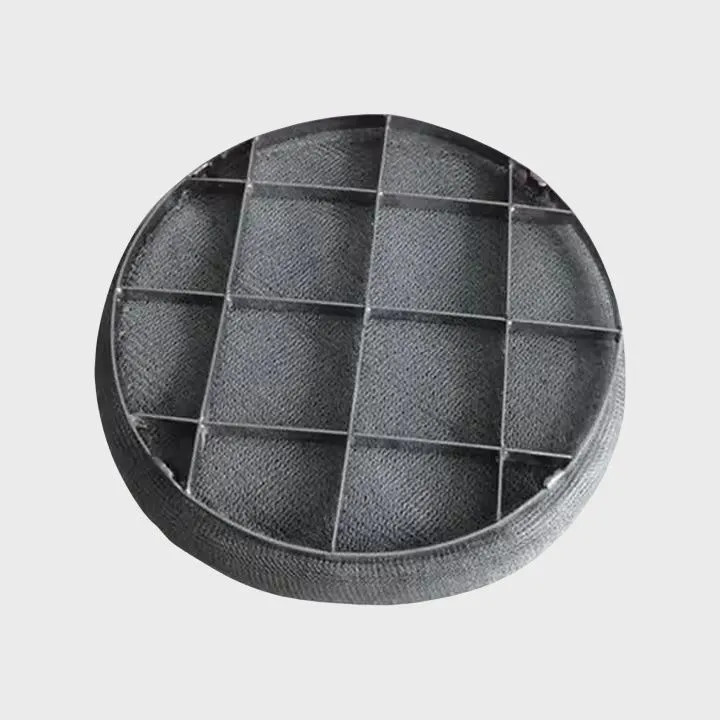

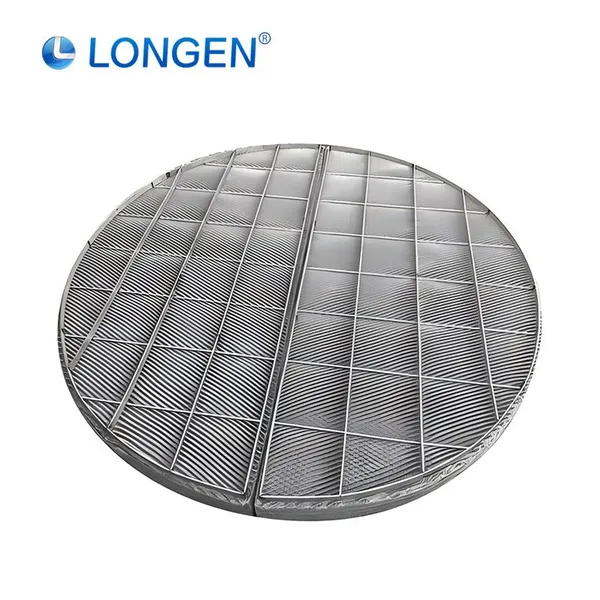

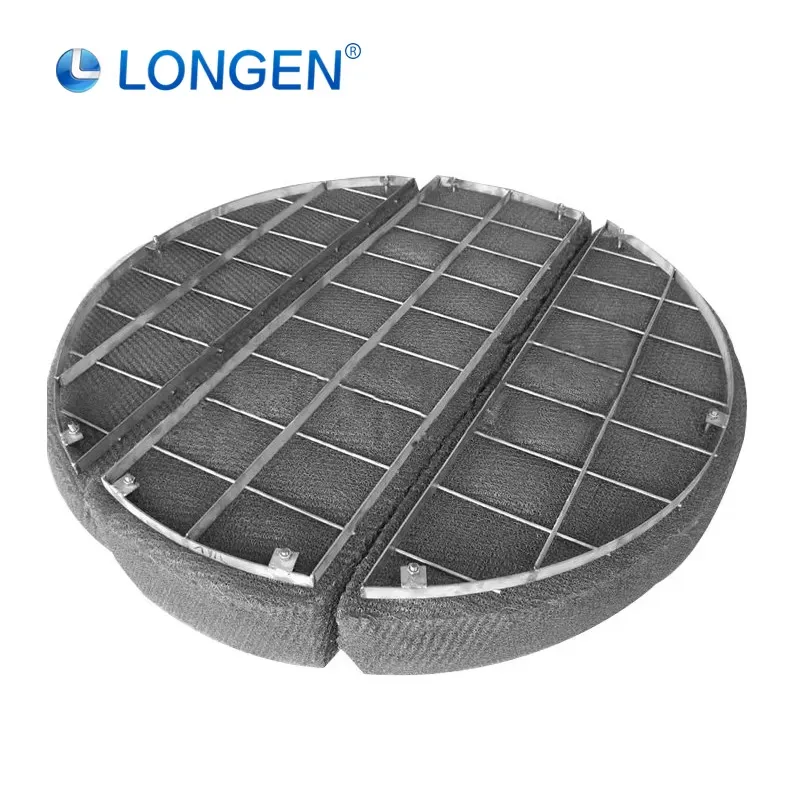

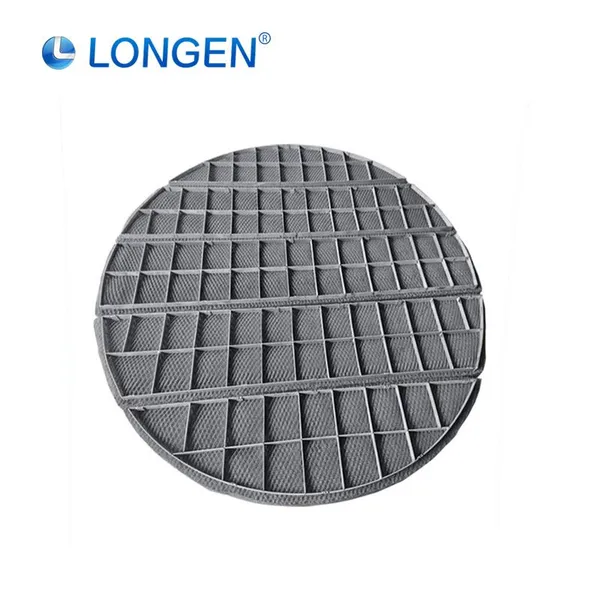

Round shape stainless steel demister pad.

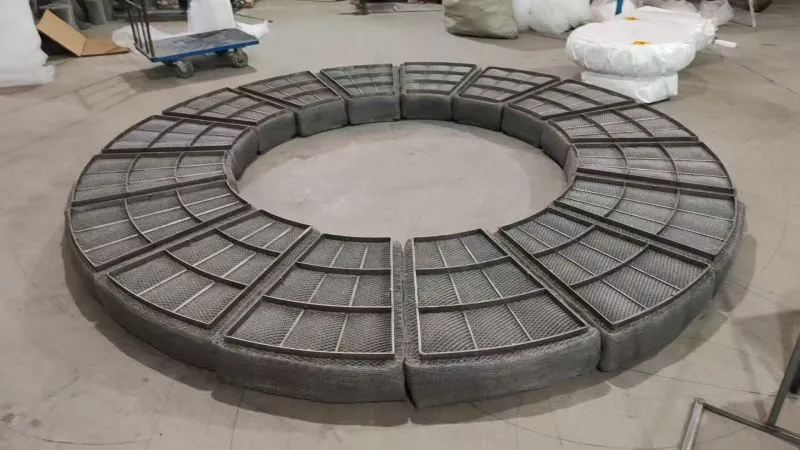

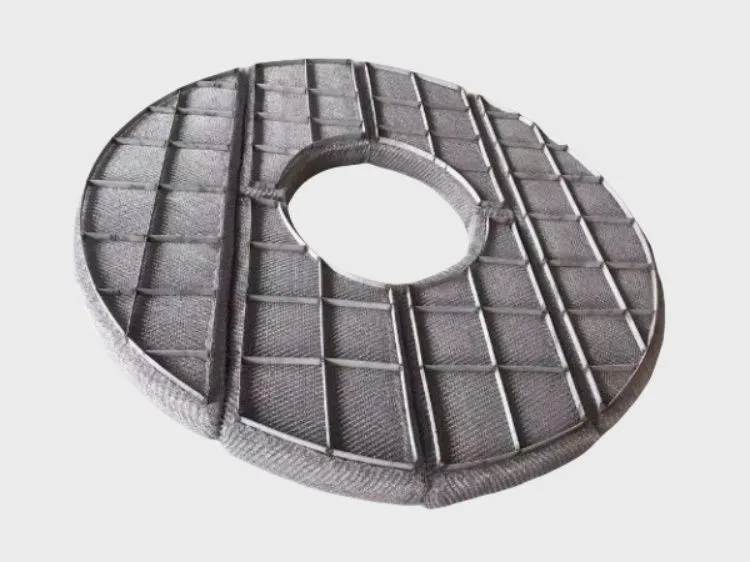

Ring shape stainless steel demister pad.

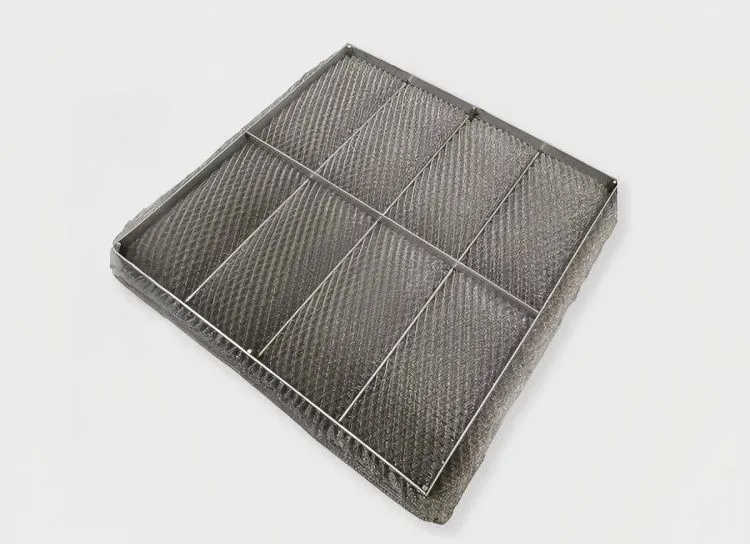

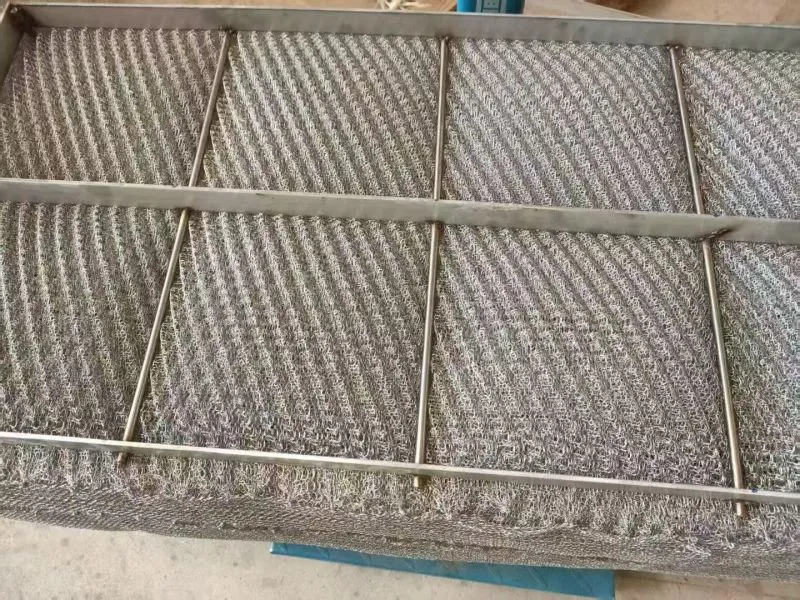

Rectangular shape stainless steel demister pad.
Wavelike type stainless steel demister pad.

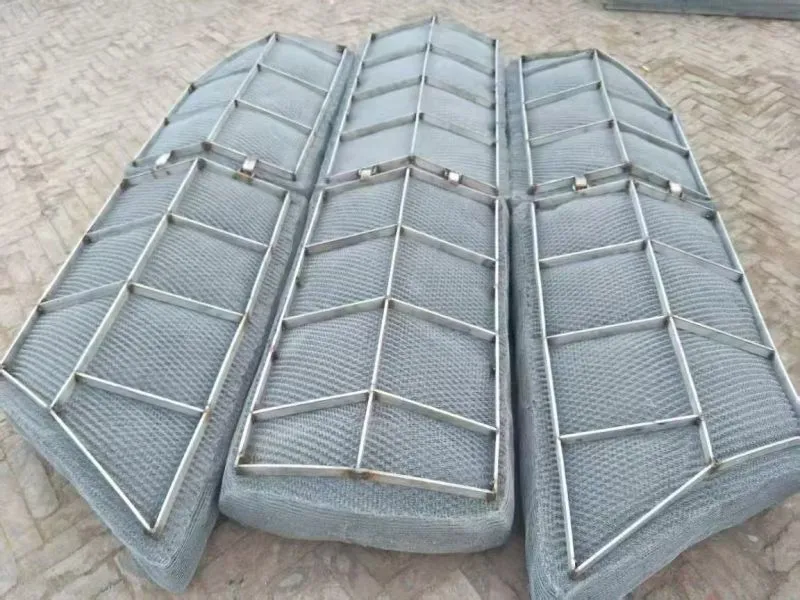

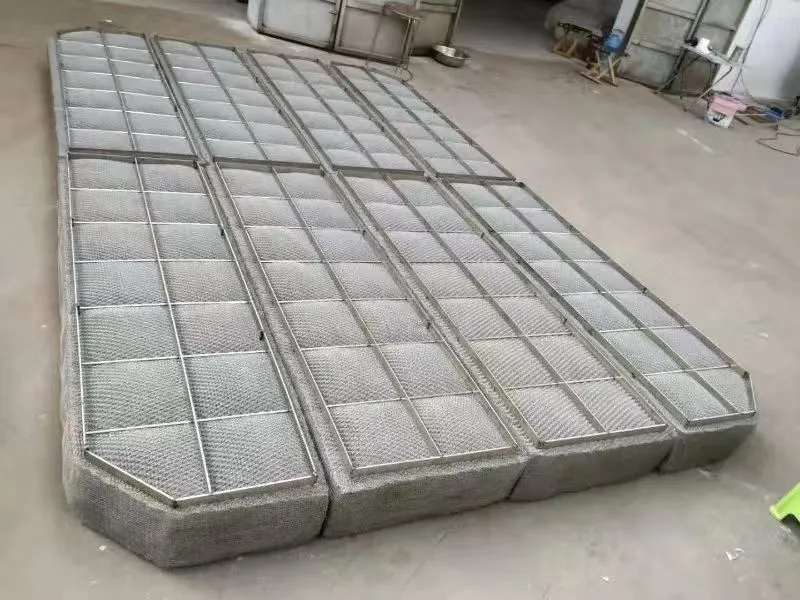

Drawer type stainless steel demister pad.

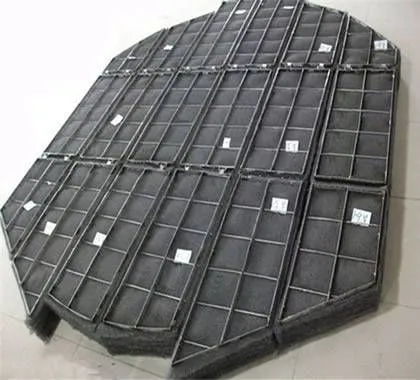

Special shape stainless steel demister pad.
Applications
Applications of stainless steel demister pad.
Wire mesh demister, also known as wire mesh demister, is a vapor-liquid separation device. Widely used in chemical, petroleum, medical, light industry, metallurgy, environmental protection and other industries. It is most commonly used in separate droplet diameters exceeding 3-5 μ m separation towers.
