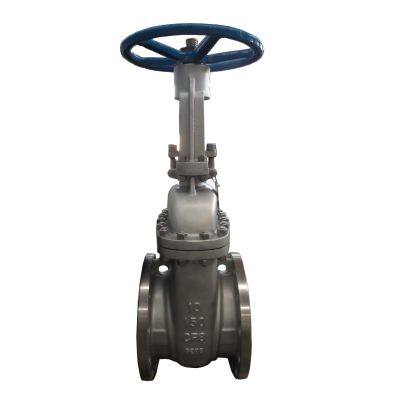

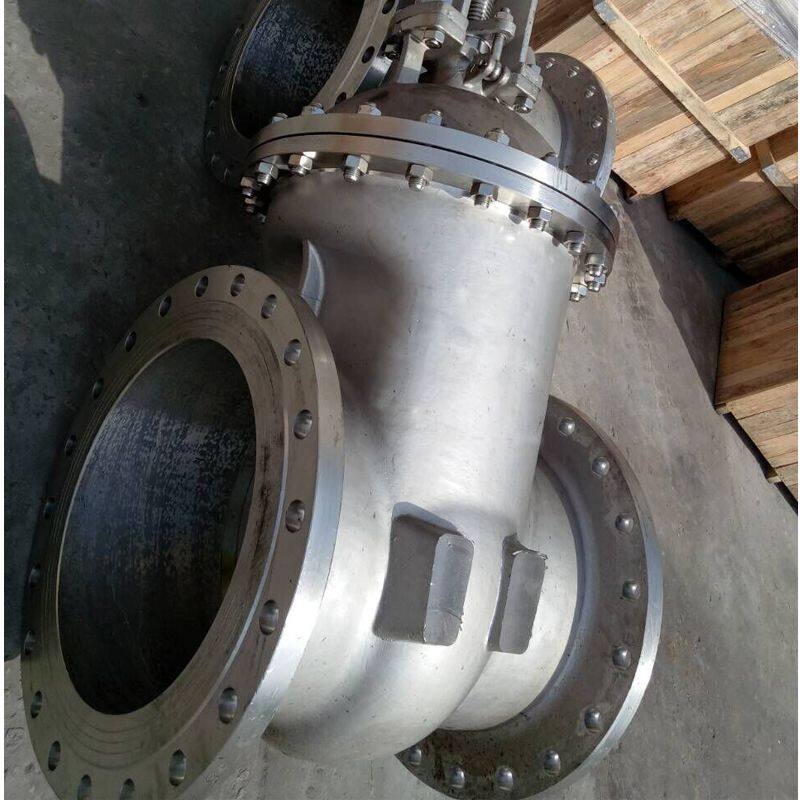

Product Description: ANSI Stainless Steel Gate Valve
Product Overview
Our ANSI Stainless Steel Gate Valve series represents premium-grade flow control solutions engineered for demanding industrial applications. Manufactured in compliance with API 600 and API 6D standards, these valves feature full-bore design and robust construction suitable for critical service conditions across various industries including chemical processing, oil and gas, power generation, and marine applications.
ANSI stainless steel gate valve range:
Production Size:2~24",DN50~DN600
Pressure:150LB/300LB/600LB/800LB/900/1500LB
ANSI stainless steel gate valve standard:
Design Standard:API600,API6D
Face to Face:ASME B16.34
Flange Standard:ASME B16.10
Testing Standard:API 598
ANSI stainless steel gate valve Material of parts:
Body: CF3,CF3M,CF8,CF8M
Bonnet: CF3,CF3M,CF8,CF8M
Stem:2Cr13/SS304/SS316/Carbon Steel
Disc: CF3,CF3M,CF8,CF8M
Gasket:PTFE/Graphite
Seat:A 276/420,A182 F304,A182 F304/304L,A182 F316/316L
Packing:Graphite

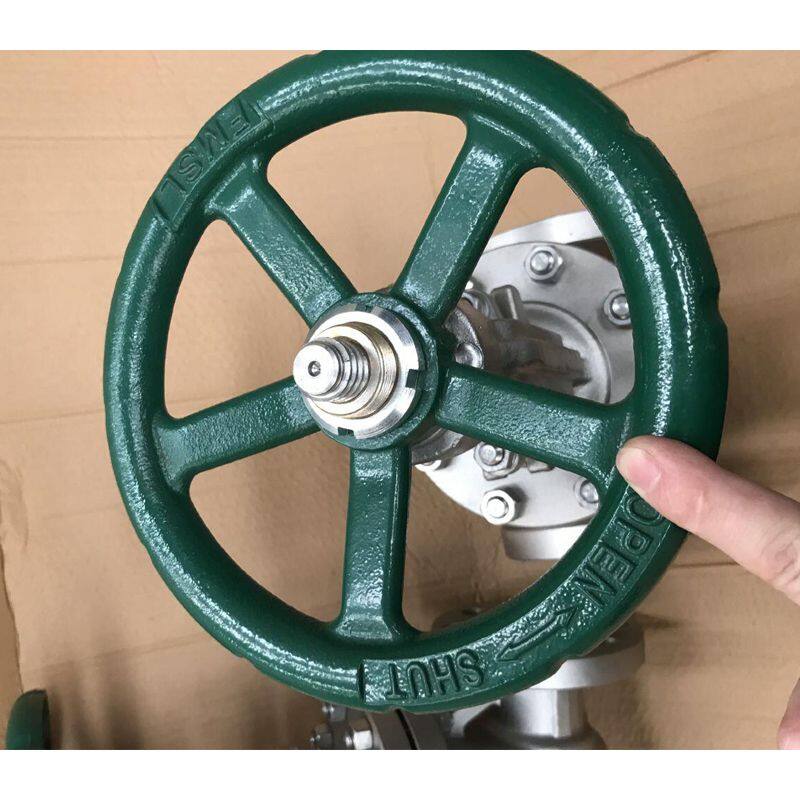

Handle: Malleable Iron
Key Features
Full Bore Design: Minimum pressure drop and pigging capability
Fire Safe Design: API 607 certified versions available
Multiple Stem Designs: Rising stem & non-rising stem options
Advanced Seating: Metal-to-metal + soft seat combination available
Anti-static Device: Ensures electrical continuity
Blow-out Proof Stem: Safety engineered stem design
Bolted Bonnet: Easy maintenance and inspection access
Industry Applications
Chemical Processing: Acid, alkali, and corrosive media handling
Oil & Gas: Pipeline transmission, refinery applications
Power Generation: Steam, feedwater, and cooling systems
Marine & Offshore: Sea water, ballast, and firefighting systems
Pharmaceutical: Ultra-clean processing applications
Cryogenic Services: LNG and low-temperature applications
Quality Assurance
100% pressure testing per API 598
Material traceability with PMI test available
NDE inspection: PT, MT, RT as per requirements
Certifications: ISO 9001, PED, CE, NACE MR0175
Service Conditions
Max Working Pressure: Up to 1500LB (PN250)
Temperature Range: Standard -29°C to 425°C
Extended Range: Cryogenic -196°C • High temp 650°C
Media: Water, steam, oil, gas, chemicals, corrosive fluids
