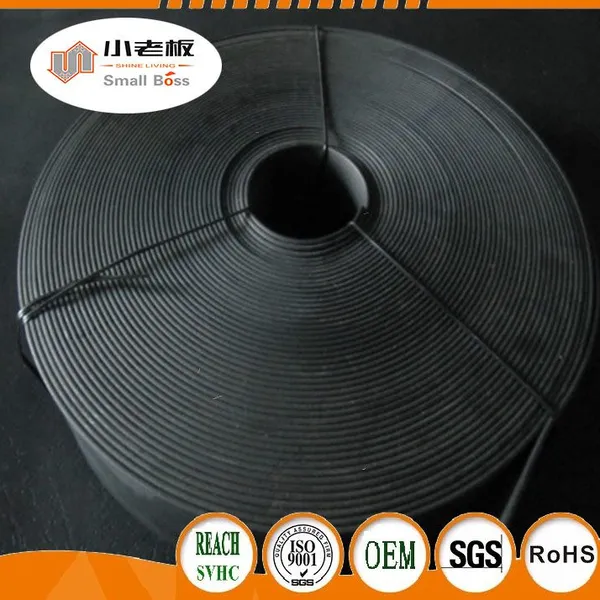

Help CenterPVC Fire and Smoke Seals/door Seals/Acoustic Door Seals
Related Products
-
Flexible Intumescent Seal/ Strip/Fire Door Seals/intumescent TapeUS$ 1.46 - 2.57MOQ: 10000 Meters -
Zhe Tong Small Boss High Expansion Ratio Fireproof Intumescent Sealing Strip for Metal DoorUS$ 1.39 - 2.78MOQ: 10000 Meters
-
Flexible Fire and Smoke Resistant Intumescent Seal Strip for Door and WindowUS$ 1.39 - 3.47MOQ: 20000 Meters
-
Customized Size High Quality Fire Intumescent Strip Dimensions Rubber Fireproof Temperature Origin Expansion Type Drawing TimesUS$ 1.32 - 2.09MOQ: 20000 Cubic Meters
-
Intumescent Fire Seal Strip for Metal DoorUS$ 0.69 - 2.78MOQ: 5000 Meters
The Secret to Intumescent Strip- Small Boss Flexible Intumescent Seal
Application:
* Intumescent material expands when heated to seal around objects exposed to fire
* Smoke seal retards spread of toxic by-products of combustion
* Documented aging properties
* Excellent flexibility for easy and cost-effective installation
* Low flame spread and smoke development
* Can be cut required length
* Re-enterable (no special tools required)
* Low odor
| No. | Test Properties | Standard | Specification |
| 1 | Surface Finish | GB16807-1999.6.2 | The surface is smooth, flat, no break lines on it |
| 2 | Intumescent Temp | 6.3.1 | Started temp:>150 C The main part temp: 300-400 |
| 3 | Linear Intumecent times | 6.3.2 | >30 times of original |
| 4 | Fire Resistant | 6.4 | Oxygen index >30 |
| 5 | Water Resistant | 6.5.1 | No melt and liquate, weight lost<6% |
| 6 | Acid Resistant | 6.5.2 | No melt and liquate, weight lost < 6% |
| 7 | Alkali Resistant | 6.5.3 | No smoke leak after intumescent |
| 8 | Smoke Resistant | 6.6 | No smoke leak after intumescent |
| 9 | Shore A Hardness | 6.7.1 | 60+/-5 degree |
| 10 | Tensile strength | 6.7.2 | > 7Mpa |

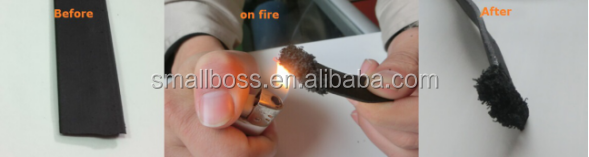

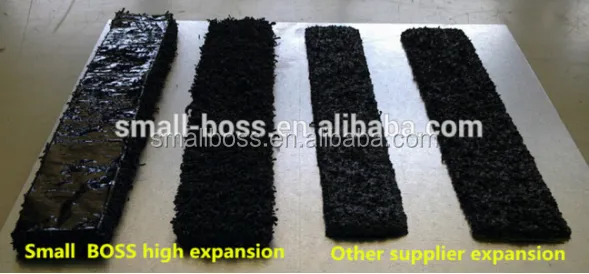

Fire test:

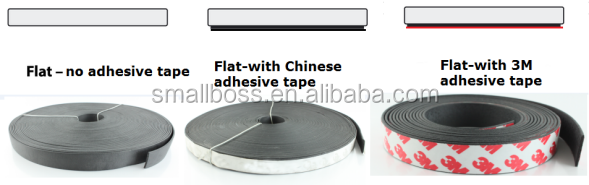

Seal Configurations:
Some seals are supplied with self-adhesive backing tape in order to been stuck on the doors or others.
Specification:
| Product No. | Size(Width*Thickness) | Package | Product No. | Size(Width*Thickness) | Package |
| SL1010 | 10*1.0mm | 25m/roll | SL2010 | 20*1.0mm | 25m/roll |
| SL1015 | 10*1.5mm | 25m/roll | SL2015 | 20*1.5mm | 25m/roll |
| SL1020 | 10*2.0mm | 25m/roll | SL2020 | 20*2.0mm | 25m/roll |
| SL1240 | 12*4.0mm | 25m/roll | SL3020 | 30*2.0mm | 25m/roll |
| SL1455 | 14*5.5mm | 25m/roll | SL3330 | 33*3.0mm | 25m/roll |
| SL1510 | 15*1.0mm | 25m/roll | SL3620 | 36*2.0mm | 25m/roll |
| SL1515 | 15*1.5mm | 25m/roll | SL4020 | 40*2.0mm | 25m/roll |
| SL1520 | 15*2.0mm | 25m/roll | SL5120 | 51*2.0mm | 25m/roll |
| SL1810 | 18*1.0mm | 25m/roll | SL40060 | 400*6.0mm | 25m/roll |

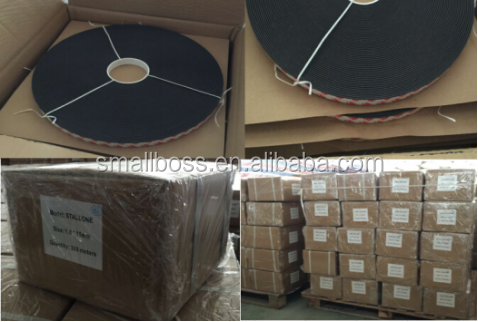

Package and shipment:
25/30 Meters per Roll, 10 Rolls per Carton, 80-120 Cartons per Crate:
| Company introduction: | SmallBoss is the best PVC products and materials manufacturer in China since 1992 |
| Located: | ZheJiang, near ShangHai and NingBo |
| Main Bussiness: | PVC extrusion profiles,PVC materials |
| Moulds: |
We can set/design new moulds for customers. We already had more then 2,000 moulds you can choose from our catalogue too |
| Size: | All sizes are acceptable, including large profiles |
| Process: | Extrusion, Slotting, Punching, Cutting all can be done in automatic lines. |
| Certification: | ISO9001,RoHS,SGS |
| Capacity: |
More than 90 extrusion profile production line and 15 PVC granules production line. Monthly output: 3,000 tons |
| Quality: | We produce materials ourselves, So we control the quality from beginning to end |
|
|
Welcome to visit SmallBoss !
Tongxiang Smallboss Special Plastic Products co., Ltd
