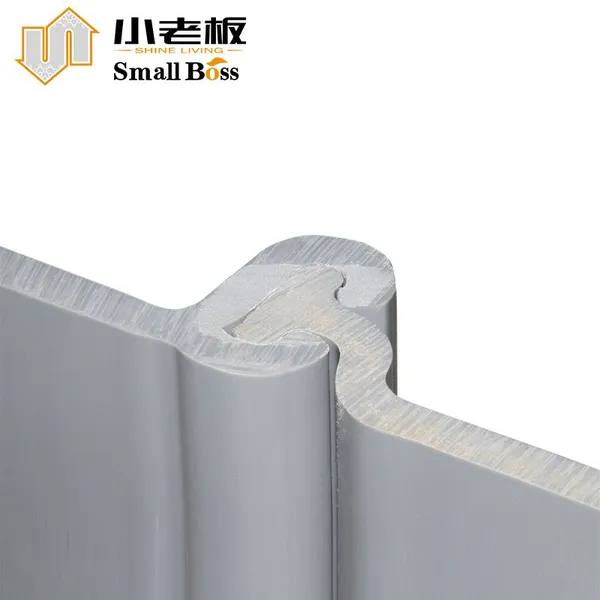

Help CenterVinyl Sheet Pile for Dock
US$ 83.22
10 - 99 Pieces
US$ 69.35
100 - 999 Pieces
US$ 62.42
≥1000 Pieces
Key Specifications
Get Latest Price
Technique:
Extrusion
Standard:
GB
Grade:
100% virgin PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vinyl Sheet Pile for SeawallUS$ 62.42 - 83.22MOQ: 10 Pieces -
Plastic Sheet Pile for Underground ParkingUS$ 62.42 - 83.22MOQ: 10 Pieces
-
Plastic Sheet Pile for Artificial Lake Shore for ConstructionUS$ 62.42 - 83.22MOQ: 10 Pieces
-
Plastic Sheet Pile for PondUS$ 62.42 - 83.22MOQ: 10 Pieces
-
Corrosion-Free Vinyl Long-lasting Water Retention Sheet PilesUS$ 62.42 - 83.22MOQ: 10 Pieces
Standard
GB
Grade
100% virgin PVC
Tolerance
±3%
Model Number
Z457
Brand Name
Small Boss
Place of Origin
Zhejiang, China
Alloy Or Not
Non-Alloy
Delivery Time
8 ~ 14 days
Invoicing
By Theoretical Weight
Color
Customized
Material
PVC material
MOQ
1pcs
Length
Customzied
Thickness
6-25mm
Advantage
Cost
Surface treatment
Clean
Usage
Projector Bracket
Payment terms
L/C T/T (30% Deposit)
Products Description
PVC sheet piling systems are the new standard with many advantages compared to hard wood, concrete and steel sheet piling. Vinyl sheet piles are made of poly vinyl chloride also known as PVC: a material with excellent resistance to weather influences and it has a long service life. Moreover, the material will not be affected by natural forces occurring in the ground, rodents, and salt or fresh water. PVC sheet piling has a number of benefits over traditional steel timber or concrete piling, including, costs, durability, ease of handling and a reduced environmental impact.
Material |
pvc |
||||
Width |
457 mm |
||||
Section depth |
254 mm |
||||
Length |
Customization |
||||
Thickness |
11.18mm |
||||
Package |
Customization |
||||
Color |
Grey/customization |
||||
Weight |
11.5±1 kg/m |
||||
Moment of inertia |
20438 cm4/m |
||||
Section modulus |
1546cm3/m |
||||
Ultimate moment |
7153 kg-m/m |
||||
Tensile Strength |
40.35 Mpa |
||||
Flexural Strength |
70.5 Mpa |
||||
Modulus of Elasticity |
2358 Mpa |
||||
Notched Izod impact |
2.22 Kg/cm |
||||
Heat Deflection Temperature |
63℃ |
||||
VINYL SHEET PILE INSTALLATION
For heavy conditions and installation from 4m up to 8m depth, it is advisable to use a steel support sheet pile with exactly the same shape as the PVC profile. With support harder soil can be penetrated and installation is speeded up because the hammer does not have to be disconnected from the steel guiding sheet pile.
Advantage of Smallboss PVC Sheet Pile
√ Does not rot or rust
√ Manufactured from recycled plastic
√ Resistant to the majority of chemicals
√ Not affected by salt water
√ Light weight, easy handling
√ Reduced impact on natural resources
√ Manufactured from recycled plastic
√ Resistant to the majority of chemicals
√ Not affected by salt water
√ Light weight, easy handling
√ Reduced impact on natural resources
DISADVANTAGES
√ Limited free standing height.
√ Not reusable.
√ Not reusable.
INSTALLATION CRITERIA
√ Sheet pile length.
√ Soil conditions.
√ Obstructions.
√ Onshore or offshore.
√ Water depth.
√ Soil conditions.
√ Obstructions.
√ Onshore or offshore.
√ Water depth.
Application
CUT-OFF & CONTAINMENT SYSTEMS
Small boss Vinyl Sheet Piles are frequently the optimal solution for fluid containment projects.
Vinyl PVC is a inert material that can exhibit superior chemical resistance, water corrosion resistance. The interlocks of the sheet pile can be co-extruded with a sealing membrane that further improves cutoff performance. Applications include but are not limited to:
• Groundwater cut-off
• Chemical containment
• Fluid Seepage Barriers
Vinyl PVC is a inert material that can exhibit superior chemical resistance, water corrosion resistance. The interlocks of the sheet pile can be co-extruded with a sealing membrane that further improves cutoff performance. Applications include but are not limited to:
• Groundwater cut-off
• Chemical containment
• Fluid Seepage Barriers
FLOOD PROTECTION
Vinyl PVC Sheet Piles can be utilized for flood protection structures as an:
*
Flood Walls / Flood Levee
• Stabilization of Dams
• Protection of Piping
Vinyl Sheet Piles are frequently utilized to replace old corroded sheet pile structures as a superior alternative with superior
corrosion resistance that is environmentally friendly.
*
Flood Walls / Flood Levee
• Stabilization of Dams
• Protection of Piping
Vinyl Sheet Piles are frequently utilized to replace old corroded sheet pile structures as a superior alternative with superior
corrosion resistance that is environmentally friendly.
WATER CONTROL SOLUTIONS
Vinyl PVC Sheet Piles can be utilized for water control structures that function by altering the flow of water in a pond, drainage channel or stream. ESC sheet piles have been utilized for water control applications for decades. Examples of utilizing vinyl sheet piles relevant to water control systems include:
* Baffle Walls for water or waste water flow control
• River Weirs
• Pond Linings
• Channel Linings for agriculturalapplications
• River Diversion
• Mining drainage systems
Small Boss Vinyl Sheet Piles are an eco-friendly material that is light-weight, aesthetic and very corrosion resistant.
* Baffle Walls for water or waste water flow control
• River Weirs
• Pond Linings
• Channel Linings for agriculturalapplications
• River Diversion
• Mining drainage systems
Small Boss Vinyl Sheet Piles are an eco-friendly material that is light-weight, aesthetic and very corrosion resistant.
MARINE STRUCTURES
Over the last 29 years Small boss has been delivering sheet piling solutions to marine structures. Vinyl PVC Sheet Piles provide an excellent option for a long lasting structural solution due to their superior corrosion resistance, aesthetic finish and lightweight profile for easy handling and installation. The marine applications include:
• Marine Bulkheads & Seawalls
• Tide Walls
• Breakwaters
• Wave Breaks
• Jetty Structures
• Groins
• Scour Protection and Erosion Control
• Marine Bulkheads & Seawalls
• Tide Walls
• Breakwaters
• Wave Breaks
• Jetty Structures
• Groins
• Scour Protection and Erosion Control
Construction Site
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge ,there are delivery cost to be paid by buyer.
Q: What is your terms of payment ?
A: T/T ,L/C or Alibaba Assurance.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge ,there are delivery cost to be paid by buyer.
Q: What is your terms of payment ?
A: T/T ,L/C or Alibaba Assurance.
