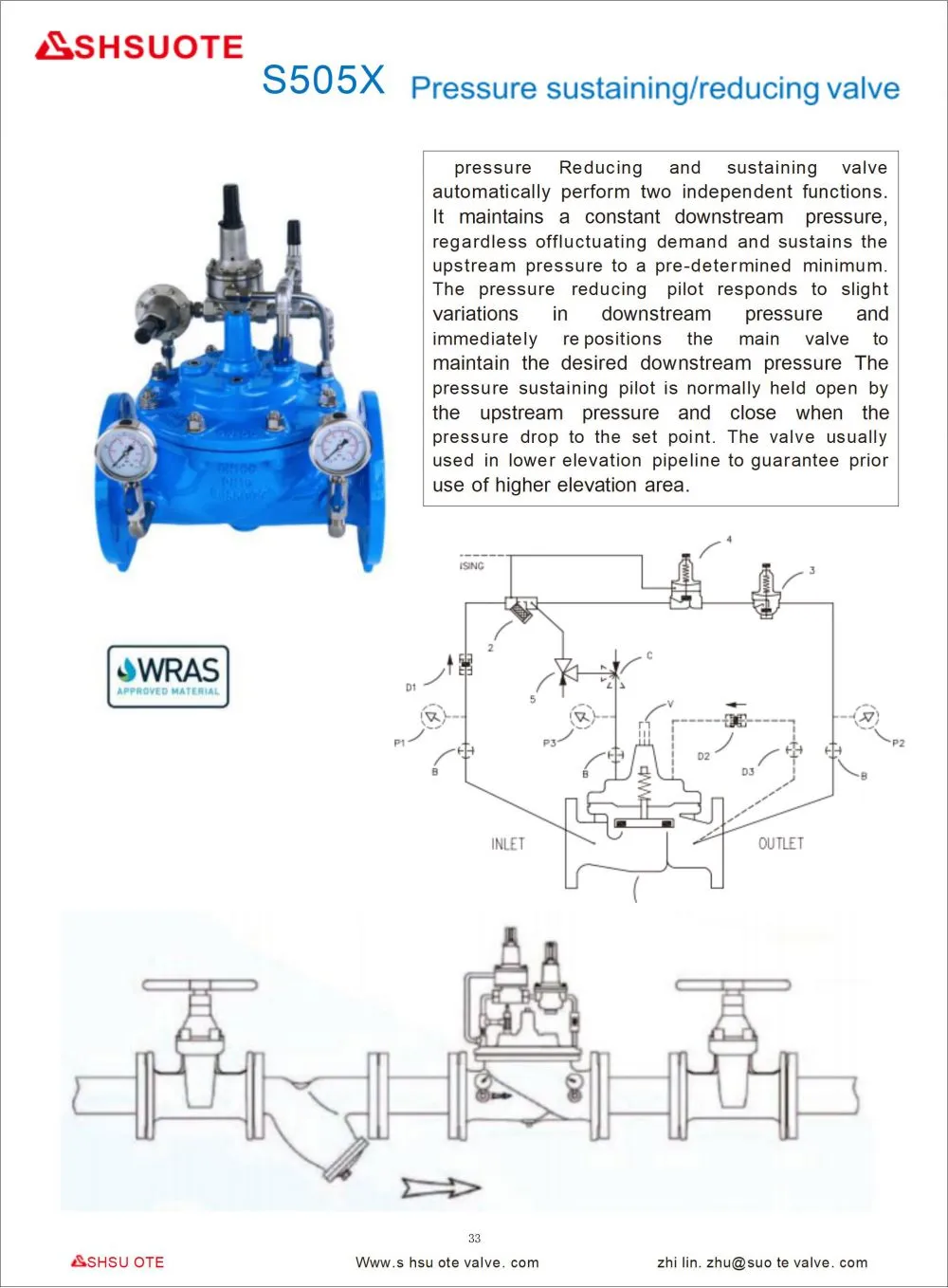

Shanghai Sote Valve Co., Ltd., a trusted industrial valve manufacturer based in Shanghai, China, proudly presents the S505X Pressure Control Valve. Engineered for precision pressure management in demanding industrial environments, this flanged valve delivers exceptional reliability and performance across critical pipeline systems.
The S505X series features robust cast steel construction and advanced pressure-reducing technology, ensuring stable outlet pressure even under fluctuating flow conditions. Its flanged connection design facilitates quick installation and maintenance while providing leak-proof sealing integrity.
Core Technical Specifications:
Pressure Regulation Range: 0.1-1.0 MPa (customizable upon request)
Operating Temperature: -20°C to 150°C
Seat Leakage Class: ANSI Class IV
Flow Characteristic: Equal Percentage
| Size (DN) | Weight (kg) | Flow Coefficient (Kv) |
|---|---|---|
| 15-50 | 8-25 | 4-40 |
| 65-150 | 32-180 | 60-400 |
| 200-300 | 210-550 | 500-1500 |
Operational Advantages:
Precision pressure control maintains system stability and protects downstream equipment
Pilot-operated design enables quick response to pressure variations
Stainless steel trim resists corrosion in harsh media
Low maintenance requirements reduce operational downtime
This valve is particularly suitable for water supply networks, HVAC systems, and industrial process lines where consistent pressure regulation is critical. Its modular design allows optional accessories like pressure gauges or bypass valves for enhanced functionality.
Shanghai Sote Valve combines rigorous quality control with extensive industry experience to deliver valves that meet operational demands. Our technical team provides comprehensive support from selection to installation, ensuring optimal performance in your specific application.
Frequently Asked Questions:
Q: What media is this valve compatible with?
A: Designed primarily for water, steam, and non-corrosive gases. Special materials available for aggressive media.Q: Can it handle high-pressure differentials?
A: Yes, the balanced-seat design accommodates pressure drops up to 1.6 MPa.Q: Is field adjustment possible?
A: The pressure setting can be easily adjusted via the top-mounted handwheel without disassembly.Q: What maintenance intervals are recommended?
A: Annual inspection of internal components is advised under normal operating conditions.Q: Are testing certificates provided?
A: Each valve undergoes hydrostatic and functional testing with traceable reports available.Q: Can I get customized flanges?
A: Flange standards (ANSI, DIN, JIS) and facing types can be specified upon order.
For industrial operations requiring dependable pressure management, the S505X valve offers proven performance backed by Shanghai Sote Valve's manufacturing expertise. Contact our engineering team today for application-specific solutions and technical documentation.
