Shanghai Sote Valve Co., Ltd., a trusted valve manufacturer based in Shanghai, China, introduces its high-performance Low Cracking Pressure Ball Check Valve engineered for precision instrumentation applications. This valve ensures reliable unidirectional flow control with near-instantaneous response, critical for maintaining accuracy in sensitive systems like laboratory analyzers, medical devices, and semiconductor processing equipment. Our commitment to precision manufacturing delivers consistent performance where minimal pressure drop and zero leakage are non-negotiable requirements.
Crafted with meticulous attention to detail, this check valve features a free-floating ball design that responds to the slightest pressure differentials – as low as 0.1 PSI – preventing backflow without disrupting delicate processes. The ultra-quick reaction time (≤5 milliseconds) makes it ideal for protecting pumps, sensors, and other critical components in pneumatic and hydraulic circuits. Unlike conventional check valves that require significant pressure to activate, our solution maintains system integrity while conserving energy.
Core Technical Advantages:
Minimal Flow Disturbance: The optimized internal geometry reduces turbulence, ensuring stable flow characteristics essential for metering and dosing applications.
Zero-Leak Seal Technology: Precision-machined seats combined with optional PTFE or FKM seals create bubble-tight shutoff, even after prolonged cycling.
Corrosion-Resistant Construction: Stainless steel body and ball withstand aggressive media and harsh environments, extending service life.
Compact & Lightweight Design: Space-saving form factor integrates seamlessly into tight instrument enclosures without compromising performance.
Customizable Specifications: Available in multiple sizes (1/8" to 1/2" NPT) with configurable cracking pressure settings to match specific application needs.
Technical Specifications:
| Parameter | Value |
|---|---|
| Operating Pressure | Max 150 PSI |
| Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Flow Direction | Unidirectional (Arrow Indicated) |
| Body Material | 316 Stainless Steel |
| Ball Material | 316 Stainless Steel |
| Seal Options | PTFE (Standard), FKM (Upon Request) |
Application-Specific Benefits:
Analytical Instruments: Prevents cross-contamination in chromatography systems by eliminating backflow during solvent switching.
Medical Devices: Ensures precise fluid control in ventilators and infusion pumps with silent, vibration-free operation.
Semiconductor Manufacturing: Maintains ultra-clean flow paths for etchants and gases in wafer processing tools.
Calibration Equipment: Delivers repeatable pressure regulation in test stands and sensor calibration rigs.

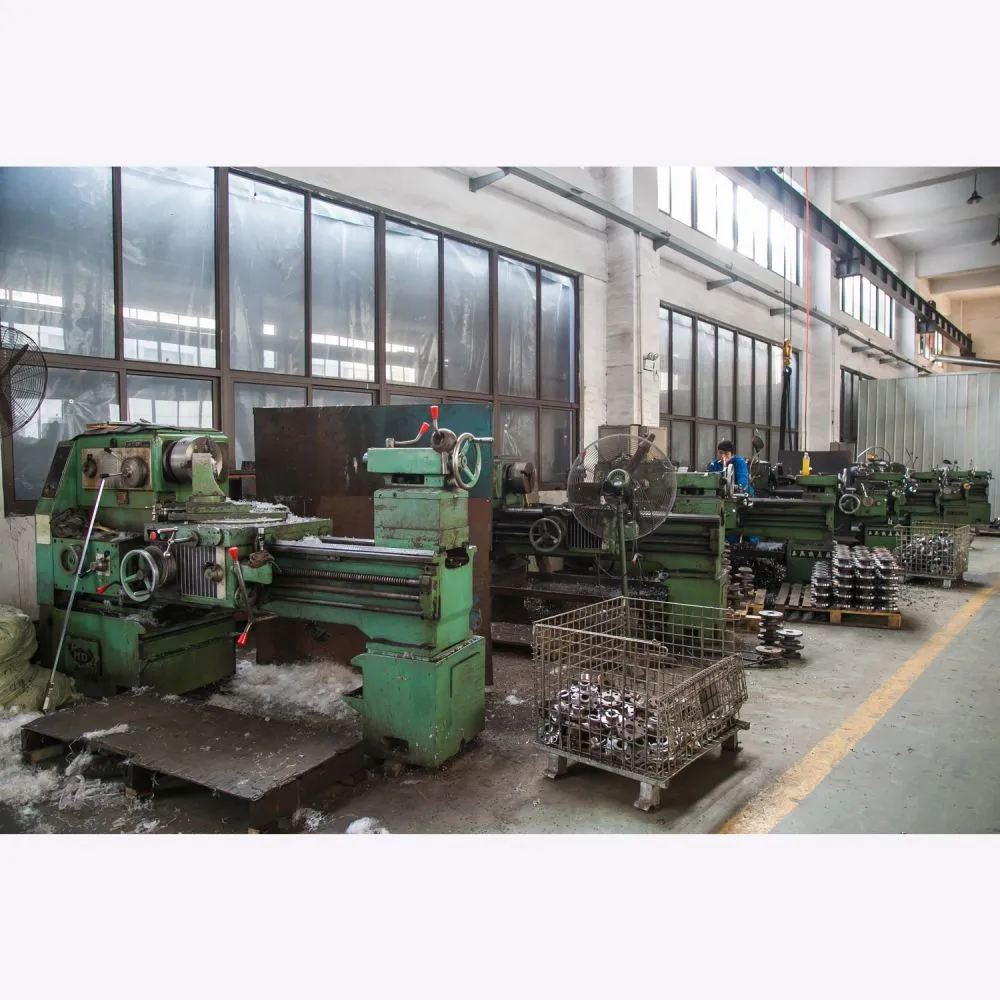

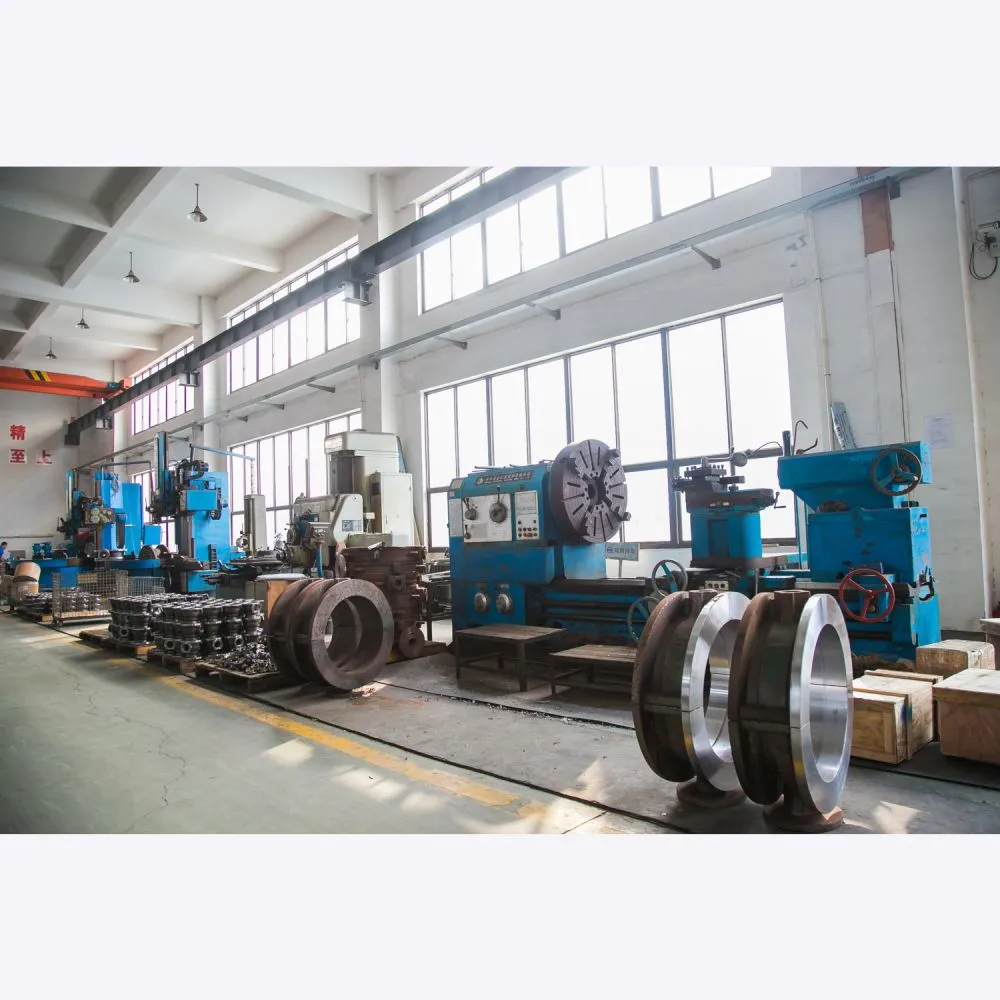

Shanghai Sote Valve leverages over a decade of specialized expertise in precision fluid control to deliver rigorously tested components. Every valve undergoes individual performance validation using automated test rigs that verify cracking pressure accuracy and leak integrity under simulated operating conditions. Our Shanghai-based manufacturing facility maintains strict process controls, enabling rapid customization for OEM partners while ensuring batch-to-batch consistency. With direct engineering support and flexible order quantities, we provide solutions that enhance your instrument reliability while reducing total ownership costs.
For critical applications where response time and sensitivity directly impact results, this valve offers unmatched performance. Contact our technical team today to discuss how our low cracking pressure technology can optimize your instrumentation systems. Custom configurations including special materials, cleaning protocols, and testing documentation are available to meet stringent industry requirements.
Frequently Asked Questions (FAQ):
Q1: What media is this valve compatible with?
A: The 316 SS construction is suitable for water, air, oils, and mild chemicals. Compatibility with specific aggressive media can be confirmed with our engineering team based on concentration and temperature.
Q2: Can I specify a cracking pressure outside the standard 0.1-0.5 PSI range?
A: Yes, custom cracking pressures down to 0.05 PSI are achievable for specialized applications. Minimum order quantities may apply.
Q3: How does this valve handle particulate contamination?
A: While the free-floating ball design is generally tolerant of minor particulates, we recommend installing a 10-micron upstream filter for optimal performance in dirty environments.
Q4: What is the expected cycle life?
A: Under standard operating conditions (clean media, room temperature), the valve is rated for >1 million cycles. Accelerated life test data is available upon request.
Q5: Are cleaning certifications provided for high-purity applications?
A: Optional cleaning and packaging per IEST, ASTM, or USP standards can be performed with supporting documentation. Specify requirements when ordering.
Q6: Do you offer sample units for testing?
A: Evaluation samples are available for qualified OEMs. Contact our sales department with your application details to request samples.
