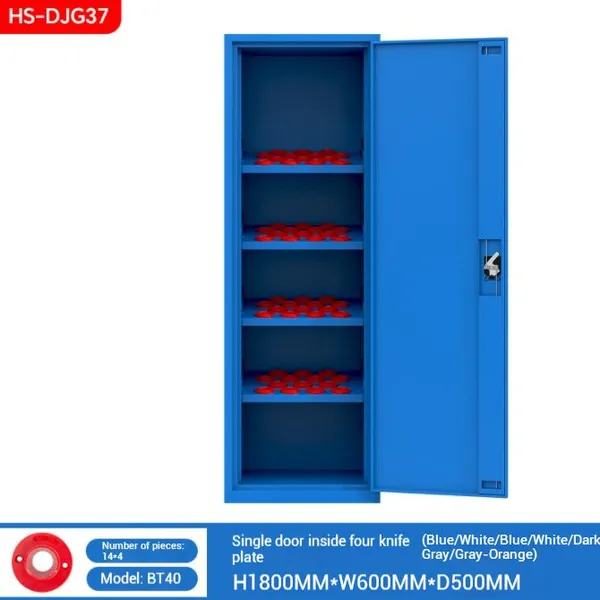

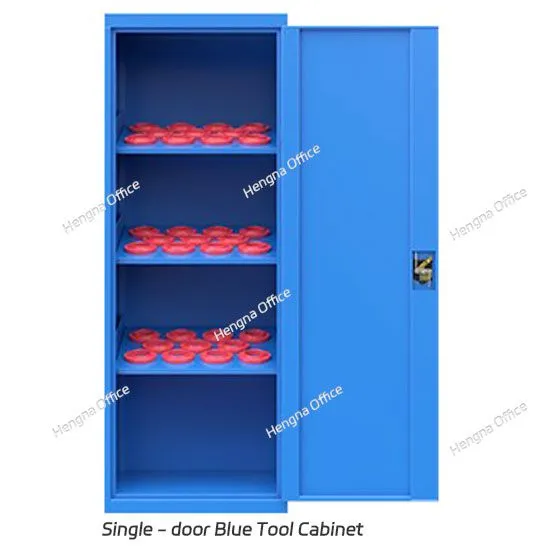

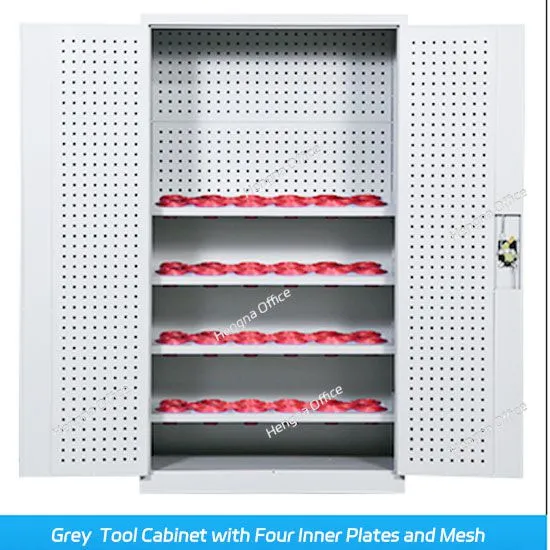

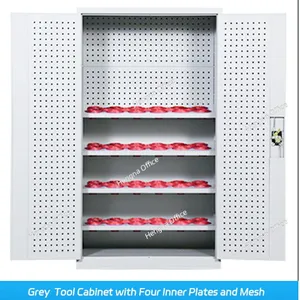

Tools CT-H293 CNC Holder Cabinet is designed to be that system, providing a secure, modular, and damage-proof environment for your most critical machining assets.
The Challenge: Protecting the Edge of Precision
Mold factories work with incredibly tight tolerances. A microscopic chip on a carbide end mill or a slight misalignment in a tool holder can lead to thousands of dollars in wasted material and machine time. Traditional tool storage often leaves tool holders exposed to dust, accidental bumps, or metal-to-metal contact.
The CT-H293 eliminates these risks. By integrating specialized Interchangeable Tool Bases, this cabinet ensures that the taper and the cutting edge never touch a hard surface. It transforms your tool crib from a simple storage room into a high-efficiency "Ready-to-Machine" zone.
Key Feature: The Modular Interchangeable Base System
The standout innovation of the CT-H293 is its adaptability. Modern mold shops often run multiple machine types requiring different taper standards.
BT40 Compatibility: Ideal for high-torque milling and standard vertical machining centers.
HSK63 Compatibility: Perfect for high-speed machining where balance and radial stiffness are paramount.
The internal rack system allows you to swap out tool holders (pockets) easily. Whether you are transitioning your shop from BT to HSK or running a hybrid environment, the CT-H293 scales with your business. The inserts are made from high-density, oil-resistant ABS material, which provides a "soft landing" for the tool holder taper, preventing scratches that could affect spindle runout.
Technical Specifications: CT-H293 Precision Series
| Feature | Specification | Manufacturing Benefit |
| Model | CT-H293 | Specialized CNC Series |
| Standard Taper Support | BT30, BT40, BT50, HSK63 | Universal versatility for all CNC machines |
| Material | 1.2mm - 1.5mm Cold-Rolled Steel | Industrial-grade structural rigidity |
| Insert Material | High-Impact ABS Plastic | Zero-scratch protection for tool tapers |
| Storage Density | Up to 40-60 Holders (Configurable) | Maximizes floor space efficiency |
| Coating | Anti-Static Powder Coating | Prevents dust attraction to oiled tools |
| Locking System | Secure Cylinder Key Lock | Restricts access to high-value carbide bits |
Optimized Workflow for Precision Mold Factories
1. Reduced Setup Times
In a mold factory, "Spindle-On" time is the only time you are making money. The CT-H293 organizes your tools by type or project. Instead of searching through drawers, operators can identify the correct tool holder through the organized rack system, perform a quick visual check of the bit condition, and get back to the machine.
2. Environmental Protection
Precision bits are susceptible to "micro-corrosion" caused by humidity or airborne contaminants.1 The enclosed design of the CT-H293 acts as a barrier. When the doors are closed, your tools are shielded from the metallic dust and coolant mist that are common in machining environments. This extends the life of your tool holders and ensures the tapers remain pristine for a perfect fit in the spindle.
3. Heavy-Duty Structural Integrity
A cabinet filled with 50 steel tool holders is incredibly heavy. Cheaper cabinets will warp or sag, causing drawers to stick and doors to misalign. The Asia Tools CT-H293 is built with reinforced vertical pillars and a heavy-duty base plate. Even when loaded to maximum capacity, the cabinet remains perfectly square, ensuring smooth operation of the doors and absolute safety for the technicians.
Ergonomics and Safety
The CT-H293 isn't just about the tools; it's about the people using them. The height of the tool racks is designed for ergonomic reach, reducing back strain for operators who frequently swap heavy tool assemblies. The recessed handle design prevents snags on clothing, and the "Anti-Tip" engineering ensures that even if the floor is slightly uneven, the cabinet remains a stable fortress for your equipment.
Summary of the CT-H293 Advantage
Investing in the CT-H293 is an investment in your factory's Quality Control. By standardizing your tool storage, you reduce the variables that lead to machining errors. It is the professional choice for mold makers who understand that precision starts in the tool cabinet long before the bit touches the steel.
Frequently Asked Questions (FAQ)
Q1: Can I mix BT40 and HSK63 holders in the same cabinet?
A: Yes! The CT-H293 is designed for modularity. You can configure individual shelves to hold different types of tool bases. This makes it an excellent choice for workshops that utilize various CNC brands and spindle types.
Q2: Are the ABS inserts resistant to CNC coolants and oils?
A: Absolutely. We use a specialized industrial-grade ABS that is formulated to resist degradation from common machining oils, lubricants, and synthetic coolants. They will not become brittle or swell over time.
Q3: Does the cabinet come fully assembled or in a kit?
A: For international shipping, we offer a "Precision-Fit" flat-pack to save on freight costs, which can be assembled in 30 minutes. However, we also provide fully welded versions for customers who require immediate "out-of-the-box" deployment.
