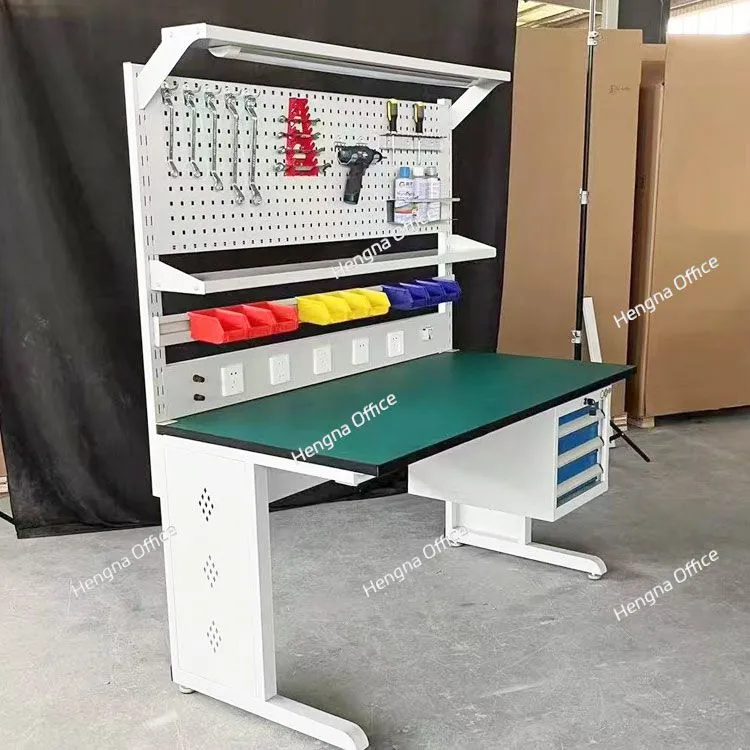

The WB-E368 ESD Anti-static Workbench is not just a piece of furniture; it is a critical safety instrument designed to protect your sensitive integrated circuits and PCB boards from Electrostatic Discharge (ESD).
Tailored for R&D laboratories, semiconductor cleanrooms, and high-tech repair centers, the WB-E368 integrates power, lighting, and storage into a unified, ergonomic workstation. This modular system ensures that your technicians work in a controlled environment that meets international ESD protection standards.
Comprehensive Technical Configuration
| Component | Technical Detail | Benefit |
| Worktop Material | 50mm High-Pressure Anti-Static Laminate | Volume resistance of $10^6$ to $10^9$ ohms |
| Frame Construction | Cold-Rolled Steel with ESD Powder Coating | Prevents static buildup on the structure |
| Illumination | Integrated LED Ceiling Lightboard | Shadow-free, 6000K daylight visibility |
| Power Supply | Reserve 5-hole Multi-functional Sockets | Efficient power access for soldering stations |

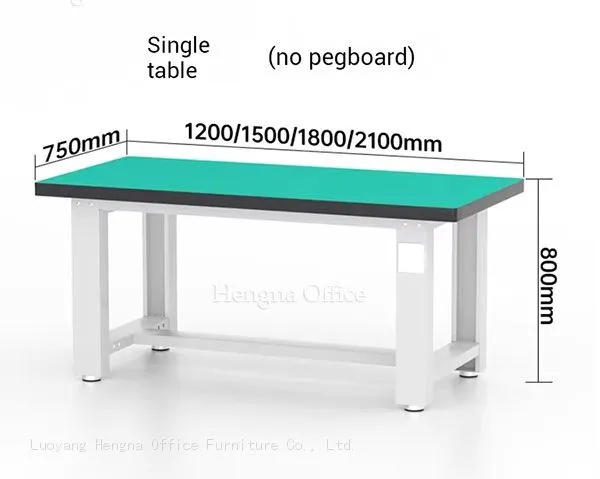

| Dimensions | 1500mm (L) x 750mm (W) x 800mm (H) | Optimized for 1.5m lab bay spacing |
| Storage | Dual Hanging Drawers + Louvered Panel | Organized access to SMD components |
Key Performance Features
1. Advanced ESD Surface Protection
The core of the WB-E368 is its 50mm anti-static desktop. Unlike cheap rubber mats that can curl or lose conductivity over time, our worktop features a permanent anti-static layer embedded into the laminate. This ensures a consistent path to ground for any static charge generated by friction or movement. The edges are precision-banded to withstand high temperatures from soldering irons and chemical cleaners.
2. Integrated Lighting & Power Hub

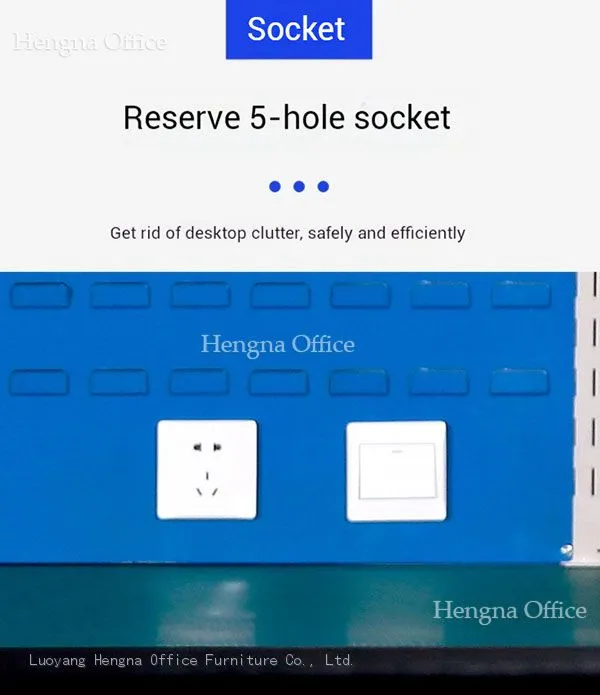

Clutter is the enemy of precision. The WB-E368 solves this with an overhead ceiling lightboard that provides uniform brightness across the entire 1.5-meter surface. Below the hanging plates, we have pre-installed Reserve 5-hole sockets. This allows technicians to plug in oscilloscopes, soldering stations, and microscopes directly into the bench, eliminating dangerous cable tangles on the floor.
3. Modular Vertical Organization

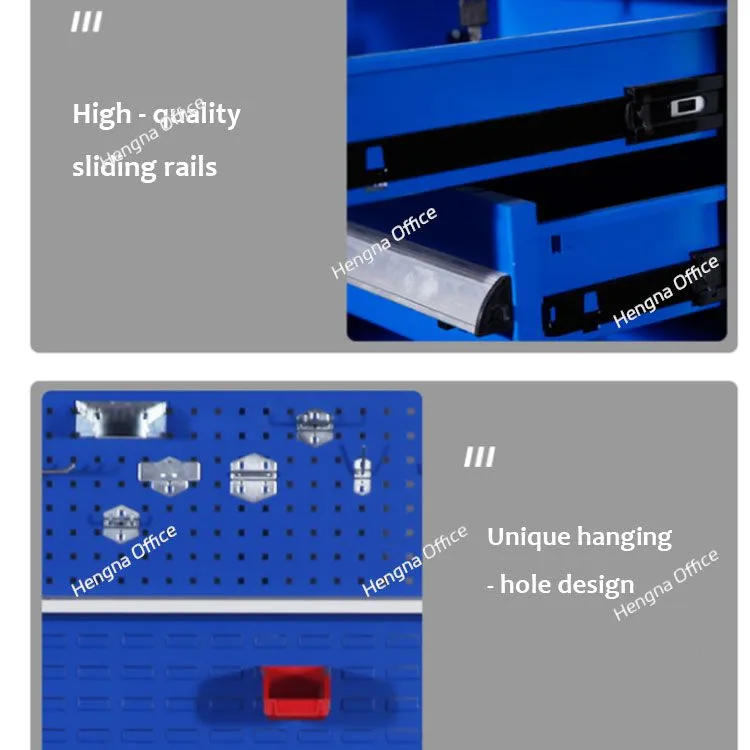

The workstation utilizes a dual-panel system:
Square Hole Section: For precision tool placement (tweezers, pliers, wire strippers).
Louvered Panel Section: Specifically for ESD-safe parts bins. Keeping micro-components at eye level reduces neck strain and improves assembly speed.
4. Ergonomic "C-Frame" Stability
Despite its technical features, the WB-E368 remains incredibly sturdy. The steel construction undergoes environmentally friendly processes including acid washing, phosphating, and electrostatic spraying. This results in a finish that is not only anti-static but also scratch-resistant and easy to decontaminate in cleanroom environments.
Implementation in the Workplace
Whether you are setting up a small repair shop or a large-scale SMT (Surface Mount Technology) line, the modularity of the WB-E368 allows for seamless expansion. The units can be placed side-by-side to create a continuous production line, with shared power and lighting systems that maintain a professional, high-tech aesthetic.
Safety & Maintenance Tips
To maintain the ESD integrity of your workstation:
Cleaning: Only use ESD-safe cleaners. Standard household waxes can create an insulating layer that blocks the path to ground.
Grounding: Ensure the workbench is connected to the building's common ground point using the provided grounding bolt.
Testing: Periodically test the surface resistivity with a megohmmeter to ensure the $10^6 \Omega$ - $10^9 \Omega$ range is maintained.
Frequently Asked Questions (FAQ)
Q1: Does the workbench come with a grounding wire and wrist strap plug?
Yes, the WB-E368 is equipped with dedicated grounding points. While the wrist strap itself is a wearable accessory, the bench includes the necessary "banana jack" ports for easy connection.
Q2: Can the LED light height be adjusted?
The lightboard is mounted on a fixed overhead bracket for maximum stability, but the angle can be slightly adjusted to focus light on specific precision tasks.
Q3: Is the 1.5m size the only option for the ESD model?
While the WB-E368 is our most popular 1.5m model, we offer the same ESD specifications in 1.2m and 1.8m widths to fit different laboratory footprints.
