Help CenterCustomizable Automatic Dip PVC Plastisol Coating Equipment Line – Fits All Metal Handle/Rack Sizes
Related Products
-
High-Efficiency Automatic Dip PVC Plastisol Coating Line – Fast Production for Metal Racks/HandlesUS$ 2000 - 40000MOQ: 1 Set -
Durable Stainless Steel Dip PVC Plastisol Coating EquipmentUS$ 2000 - 40000MOQ: 1 Set
-
Precision-Coat Automatic Dip PVC Plastisol Equipment – Uniform Coating for Metal Handles/Racks, Optimized Curing ProcessUS$ 2000 - 40000MOQ: 1 Set
-
Flexible Production Dip PVC Plastisol Coating Line – Manual/Semi Auto/Full Auto for Metal Handles & RacksUS$ 2000 - 40000MOQ: 1 Set
-
Automatic Dip PVC Plastisol Coating Equipment – Energy-Saving, Low Maintenance for Metal ProductsUS$ 2000 - 40000MOQ: 1 Set
Tailored Solutions for Every Metal Coating Need

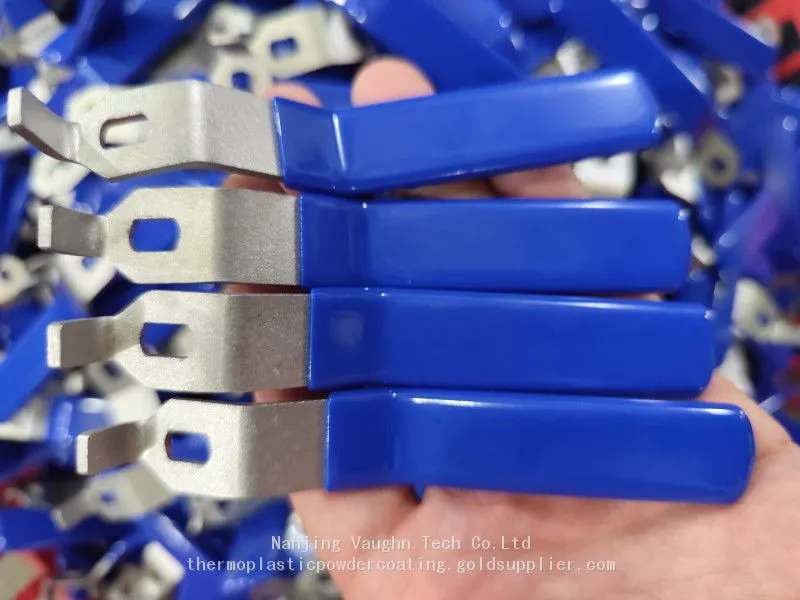

Metal handles, racks, and similar workpieces come in endless sizes—from small hardware handles to large industrial storage racks. Generic coating equipment often fails to accommodate these variations, leading to uneven coatings or inefficient production. Our Automatic Dip PVC Plastisol Coating Equipment Line solves this with full customization, designed to fit your exact workpiece dimensions, production space, and regional requirements—delivering consistent, high-quality PVC plastisol coatings for any metal product.
Whether you’re coating delicate furniture handles or heavy-duty industrial racks, this equipment adapts seamlessly. It eliminates the limitations of one-size-fits-all machines, ensuring every workpiece—regardless of length, width, or height—receives a uniform, durable coating that adheres tightly to the metal surface. With flexible configurations and a focus on adaptability, it’s the perfect choice for manufacturers seeking a coating solution that grows with their product range.
Three Equipment Types for Flexible Production Scales
To match diverse production volumes and operational preferences, the line offers three specialized models:
Fully Automatic Model
Engineered for high-volume production, this model features power-driven chain tracks that connect preheat ovens, material tanks, and post-heat ovens. Workpieces move automatically through each process step—preheating, dipping, curing—with zero manual intervention. It maximizes output, minimizes labor costs, and maintains consistent coating quality even during extended production runs, making it ideal for mass-produced metal handles, racks, or hardware.

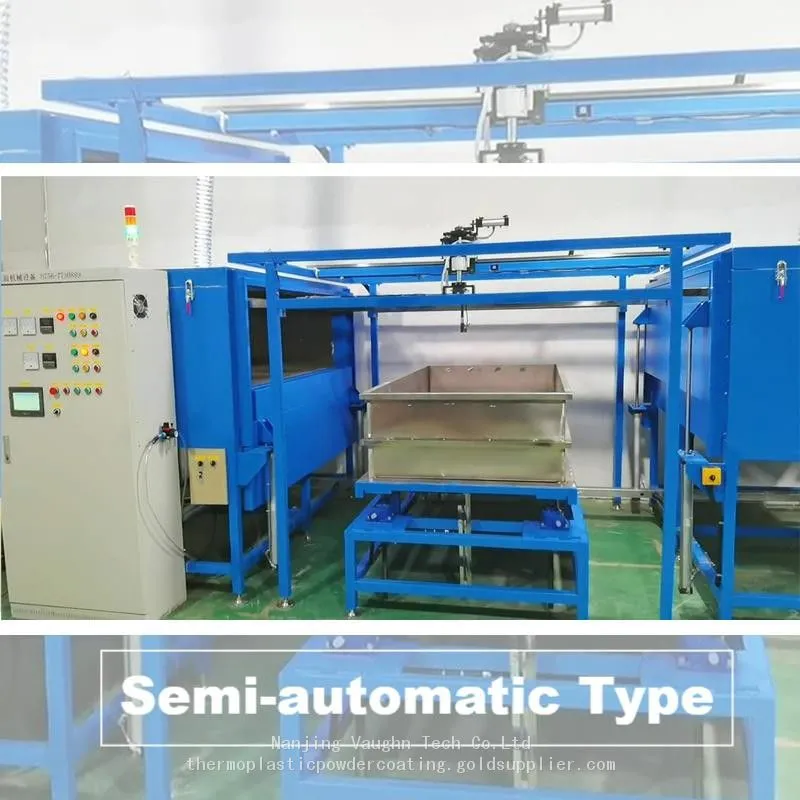

Semi-Automatic Model
A balance of automation and control, the semi-automatic model uses chain tracks for process connectivity while relying on manual workpiece movement. It reduces labor intensity compared to fully manual operations but retains the flexibility to adjust for custom orders or varying workpiece sizes. This model is perfect for medium-scale manufacturers producing a mix of standard and specialized metal products.
Purely Manual Model
Designed for small-batch or custom production, the manual model features separate preheat ovens, material tanks, and post-heat ovens, with workpiece transfer done by hand. It’s compact, cost-effective, and easy to operate—ideal for startups, boutique workshops, or businesses focusing on unique, low-volume metal items. Despite its manual design, it maintains coating consistency through standardized heating and curing parameters.
Technical Specifications & Customization Details
Every aspect of the equipment line is customizable to align with your workflow. Below is a breakdown of core specifications and flexible options:
Specification |
Details |
Machine Material |
Stainless steel—corrosion-resistant, durable, and suitable for long-term exposure to PVC plastisol and high temperatures |
Voltage |
Customized to match your country’s electrical system (e.g., 110V, 220V, 380V) for seamless integration |
Equipment Size |
Fully adaptable to workpiece dimensions (L × W × H) and production space constraints—no more forcing products into ill-fitting machines |
Oven Configuration |
2 dedicated ovens (preheat + post-heat) to ensure optimal adhesion and curing |
Material Tanks |
1 or 2 tanks (per request) to support multiple coating formulas or simultaneous production runs |
Production Lead Time |
25-30 days—timely delivery to avoid disrupting your production schedule |
Warranty |
5 Years—comprehensive coverage for manufacturing defects and performance issues |
After-Sales Support |
Lifetime—technical guidance, maintenance tips, and replacement parts available whenever needed |
MOQ |
1 Set—flexible for both small-scale trials and large-scale investments |
Streamlined Working Process for Uniform Coating
The equipment line follows a systematic, four-step process to ensure every workpiece receives a flawless coating:
1. Preheating: Metal workpieces are placed in the preheat oven for uniform heating. This critical step prepares the surface for plastisol adhesion, preventing peeling or chipping later.

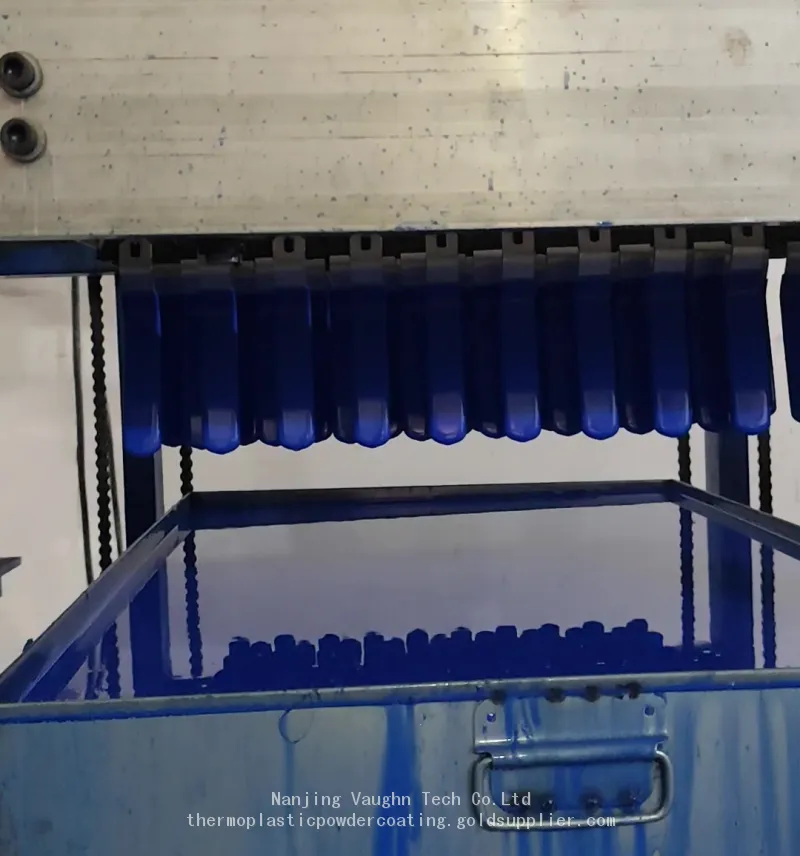

2. Dipping: Preheated workpieces are immersed in PVC plastisol liquid for 2-6 seconds. The dipping time is adjustable to control coating thickness, ensuring consistency across all products.
3. Curing: Coated workpieces are transferred to the post-heat oven, where they’re heated at 200℃ for 2-5 minutes. This curing process transforms the plastisol into a flexible, durable coating that resists wear and tear.
4. Finishing: Once cured, workpieces are ready for use—no additional sanding, touch-ups, or treatments required.
Core Advantages for Manufacturers
• Perfect Fit: Customizable size and voltage eliminate compatibility issues, ensuring the equipment integrates seamlessly into your existing workflow.
• Consistent Quality: Standardized processes reduce human error, delivering uniform coatings on every workpiece.
• Long-Term Reliability: Stainless steel construction and 5-year warranty minimize maintenance costs and downtime.
• Flexibility: Three equipment types let you scale production up or down as your business grows.
Whether you’re a small workshop or a large manufacturer, this customizable coating equipment line delivers the adaptability, quality, and support you need to elevate your metal product coatings.
