ZHUEN-20T Trimming Press Introduction
Shanghai Zhuen Industrial Co., Ltd.
Product Overview

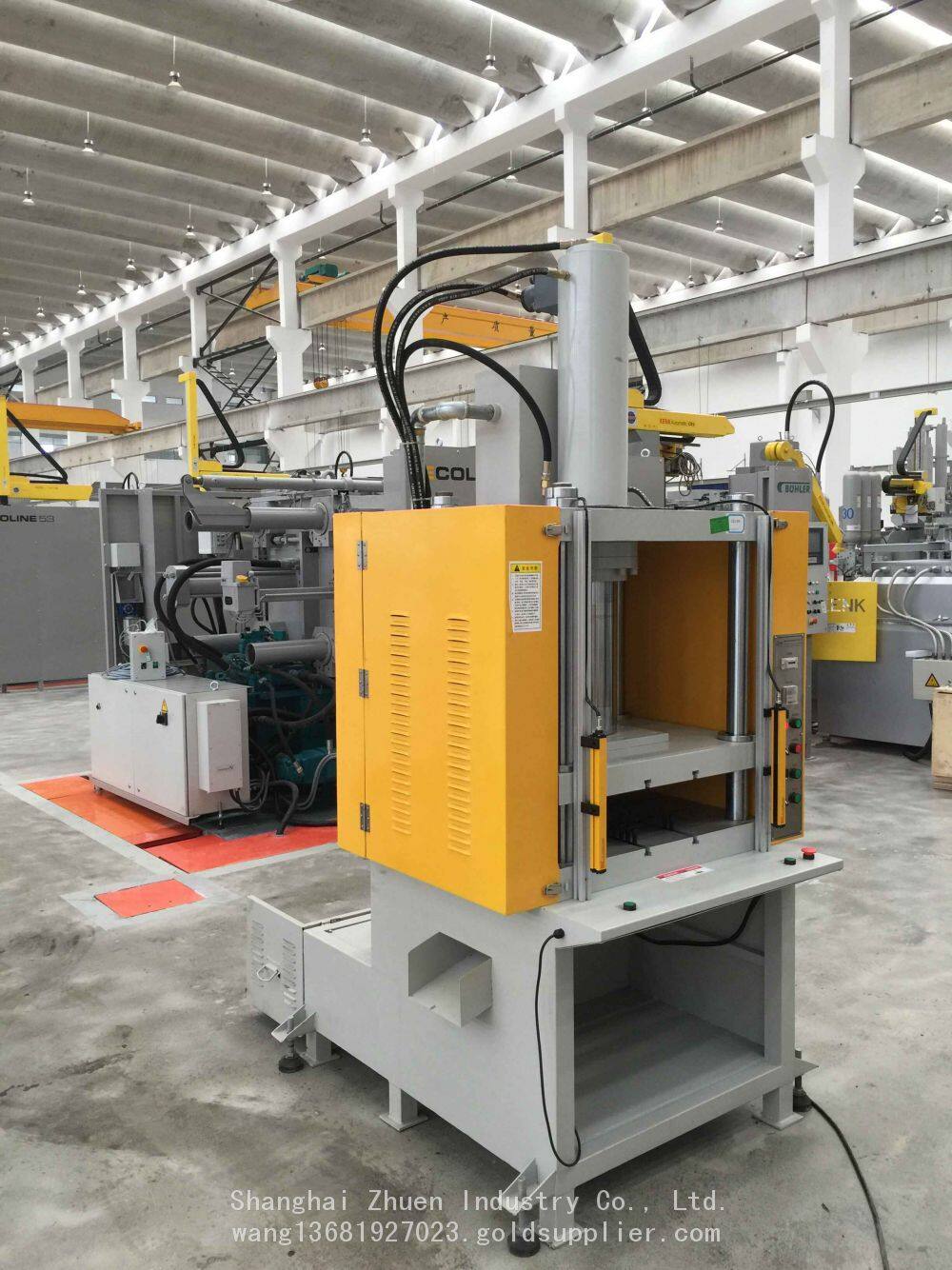

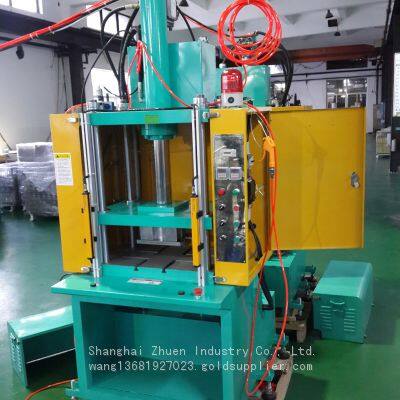

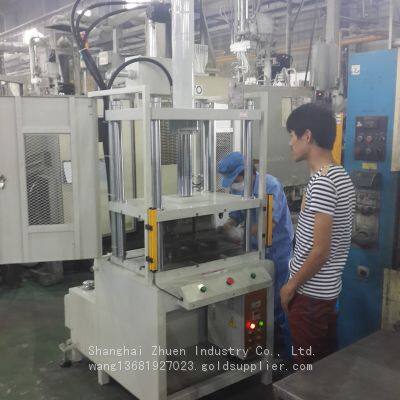

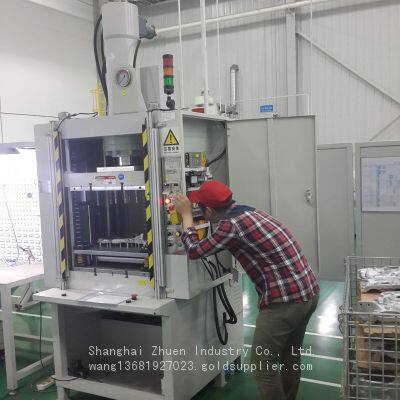

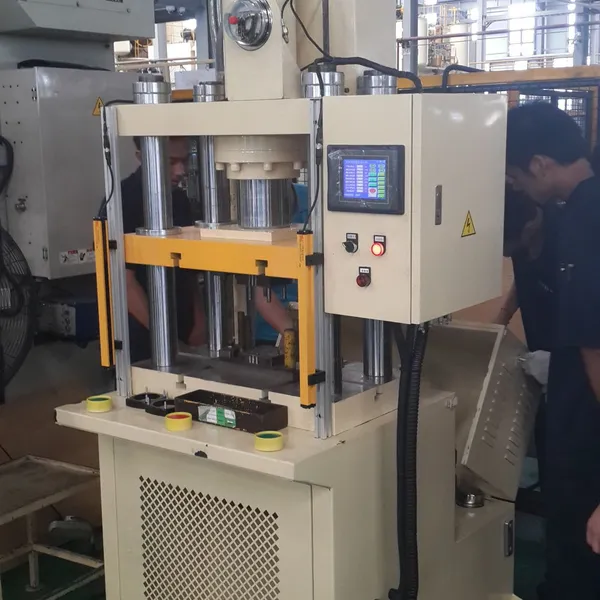

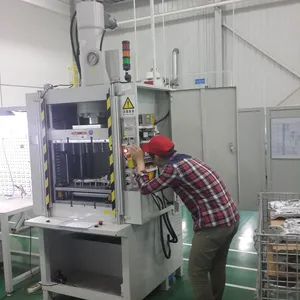

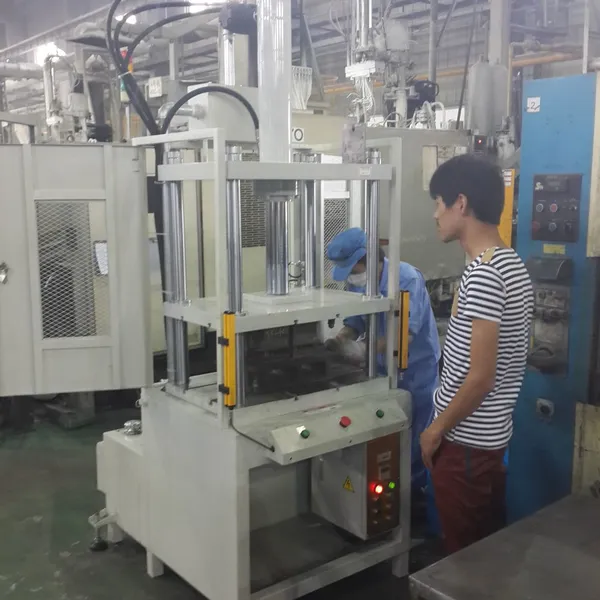

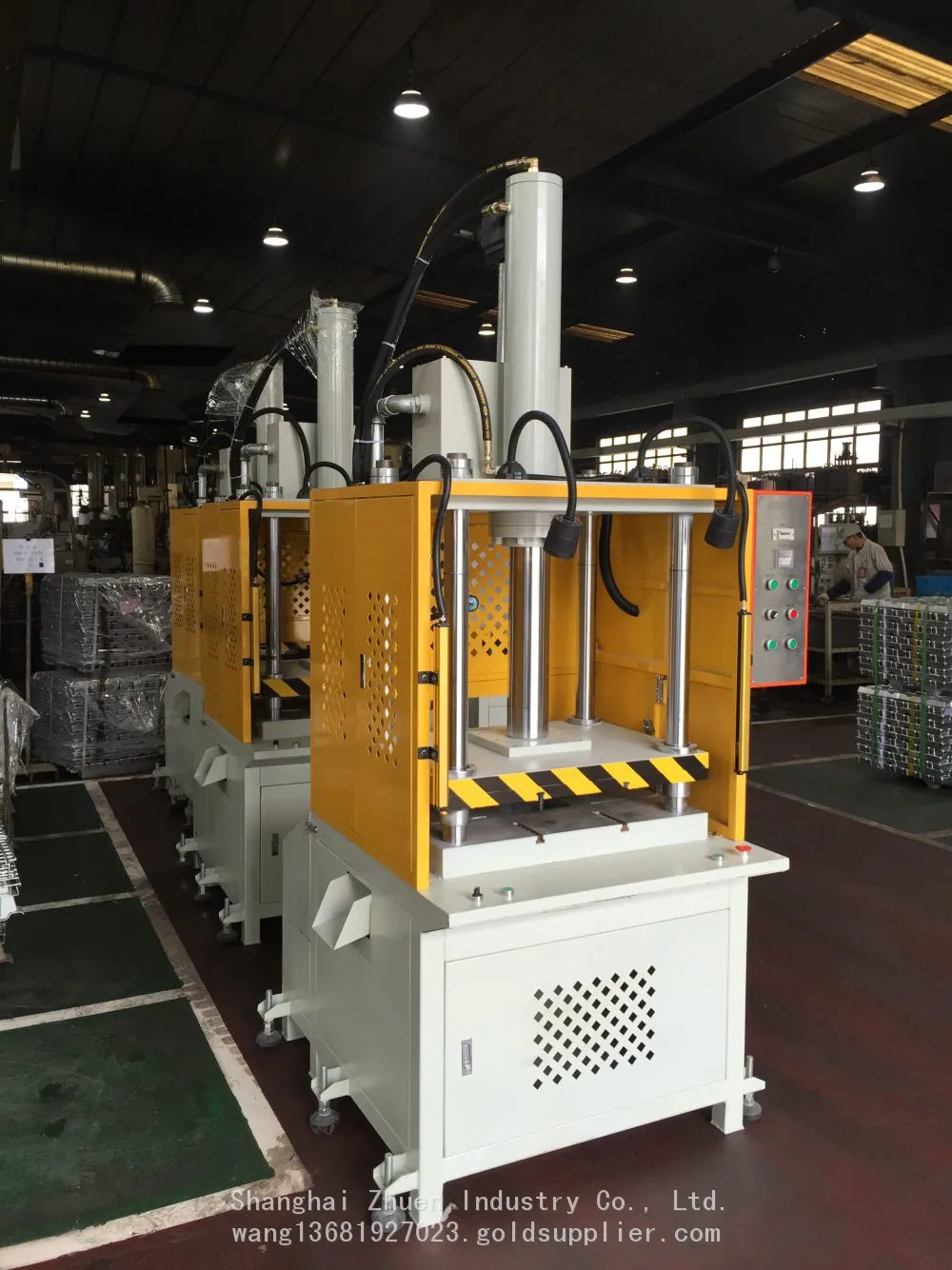

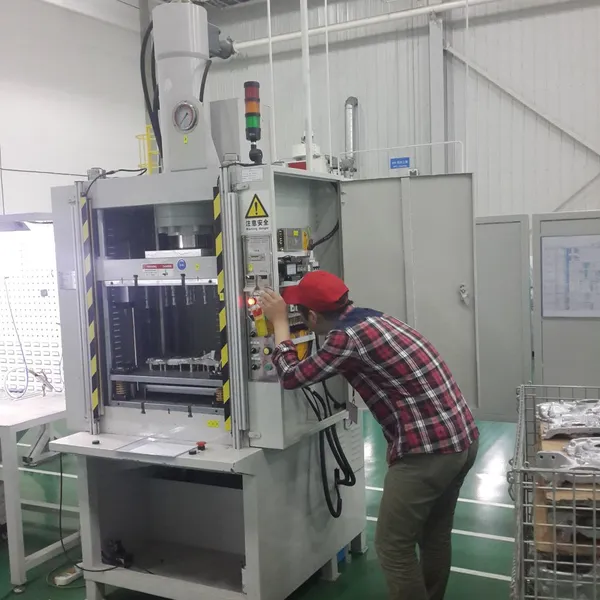

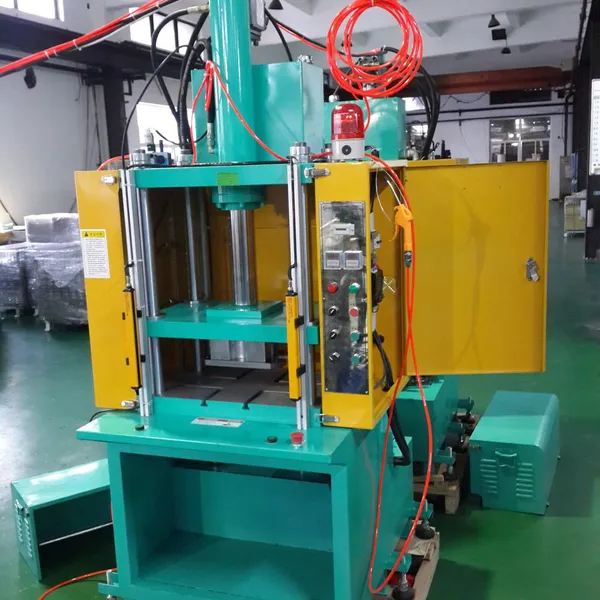

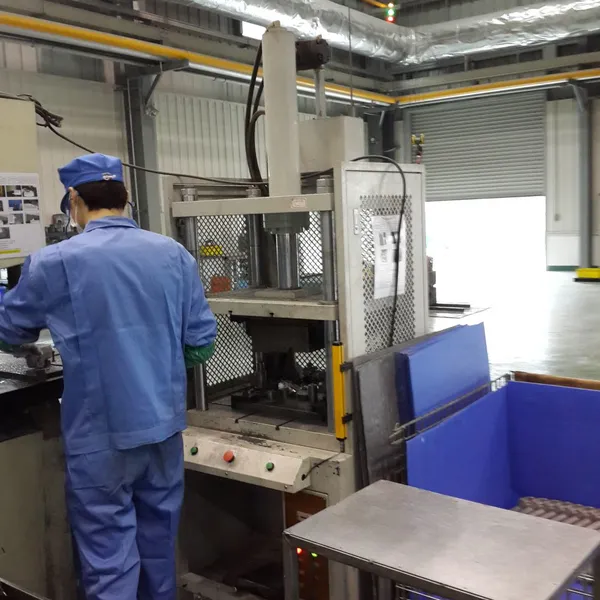

The ZHUEN-20T Trimming Press, manufactured by Shanghai Zhuen Industrial Co., Ltd., is a four-column three-plate frame-type hydraulic trimming device with a rated force of 20 tons. Specifically designed for post-processing of die castings, it precisely shears and separates burrs, gates, and other excess parts from die castings via hydraulic-driven molds, enabling efficient trimming and shaping of aluminum/magnesium alloy and other materials.
Core Parameters (Typical Values)
- Rated Force: 20 Tons (200 kN)
- Worktable Size: Approx. 400×300 mm (Optional 600×500 mm)
- Working Height: 400-500 mm
- Cylinder Stroke: 200-500 mm
- Motor Power: 2.25-3.75 kW
- Trimming Precision: ±0.1 mm
- Noise Level: ≤80 dB (Standby)
Core Advantages
- Stable Structure: Four-column three-plate design with precision guide sleeves ensures high vertical accuracy of downward pressing and extended mold service life.
- Efficient & Energy-Saving: Master-slave cylinder hydraulic circuit achieves a cycle speed of ≤1 time/second with low energy consumption, fast operation, and low noise.
- Flexible Adjustment: Pressure, stroke, speed, dwell time, and closing height can all be set according to operational needs.
- Safe & Reliable: Equipped with emergency stop button, safety guardrail, and two-hand operation system; photoelectric protection is optional.
- Convenient & Practical: Features a material discharge chute and air blowing device; casters and leveling feet enable easy movement and stable fixation.
Application Scenarios
- Industries: Auto parts, electronic and communication components, hardware tools, medical devices, etc.
- Processes: Deburring and gate cutting of aluminum/magnesium alloy die castings, shaping of workpieces, whole cutting of plastic parts, and plastic forming processes such as blanking and drawing of sheet metals.
