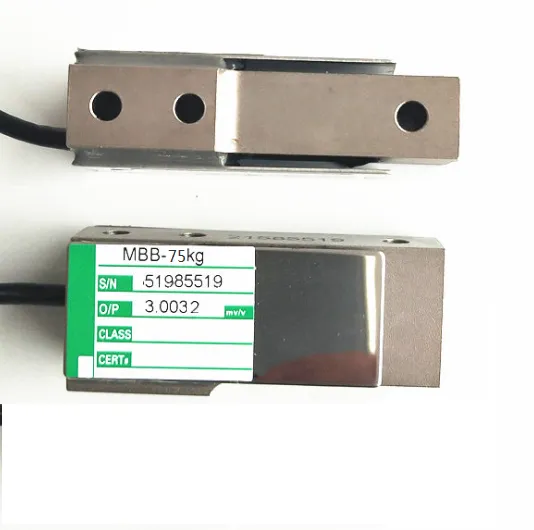

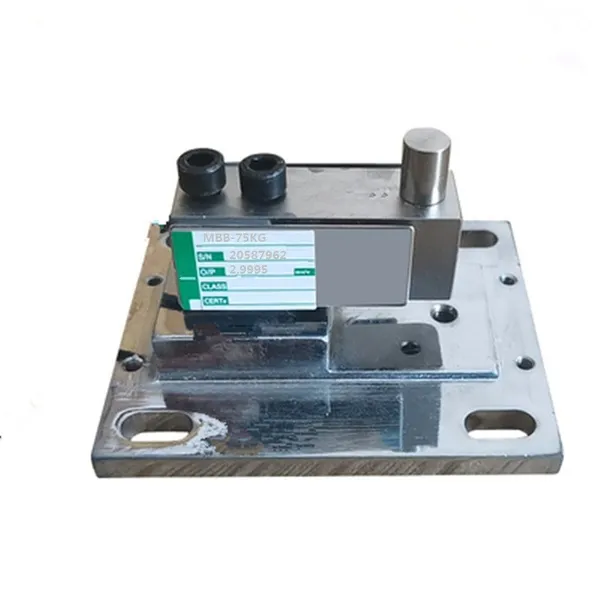

MBB-75KG LOADCELL LOADSENSOR
US$ 200
≥1 Combo
Key Specifications
Get Latest Price
Warranty:
12
After-sales Service:
12
Transport Package:
BOX
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
15 days
Related Products
Warranty
12
After-sales Service
12
Transport Package
BOX
Specification
MBB-75KG
Trademark
WEIGHTEC
Origin
CHINA

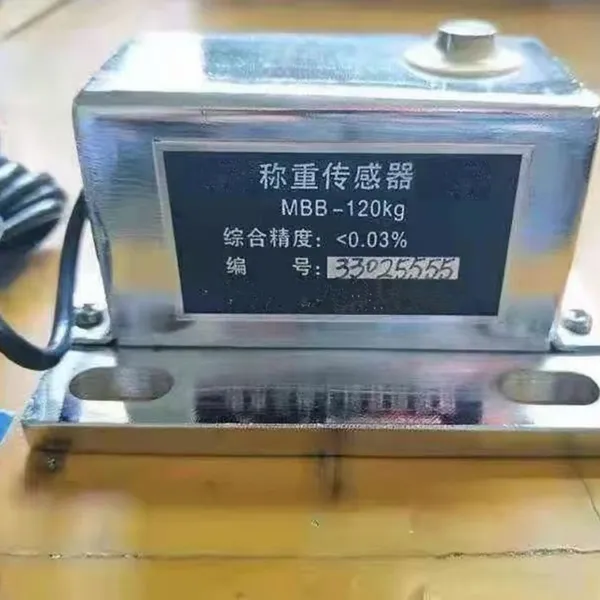

MBB-75KG,MBB-120KG ,LOADCELL, LOADSENSOR,SPECIFICATION:
Standard Capicity0.6，1，2，3，6，10，15，20，30，35，60，100，200kg
Recommended Excitation10 V AC/DC
Compensated Temp.Range-10℃to + 40℃
1m V/V for 1kg and below
Maximum Excitation
15 V AC/DC
Operating Temp.Range
-20℃to + 60℃
Output at Rated Load
2mV/V±10％＋
Zero Balance
±3％
Combined Error
0.025％
Input Resistance
410±10Ω
Non Repeatability
0.02％
Output Resistance
350±3Ω
Creep (20 minutes)
0.03％
Insulation Resistance(50VDC)
＞5000 MΩ
Zero Return (20 minutes)
0.03％
Deflection at Rated Load
＜0.5mm
Temp.Effect/10℃ on Span
0.015％
Safe Overload
150％
Temp.Effect/10℃ on Zero
0.026％
Ultimate Overload
200％
*1:60/100/200kg build to order only
