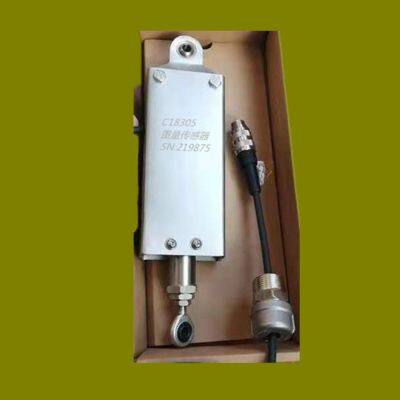

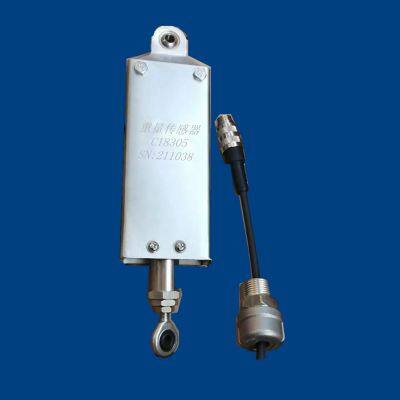

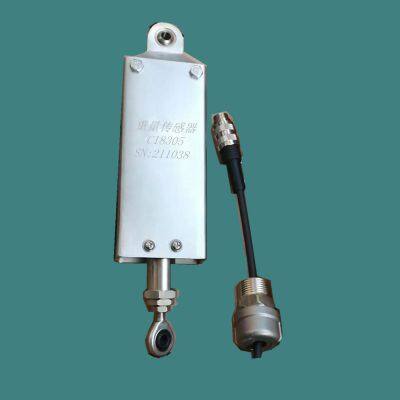

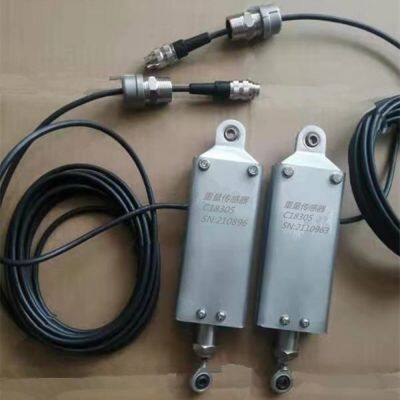

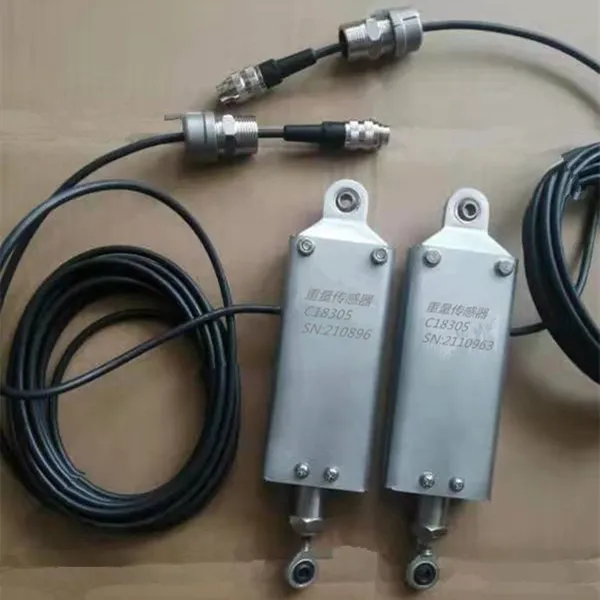

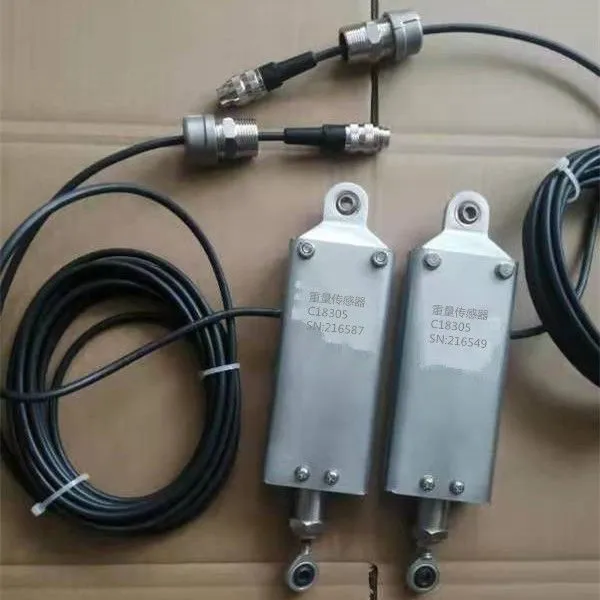

C18305 LOADCELL LOADSENSOR

Shenyang SDK-S type weighing sensor C18305, QCGJD-50SD weighing sensor

LANC133-G1 LPS series LOC, STC, MBB

SPECIFICATION:

Standard Capicity0.6，1，2，3，6，10，15，20，30，35，60，100，200kg

Recommended Excitation10 V AC/DC

Compensated Temp.Range-10℃to + 40℃

1m V/V for 1kg and below

Maximum Excitation

15 V AC/DC

Operating Temp.Range

-20℃to + 60℃

Output at Rated Load

2mV/V±10％＋

Zero Balance

±3％

Combined Error

0.025％

Input Resistance

410±10Ω

Non Repeatability

0.02％

Output Resistance

350±3Ω

Creep (20 minutes)

0.03％

Insulation Resistance(50VDC)

＞5000 MΩ

Zero Return (20 minutes)

0.03％

Deflection at Rated Load

＜0.5mm

Temp.Effect/10℃ on Span

0.015％

Safe Overload

150％

Temp.Effect/10℃ on Zero

0.026％

Ultimate Overload

200％

*1:60/100/200kg build to order only

GZD series weighing sensor is the type of electrical equipment for mining, its explosion-proof type is Exib I, MA certification product, used for mine gas explosive gas occasions.

STC, DEF, LOC, Type LPS HSX, HBB, STC, HBM, SUNCELLS, 9355 / 63 / 70 series;

Product specification model: GZD200 (GZD-200kg), GZD300 (GZD-300kg), GZD500 (GZD-500kg), GZD-S-1T (GZD-1000kg); GZD200 (GZD-200kg), GZD300 (GZD-300kg)
