Tetrafluoro Solvent Continuous Suction Filter ZJ-1500
High-efficiency and corrosion-resistant laboratory filtration solution
Product Overview
The tetrafluoro solvent continuous suction filter is a corrosion-resistant and high-efficiency filtration device specially designed for laboratories, chemical and pharmaceutical industries. The product uses polytetrafluoroethylene (PTFE) material as the core, adopts a modular structure design, is compatible with the GL45 standard interface, and combines a vacuum pump or peristaltic pump to achieve the continuous suction filtration function. It can quickly complete the separation and purification of solvents, highly corrosive liquids or particle suspensions, and is suitable for sample pretreatment requirements in harsh chemical environments.
Core Structure

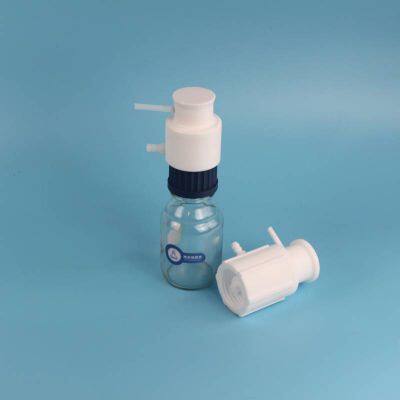

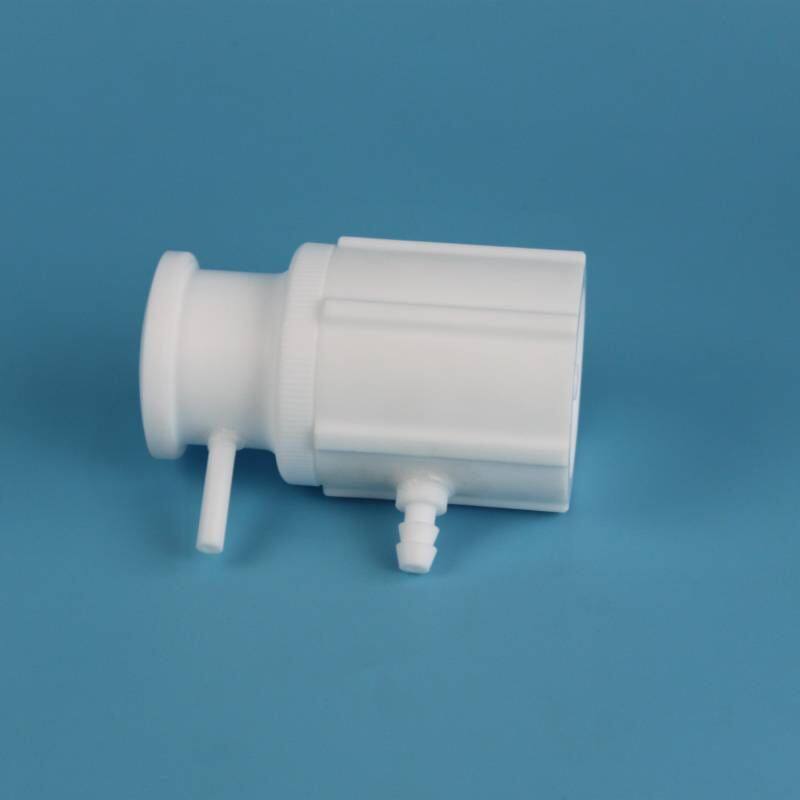

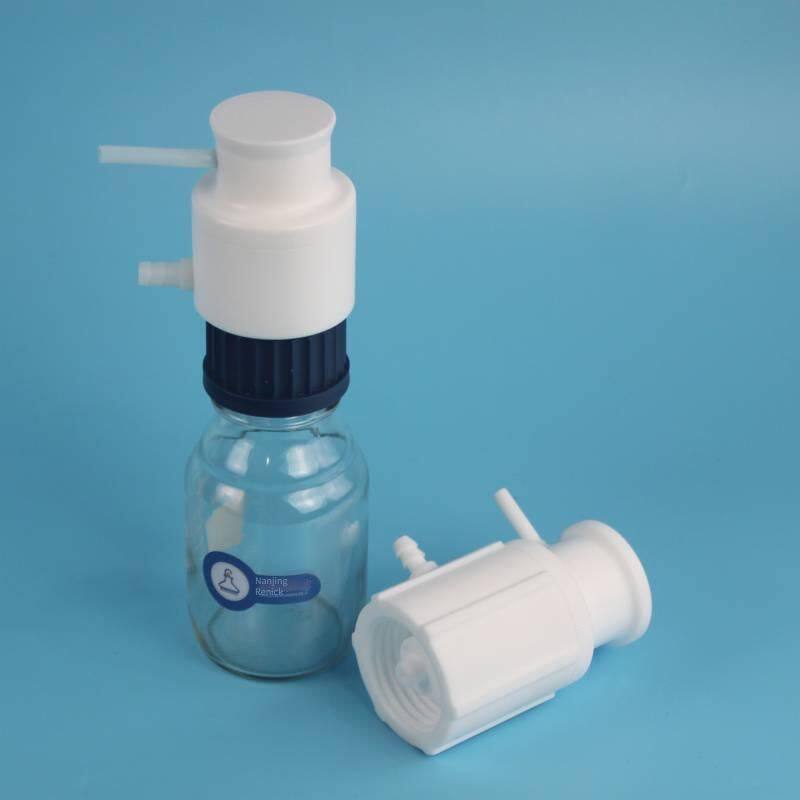

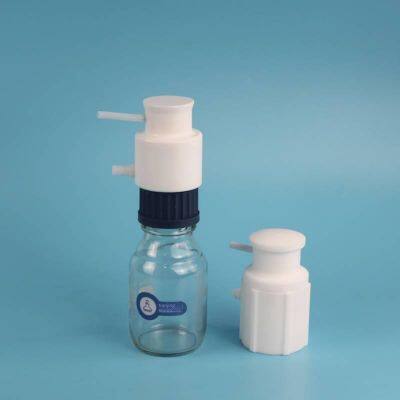

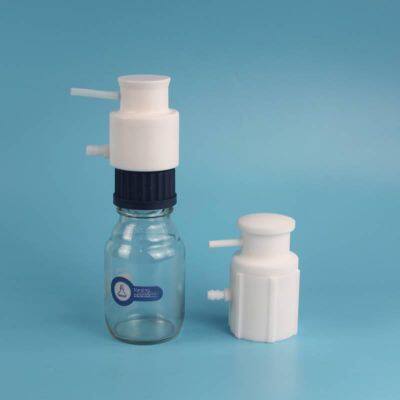

1. Corrosion-resistant Filter Head
- Material: Made of all-polytetrafluoroethylene (PTFE) material, resistant to strong acids, strong alkalis, organic solvents and high temperatures (-200°C to 260°C), eliminating the risk of metal contamination.
- Interface Standard: The top is compatible with the GL45 standard interface for seamless connection to the pump system; the bottom is flexibly compatible with GL45 or GL32 glass receiving bottles (such as solvent bottles, filtrate bottles).
- Filter Membrane Compatibility: Supports the rapid replacement of various filter membranes (such as 0.22μm/0.45μm) to meet different precision filtration requirements.
2. Continuous Suction Filtration System
- A negative pressure is generated by an external vacuum pump or peristaltic pump, and the sample to be filtered is continuously sucked into the filter head from the liquid inlet end. After the filtrate is separated by the filter membrane, it flows into the bottom glass bottle, and the filter residue is enriched on the surface of the filter membrane, achieving efficient solid-liquid separation.
- The modular design supports multi-stage series or parallel connection, suitable for continuous processing of large batches of samples.
Technical Parameters
- Material: PTFE (Tetrafluoroethylene)
- Interface Standard: GL45 (Liquid Inlet End) / GL45 or GL32 (Liquid Outlet End)
- Applicable Temperature: -200°C ~ 260°C
- Filtration Area: Standard type or high-throughput type is available (customized according to requirements)
- Applicable Filter Membranes: PTFE, nylon, cellulose, etc. (Diameter 47mm/50mm)
Product Advantages
✅ Corrosion Resistance: The PTFE material fully resists acids, alkalis, organic solvents and strong oxidants, extending the service life of the equipment.
✅ Wide Compatibility: Compatible with GL45/GL32 glass bottles, seamlessly docking with commonly used laboratory containers to reduce costs.
✅ Efficient Continuous Operation: Supports pump-driven continuous filtration, improving experimental efficiency, especially suitable for large-scale sample processing.
✅ Zero Pollution Design: No metal parts, avoiding sample cross-contamination and meeting the requirements of high-purity experiments.
✅ Convenient Maintenance: Quick-disassembly structural design, easy to replace and clean the filter membrane, reducing downtime.
Application Scenarios
1. Chemical Analysis: Purification and filtration of corrosive solvents (such as concentrated sulfuric acid and hydrofluoric acid).
2. Biopharmaceuticals: Sterilization or particle removal of cell culture media and fermentation broths.
3. Environmental Monitoring: Separation and enrichment of suspended particles in water samples and soil extracts.
4. Materials Science: Precision filtration of nanomaterials and polymer solutions.
Operation Process
1. Install the filter membrane into the filter head, and connect the pump system and the receiving bottle.
2. Start the pump to generate negative pressure. The sample is sucked in through the liquid inlet, and the filtrate flows into the bottom glass bottle.
3. After filtration is completed, turn off the pump, disassemble the filter head to recover the filter residue or replace the filter membrane.
