Automatic Eddy Current Separator for Aluminum and Copper Non Ferrous Metal Separation and Ubc Recycling

                                         Eddy current separator copper plastic separator Non ferrous metal separator

1. Brief introduction

   During operation, a high-frequency alternating strong magnetic field is generated on the surface of the sorting magnetic roller. When conductive non-ferrous metals pass through the magnetic field, eddy currents are induced within the non-ferrous metals. These eddy currents themselves generate a magnetic field in the opposite direction to the original magnetic field. The non-ferrous metals (such as copper and aluminum) are then propelled forward along their conveying direction due to the repulsive force of the magnetic field, achieving separation from other non-metallic materials and thus achieving the purpose of sorting. The main distinguishing criterion is the ratio of the material's conductivity to its density; materials with a higher ratio are easier to separate than those with a lower ratio.




2. appliance

 Eddy current separators are mainly used to recover copper, aluminum, and other non-ferrous metals from municipal solid waste, industrial waste, electronic waste, glass shards, waste plastic doors and windows, boiler bottom ash, and scrap car parts. They can be widely used in environmental protection fields such as waste treatment and waste electrical appliance recycling, as well as in material processing industries such as non-ferrous metal processing. Specifically, they mainly refer to the following aspects:

1.Electronic waste processing (applicable to various waste appliance dismantling lines, refrigerator and air conditioner dismantling lines, television and computer dismantling lines)

2. Separation of aluminum cans and ferrous metals

3. Separation of non-ferrous metals from boiler bottom ash

4. Separation of aluminum or copper blocks from scrap car parts

5. Separation of non-ferrous metals from glass shards

6. Separation of non-ferrous metal impurities in some production lines (such as plastic recycling production lines)

7. Separation of non-ferrous metals from plastic door and window recycling

8. Separation of non-ferrous metals from wood

3.  consist of the eddy current separator

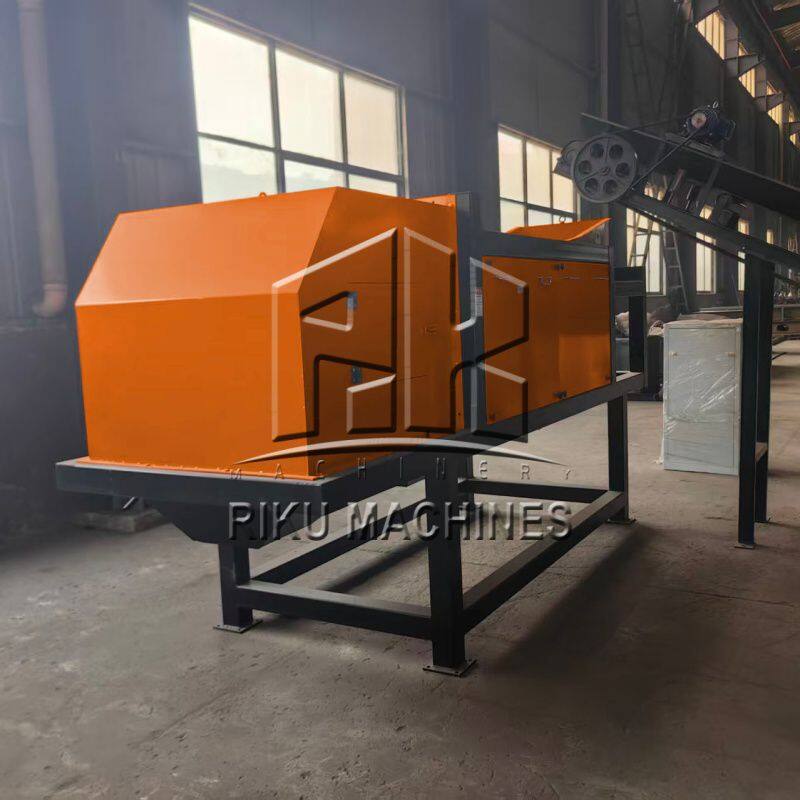

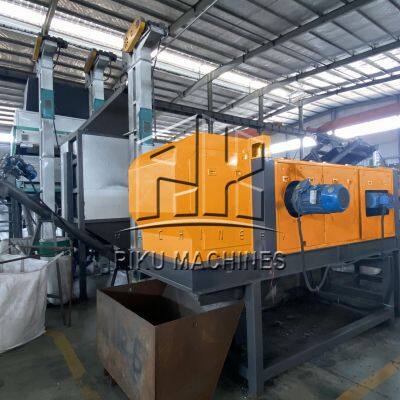

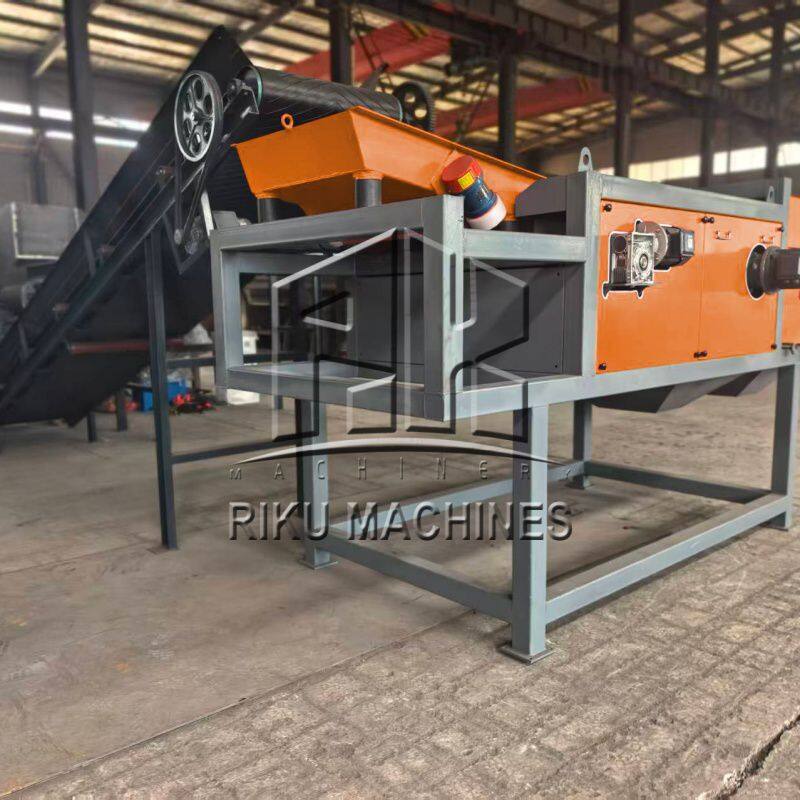

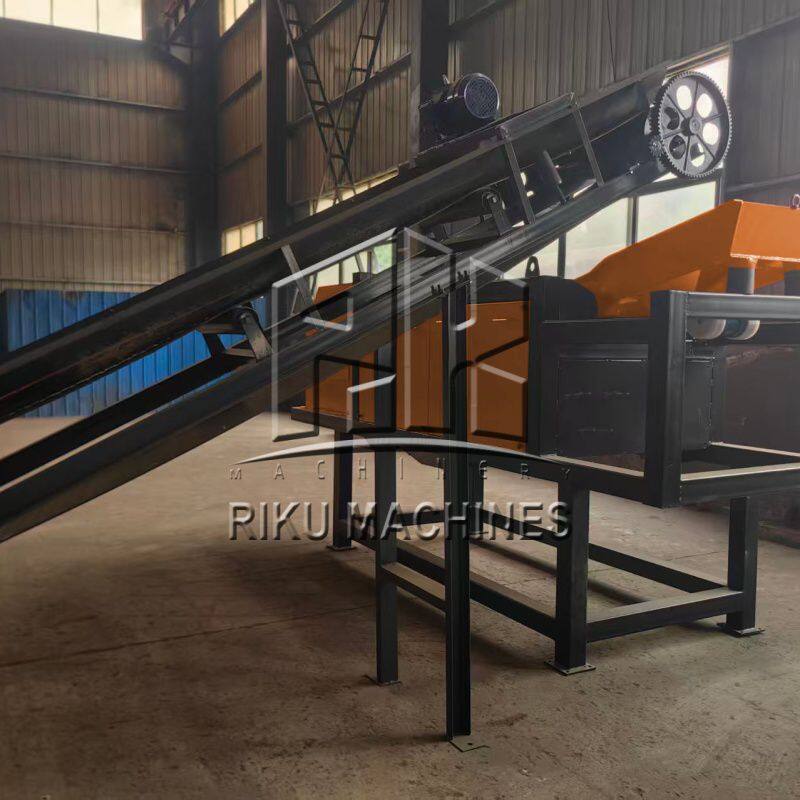

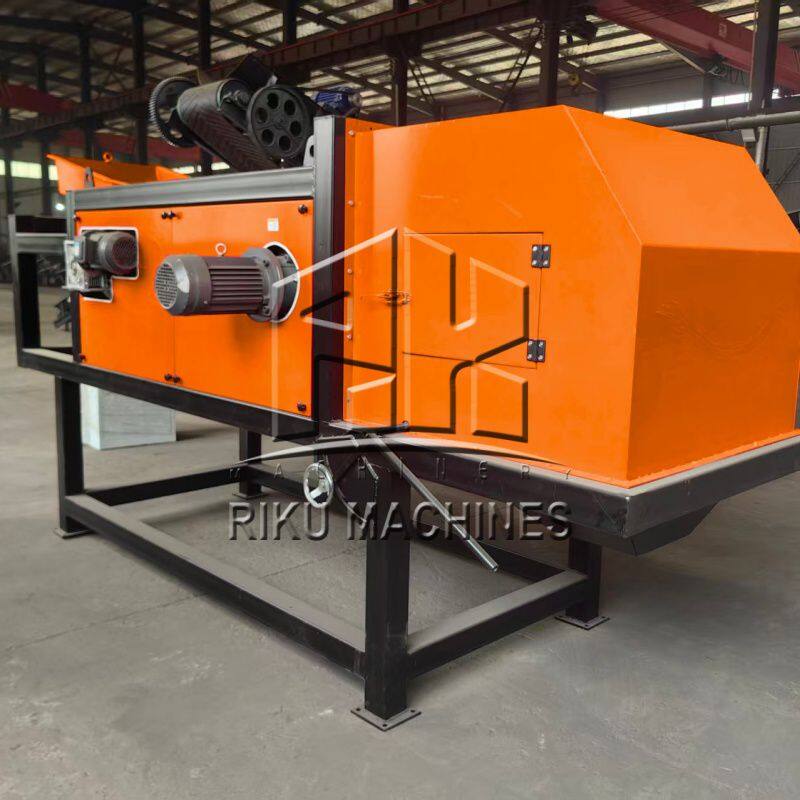

The RK-type eddy current separator consists of two parts: the separator body and the control cabinet. The main body mainly includes the separator assembly, drive motor, frame, and cover. The separator assembly is the core component of the equipment, consisting of a permanent magnet drum and a material conveying system (including a material conveyor belt, conveyor belt drive drum, and geared motor).

Features of eddy current separators: Excellent separation effect on various non-ferrous metals, strong adaptability, and reliable mechanical structure; characterized by strong repulsion force (adjustable) and high separation efficiency.
