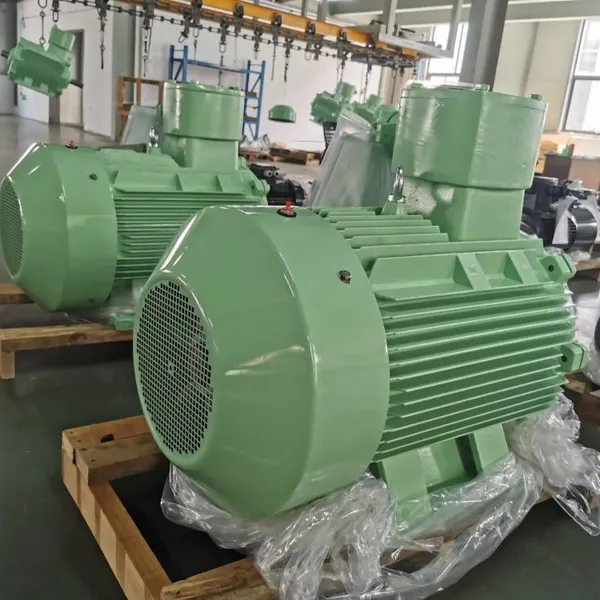

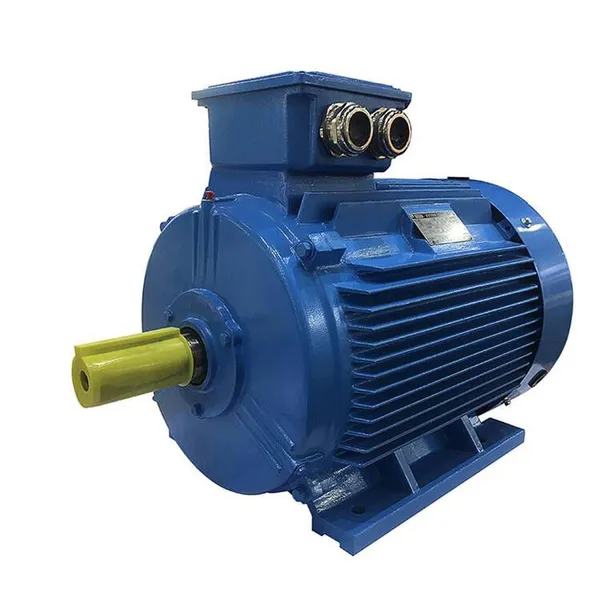

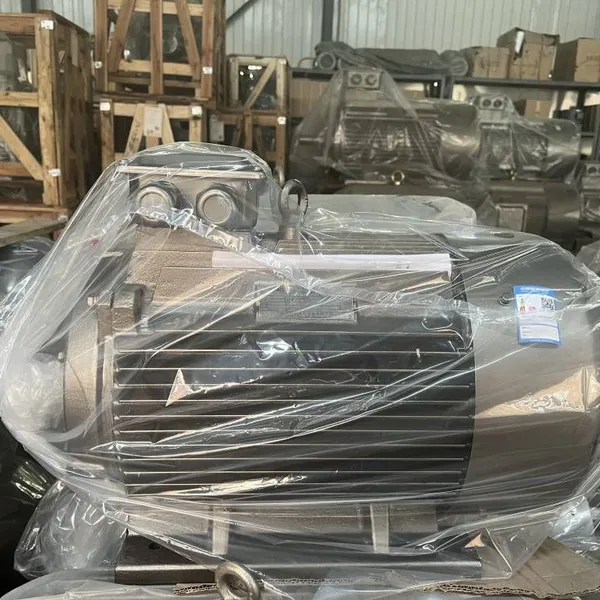

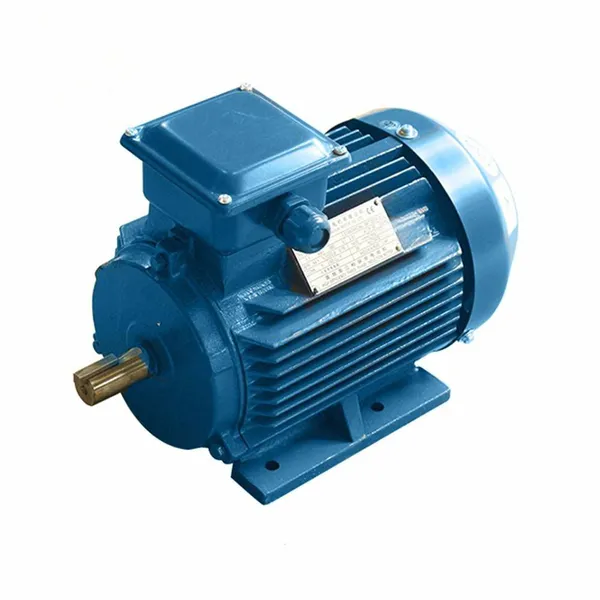

Help CenterRare Earth Permanent Magnet Synchronous Motor, Environmentally Friendly and Energy-saving Motor, Trend Product, Tyb-90s L-4/1.1kw 1.5kw
Related Products
-
Rare Earth Permanent Magnet Synchronous Motor, Environmentally Friendly and Energy-saving Product, Tyb 80m1 M2-4/0.55kw/0.75kwUS$ 123.08 - 153.85MOQ: 1 Unit -
Rare Earth Permanent Magnet Synchronous Motor. Environmentally Friendly and Energy-saving Motor. Trendy Product. Tyb-100l1, L2, L3-4/2.2kw, 3kw, 4kwUS$ 123.08 - 153.85MOQ: 1 Unit
-
Qufu Motors, Special for Steel Mill Rolling Mills and Continuous Casting Machines, Ygp-315s m1 M2-8/45kw 55kw 75kw/ic410/ip55/class f, Class hUS$ 1169.23 - 1307.69MOQ: 1 Unit
-
Qufu Motors, Special for Steel Mill Rolling Mills and Continuous Casters, Ygp-280l1, L2, L3-8/30kw, 37kw, 45kw/ic410/ip55/class f, Class hUS$ 461.54 - 538.46MOQ: 1 Unit
-
Qufu Motors, Special for Steel Mill Rolling Mills and Continuous Casters, Ygp-180l-8/7.5kw/ic410/ip55/class f and Class hUS$ 153.85 - 184.62MOQ: 1 Unit

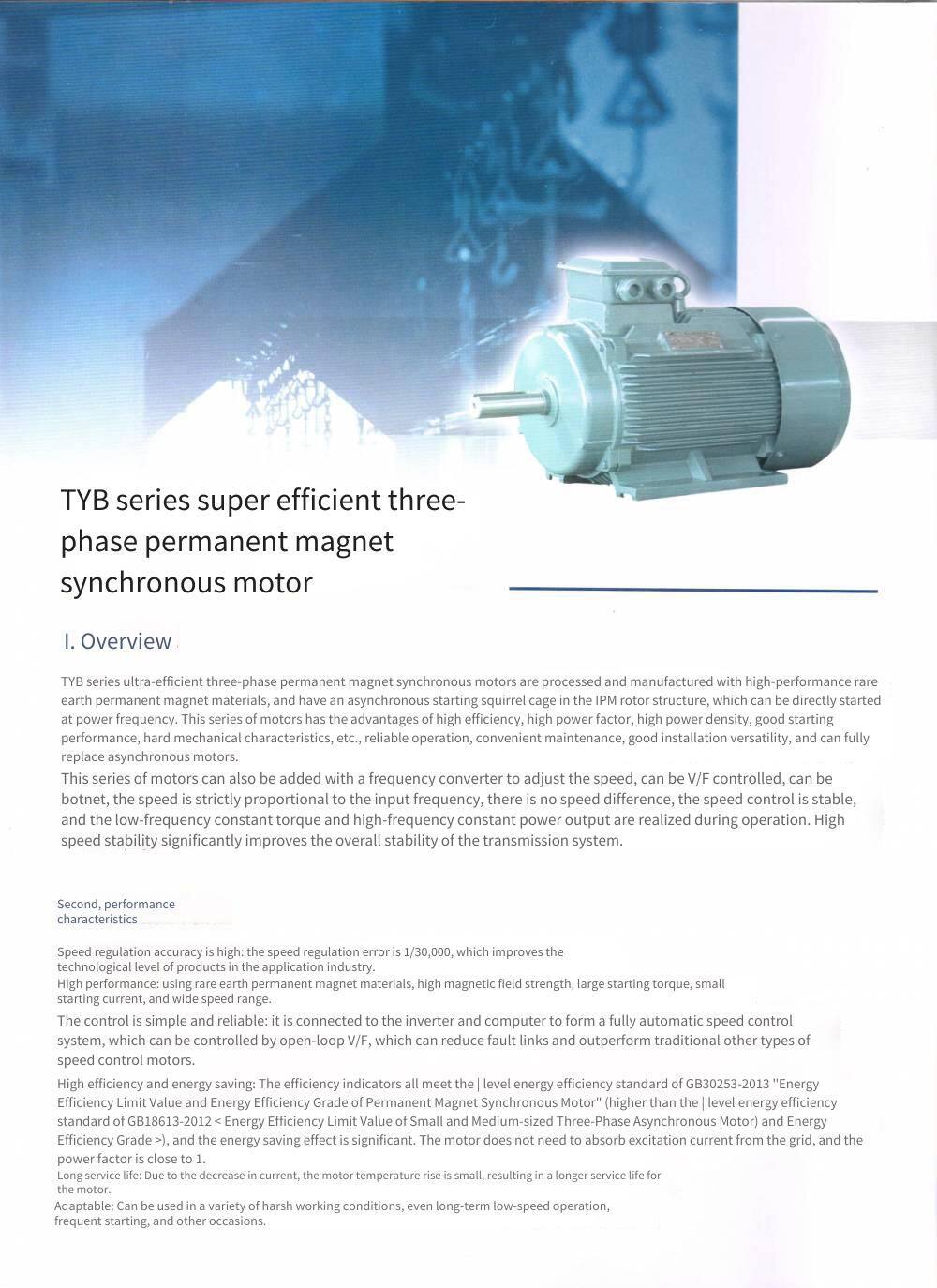

The TYB series of ultra-high efficiency three-phase permanent magnet motors are manufactured using high-performance permanent magnet rare earth materials. The IPM rotor structure is equipped with an asynchronous starting squirrel cage, allowing direct starting at the power frequency. This series of motors has advantages such as high efficiency, high power factor, high power density, good starting performance, and a hard mechanical characteristic. They operate reliably, are easy to maintain, and have good installation versatility, and can fully replace asynchronous motors.
Motors in this series can also be speed-regulated with a frequency converter, supporting V/F control and group control. The speed is strictly proportional to the input frequency without speed difference. The speed control is stable. During operation, it can achieve low-frequency constant torque and high-frequency constant torque output, with high speed stabilization accuracy, significantly improving the overall stability of the transmission system.
Features of this product:
High speed regulation accuracy: The speed regulation error is within 1/30000, improving the technological level of products in the application industry.
High performance: Using permanent magnet rare earth materials, it has a large magnetic field strength, large starting torque, small starting current, and a wide speed regulation range.
Simple and reliable control: When connected to a frequency converter and a computer to form a fully automatic speed regulation control system, it can use open-loop V/F control and group control, reducing fault links and outperforming traditional speed regulation motors of other types.
High efficiency and energy saving: The efficiency meets the Class 1 energy efficiency standard of GB30253 - 2013 "Minimum allowable values of energy efficiency and energy efficiency grades for permanent magnet synchronous motors", with significant energy-saving effects. The motor does not need to draw excitation current from the power grid, and the power factor is close to 1.
Long service life: Due to the reduced current and small motor temperature rise, the motor has a long service life.
Strong adaptability: It can be used in various harsh working conditions, even in situations such as long-term low-speed operation and frequent starting.
TYB Series Rare Earth Permanent Magnet Ultra-High Efficiency Synchronous Motors
Performance Features ：
High speed regulation accuracy 1/30000
High performance Rare earth permanent magnet materials Large magnetic field strength Large starting torque Small starting current
Simple and reliable control
High efficiency and energy saving Energy efficiency Class 1
Strong adaptability Can be applied to various harsh working conditions
