Help CenterSmall Down the Hole Drilling Rig CLQ100 Fully Hydraulic
Related Products
-
Self Pressure Water Supply Device CM351 Drilling Rig Accessories Manufacturer Supplies Atlas D50/D45 From Stock-NegotiableMOQ: 1 Piece -
Chifeng SKZ120A Deep Hole Drilling Manufacturer Sells SKZ120A Drilling Rig, Xuanhua SK120A Drilling RigNegotiableMOQ: 1 Set
-
TDS350 Water Well Drilling Rig, High-pressure Water Well Drilling Rig, Deep Hole Water Well Drilling RigNegotiableMOQ: 1 Combo
-
CLQ100 Fully Hydraulic Small Down the Hole Drilling RigUS$ 22900 - 25000MOQ: 1 Combo
-
CLQ100 Fully Hydraulic Small Down the Hole Drilling RigUS$ 22900 - 25000MOQ: 1 Combo

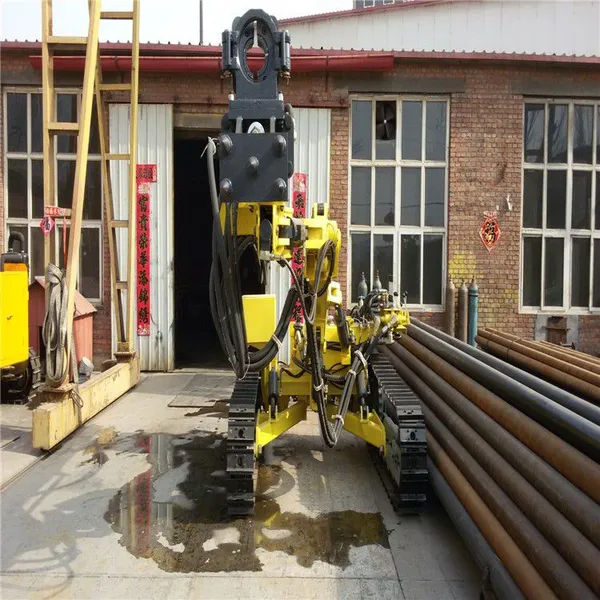

The CLQ100 open-pit hydraulic down the hole drilling rig of Zhangjiakou Xuanhua Tengda Drilling Machinery Co., Ltd. is suitable for construction units such as hydropower, metallurgy, highways, building materials, coal, railways, and * * *. It is suitable for rock drilling work in medium hard and hard rocks, as well as for pre cracking blasting and horizontal and stepped blasting deep holes. This drilling rig belongs to the crawler self-propelled down the hole drilling rig, which has its own power and is easy to move. 2. Technical parameters of CLQ100 open-pit hydraulic down the hole drilling rig: Model: CLQ drilling diameter: 80-130mm drilling depth: vertical 25m horizontal 45m drilling direction and angle: (referring to the angle between the borehole and the horizon, acute angle) drilling arm right swing 90 °~30 ° drilling arm left swing 90 °~75 ° sliding gear landing 0 °~90 ° horizontal hole height range: low 1.1m, high 2.2m Suitable for rock types: various rock types Compensation length of thrusters: 800mm One thrust stroke: 3m Propulsion axial pressure: 15000N Rotation speed: 38-55r/min Walking mode: Hydraulic driven crawler self-propelled walking speed: 1.5KM/h Climbing ability: 20 ° Power selection: Diesel engine 20kw Electric motor 18.5kw Walking mode: Hydraulic driven crawler self-propelled walking speed: 1.5KM/h Climbing ability: 20 ° Power selection: Diesel engine 20kw Electric motor 18.5kw External dimensions: 5000 × 1950 × 2300mm Installed dimensions: 2300mm * 5200mm * 2500mm Operating air pressure: 0.6-2.46Mpa Air consumption: greater than 9-15m3/min Equipped with impactor: CIR series Total weight of DHD series: 3.2T
The CLQ100 open-pit hydraulic down the hole drilling rig of Zhangjiakou Xuanhua Tengda Drilling Machinery Co., Ltd. is suitable for construction units such as hydropower, metallurgy, highways, building materials, coal, railways, and * * *. It is suitable for rock drilling work in medium hard and hard rocks, as well as for pre cracking blasting and horizontal and stepped blasting deep holes. This drilling rig belongs to the crawler self-propelled down the hole drilling rig, which has its own power and is easy to move. 2. Technical parameters of CLQ100 open-pit hydraulic down the hole drilling rig: Model: CLQ drilling diameter: 80-130mm drilling depth: vertical 25m horizontal 45m drilling direction and angle: (referring to the angle between the borehole and the horizon, acute angle) drilling arm right swing 90 °~30 ° drilling arm left swing 90 °~75 ° sliding gear landing 0 °~90 ° horizontal hole height range: low 1.1m, high 2.2m Suitable for rock types: various rock types Compensation length of thrusters: 800mm One thrust stroke: 3m Propulsion axial pressure: 15000N Rotation speed: 38-55r/min Walking mode: Hydraulic driven crawler self-propelled walking speed: 1.5KM/h Climbing ability: 20 ° Power selection: Diesel engine 20kw Electric motor 18.5kw Walking mode: Hydraulic driven crawler self-propelled walking speed: 1.5KM/h Climbing ability: 20 ° Power selection: Diesel engine 20kw Electric motor 18.5kw External dimensions: 5000 × 1950 × 2300mm Installed dimensions: 2300mm * 5200mm * 2500mm Operating air pressure: 0.6-2.46Mpa Air consumption: greater than 9-15m3/min Equipped with impactor: CIR series Total weight of DHD series: 3.2T
