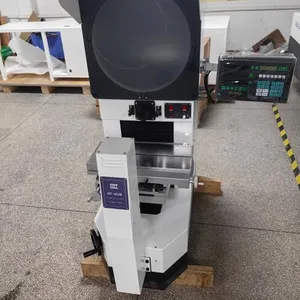

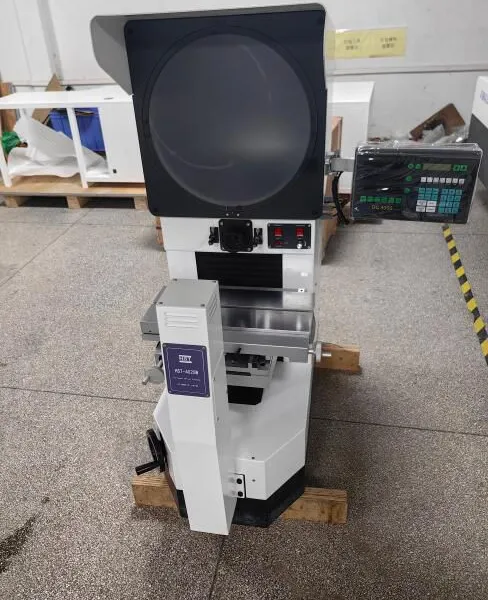

HST-3020W High Precision Horizontal Optical Profile Projector 220V 3-Year Warranty for Machine & Measurement Usage

US$ 3000 - 5000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Testing Machine

Accuracy:

class1

brand name:

hensgrand

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Accuracy class1

brand name hensgrand

place of origin Shandong, China

customized support OEM, ODM, OBM

power 0.5kw

Protection Class IP55

Voltage 220 V

warranty 3 years

Logo/graphic design Hot Stamping

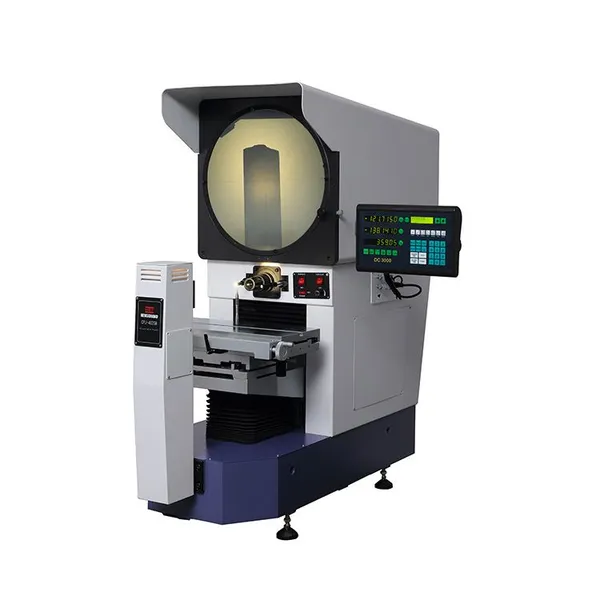

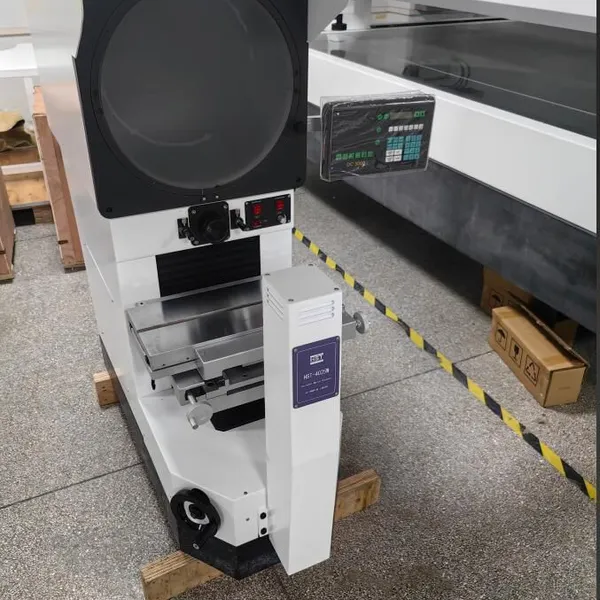

Product name HST-3020w horizontal optical profile projector

Metal Table Size(mm) 408*126

Glass Table Size (mm) 260 x 160

X-axis Stroke (mm) 200

Y-axis Stroke (mm) 100

Z-axis Stroke (mm) 75 for focus

Measuring Accuracy* Ex, y ≤ (3.0+L/200)μm

Resolution(X,Y) 0.5 μm

Screen Rotary Range 0°~360°

Cooling By fans

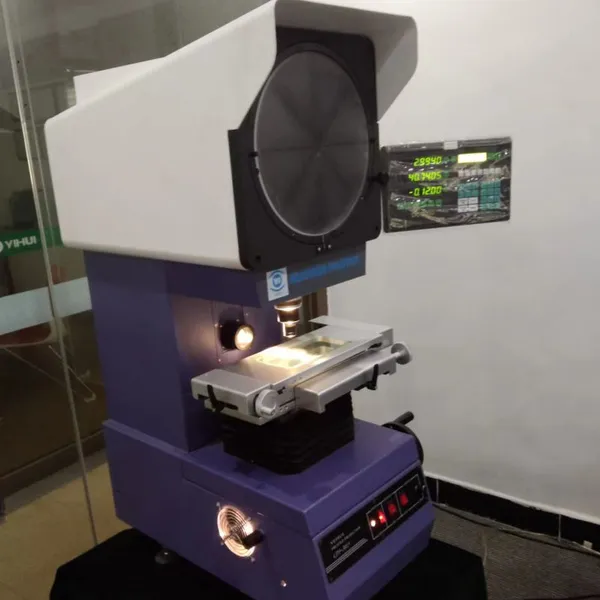

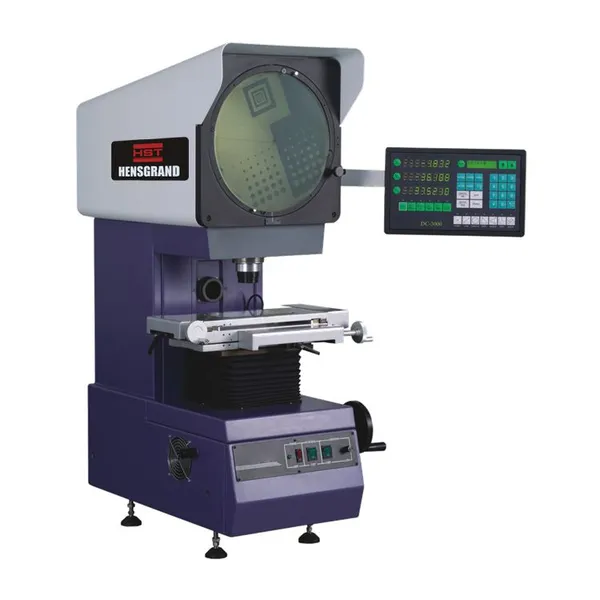

HST-3025 optical profile projector

II. Features

Horizontal profile projector HST-3020W is a photoelectric measuring system of high precision and efficiency,can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. The measurement data can be printed and output. It requires in the checking department and workshop and is widely used machinery, mould, tool, meter, and light industry.

III. Main technical parameter

Working Table	Worktable Size(mm)	408*126
	X-axis Stroke(mm)	200
	Z-axis Stroke(mm)	100
	Y-axis Stroke(mm)	75 for focus
	Turning Range	±15°
	Resolution(X-axis, Z-axis)	0.5 μm
	Accuracy* (µm)	Ex, z ≤(3.0+L/200)
Dimension (LWH, mm)		1147556964
Weight (kg)		160
Projector screen	Projected Image	Reverse
	Screen Size(mm)	Ø330
	Screen Rotary Range	0°~360°
	Rotary Angle Resolution	1´ or 0.01°
	Projection Accuracy*	Contour: ≤±0.06%, Surface: ≤ ±0.06%
Lens	Magnification	10X (standard)	20X (option)	50X (option)	100X (option)
	Object View(mm)	Ø30	Ø15	Ø6	Ø3
	Working Distance(mm)	77.7	44.3	38.4	25.3

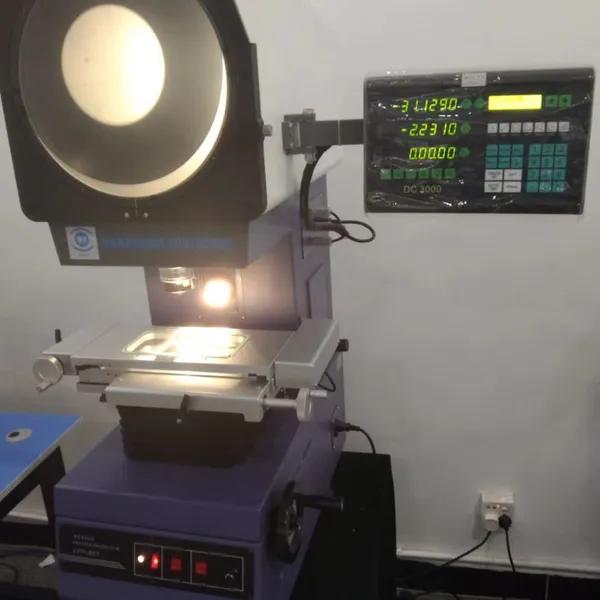

DRO	DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point ,line, circle, angle and distance, etc.
Illumination	24V/150W halogen transmitted illumination, 21V/150W halogen reflecting illumination
Power	110V/220V(AC), 50/60HZ, Total Power Consumption 400W
Option	Mini-printer, Edge detector, M2D software and so on, Please refer to Appendix for more details.
