Home > Instruments & Meters > Test Instrument > Test Machine > High Efficiency HST-XNR-400B MFR&MVR Digital Display Melt Flow Indexer 1-Year Warranty
High Efficiency HST-XNR-400B MFR&MVR Digital Display Melt Flow Indexer 1-Year Warranty
US$ 1000 - 1200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST MFI MFR Test Meter for Plastic Industry Extrusion Plastometer Melt Flow Index TesterUS$ 9097.27 - 10496.85MOQ: 1 Set -
HST-300PT 30ton Lab Hot Press Machine Rubber Plate Vulcanizing Press Testing Test MachineUS$ 20993.70 - 22393.28MOQ: 1 Set
-
ISO180 ISO179 ASTM D256 Electric Izod Impact Specimen Notch Sample-making Test MachineUS$ 500 - 600MOQ: 1 Set
-
ASTM D 648 ASTM D 1525 Plastics HDT Vicat Softening Temperature Test Point TesterUS$ 1800 - 1900MOQ: 1 Set
-
ISO 4422, ISO3127, BS EN, BS EN1411, 744, ASTM D2444 Plastic Pipe Falling Weight Impact TesterUS$ 3599 - 4900MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V, 110 V
warranty
1 Year
Product name
MFR&MVR Digital Display Melt Flow Indexer
Model
HST-XNR-400B
Measuring Range
0.1-800.00g/10min(MFR) 0.1-800.00 cm3/10min(MVR)
Temperature range
Room temperature--450℃
Temperature accuracy
±0.2℃
Temperature resolution
0.1℃
Timing Accuracy
0.1 seconds
Discharge port diameter
2.095±0.005mm
Discharge port length
8.000±0.025mm
Power supply
AC220V, 50Hz

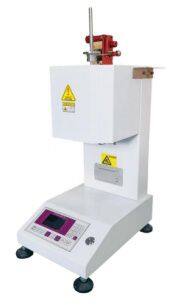

HST-XNR-400B MFR&MVR Digital Display Melt Flow Indexer
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Product Introduction :
flow through a certain temperature and load, every 10 min module and melt flow rate through the standard port MFR value, it is suitable for high temperature of polycarbonate, aromatic sulfone, fluorine plastics, nylon engineering plastics, can also be applied to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyformaldehyde (POM), polycarbonate (PC) resin with lower melting temperature, such as plastic test, widely used in plastic production, plastic products, petrochemical industry and related colleges and universities.
ISO 1133: 1997 "Determination of Thermoplastic Melt Mass Flow Rate MFR and Melt Volume Flow Rate MVR"
ASTM D1238 "Standard Test Method for Measuring Thermoplastic Melt Flow Rate by Extrusion Plastometer"
3.Specifications
This series high-precision melt flow rate instrument tester, used for testing all kinds of plastic, resin in the state of viscous
flow through a certain temperature and load, every 10 min module and melt flow rate through the standard port MFR value, it is suitable for high temperature of polycarbonate, aromatic sulfone, fluorine plastics, nylon engineering plastics, can also be applied to polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyformaldehyde (POM), polycarbonate (PC) resin with lower melting temperature, such as plastic test, widely used in plastic production, plastic products, petrochemical industry and related colleges and universities.
2.Standards:
GB/T3682-2000 "Determination of Thermoplastic Melt Flow Rate and Melt Volume Flow Rate"
ISO 1133: 1997 "Determination of Thermoplastic Melt Mass Flow Rate MFR and Melt Volume Flow Rate MVR"
ASTM D1238 "Standard Test Method for Measuring Thermoplastic Melt Flow Rate by Extrusion Plastometer"
3.Specifications
Model |
HST-XNR-400B |
|
Measuring Range |
0.1-800.00g/10min(MFR) 0.1-800.00 cm3/10min(MVR) |
|
Test method |
Quality Act (MFR&MVR) |
|
Temperature range |
Room temperature——450℃ |
|
Temperature accuracy |
±0.2℃ |
|
Temperature resolution |
0.1℃ |
|
Timing range |
1~9999s or 0.01-99.99s |
|
Timing Accuracy |
0.1 seconds |
|
Material cutting method |
Manual, By Time, Automatic Control |
|
Display |
LCD screen |
|
Print |
Equipped with a printer, can print test report |
|
Squeeze out some material |
||
Discharge port diameter |
Φ2.095±0.005mm |
|
Discharge port length |
8.000±0.025mm |
|
Loaded barrel diameter |
Φ9.550±0.025mm |
|
Loaded barrel length |
152±0.1mm |
|
Piston head diameter |
9.475±0.015mm |
|
Piston head length |
6.350±0.100mm |
|
Standard test load (eight grades) |
||
1grade |
0.325kg=(rod + weight + thermal units +1 No. tray body weight) |
|
2grade |
1.200 kg=(0.325+2 0.875 eight) |
|
3grade |
2.160 kg=(0.325+3 1.835 eight) |
|
4grade |
3.800 kg=(0.325+4 3.475 weight) |
|
5grade |
5.000 kg=(0.325+5 4.675 weight) |
|
6grade |
10.000kg=(0.325+5 4.675 weight+6 5.000 weight) |
|
7grade |
12.500kg=(0.325+5 4.675 weight+6 5.000+7 2.500 weight) |
|
8grade |
21.600 kg=(0.325+2 0.875+3 1.835+4 3.475+5 4.675+6 5.000+7 2.500+8 2.915 weight) |
|
Relative error of Load Test≤0.5% |
||
Working conditions |
Ambient temperature10℃—40℃; Relative humidity30%—80% |
|
Power Supply |
AC220V, 50Hz |
|
Dimensions |
250×350×510(L × W × H) |
|
Weight |
60KG |
|
Weight |
Net Weight: 64kg，Gross Weight: 92kg |
|
