Product Description
BOPP thermal laminating film glossy
Specification- BOPP thermal laminating film glossy
Laminating film is the composite film with substrate and the thermal adhesive layer coated together to laminate with the desired material (such as print).
Laminating film thickness measured in MIL or MICRON ,affects cost, rigidity, optical clarity and UV inhibition.
Typically laminates are used on both front or back of image for protection, strength and to add rigidity.
The user should also bear in mind that images have a tendency to curl towards the thicker side ,
if laminates are not balanced in thickness.
| Item | bopp thermal laminating film glossy | |||||
| Thickness (Micron) | Total | 15 micron | 17 micron | 20 micron | 25 micron | 30 micron |
| Base | 10 micron | 12 micron | 12 micron | 15 micron | 18 micron | |
| EVA | 5 micron | 5 micron | 8 micron | 10 micron | 12 micron | |
| Customized from 15-30micron,with tolerance ±1um | ||||||
| Width(mm) | 160-1900mm (customized ±3um) | |||||
| Length(m) | 150-300Meters for 1'' core; 2000-4000Meters for 3'' core | |||||
| Paper Core | 25.4mm(1'')/76mm(3'') | |||||
| Corona Side | single side; double sides | |||||
| Connector | ≤ 1 | |||||
| Tensile density | MD:2.4*106dyne/cm CD:5.3*106dyne/cm | |||||
| Laminating on paper by manual | ||||||
| Hot Melt Point | 80℃/185 ℉-110℃/230 ℉ | |||||
| Pressure | 10-18 mPa | |||||
| Speed | 10-60M/min | |||||
Yield
|
1005 Gloss |
1205 Gloss |
1208 Gloss |
1510 Gloss |
1812 Gloss |
1205 Matte |
1208 Matte |
1510 Matte |
1812 Matte |
Unit |
| 77 | 64.5 | 54.6 | 43.7 | 36.4 | 67.2 | 56.4 | 45.1 | 37.6 | m2/kg |
| 13 | 15.5 | 18.3 | 22.9 | 27.5 | 14.9 | 17.7 | 22.2 | 26.6 | g/m2 |
Features- BOPP thermal laminating film glossy
1) Environmental friendly: non-hazardous to health and safe to use as no toxic gases or volatile content is emitted. Safe in laminating process as no solvent based adhesive is used.
2) High function: compared with other solvent lamination, our film is better in clarity and bonding. It’s preventing lamination from being pressed, bubbled and shredding off easily. Matt thermal lamination film is good for spot UV and hot stamping.
3) Easy handling: it is easy to operate once the required temperature is met and no special technique is required.
4) Efficient and energy-saving: Production is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
5) Adaptable to different kinds of machines: This is recommended to be used in dry laminator. Small adjustments need to be made to the machine if the film is used in wet laminator.
6) Strong ability of absorbing power: unlike solvent adhesive, our film is suitable for lamination even with powdery paper
Applications
Covers
Books, magazines, periodicals, brochure, etc.
Packaging
Crates or boxes for liquor, food and beverage, medicine, cosmetics and other daily consumer products and bags etc.
Trade-shows
How to use the BOPP THERMAL LAMINATION FILMS?
1. Adjust roller pressure and temperature according to different types of paper and ink.
2. When using the film for the first time or changing the usual size, a small trial volume before starting massive lamination is proposed.
3. Normal process temperature is 90C-105C (203F - 221F), roller pressure and temperature vary from different types of paper, ink and machines.
4. Make sure the ink is dry before laminating. It will delaminate when the paper contains too much moisture or powder.
5. Make sure to put the material in place with low temperature and dry.
6. The following situation will affect the final quality of the film during lamination.
a. Using metal ink
b. Ink containing too much wax, dried oil, adhesive, silicon additive and so on.
c. Much too thick ink
d. Ink completely not dried yet.
e. Much too humid paper sheet.
f. Too much powder on the surface
Process Parameter
1. Equipment for laminating film: dry and wet film lamination machines
2. Compound Temperature:
normal: 85-110℃ special: 100-110℃
3. Compound Pressure: 8-18MPa
4. Compound Speed: 8-50m/min

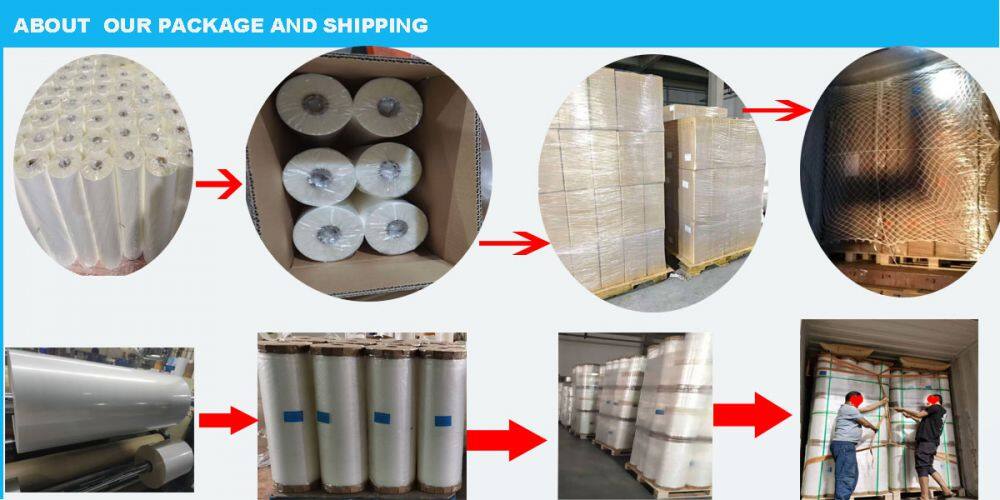

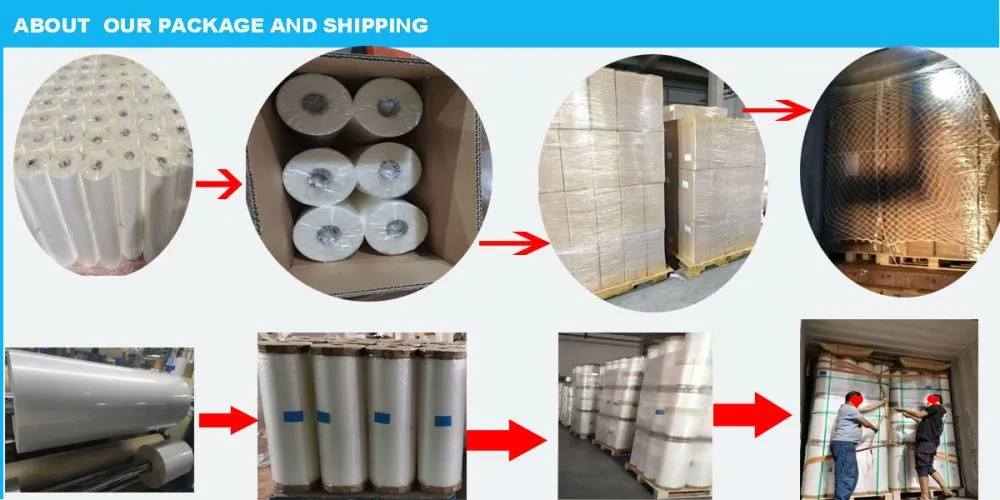

Packaging - bopp thermal laminating film glossy
Export Worthy for long distance shipment
*One Roll per carton- 3'' core; 10rolls per carton - 1'' core,rolls are well packed by air bubble bag
*Tens of rolls on a pallet,cartons are well wrapped by clear stretch film on a pallet.
*10 to 12 pallets loaded into 1*20ft container (appro. 13MTs)
*Or 20 to 22 pallets loaded into a 40ft container (appro. 25MTs)
Shipping bopp thermal laminating film glossy
| Model of Transport | Advantage | Weakness | Suggestion |
|
Express (Door to Door) |
Fast(3-6days) Door-to-Door Wide Area Coverage |
Restricted Volume & Weight | Small cargo |
| Sea transport (Port to Port) |
Cheapest Volume unlimited |
Long time(15-30days), influenced by climate and port |
bulk cargo loose time |
| Air transport (Airport to Airport) |
Fast(4-5days) Simple packaging |
most expensive restricted volume |
Valuable cargo Urgent demand |
----Free samples,freight collect
*By SHEET, eye check,unable to test by machine,lowest freight charge.
*By ROLL,machine test,higher freight charge.
normal size: 500-mm width 100M length 1/3inch core(up to your machine)
*Tips for cost saving:
Thanks for your trust to request a sample for check,here are few tips for you to save cost.
if permits,choose 1''core not 3'' core.
Deliver via our logistic and prepay the freight to us.
----Quick response
*24 hours Trade Manager online.

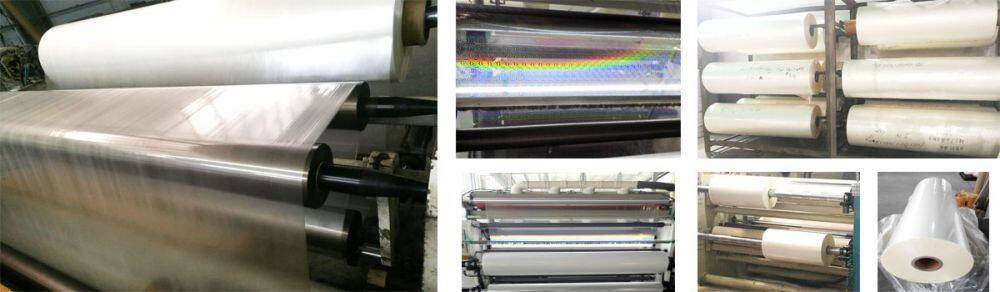

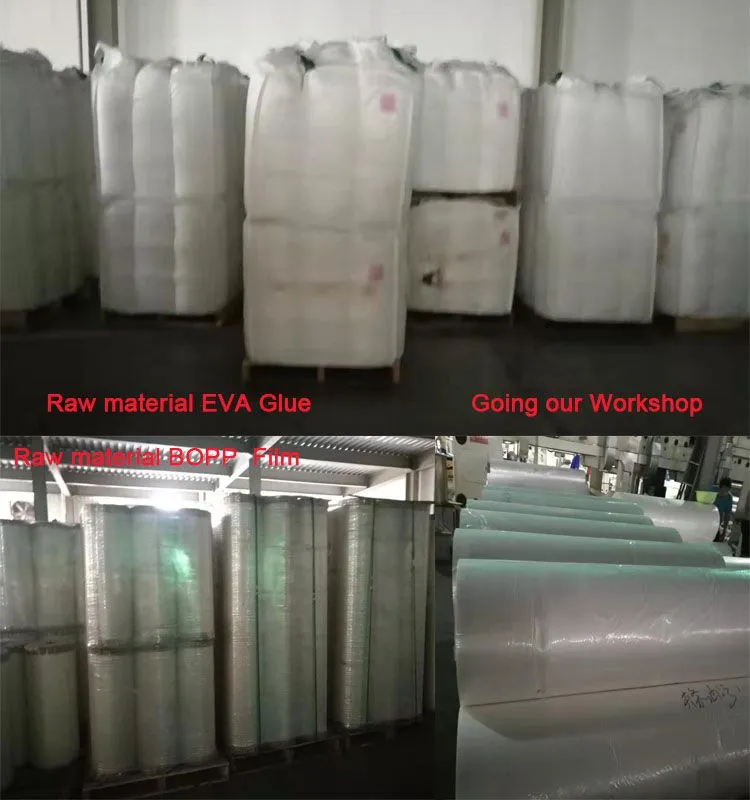

Factory Photos- bopp thermal laminating film glossy
Zhengzhou Pengsheng Packaging Material Co.,Ltd,founded in 1992,which is the earliest manufacturer of producing BOPP Thermal Lamination Film.Located in Zhengzhou,Henan.We commit ourselves to the production,R&D and marketing of different types of BOPP Thermal Lamination Film with advanced automatic production lines,strict quality control systerm,we has winned trusts and supports from the clients all over the world.
We are certified with the ISO9001 and European Union SGS CMA and MSDS test.Our product quality has met international standard,which met the requirements of international environmental friendly.we have exported to nearly thirty countries,such as Germany,South Africa,Middle East,Africa.etc.
Until now, Pengsheng has more than 200 employees including 20 researchers. We always adhere to the culture of “Enthusiasm,Innovation,Harmony and Win-win”and the management ideas of “Technology First,Quality First,Service First and Reputation First”. Taking honest,pragmatism,endeavor and innovation-oriented,We will cooperate and strive for brilliant future with all staffs.
Much more inforamtion , please feel free let me know , we would like to your kindly inquiry !
