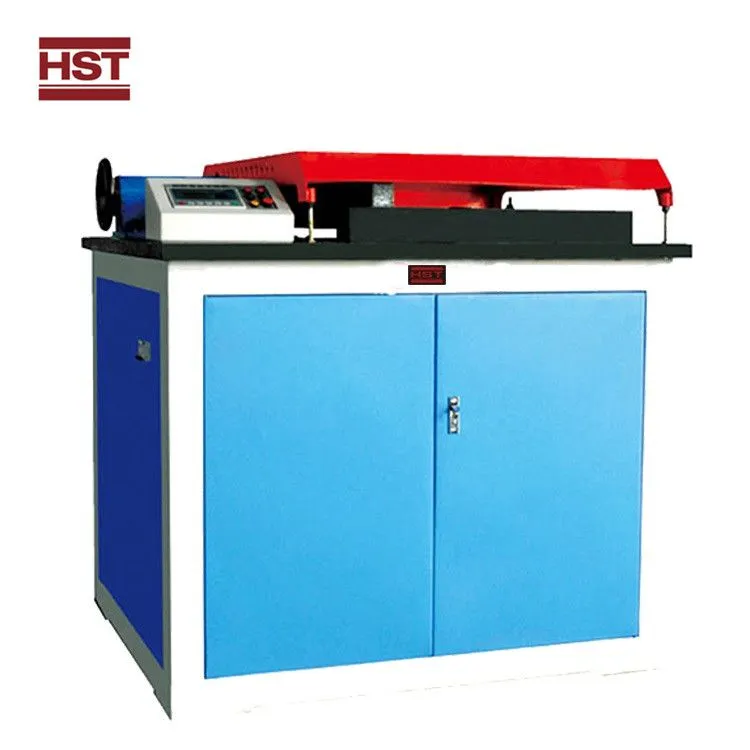

Help CenterHST-BT40E Bending Diam of Steel Bar 6-40mm Motorized Steel Bar Bending Testing Machine
Related Products
-
HST GW-40B Rebar Bending Fatigue Testing Machine Price Reinforcement Testing EquipmentSteel Bar Bending MachineUS$ 48985.30 - 55983.20MOQ: 1 Set -
HST 200Ton 2000KN Computer Control Rail Static Bend Testing MachineUS$ 524842.50 - 559832.00MOQ: 1 Set
-
Hot-selling 6mm Diameter Metal Wire Repeated Bending Testing Machine Wire Bending Tester PriceUS$ 18894.33 - 20993.70MOQ: 1 Set
-
ATSM ISO Stainless Steel Metal Wire Repeated Bending Testing Machine JWJ-10US$ 20993.70 - 23785.87MOQ: 1 Set
-
ASTM A615-89 Bend and Rebend Test 6-50mm Steel Bar ReBar Cold Bending Testing 180 Reverse Bending Testing MachineUS$ 9000 - 9500MOQ: 1 Set
GW-40B GW-50B 6-50mm ASTM A615 BS 4449 ISO 15630 ISO 6935-2 Steel ReBar Bending Reverse bending Testing machine
1.Application:
GW-40B / GW-50B Steel Bar Bending Testing Machine is special equipment to do bending test
for steel bar and reinforced steel bar.
It can do bending test in both directions according to standards requirement.
It conforms to standards ISO 7438:1985, ISO 8491:1998(E), ISO 6935-2-1991 and DIN, JIS and
ASTM (ASTM A615-89,ASTM A615M-89).
2.Technical Specifications:
|
Model |
GW-40B |
GW-50B |
|
Bending Diameter Of Steel Bar |
6~40 mm |
6~50 mm |
|
Forward Bending Angle |
0°~180° (the angle can be set freely in the range) |
|
|
Reverse Bending Angle |
0°~25° (the angle can be set freely in the range) |
|
|
Roating Speed Of Working Table |
<2 r/min, <12°/S |
|
|
Distance Between The Center Of Two Rolls |
165 mm |
260 mm |
|
Diameter Of The Working Table |
580 mm |
950 mm |
|
Standard Bending Accessory |
HRB-335 6-40 Or Other Configuration Option |
HRB-335 6-50 Or Other Configuration Option |
|
Motor Power |
1.5 KW |
3 KW |
|
Weight |
1500 KG |
2500 KG |
|
Supply Power |
380V, 50Hz |
|
3.Main Configuration:
|
3.1 |
Measurement and control system |
1 SET |
|
3.2 |
Three-phase asynchronous brake motor |
1 SET |
|
3.3 |
Photoelectric angle measuring device |
1 SET |
|
3.4 |
Bending tester main frame |
1 SET |
|
3.5 |
High performance reduction system |
1 SET |
|
3.6 |
Compliance with HRB335 grades of bending devices |
1 SET |
