Ordering instructions:
1、 All products in our store do not support direct online purchasing. If you need to purchase, please contact us through Wangwang or phone first.
2、 The price shown for the product is a reference price. Please consult us before purchasing.
3、 Due to the large number of product specifications, it is not possible to fill in all of them completely. Please contact us for communication and confirmation.
4、 For more product information, please feel free to call us for inquiries.
Three pin gauge, also known as three wire gauge, is used to detect thread plug gauge or screw diameter size. It can usually be measured with an outer micrometer in conjunction with three pin gauge. If needed, our company can provide detailed instructions and corresponding parameter tables.
Measuring needle (three needles), used to detect the thread diameter of products. The specifications range from 0.118 millimeters (MM) to 6.585 millimeters (MM). The so-called three needle measurement method is a simple measurement of the thread pitch diameter. Only three measuring needles, a lever micrometer, and necessary brackets for clamping threads are needed, and then the raw measurement data can be processed to determine the thread pitch diameter. The three needle measurement method is an indirect and simple method for measuring the pitch diameter. When measuring, place three measuring needles with the same diameter in the grooves of the thread being measured, two of which are placed in adjacent grooves on the same side, and the other is placed in the corresponding middle groove on the opposite side. Using a lever micrometer, measure the maximum distance M of the measuring needle's outer contour, and then calculate the pitch diameter of the measured thread through a formula. Note: The measuring needle can also be called a three needle because it is composed of three measuring needles. Other related tooth gauges (bolt gauge, ring gauge, plug gauge, smooth type) metric teeth (M1.4 * 0.3-M40 * 2) American teeth (coarse teeth NO1-64UNC-1-8UNC, fine teeth NO1-72UNF-NO1-12ONF, extra fine teeth 3/8-32UNEF-1-20UNEF, special thread NO8-40UNS-1-18UNS) British teeth (W1/8-40-W1.1-4-7, BSW, BSF) needle wheel teeth (SM3/32-56-SM9/16-20) bicycle threads (5/16BC26-1.29BC24). There is also a left tooth gauge Tire nozzle thread (CTV5-36-8V1-32) pipe thread gauge (PF1/8-28-PF5-11. PS1/8-28-PS6-11, PT1/8-28-PT4-11, NPSM1/8-27-NPSM6-8) petroleum pipe related products: thread taps for petroleum pipes (TBG. UPTBG). Petroleum pipeline pipe thread tap (LP), petroleum oil pipe taper thread gauge TBG.UPTBG.BYG.JYG (including plug gauge and ring gauge, also smooth, used for detecting internal and external threads). Oil casing taper thread gauge TG.CSG.BCSG (including plug gauge and ring gauge, as well as smooth gauge, used for detecting internal and external threads). Geological drill pipe taper thread gauge LDG.UDG (including plug gauge and ring gauge, as well as smooth gauge, used for detecting internal and external threads). Welding drill pipe joint gauge ZG.GY.LP (including plug gauge and ring gauge, also smooth, used for detecting internal and external threads). Geological casing trapezoidal thread gauge (including plug gauge and ring gauge, connected with or without internal joints). LP thread gauge for oil pipeline pipes (including plug gauge and ring gauge, as well as smooth gauge, used for detecting internal and external threads).

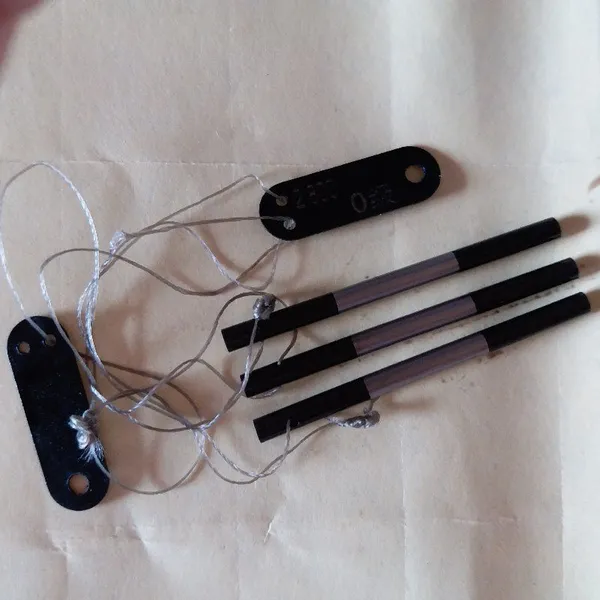

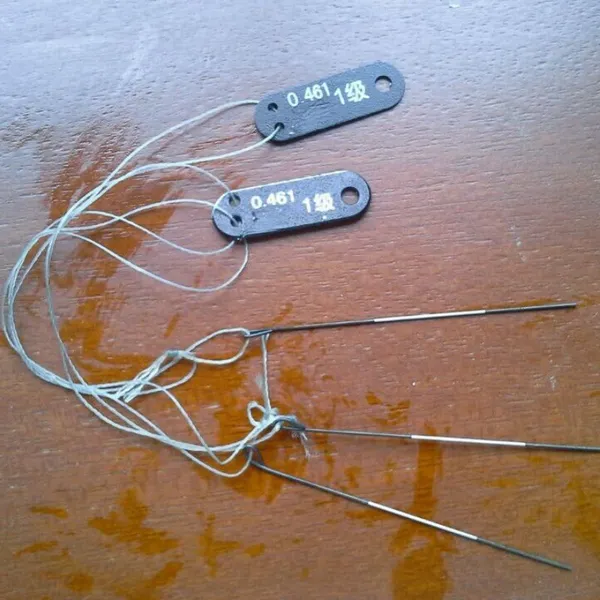

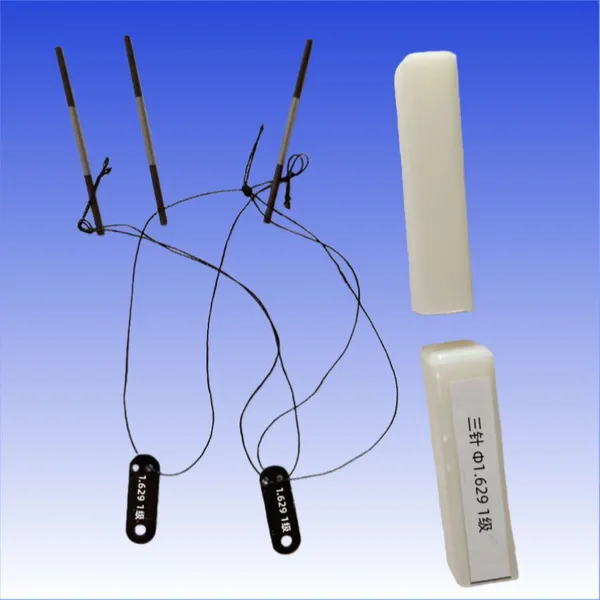

Measuring needle (also known as three needle) is used for measuring the pitch diameter of threads

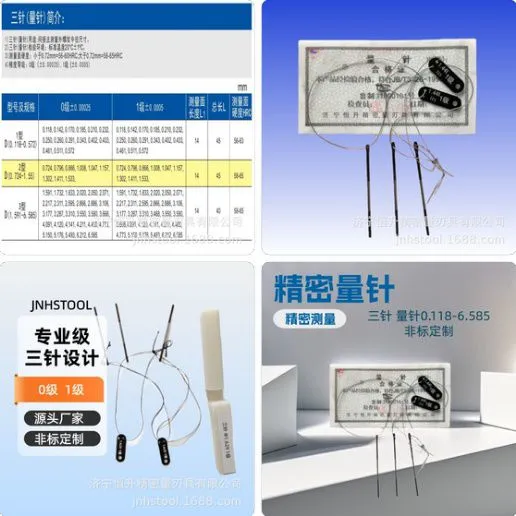

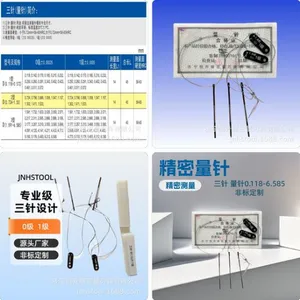

Specifications include: 0.118, 0.142, 0.170, 0.185, 0.201, 0.232, 0.250, 0.260, 0.291, 0.343, 0.402, 0.433, 0.461, 0.511, 0.572, 0.724, 0.796, 0.866, 1.008, 1.047, 1.157, 1.302, 1.441, 1.553, 1.591, 1.732, 1.833, 1.883, 2.020, 2.050, 2.071, 2.217, 2.311, 2.595, 2.866, 2.886, 3.106, 3.177, 3.287, 3.310, 3.468, 3.550, 3.580, 3.666, 4.091, 4.120, 4.141, 4.211, 4.400, 4.773, 5.150, 5.176, 5.493, 6.212, 6.585, a total of 55 payments
Price description to be discussed based on model and specifications
Product quantity 10000
Packaging instructions for paper boxes, plastic boxes, and wooden boxes
Product model 0.118mm-6.585mm
