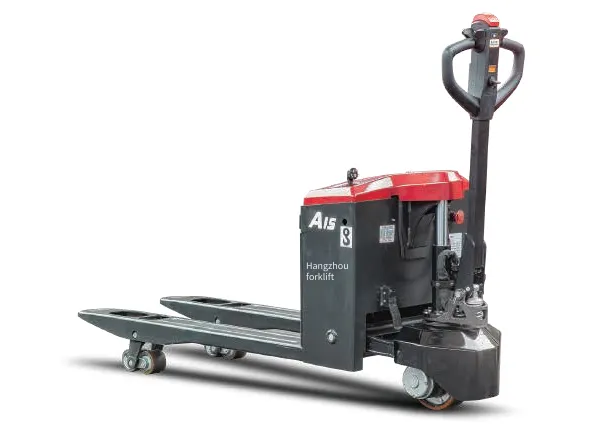

The mini pallet truck is a new generation of products developed by Hangcha for warehousing and logistics applications. It uses a stable battery as the power source, with strong performance, comfortable operation, safety and reliability, and low usage
cost. It is an ideal tool for loading, unloading and transporting palletized goods in warehouses, supermarkets, workshops and households.
Appearance
The mini pallet truck adopts a professional industrial design for its appearance. The whole vehicle has smooth lines, high dynamism, and a compact shape. It fully considers ergonomics and conforms to the trend of appearance design.
90% of it uses the steel plate stamping and forming process, which is strong and durable, of high grade, and meets environmental protection requirements.
High performance
It has strong power, with a load capacity of 1.5 - 2 tons, meeting the handling needs of most customers.
The 1.5 - ton model uses a DC permanent - magnet brushed walking motor and a DC permanent - magnet brushed control system.
The 2 - ton model uses a DC permanent - magnet brushless walking motor and a DC permanent - magnet brushless control system.
The vehicle has regenerative braking and slope anti - sliding protection.
Components such as the controller, hydraulic pump station, switches and connectors all use reliable products.
Comfort
The modular control handle allows the internal components of the handle to be replaced separately. It is reliable, beautiful and simple. All operation functions can be easily completed with one hand.
The optimally designed body structure ensures that the forklift has a good view.
It has a small size, is light and flexible, and is extremely convenient to operate. It has the function of walking upright and can operate in very small passages, such as inside containers.
The standard fork height is 80mm. With an added guiding device and a 2 - degree bevel at the fork tip, it is more convenient to enter and exit pallets (including closed pallets).
The battery can be removed from the front for quick replacement, meeting the needs of long - time work.
Reliability
It adopts a three - point support design and is equipped with two auxiliary wheels, making steering more stable, safe and reliable.
The lifting rod system is optimally designed, stable and reliable, with less force required.
The whole series uses high - quality domestic waterproof connectors, and all wires and cables have reliable protection, greatly improving the reliability of the electrical system.
The hydraulic power unit has low noise and low vibration, and the lifting and lowering are stable and reliable.
The stamped and formed forks have higher strength and anti - impact performance. The fork tip guide further improves the operation efficiency.
The interlock switch uses a non - contact proximity switch, with extremely high reliability.
The integrated iron wheel cover can well protect the vehicle body and prevent external impacts.
Safety
It has three functions: release braking, reverse braking and emergency braking to ensure driving safety.
It has a slope anti - sliding function to ensure operation safety.
The emergency reverse button at the top of the handle can effectively prevent the driver from being injured when encountering an emergency while driving backward.
The standard dual protection of electronic lifting limit and mechanical limit avoids the impact when lifting to the top, effectively protecting the safety of the goods.
Maintenance
The battery level display timely prompts the user to charge.
The hood can be easily opened, and the components are clearly visible, making the maintenance of the whole machine very convenient.
All rotating shafts are equipped with lubricated bushings, which are easy to maintain and have a long service life.
The handle assembly can be independently disassembled and assembled, which is convenient for maintenance and packing.
