Product Description: DIN Standard Knife Gate Valve

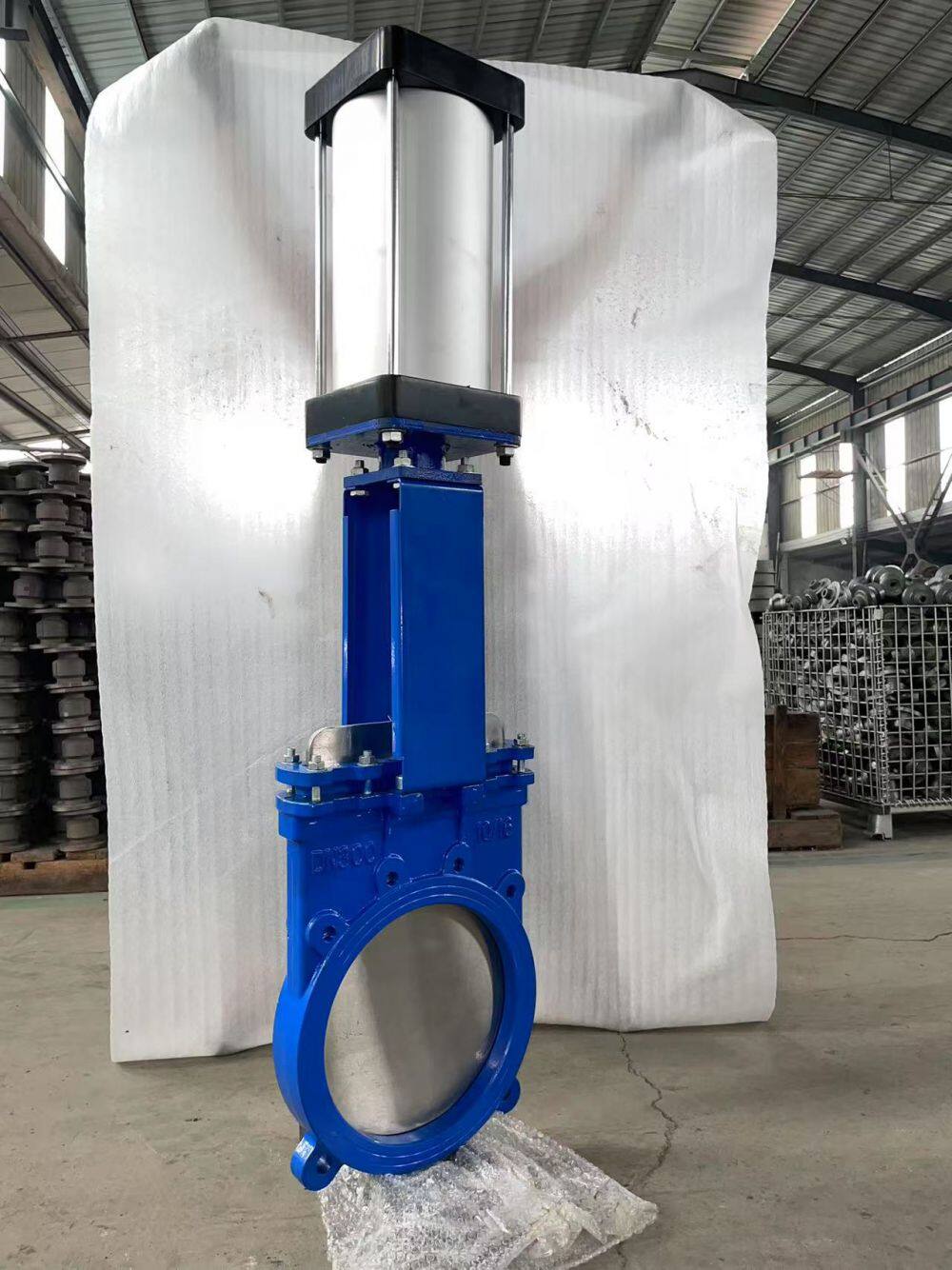

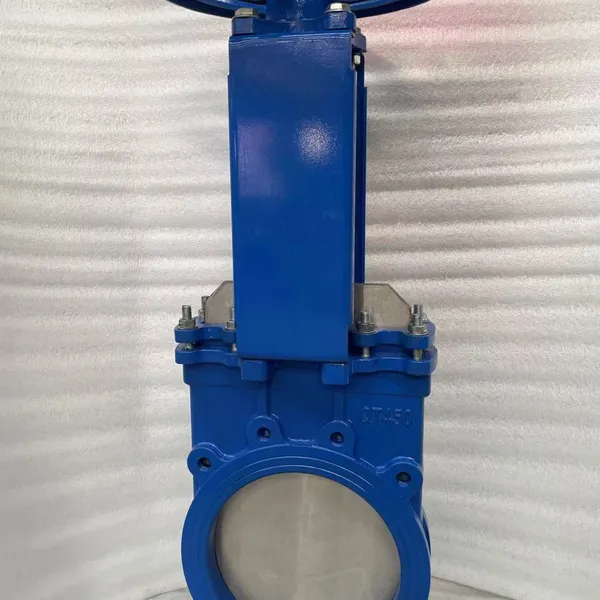

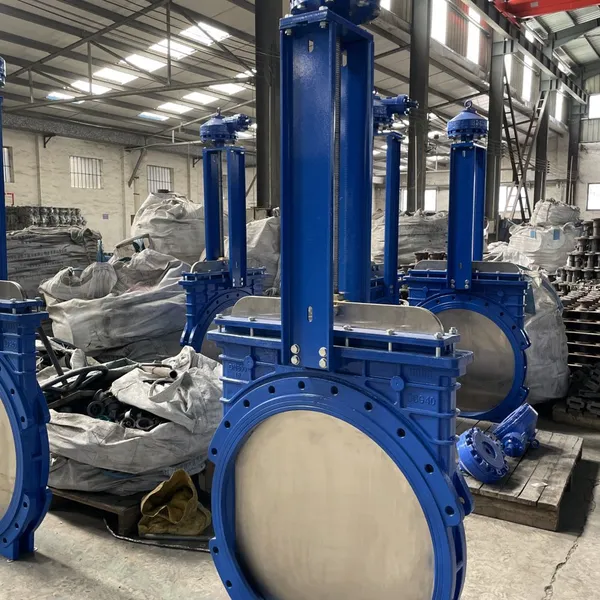

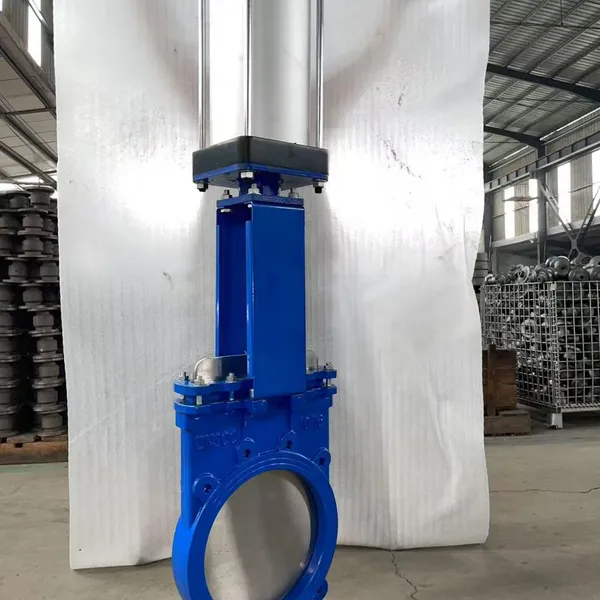

DIN PN16 Flanged Knife Gate Valve Sluice Gate DN 200 is engineered for efficient and reliable control in handling thick fluids, slurries, powders, and abrasive media across various industrial applications. Designed and manufactured in compliance with DIN standards, it features a sharp, knife-edged disc that easily cuts through dense and viscous substances, ensuring a tight shut-off. The valve offers versatile material options, including WCB carbon steel and SS304/SS316 stainless steel bodies, making it suitable for corrosive and demanding environments. With a pressure rating of PN10/PN16 and sizes ranging from 2" to 24", this valve provides a robust solution for pipelines requiring minimal pressure drop and smooth operation.
Key Features & Advantages:
Superior Cutting Ability: The knife-edged disc ensures easy shearing of fibrous and solid-laden media, preventing clogging.
Versatile Material Options: Available in WCB, SS304, and SS316 for body and disc, catering to various corrosion and wear resistance needs.
Reliable Sealing: Offers resilient seats (NBR/EPDM/PTFE) or metal seats, suitable for different temperatures and media types.
Compact & Lightweight Design: DIN3202 F6 face-to-face dimensions make it ideal for space-constrained installations.
Durable Stem: Corrosion-resistant stem options (2Cr13/SS304/SS316) ensure long service life and smooth operation.
Technical Specifications:
Design Standard: DIN
Size Range: 2" to 24"
Pressure Rating: PN10/PN16
Face-to-Face: DIN3202 F6
Flange Standard: EN1092-2
Testing Standard: EN12226 / ISO5208
Body Material: WCB, SS304, SS316
Stem Material: 2Cr13, SS304, SS316, Carbon Steel
Seat Material: NBR, EPDM, PTFE, or Metal Seat
Gasket Material: EPDM, NBR
Handle: Ductile Iron
Chengxin Valve Co.,Ltd. is a great factory specializing in manufacturing and selling valves and castings.It is located in Weizhuang industrial zone,which covers an area of more than 7000 square meters and a staff of over 400 people including various types of engineering,technical staff and senior management of more than 60 persons.The annual out put is over 20000 tons.
Both national and international standard products are produced.The national standard has 12 series,more than 3000
specifications.The products covers gate valve,globe valve,check valve,ball valve,butterfly valve,strainer,balancing valve,etc.The international standard include DIN,Russian standard,BS,ANSI,JIS.Many products have been exported to many countries such as Ireland,Peru,Russia,Pakistan,Korea,Vietnam,Indonesia and so on.
A complete quality control system is set for each working procedure from raw material to finish products.Totally 28 tests are run through to ensure stable quality.Currently the modern physical and chemical laboratories has been built.The well-provided testing equipment has meet the exact quality standard requirement.
We passed the authentication of ISO9001:2008 quality management system and ISO14001:2004 environment management system,EAC and WRAS certificates.
Packing & Delivery
A: We are a professional valve manufacturer located in Hebei, China, with over 20 years of experience in manufacturing and development.
2. Q: What's Execution Standard of products?
A:ISO,ANSI,AWWA,API,DIN,BS,JIS,EN,GOST,AS standard.
3. Q: Is there any stock in your factory? And How long is your delivery time?
A: We stock valves with normal sizes. Generally it is 15 days if the goods are in stock. It is 25-30 days if the goods are not in stock, it is according to quantity.
4. Q: Can you provide the relevant documentation and certificate?
A: Yes, We can provide the international certificates and relevant chemical analysis, mechanical properties, pressure test
reports according to the customers need.
5. Q:Can you OEM or ODM?
A:Yes, we have a strong research & development team. The products can be made according to your request.
6.Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or see copy of bill of lading.
7.Q: Do you have agent or representative abroad?Can we join you?
A: Yes,We have some agents abroad. If you have experience in valve and related industries. Welcome to join us. We will provide you with professional service and strong support to win more market share
