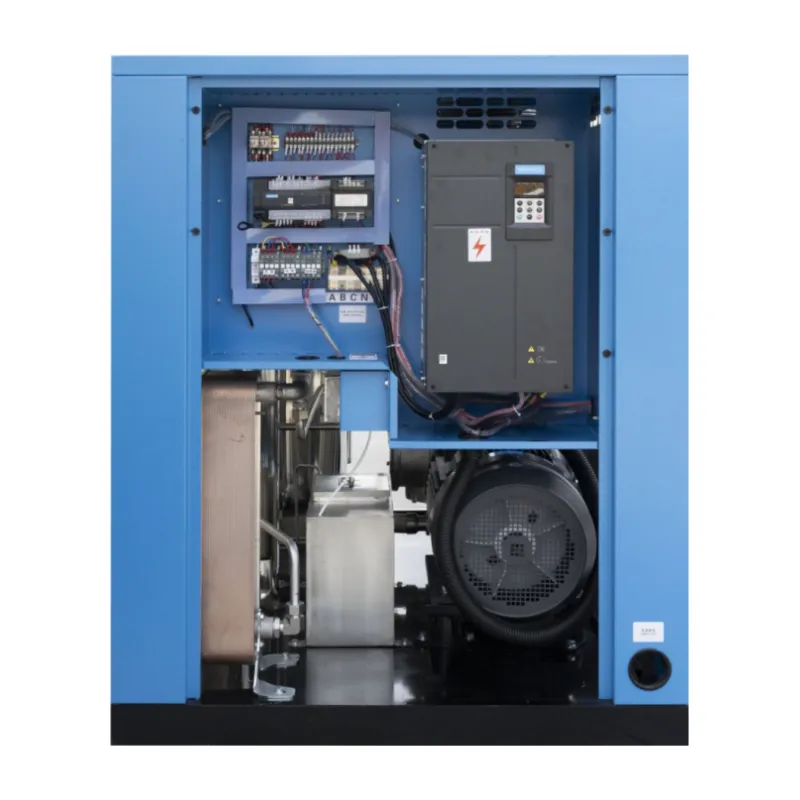

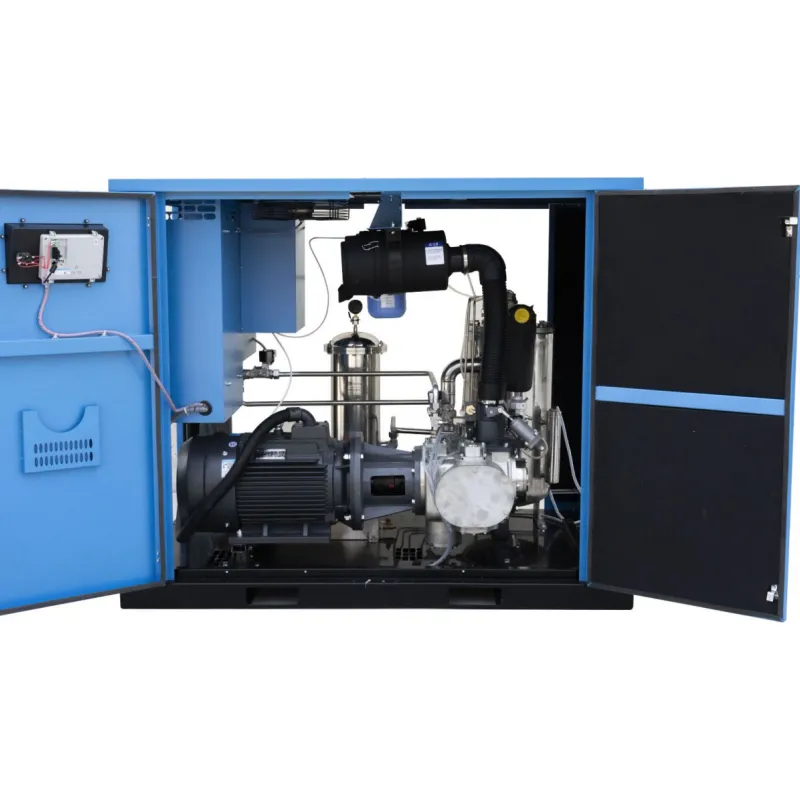

Help CenterOil Free Air Compressor Replacement With Compact Integrated Design and Stable Performance
Related Products
-
Oil-Free Water-Lubricated PM VFD Screw Compressor 30-75kW With Permanent Magnet MotorNegotiableMOQ: 1 Set -
Oil-Free Water-Lubricated PM VFD Screw Compressor for Pharmaceutical Cleanroom ApplicationsNegotiableMOQ: 1 Set
-
Oil-Free Water-Lubricated PM VFD Screw Compressor With Remote Monitoring and PLC ControlNegotiableMOQ: 1 Set
-
Oil-Free Water-Lubricated PM VFD Screw Compressor 15-45 Bar Working PressureNegotiableMOQ: 1 Set
-
Oil-Free Water-Lubricated PM VFD Screw Compressor for Food and Beverage ProcessingNegotiableMOQ: 1 Set
Jiangsu Saidesi Compressor Co., Ltd.
As a professional manufacturer established in 2013, we specialize in producing high-quality oil free air compressors. Our Oil Free Air Compressor Replacement with Compact Integrated Design and Stable Performance is designed to meet the demanding needs of various industries. With a factory size of 1,000-3,000 square meters and a dedicated team of 11-50 employees, we ensure every product meets rigorous quality standards.
Key Features:
Oil-Free Operation: Eliminates the need for lubricants, reducing maintenance costs and contamination risks.
Compact Design: Space-saving and easy to install in tight spaces.
Stable Performance: Delivers consistent air pressure for uninterrupted operations.
Durable Construction: Made from high-grade aluminum alloy for long-lasting use.
Low Noise: Operates quietly, suitable for noise-sensitive environments.
Technical Specifications:
| MODEL | Capacity (m²/min) | Water Inlet 32℃ (T/H) | Water (L) | Power (KW) | Noise (dB(A)) | Outlet (INCH) | Dimension (WxDxH mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
| WSV-10A | 1.2-0.8 | 2.0 | 10 | 7.5 | 58±2 | G3/4" | 800x800x1100 | 510 |
| WSV-15A | 1.6-1.1 | 2.5 | 26 | 11 | 60±2 | G3/4" | 1200x760x1300 | 620 |
| WSV-20A | 2.4-1.8 | 3.5 | 26 | 15 | 63±2 | G3/4" | 1200x760x1300 | 670 |
| WSV-25A | 3.1-2.1 | 4.0 | 30 | 18.5 | 65±2 | G1" | 1400x900x1450 | 720 |
| WSV-30A | 3.5-2.8 | 5.0 | 30 | 22 | 65±2 | G1" | 1400x900x1450 | 760 |
| WSV-40A | 5.1-3.6 | 7.0 | 40 | 30 | 68±2 | G11/4" | 1550x1150x1500 | 1050 |
| WSV-50A/W | 6.3-4.8 | 9.0 | 40 | 37 | 68±2 | G11/4" | 1550x1150x1500 | 1200 |
| WSV-60A/W | 7.4-5.6 | 10.0 | 90 | 45 | 70±2 | G2" | 1800x1300x1750 | 1450 |
| WSV-75A/W | 9.7-7.7 | 12.0 | 100 | 55 | 70±2 | G2" | 1800x1300x1750 | 1550 |
| WSV-100A/W | 13.0-9.7 | 18.0 | 100 | 75 | 73±2 | G2" | 1800x1300x1750 | 1650 |
| WSV-120A/W | 14.8-12.6 | 20.0 | 120 | 90 | 73±2 | G21/2" | 2200x1550x1800 | 2400 |
| WSV-150A/W | 19.8-15.6 | 24.0 | 120 | 110 | 78±2 | G21/2" | 2200x1550x1800 | 2550 |
| WSV-175A/W | 23.1-16.8 | 31.0 | 120 | 132 | 78±2 | G21/2" | 2200x1550x1800 | 2750 |
| WSV-200A/W | 28.1-22.5 | 36.0 | 160 | 160 | 80±2 | G3" | 3000x1800x2100 | 3800 |
| WSV-250A/W | 33.9-25.2 | 38.0 | 160 | 185 | 80±2 | G3" | 3000x1800x2100 | 4000 |
| WSV-280A/W | 36.8-29.1 | 42.0 | 200 | 200 | 80±2 | G4" | 3100x1850x2000 | 4200 |
| WSV-350A/W | 39.7-29.5 | 46.0 | 200 | 220 | 82±2 | G4" | 3100x1850x2000 | 4400 |
| WSV-420A/W | 43.5-34.1 | 52.0 | 200 | 250 | 82±2 | G4" | 3100x1850x2000 | 4600 |
Why Choose Our Oil Free Air Compressor?
Reliable Performance: Ensures continuous operation without downtime.
Cost-Effective: Reduces maintenance and operational costs.
Versatile Applications: Suitable for industrial, medical, and laboratory use.
Eco-Friendly: No oil means no contamination, making it environmentally friendly.
With our extensive experience and a strong presence in markets across North America, South America, Eastern Europe, Southeast Asia, and beyond, we are confident in delivering top-notch products. Our compressors are shipped from major ports like Qingdao, Shanghai, and Tianjin, ensuring timely delivery worldwide.
FAQ:
Q: What is the advantage of an oil-free air compressor?
A: Oil-free compressors eliminate the risk of oil contamination, reduce maintenance costs, and are environmentally friendly.
Q: Can this compressor be used in medical applications?
A: Yes, our oil-free compressors are suitable for medical and laboratory use due to their clean air output.
Q: What is the noise level of this compressor?
A: It operates at a low noise level, making it ideal for noise-sensitive environments.
Q: Is the compressor portable?
A: Yes, its compact and lightweight design allows for easy movement and installation.
Q: What is the warranty period?
A: Warranty details are available upon request.
Q: Can the specifications be customized?
A: Yes, we offer customizable options to meet specific requirements.
For more details or to place an order, contact us today. We look forward to serving you with our high-quality products and excellent customer service.
