Powder Coated Storage Racking Heavy Duty Pallet Rack
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Usage:
Industrial
Height:
0-5m
Closed:
Open
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
25 days
Related Products
-
Warehouse Racking System for Heavy Duty Pallet Storage | Industrial Metal Shelf RackNegotiableMOQ: 1 Set -
Heavy Duty Warehouse Shelving Systems | Pallet Racking CustomizedNegotiableMOQ: 1 Set
-
Heavy Duty Cantilever Racks China ManufacturerNegotiableMOQ: 10 Sets
-
Heavy Duty Cantilever Racks China ManufacturerNegotiableMOQ: 10 Sets
-
High-Bearing Durable Metal Pallets: Electrostatic Spraying Steel Pallets for LogisticsNegotiableMOQ: 1 Set
Usage
Industrial
Height
0-5m
Closed
Open
Serviceability
Common Use
Development
New Type
Weight
Other, 2ton per layer
Trademark
TS
Origin
China
Powder Coated Storage Racking Heavy Duty Pallet Rack
Pallet Rack
1) Pallet shelves are the most common and cost-effective storage shelves of all types.
2) High capacity storage with low equipment and capital costs, and the size and weight can be customized according to your specific needs.

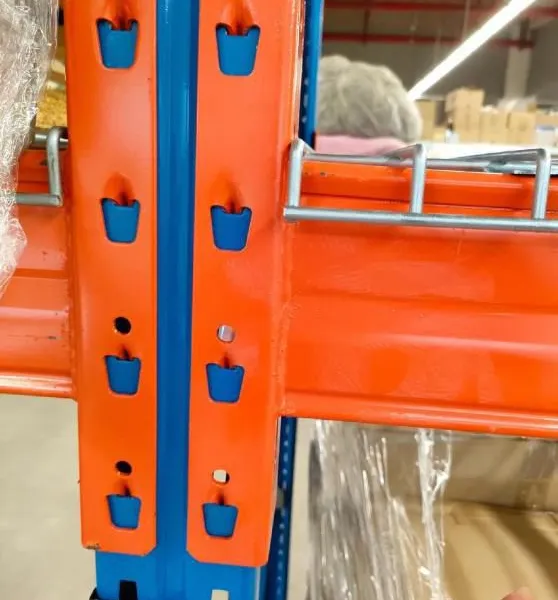

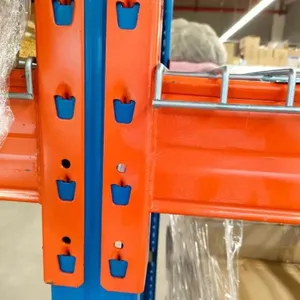

3) The rack structure is mainly composed of columns, beams, horizontal supports, diagonal supports, and self-locking bolts.
Product Description:
| Upright specification | Beam specification |
|
90x70/100x70/120x95mm Thickness :1.8/ 2.0/2.5mm |
80x50/100x50/120x50/140x50/160x50mm 100x40/120x40/140x40/160x40mm Thickness :1.5mm |
| Steel grade : Q235 /Q345 , material certification available | |
| Color code: RAL5015 blue -upright / RAL2004 orange- beam | |
| Loading capacity : up to UDL 3000kg/layer | |
| Surface finishing : powder coated / galvanized | |
| BOX BEAM LOADING TABLE | ||||||||||
| Beam length (mm) | 80*50*1.5 | 100*40*1.5 | 100*50*1.5 | 110*50*1.5 | 120*40*1.5 | 120*50*1.5 | 140*40*1.4 | 140*50*1.5 | 160*40*1.5 | 160*50*1.5 |
| 1500 | 4286 | |||||||||
| 1800 | 2977 | |||||||||
| 1900 | 2672 | 3809 | 4535 | |||||||
| 2200 | 1993 | 2841 | 3382 | 4219 | ||||||
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | 4665 | ||||
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | ||||
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | 5160 | ||
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | ||
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3716 | 4425 | 5068 | 6033 |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | 4105 | 4887 |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 2985 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2508 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2251 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2032 | 2419 |

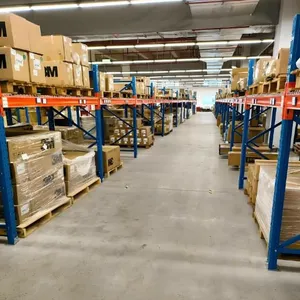

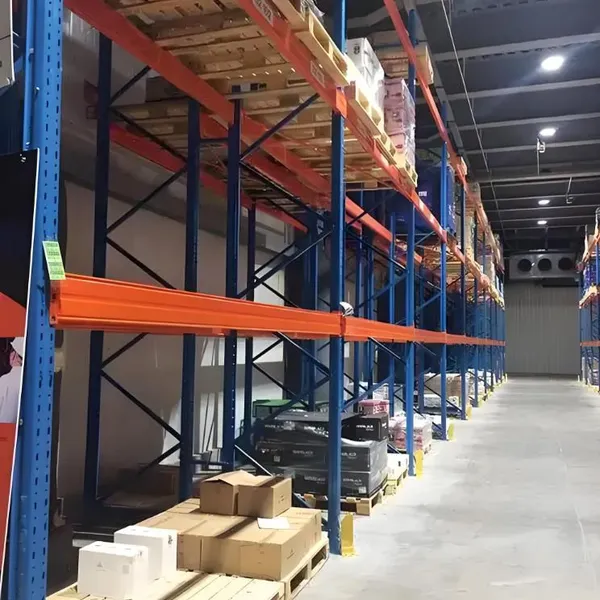

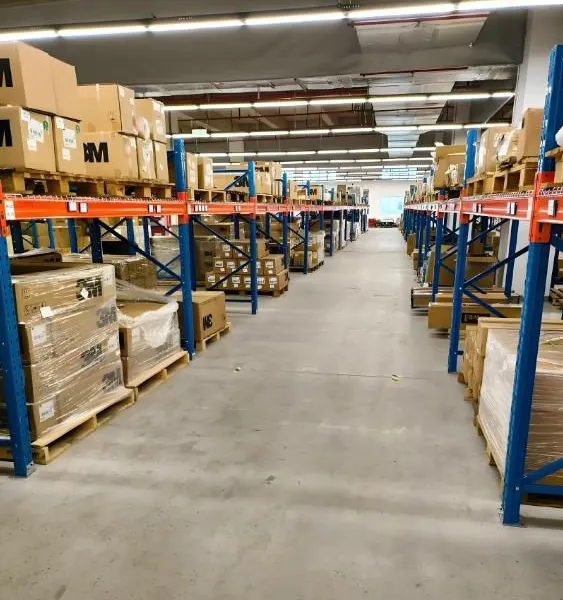

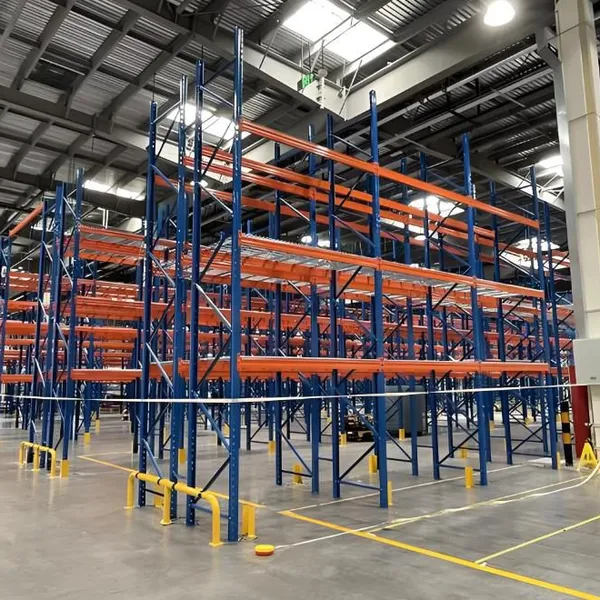

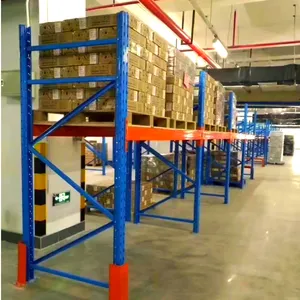

Project cases:
Features of pallet racks:
1. Applicable to all types of warehouses. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.offer components to accommodate specialized needs.
3. The rack has a simple structure, and customers can freely adjust the height of the beam,according to the needs of the warehouse at different times, so as to store different types of goods.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Bottom level of pallets can be stored on the floor, lowering structure costs.
6.There are spring safety locks or L locks to fix beams and uprights tightly, can also install foot plate, crash barriers and other equipment to improve the protection of the racking shelves.
1. Applicable to all types of warehouses. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.offer components to accommodate specialized needs.
3. The rack has a simple structure, and customers can freely adjust the height of the beam,according to the needs of the warehouse at different times, so as to store different types of goods.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Bottom level of pallets can be stored on the floor, lowering structure costs.
6.There are spring safety locks or L locks to fix beams and uprights tightly, can also install foot plate, crash barriers and other equipment to improve the protection of the racking shelves.
| Rack Material | Cold roll steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity | Customized and up to 80,000 Kg /Level |
| Height | Customized and up to 15m |
| Color&size | As customer needs |
| Offers | Factory Direct Sales.Different quantity, different promotional activities |
| Racking Finish | Frames + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) |
| Installation | Video teaching or engineer guided |
| Package | Packed by Air Bubble Film or Carton. |
| Loading port | QingDao Port |
| Payment term | 30% T/T / L/C /Western Union in advance, balance before shipment |
| Lead Time | 5-25 days after payment |
Factory Photos
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for quick quotation
| 1. | Drawing (if available) |
| 2. | Size of your warehouse (width, length, clear height) or your warehouse plan drawing |
| 3. | Size of racking (H*W*L) |
| 4. | How levels of the racking? |
| 5. | Loading capacity of each level? |
| 6. | (RAL) Color you want. |
