Home > Construction & Decoration > HVAC System & Parts > Floor Heating Mats for Family Heating in Winter, Bathroom Heating, Wall Heating

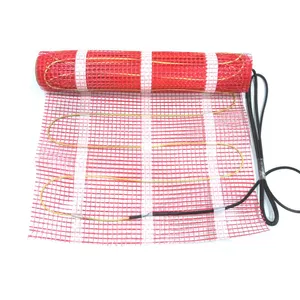

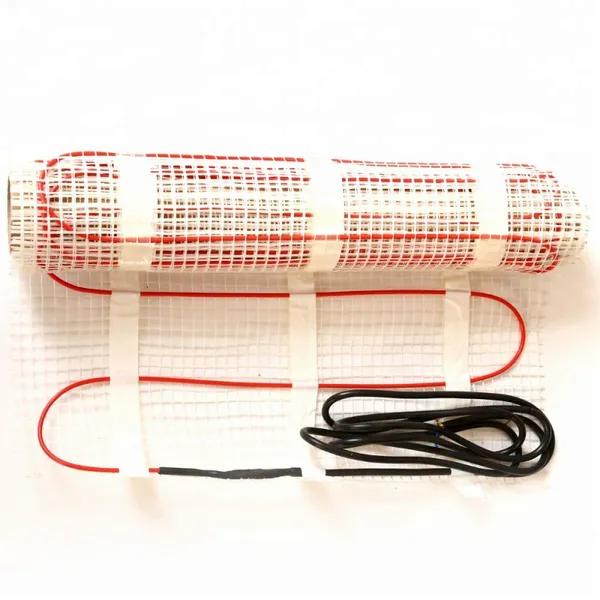

Floor Heating Mats for Family Heating in Winter, Bathroom Heating, Wall Heating
US$ 6 - 8
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Warranty:
More Than 5 Years
Floor Heating Valve:
All available
After-sale Service:
Online Technical Support, Return and Replacement
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Underfloor Heating Mat With CE ApprovedUS$ 8 - 10MOQ: 1 Square Meter -
Multi-purpose Heating Mat Electric Heating Made in ChinaUS$ 49.02MOQ: 50 Square Meters
-
Warm Floor Heating Mat Heated Outdoor Mats for Electric Radiant Underfloor Heating Mat SystemUS$ 49.02MOQ: 50 Square Meters
-
Bathroom Heating System Ultra-thin Heating Mat 220v Can Be CustomizedUS$ 49.02MOQ: 50 Square Meters
-
FEP Insulation Material High Temperature Resistant Grid Heating MatUS$ 62.33MOQ: 50 Square Meters
Warranty
More Than 5 Years
Floor Heating Valve
All available
After-sale Service
Online Technical Support, Return and Replacement
Material
Polyolefin/FEP/PVC
Project Solution Capability
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application
Hotel
Design Style
Modern
Place of Origin
Anhui, China
Brand Name
youyu
Model Number
customized
Type
Floor Heating Parts
Floor Heating Part Type
Floor Heating Mats
Product Description
Underfloor Heating Mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo. It is installed with tile adhesive and has almost no effect on the ground elevation. Heating mat can also be laid directly on the original ground without the need for other treatment of the original ground. In addition, the thin, pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fast heating system is the best choice for home. Heating mat used for overall heating, comfortable heating, wall heating, Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor electric underfloor heating mat and twin conductor electric underfloor heating mat.
1. Laying the insulation broad on the ground; keep the ground dry before install;
2. A special reflective film is placed on the insulating material to reflect heat;
3. Put on the heating mat, and there is adhesive on the back of the heating mat net, which can be attached to the ground material.The whole installation process is much easier and faster. The underfloor heating mat is only 3-5mm thick, and has little influence on the height of the floor. The position such as toilet or platform basin can avoid;
4. Uniformly covered with concrete materials, the thickness of the cover shall refer to the heating standards, and the
construction can be carried out with professional tools;
5. Install the thermostat and finally place floor or ceramic tile and other floor decoration materials.
2. A special reflective film is placed on the insulating material to reflect heat;
3. Put on the heating mat, and there is adhesive on the back of the heating mat net, which can be attached to the ground material.The whole installation process is much easier and faster. The underfloor heating mat is only 3-5mm thick, and has little influence on the height of the floor. The position such as toilet or platform basin can avoid;
4. Uniformly covered with concrete materials, the thickness of the cover shall refer to the heating standards, and the
construction can be carried out with professional tools;
5. Install the thermostat and finally place floor or ceramic tile and other floor decoration materials.
Data Sheet of 110V Underfloor Heating Mat |
||||||||
Model |
Mat Size |
Voltage |
Output Power |
Cold Lead |
||||
1m2 |
0.5*2m |
110~120V |
150W |
2~3m |
||||
1.5m2 |
0.5*3m |
110~120V |
225W |
2~3m |
||||
2m2 |
0.5*4m |
110~120V |
300W |
2~3m |
||||
2.5m2 |
0.5*5m |
110~120V |
375W |
2~3m |
||||
3m2 |
0.5*6m |
110~120V |
450W |
2~3m |
||||
3.5m2 |
0.5*7m |
110~120V |
525W |
2~3m |
||||
4m2 |
0.5*8m |
110~120V |
600W |
2~3m |
||||
4.5m2 |
0.5*9m |
110~120V |
675W |
2~3m |
||||
5m2 |
0.5*10m |
110~120V |
750W |
2~3m |
||||
6m2 |
0.5*12m |
110~120V |
900W |
2~3m |
||||
Data Sheet of 220V Underfloor Heating Mat |
||||||||
Model |
Mat Size |
Voltage |
Output Power |
Cold Lead |
||||
1m2 |
0.5*2m |
220~240V |
150W |
2~3m |
||||
1.5m2 |
0.5*3m |
220~240V |
225W |
2~3m |
||||
2m2 |
0.5*4m |
220~240V |
300W |
2~3m |
||||
2.5m2 |
0.5*5m |
220~240V |
375W |
2~3m |
||||
3m2 |
0.5*6m |
220~240V |
450W |
2~3m |
||||
3.5m2 |
0.5*7m |
220~240V |
525W |
2~3m |
||||
4m2 |
0.5*8m |
220~240V |
600W |
2~3m |
||||
4.5m2 |
0.5*9m |
220~240V |
675W |
2~3m |
||||
5m2 |
0.5*10m |
220~240V |
750W |
2~3m |
||||
6m2 |
0.5*12m |
220~240V |
900W |
2~3m |
||||
7m2 |
0.5*14m |
220~240V |
1050W |
2~3m |
||||
8m2 |
0.5*16m |
220~240V |
1200W |
2~3m |
||||
9m2 |
0.5*18m |
220~240V |
1350W |
2~3m |
||||
10m2 |
0.5*20m |
220~240V |
1500W |
2~3m |
||||
11m2 |
0.5*22m |
220~240V |
1650W |
2~3m |
||||
12m2 |
0.5*24m |
220~240V |
1800W |
2~3m |
||||
Company Information
Anhui Youyu Electric Heating Equipment Co., Ltd was founded in 2012, located in High-tech Industrial Development Zone, Wuhu city, Anhui province, China. It is an energy saving, high and new technology enterprise which integrates professional research, manufacture, sale, engineer, design and construction and has independent intellectual property.
In a few years, company has obtained EAC, CE, ROHS, ATEX, ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health management certificate and many other industry quality and explosion proof certificates. Taking client on top priority, we set up strict quality control system and considerate after-sale service. We warmly welcome partners from home and abroad to establish long-term business relations.
Certificates
CSA, EAC, CE, ROHS, ATEX, ISO9001, ISO14001, OHSAS18001
Customers
FAQ
1. Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
2. What's the Minimum Order Quantity?
There is no MOQ requirement for standard product.
And the MOQ for customized product is 10pcs
3. What is your delivery time?
Normally within 7~15 days, The specific delivery time is determined according to the product model and quantity you ordered.
4. What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
5. Can you provide samples for testing before placing orders ?
Yes, we can provide samples to check quality and testing its performance.
6. What is warranty of your product?
25 years free warranty for underfloor heating cable & mat
7. Can you do OEM and ODM for us?
Yes, we can provide professional OEM and ODM services. We have an experienced R&D technical team that can provide you with standard and customized products, and can also put your logo on the heating mat.
8.If your heating cable eco-friendly?
Our heating mat is all in accordance with ROHS, you can buy and use freely.
9.Do you offer or supply room thermostat compatible to your electric underfloor heating system?
Yes, we have mechanical, LCD digital display, WIFI and other types of thermostats for your choice.
10.Which floor decoration materials are suitable for installing the underfloor heating system?
Tile, marble, wood floor, laminate, vinyl board, concrete and other floor decoration materials.
11.Does each room require its own thermostat?
We recommend that each room be equipped with a thermostat to control the temperature independently,
which will save energy and make temperature control simpler and more accurate.
which will save energy and make temperature control simpler and more accurate.
