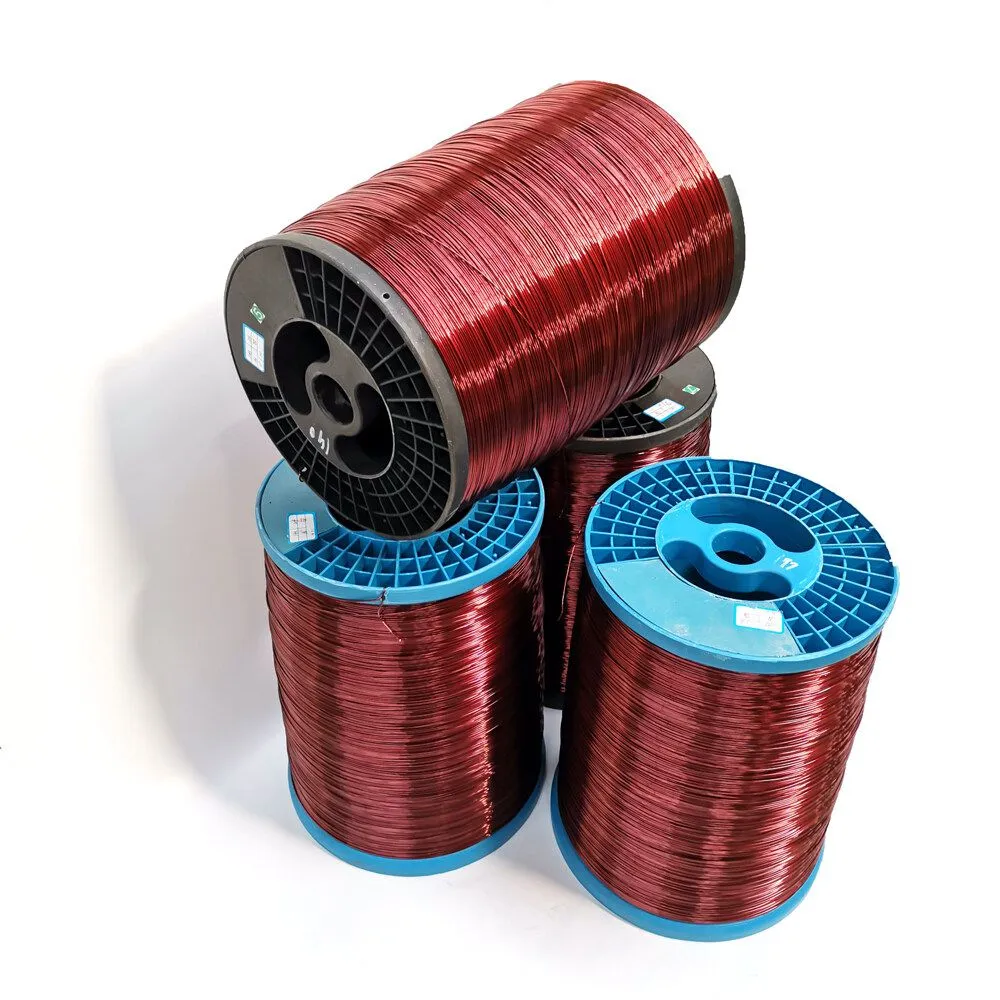

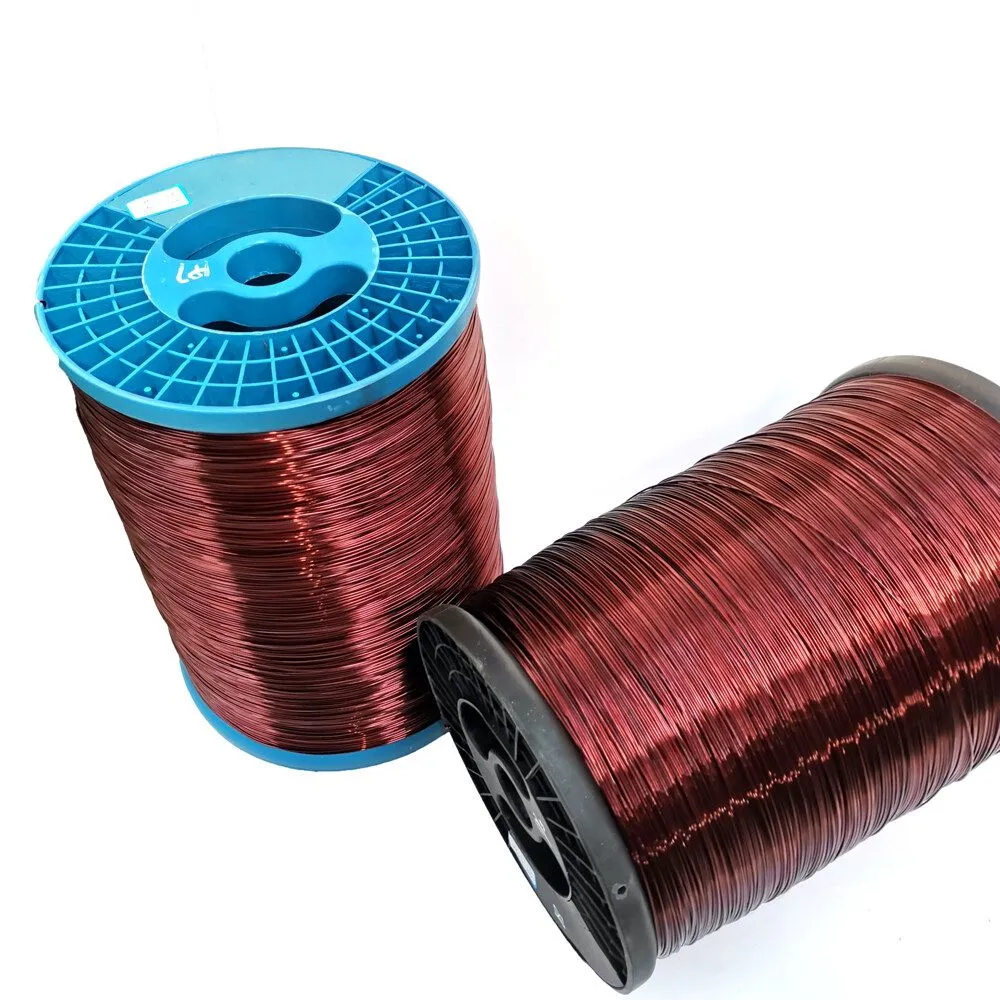

This industrial - grade enameled wire, specifically the PEW 130 and 155 CCA (Copper - Clad Aluminum) winding solid aluminum - clad aluminum with PVC insulation, is a high - performance solution designed for high - voltage electrical applications. With a conductor material of aluminum wire in a round wire shape, it combines the advantages of aluminum's lightweight and cost - effectiveness with enhanced electrical properties provided by the copper - clad layer.
2. Conductor Material and StructureThe conductor of this enameled wire is made of aluminum wire. Aluminum is known for its relatively low density, which makes the wire lightweight and easy to handle during installation. The CCA (Copper - Clad Aluminum) structure further improves its electrical conductivity. The outer layer of copper provides better conductivity and solderability compared to pure aluminum, while the aluminum core reduces the overall cost. The round wire shape ensures uniform current distribution and reduces the skin effect, which is crucial for high - voltage applications.
This enameled wire has a wide range of applications in the electrical industry:
Transformer: In transformers, it is used for winding coils. The high - voltage capabilities of this wire ensure efficient power transfer and voltage regulation. The round shape and good insulation properties help in minimizing energy losses and improving the overall efficiency of the transformer.
Instrument: It can be used in various electrical instruments. The stable electrical performance of the wire ensures accurate measurement and reliable operation of the instruments.
Electrical Equipment: Many types of electrical equipment, such as power supplies and control panels, rely on this enameled wire. Its ability to withstand high voltages makes it suitable for use in these demanding environments.
Motor: In motors, the wire is used for stator and rotor windings. The lightweight nature of the aluminum - clad aluminum conductor reduces the overall weight of the motor, while the high - voltage insulation helps in achieving high - speed and high - torque operation.
The insulation level of this wire is H, which means it can withstand relatively high temperatures. This is essential for high - voltage applications where heat generation is common. The PVC insulation provides good electrical insulation and mechanical protection.
The wire is certified with ISO9001 and ROHS. The ISO9001 certification indicates that the manufacturing process of the wire meets international quality management standards, ensuring consistent quality and performance. The ROHS certification means that the wire is compliant with the Restriction of Hazardous Substances directive, which is important for environmental protection and for meeting the requirements of many international markets.
5. Manufacturer InformationThis enameled wire is produced by Shandong Huilong Electrical Material Co., Ltd., a well - established manufacturer since 1970. As a manufacturer, it has strict quality control over the production process. The company has a wide range of production certifications, including HACCP, TL900, QS9000, SA8000, ISO9001, ISO9004, ISO17799, ISO9000, ISO14000, ISO16949, TS16969, ISO19011:2000, OHSAS18001, and others. These certifications ensure that the product is not only of high quality but also meets various international standards in terms of safety, environmental protection, and quality management.
The company has an annual export share of above US$100 Million, which shows its strong presence in the international market. Its main markets cover North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, as well as the domestic market. With a team of 1 - 10 professional salespeople, the company can provide good customer service and technical support.
Voltage Rating: Specifically designed for high - voltage applications, it can withstand high electrical stresses without breakdown.
Temperature Resistance: With an insulation level of H, it can operate at relatively high temperatures, ensuring long - term stability in high - heat environments.
Diameter: The round wire has a specific diameter that is carefully engineered to meet the requirements of different applications. The diameter affects the current - carrying capacity and the overall performance of the wire.
Insulation Thickness: The PVC insulation has an appropriate thickness to provide reliable electrical insulation and mechanical protection.
The manufacturing process of this enameled wire is strictly monitored. From the selection of raw materials to the final production, every step is subject to quality control. The company uses advanced production equipment and testing methods to ensure that each batch of wire meets the specified standards. For example, the electrical conductivity, insulation resistance, and temperature resistance of the wire are regularly tested to guarantee its performance.
In conclusion, this industrial - grade PEW 130, 155 CCA winding solid aluminum - clad aluminum PVC enameled wire is a reliable and high - performance solution for high - voltage electrical applications. Its combination of excellent conductor properties, wide application scope, and strict quality control makes it a preferred choice for many international customers.
