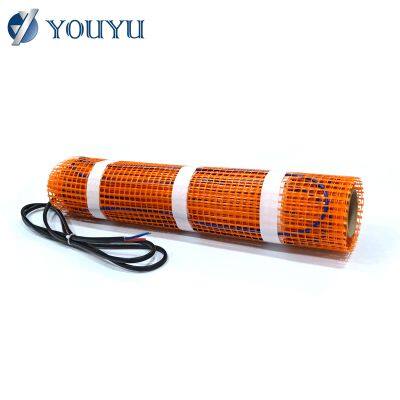

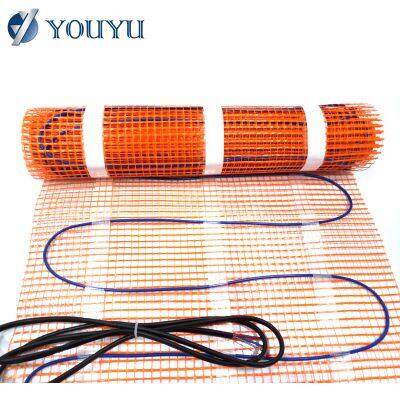

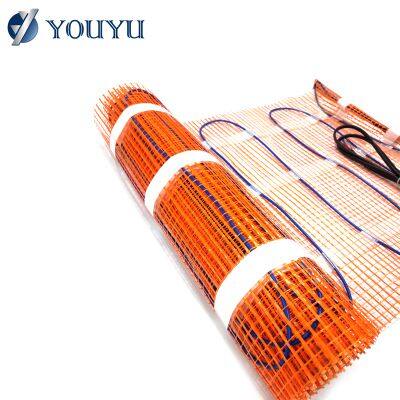

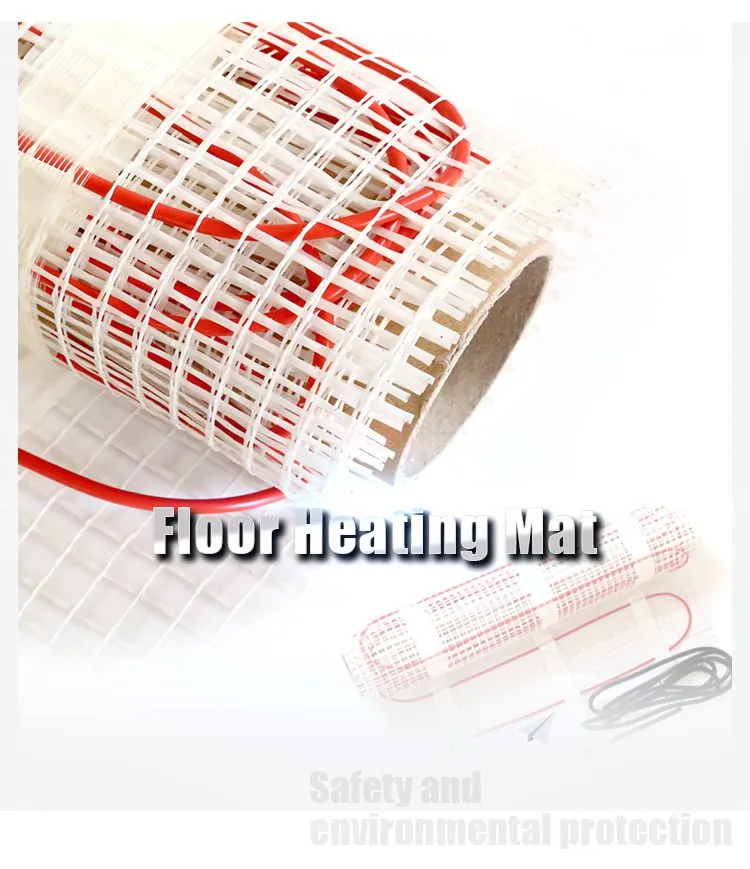

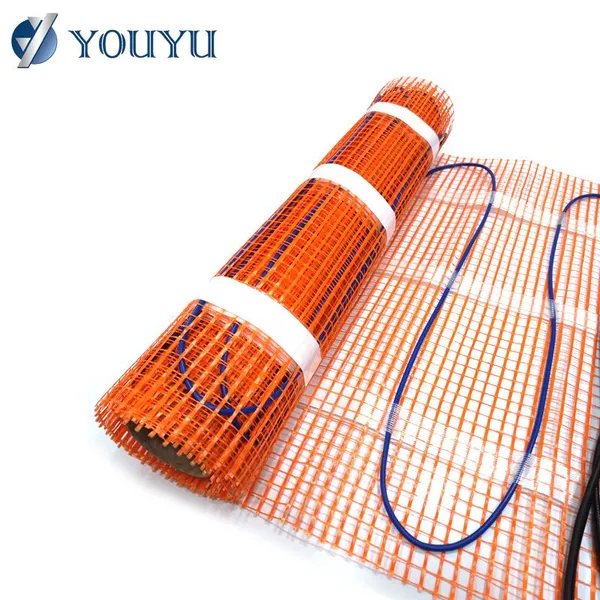

Home Concrete 230V Underfloor Warming Heating Mat reptile heat mat

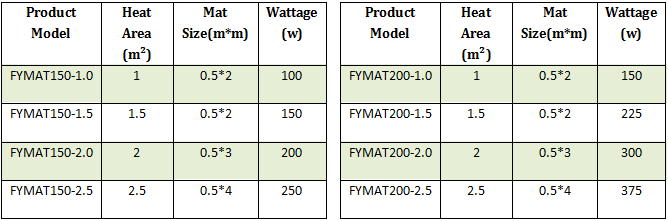

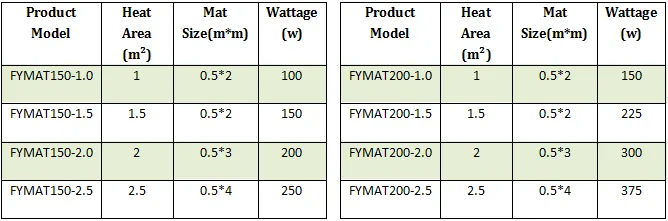

Product Model
Product Application
Heating mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo It is installed with tile adhesive and has almost no effect on the ground elevation. Heating matcan also be laid directly on the original ground without the need for other treatment of the original ground. In addition,the thin, pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fastheating system is the best choice for home makers like bathrooms. Heating mat used for overall heating, comfortable heating, wall heating,Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor in-slab snow melting heating mat and twin conductor in-slab snow melting heating mat.
1. Ground heating system for public buildings and residential buildings;
2. Bathroom floor warming system;
3. Concrete floor, wooden floor or tile floor heating;
4. Driveway snow melting or ice antifreeze system.
Technical Parameter
|

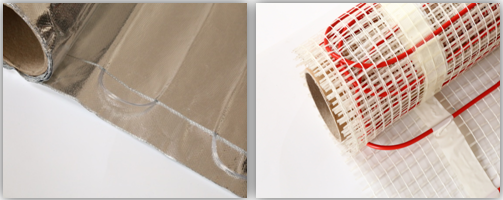

Structure |
Single conductor heating mat |
Twin conductor heating mat |
|
Glass net |
10*10mm 300 g/square meter Back double-sided tape |
10*10mm 300 g/square meter Back double-sided tape |
|
Thickness |
4-4.5mm |
3-5.5mm |
|
Power output |
100w/square meter,150 w/square meter |
150 w/square meter |
|
Rated voltage |
220v(Customized) |
220v(Customized ) |
|
Length |
2*2m |
1*2m |
|
Cable construction |
single conductor |
twin conductor |
|
Outside diameter |
2.5mm |
3mm |
|
Insulation |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
|
Conductor |
Teflon(150℃ CFEP) |
Teflon(150℃ CFEP) |
|
Shield |
Aluminum foil + copper wire |
Aluminum foil + copper wire |
|
Max. Ambient Temp |
120 ℃ |
120 ℃ |

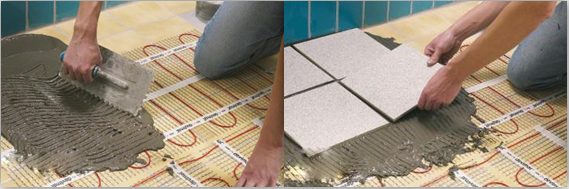

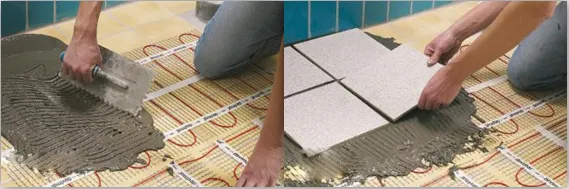

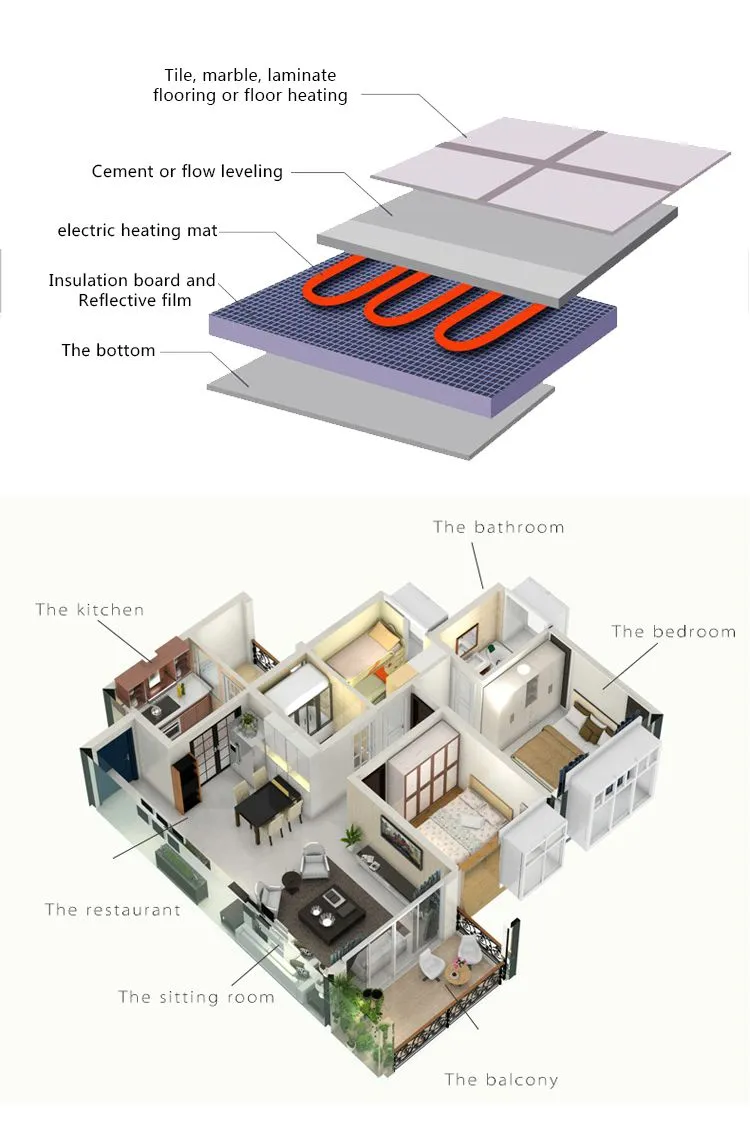

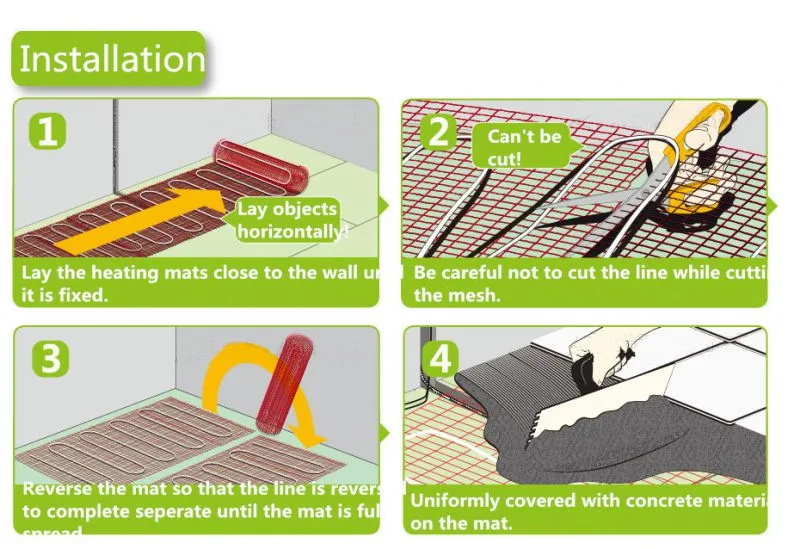

Installation
1. Laying the insulation broad on the ground; keep the ground dry before install;
2. A special reflective film is placed on the insulating material to reflect heat;
3. Put on the heating mat, and there is adhesive on the back of the heating mat net, which can be attached to the ground material. The whole installation process is much easier and faster.The floor mat is only 3-5mm thick, and has little influence on the height of the floor. The position such as closestool or platform basin can avoid;
4. Uniformly covered with concrete materials, the thickness of the cover shall refer to the heating standards, and the construction can be carried out with professional tools;
5. Install the thermostat and finally place floor or ceramic tile and other floor decoration materials.
Warning
Product Advantages
2 . The material is safe , pollution-free and has a long shelf life ;
3 . No professional installation is required . The self-adhesive desian makes the installation quick and easy ;
4 . Heat fast and the temperature is uniform
5 . Can be laid directly in the onginal ground without any clean of it
Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
What's the Minimum Order Quantity?
MOQ for heating mat is 500sq. m.
MOQ for self regulating heating cable is 1000m.
MOQ for constant wattage heating cable is 1000m.
MOQ for thermostats is 50 pieces.
Can I place a sample order first?
Yes, you can place sample order to check the quality and testing it. Parts of samples are free of charge. Delivery cost is on buyer's account.
What is your delivery time?
Normally within 7~15 days, big order should be negotiated.
What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
What is warranty of your product?
25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.
Can you do OEM and ODM for us?
Yes, we are professional in providing OEM and ODM service. We support both standard and customized products, we can put your logo on the products. Our experienced R&D team will support technical questions.
How to control quality?
1. All the raw materials by ICQ(Incoming quality control).
2. IPQC(In Processing Quality control).
3. QC fully inspection before packing.
4. Before shipment, do fully inspection again.
