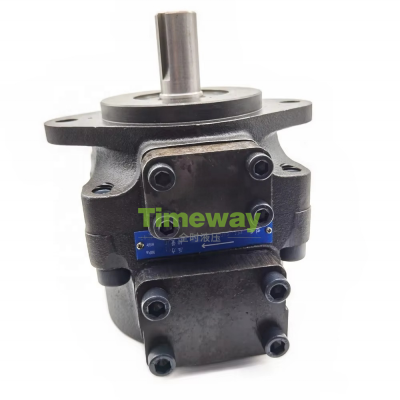

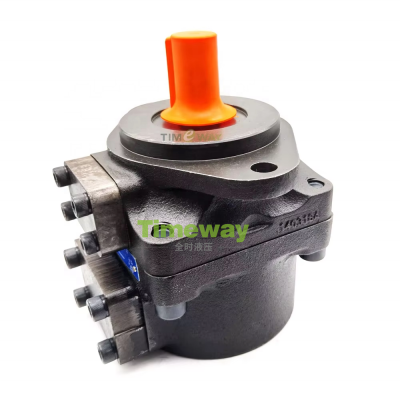

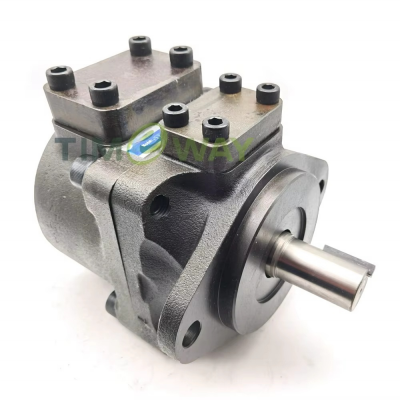

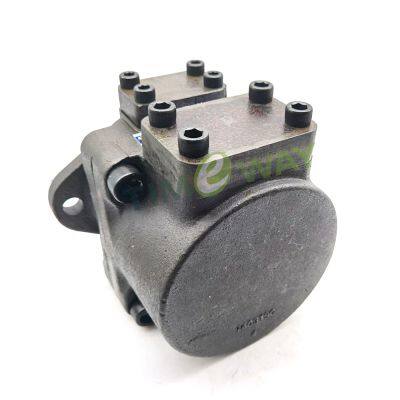

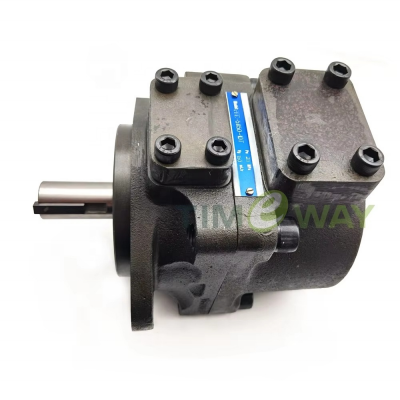

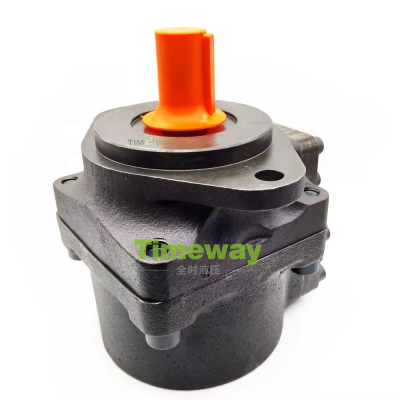

PFE Series Hydraulic Column Pin Vane Pump PFE-51090-1DT PFE-51150-1DT High Pressure Hydraulic Pump Low Noise High Quality
US$ 2068.72
1 - 9 Unit
US$ 2033.66
10 - 49 Unit
US$ 1963.53
50 - 99 Unit
US$ 1893.41
≥100 Unit
Key Specifications
Get Latest Price
Material:
Case Iron
Warranty:
1 Year
Displacement:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PFE Series Vane Pump PFE-51150-1DU High Pressure Hydraulic Pin Vane Pump Low Noise High Quality ColumnUS$ 1893.41 - 2068.72MOQ: 1 Unit -
V15 Variable Hydraulic Axial Piston Pump V15A1R10X V15A2R10X V15A3R10X V15A4R10X High-Pressure Plunger PumpUS$ 2103.78 - 2279.10MOQ: 1 Unit
-
IPV4 Hydraulic Gear Pump High-pressure Internal Gear Pump 1PV4-13-171 1PV4-16-171 1PV4-20-171 1PV4-25-171 1PV4-32-171 Oil PumpUS$ 4137.44 - 5014.01MOQ: 1 Piece
-
KFP Hydraulic Gear Pump KFP2227 Gear Pump KFP2227ASMSJ Gear Oil Pump Replace for Forklift 5K1/48008KOM Spline Shaft T10 Oil PumpUS$ 455.82 - 596.08MOQ: 1 Unit
-
35861 Hydraulic Gear Pump 35861-82203 35861-82200 35861-82202 Hydraulic Oil Pump for Kubota M6950 M6950DT M7950 M7950DT M8950US$ 701.26 - 981.77MOQ: 1 Piece
Warranty
1 Year
Displacement
Other
Pump Type
Vane Pump
Brand Name
TIMEWAY
Place of Origin
Jiangsu, China
Connection Size
1/4 inch
Dimension(L*W*H)
25*25*25
Max. Horsepower
0.5 HP
Maximum Flow Rate
Other
Number of stages
1 Stage
Operating Pressure
100 bar
Power(W)
Other
Pressure
Other
Showroom Location
None
Structure
Other
Weight
30
Standard or Nonstandard
Standard Hydraulic
Model
PFE-51090-1DT PFE-51150-1DT
Package
Carton Box
Keywords
Vane Pump
Usage
Completely Replace
After-sales Service Provided
Line Support
Shipment
DHL UPS FEDEX EMS TNT
Delivery time
1-15 Days
Brand
TIMEWAY
This buying link only includes the below parts,if you are interested in other parts,pls contact us freely.
Product Name |
VANE PUMP |
Part Number |
PFE-51090-1DT PFE-51150-1DT |
Machine Model |
PFE |
Application |
OEM |
Delivery |
By sea,By air,By train,By Express |
PFE high performance vane pump series, a total of single pump (PFE - 31/41/51/32/51/32) and double pump (PFED - 43/54) eight series, 75 specifications. The displacement range of 16.5 ~ 150 ml/r, pressure rated for 21 ~ 30 mpa, speed range is 600 ~ 2800 r/min (hydraulic co., LTD. On this basis, the quality and to develop two pounds - 21/61 series of single pump, extends the scope of delivery is 5 ~ 250 ml/r).
The pump design process is unique, the eccentric shaft pins blade structure, with high pressure, large flow, small volume, smooth running, low noise, high efficiency, long life and other advantages, the main technical indicators reached international advanced level.
This series of pump is instrumentation type structure. The optimum design for the machine core, further reducing the pressure and flow pulsation and noise. Back plate structure is the same as before, with a symmetrical groove, and hydraulic balance, are adopted to ensure the consistent deformation and compensation, which can obtain better volumetric efficiency. The reasonable design of blade root and dowel pin oil supply system, to ensure good contact between the blade and the stator, and makes the flow losses to a minimum. The unique design, reasonable selection of high precision machining and materials makes the pump has a very good life.
PFE series with complete specifications, excellent performance, reliable, simple and reasonable structure, easy installation and maintenance (installation meet ISO/SAE standards), can be widely used in machine tools, pressure die casting machinery, engineering machinery, metallurgy, mining, light industry, chemical machinery, agricultural machinery and all kinds of hydraulic system, etc.
Model specification
1. The structure of the code: PEFD double pump series
2. Serial number: 43, 54
3. The main parameters: the large lateral displacement geometric displacement (ml/r)
4. The main parameters: a small lateral displacement geometric displacement (ml/r)
5. The shaft extension style: 1 - cylindrical shaft (standard) 2 - cylindrical shaft the reach (ISO/DIS3019)
3 - cylindrical shaft extension (high torque type) 5-6 - spline shaft the reach of spline shaft (reinforced)
6. Rotate to look from the shaft end: D: S: clockwise counterclockwise
7. Oil mouth location: see oil mouth sketch map [two import and export of the TO (standard), VG 32 groups such as the position relationship]
8. Applicable fluid mark: no mark: petroleum base water glycol/PF: phosphate
Note: 1. 24 CST anti-wear hydraulic oil viscosity, the oil temperature of 50 ° C
2. Weight: 24.5 kg, in the size of the oil imports: 5/2 ", before the pump exports: 1 ", after the pump discharge: 3/4"
Our company now supply a large number of Hydraulic Pumps,We can provide original pumps and replacement pumps.The main manufacturers are Pilot Gear Pump,Charge Pump,Piston Pumps,Gear pumps,Water Pumps,etc.
Pilot Charge Pump/Charge Pump |
for REXROTH Series,HITACHI Series,NACHI Series,KAYABA Seris,etc. |
Piston Pumps
|
A7V80 Series |
AR Series |
|
HPP Series |
|
KYB Series |
|
PVD Series |
|
PVS Series |
|
REXROTH Series |
|
SCY MCY YCY Series |
|
YEOSHE series |
|
Gear pumps
|
CB-B Series |
CBF Series |
|
CBG Series |
|
CBK Series |
|
CBN Series |
|
CBTs Series |
|
CBQ Series |
|
CBQT Series |
|
CBT Series |
|
GPY Series |
|
NT Series |
|
KCB Series |
|
KRP4 Series |
|
SGP Series |
|
TOP Series |
|
Vane Pumps
|
Cartridge |
PFE Series |
|
PV2R Series |
|
PVF Series |
|
T6 Series |
|
VCM Series |
|
VP Seires |
|
VPV Series |
|
Water Pumps |
for Caterpillar |
