Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Brake > HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump

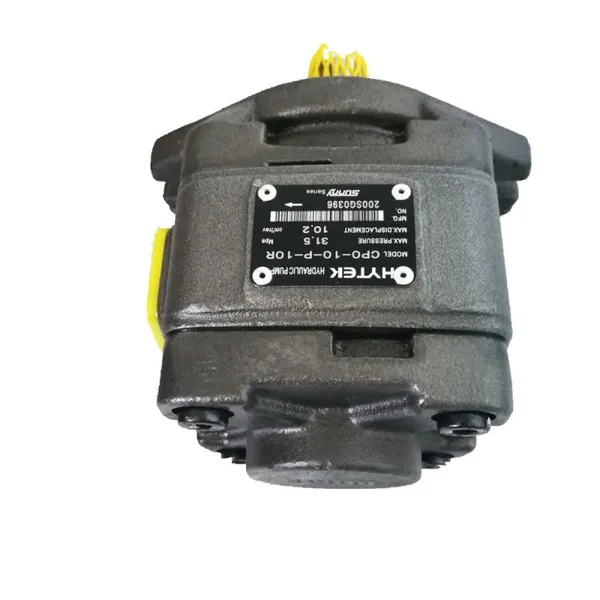

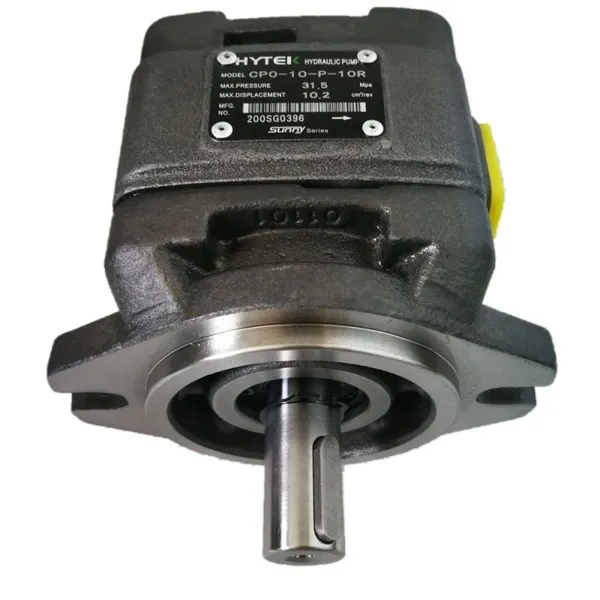

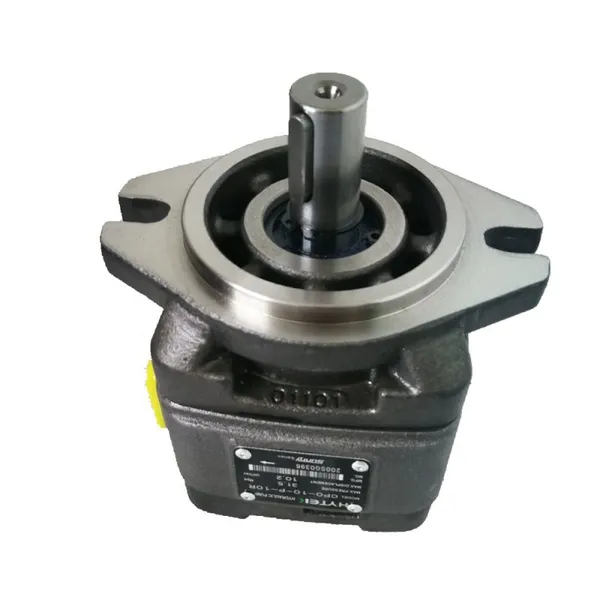

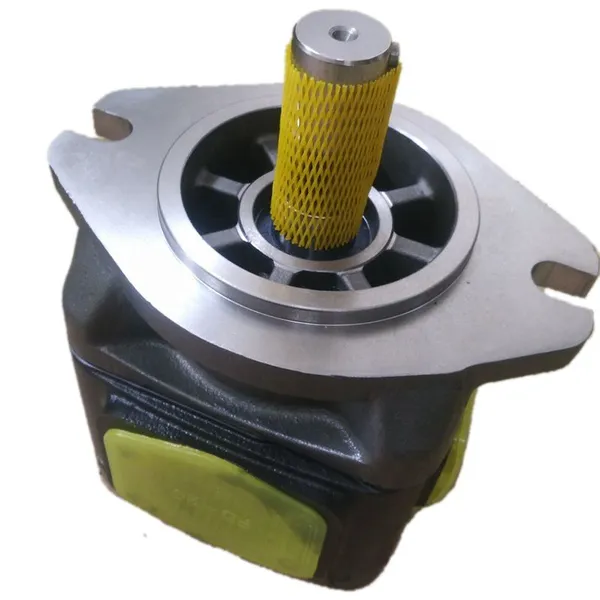

HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump

HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump thumbnail-1
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump thumbnail-2
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump thumbnail-3
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump thumbnail-4
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump thumbnail-5
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump thumbnail-6
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump photo-1
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump photo-2
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump photo-3
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump photo-4
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump photo-5
HG0 Internal Gear Pumps SUNNY High Pressure Servo Oil Pump HG0-20-01R-VPC HG0-20-01L-VPC High Pressure Pump photo-6
US$ 335.00 1 Unit
US$ 320.00 ≥2 Unit
Key Specifications
Get Latest Price
Material:
Cast Iron
Warranty:
1 Year, 6 Months
Displacement:
Other
Contact Supplier Request Quote Chat Now
HS Electrical Technology Co,LTD
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty 1 Year, 6 Months
Displacement Other
Pump Type Gear Pump
Brand Name TIMEWAY
Place of Origin Jiangsu, China
Connection Size 1/4 inch
Max. Horsepower 0.5 HP
Number of stages 1 Stage
Operating Pressure 100 bar
Showroom Location None
Weight 6
Usage Oil
Application Metering
Power Electric
Fuel Diesel
Pressure High Pressure
Standard or Nonstandard Standanrd
Delivery time Within 7-10 Days
Packing Carton
This buying link only includes the below parts,if you are interested in other parts,pls contact us freely.
Product Name
GEAR PUMP
Part Number
HG0-20-01R-VPC HG0-20-01L-VPC
Machine Model
HG0
Application
OEM
Delivery
By sea,By air,By train,By Express

This Pump Previous Model NO. is CP0-10-P, The New Model NO. rev. is HG0-10-01R-VPC. Both are the same Pump

Working Principle The gear drives the ring gear to rotate, and the volume of the oil suction chamber is from small to large to
generate vacuum oil absorption, and the volume of the oil discharge chamber is squeezed from large to small to discharge oil.
Special gear: The tooth profile of the gear is straight, the tooth profile of the ring gear is a linear conjugate line, and there
is almost no oil trapping during operation, which greatly reduces the noise and pressure pulsation of the pump. Two-stage boost:
the first-stage gear pair inlet pressure is 0Mpa, the second-stage inlet pressure is 12.5Mpa, and the outlet pressure is 25Mpa.
When the outlet pressure is 25Mpa, each gear pair only bears a pressure difference of 12.5Mpa, improving the pump. Working
conditions extend the life of the pump. Characteristics 1. Low noise and low pulsation: The special tooth shape design
(linear-linear conjugate line) makes the noise and pulsation of the oil pump work greatly reduced. 2, high pressure: using
two-stage boost, working pressure up to 25Mpa, the highest pressure up to 32Mpa. 3. Long life: The pressure generated when the oil
pump works, the sliding element is forcedly lubricated, and the wear is minimal, which improves the service life of the pump.
Product Usage Straight-tooth conjugate internal gear pump is an internationally advanced hydraulic power component. It has the
advantages of simple structure, low noise, long life and low sensitivity to hydraulic oil pollution. It is widely used in plastic
machinery, mining machinery, metallurgical machinery, Petrochemical machinery, precision machine tools, medical equipment and
other hydraulic systems, such as: injection molding machine, rubber flat vulcanizing machine, die casting machine, punching
machine, brick press and so on. Product Usage Straight-tooth conjugate internal gear pump is an internationally advanced hydraulic
power component. It has the advantages of simple structure, low noise, long life and low sensitivity to hydraulic oil pollution.
It is widely used in plastic machinery, mining machinery, metallurgical machinery, Petrochemical machinery, precision machine
tools, medical equipment and other hydraulic systems, such as: injection molding machines, rubber flat vulcanizing machines, die
casting machines, punching and shearing machines, brick presses, etc.

Our company now supply a large number of piston pumps, motors, reducers and related spare parts.The main manufacturers are:Rexroth, Hitachi, Komatsu, Kawasaki, Caterpillar, NACHI, Toshiba, Kobelco / Kato etc.

The specific models are:
Hitachi series:
HPV050; HPV080; ZX120-6 main pump (HPK055); HPV091 (EX200-2/3, EX120-2 single pump); HPV102 (EX200-5/6); HPV116 (EX200-1); HPV118(ZX200-3, ZX270 main pump)etc.
Komatsu excavator main pump series:
HPV35 (PC60); HPV55 (PC120); HPV90 (PC200-3); HPV90 (PC200-5); PHV95 (PC200-6, PC120-6 except the pump shaft); HPV132 (PC300-7,PC400-6); HPV160 (PC300/400-3/5); HPV135; PC30UU; PC40-8 main pump; PC50; PC60, etc.
Caterpillar series:
VRD63 (CAT120) double pump; SBS80 (CAT312C) main pump; E200B (new) double pump; AP-12 double pump; AP-14 (CAT325C); CAT320C doublepump; SPK10/10 (E200B) double pump; SPV10/10 (MS180) double pump; CAT12G; CAT14G/16G; CAT215; CAT245; CAT330B travel motor; PSV450(AP-12) walking; CAT992; CAT330C walking; CAT385H.
Kayab (KYB, kayaba) series:
PSVD2-16E (Shanhe Intelligent 1.6-2 tons); PSVD2-21C (KYB); PSVD2-21E (KYB) 4T/SVD22 small digging main pump; PSVD2-26E/27E (KYB);KYB-25CC (Ishikawashima 45, Kubota K040/K045); Ishikawajima 60; PSVL-54 (KYB Kubota 6 ton 155 excavator).
The Nachi series:
PVD-2B-32L; PVD-2B-34 walking; PVD-2B-34L (small digging main pump); PVD-2B-36L/38/40; PVD-2B-42; PVD-2B-63; PVD45; 130;PVK-2B-505 (ZAX55 main pump); YC35-6 Yuchai small digging rotary motor; YC35-6 Yuchai small digging travel motor; PCL-200-18B(Yuchai 55 revolution); Bobcat 331 excavator ( Turn); Bobcat 337 (walking motor).
Toshiba series:
SG02; SG025 (MFB40); SG04 (MFB80); SG08 (MFB160); SG12; SG20 (MFB250); PVB92 (PVC90RC08/PVC70R) (Toshiba 8 tons, Yuchai 8.5 tonsexcavator); PV090; PV092 (PV080 universal) ;PSVS-90.
JEIL series:
JMV-44/22; JMV-53/34 (6-8 ton small excavator travel motor); JMF-64; JMV147/95; JMF-151-VBR (22SM1510117); JMF-155.
Liebherr series:
LPVD45; LPVD64; LPVD75; LPVD90; LPVD100; LPVD100 new (914); LPVD125; LPVD125 new; LPVD140; LPVD250; LPVD260.
Kobelco / Kato Series:
SK250-8 main pump; SK200-1/3 travel motor; SK220-3 (MA340 travel motor); SK200-6 travel motor; SK200-6 walking new; SK320 travelmotor; M3V150 (SK220-2) travel motor; SK430 walking Motor; Kato 400 excavator motor; HD450V-2 (Kato); HD3000; DH55 (Daewoo 55excavator slewing motor); T3X128/Daewoo 300-7 slewing; Daewoo 225-7 walking; Daewoo DH370 slewing; Hyundai 60-7 slewing Motor;modern 480 swing motor.
Kawasaki series:
K3SP36C (SDV36) 8 ton medium excavator main pump; K3V63DT (K3V63BDT); K3V112DT; K3V140DT; K3V180DT; K3V280; K3VG280; K3VG180;K3VL45; K5V80; K5V140 (Doosan 300-7); K5V160 (modern 300-6 main pump) ; M2X63; M2X96 (EX200-2); M2X120; M2X146 (EX200-5);M2X150/170 (EX400); M2X210 (EX270/280/300); M5X130
Nabtesco series:
GM05VL; GM05VA; GM06VL (60 Daewoo walking); GM07VA (Daewoo DH55, Komatsu walking 60-7); GM08 (Komatsu 60-3 / 5 walking); GM09(MSPG06-025 / PC60-7 travel motor); GM10; GM17 (PC120-3 / 5 walking); GM18; GM23; GM30H; GM35VA; GM35VL (travel motors); GM38VB(SK200-8, Kato travel motor 1023-3); DNB08.
Rexroth Series:
A4V40; A4V56; A4V71; A4V125; A4V250; A4VFO28; A4VSO40; A4VSO71; A4VSO125; A4VSO180; A4VSO250; A4VSO355; A4VSO500; A4VF500 /A4F500; A4VG28 (A4F028); A4VG50;; A4VG40; A4VG45 A4VG56; A4VG71; A4VTG71; A4VG90 (A4VT90HW / 32R); A4VHW90; A4VTG90 charge pump(Laid thick); A4VG125; A4VG125 Charge pump; A4VG125 charge pump (general use type); A4VG125 charge pump (A10VO28 string type);A4VG12 charge pump (large).
Rexroth bent axis pump series:
A2F5;A2F12;A2F23;A2VK28;2VK28;A2F28;A2F55;A2F80;A2F107;A2F160;A2F200;A2V225;A2F250;A2V500;A2V915;A2F355;A2F500;A2F1000;A2FO10;A2FO12;A2FO16;A2FO23;A2FO28;A2FO32;A2FO45; A2FO56; A2FO63; A2FO80; A2FO90 /A2FE90; A2FO107; A2FO125 (A2FM125); A2FO200;;A2FO160; A2FO180 A2FO250;A2FO500; A6V28; A7V55 / A8V55; A7V58; A7V80 / A8V80; A7V107 / A8V107; A7V160 / A8V160;A7V200; A7V225 ; A7V250; A7V355; A7V500;A6VM / A7V1000; A6VM / A7VO12; A7VO28; A7VO55; A7VO80; A7VO107; A7VO160; A6VM160; A6VE160; A6VM200; A6VM500; A7VO172; A7VO200;A7VO250; A7VO355; A7VO500.
 Sauer Series:
PV20; PV21 (PVD21); PV22; PVD22 dual pump; PV23 (PVD23); PV24; SPV6 / 119; PV25; PV26; PV112; OPV27; MF16A; MFO35; MF500; MPVO46 /M46; MPR63; MPV45.
 Eaton Series:
3321/3331 (Eaton 006); Eaton 3322 (EATON3322); 4621/4621-007; 5421/5431 (Eaton 23); Case 1460 (CASE1460); Case CS05A; Eaton3932-243; Eaton 6423; 7621 (Eaton 24-7620); Road roller (Eaton 78462).
Vickers series:
PVE19;TA19;PVE21;PVH45;PVH57;PVH74;PVH81;PVH98;PVH106(HPN-1398);PVH131;PVH141;PVB5;PVB6;PVB10;PVB15(PVQ32 some
common);PVB20;PVB29;PVBQA29-SR;PVQ40 /50; PVB110; TB35; B45.
LINDE series:
HPR55/75/105/135/165/210/280 ;MPV45-01 MPV63-01; HMR75/105/135/165;MPF55-01; MPR28/45/63/71;HPR75/90/100/130/160;
BPV35/50/70/100/200;B2PV35/50/75/105/140;
BMF35/55/75/105/140;BMV35/55/75/105/135;
BPR55/75/105/140/186/260;HPV55T/75/105/135/165/210; HMF28/35/50/55/75/105/135/165/210;HPV130-01.
Parker series:
PVP16/23/33/41/48/60/76/100/140;
PVM16/23/28;PV016/020/023/028/032/040/046/063;
F11-005/006/012/014/019/10/28/39/80/110/150/250;
F12-030/040/060/080/110/125/150/250;V12-060/080
V14-110/160;P2/P3-060/075/105/145;PAVC 33/38/65/100
