China Factory Supply EAC Certified Heated GRP Enclosure With Built-in Heater for Outdoor Industrial Equipment
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Fiberglass
Certification:
Other, ISO9001, EAC
Shape:
Square
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
7 days
Related Products
-
Low Power Consumption Heated GRP Cabinet With PID Temperature Controller, Ideal for PLC and InstrumentationNegotiableMOQ: 10 Pieces -
Fiberglass Heated Enclosure: Warms Control Panels for Power Plants in Freezing Outdoor EnvironmentsNegotiableMOQ: 5 Pieces
-
Heated Enclosure for Welding Equipment in Cold Weather ConditionsNegotiableMOQ: 5 Pieces
-
Industrial Electric Heat Tracing Insulation Box for TransmittersNegotiableMOQ: 5 Pieces
-
Aluminum Heated Enclosure With PID Controller for Precision ApplicationsNegotiableMOQ: 5 Pieces
Material
Other, Fiberglass
Certification
Other, ISO9001, EAC
Shape
Square
Type
Other, Heated Enclosure
Form
Other, Electric Heater
Dimensions
Compact size for easy transport
Heating Capacity
Adjustable temperature control system
Power Source
Battery or AC power options
Application
Remote field service environments
Weight
Lightweight design for portability
Control System
Digital thermostat included
Color
Standard gray or customizable
Specification
610x470x470
Trademark
xinhuaning
Origin
CHINA
Product Description
| Model | HN-C-7 |
| Size(mm) | 610x470x470 |
| Ingress Protection Grade | IP54,IP65 |
| Enviroment Temperature | -60℃-70℃ |
| Withstand Enviroment | Petroleum products,chemical environment,ultravoilet radiation |
| Wall thickness | 20-40mm |
| Thickness of fiberglass | 2-4mm |
| Thermal conductivity | 0.03kw/m |
| Fastening material(locks,hinges) | Stainless steel |
Slanted Opening Heated Enclosure

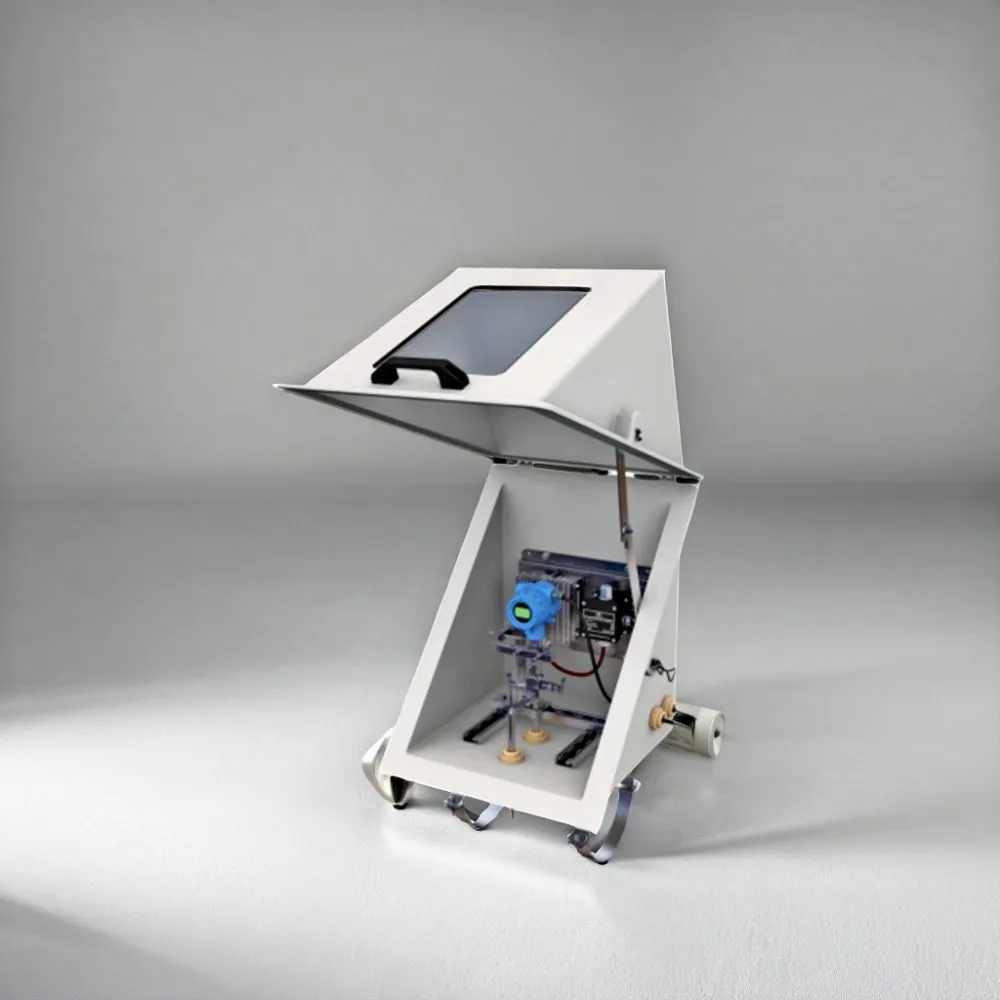

Thermally Insulated Instrument Heated Enclosure with Tray
TheBasicKitincludestheenclosureshellandallindividuallyprovidedcomponents:
Fastenersformountingequipment
Fastenersforinstallingtheenclosure
Shell-and-tubeheatexchanger(water/steam)
Electricheater/heatingelements
Temperaturecontroldevices
AAllaarrmmssyysstteemm,Lighting
Terminalbox
Cableandconduitentries
Blindflanges,Couplings
Bolts,washers,nuts,etc.
Fastenersformountingequipment
Fastenersforinstallingtheenclosure
Shell-and-tubeheatexchanger(water/steam)
Electricheater/heatingelements
Temperaturecontroldevices
AAllaarrmmssyysstteemm,Lighting
Terminalbox
Cableandconduitentries
Blindflanges,Couplings
Bolts,washers,nuts,etc.
The System Kit is nearly identical to the Standard Kit,but includes additional components for connection,shutdown,and regulation:
Fittings and valves
Impulse tubing
Pre-insulated pipe bundles
Valve manifold assemblies
Fittings and valves
Impulse tubing
Pre-insulated pipe bundles
Valve manifold assemblies
Third-partyequipment(e.g.,enclosures,insulatedimpulsetubing)
Application area
1.Temperature Regulation and Freeze Prevention: The core function is to provide a stable thermal environment for sensitive field instruments (like transmitters and pressure switches) -1-5. Equipped with electric or steam heating systems and insulation layers, they maintain the internal temperature within a set range (e.g., 10°C ± 2°C) to prevent malfunctions in cold conditions
2.Physical Protection for Instruments: They serve as a rugged enclosure, shielding instruments from mechanical impact, vibration, and accidental damage during operation and handling
3.Environmental Ingress Protection: Designed with sealed doors, gaskets, and slanted rain-proof tops, they offer high ingress protection (commonly IP54-IP65), guarding against dust, rain, and moisture
4.Resistance to Corrosive Environments: Constructed from materials like stainless steel, fiberglass, or coated steel, they are suitable for use in harsh industrial settings exposed to chemicals, acids, alkalis, or salt spray
1.Normally two heated enclosures are packed in one polywooden box or solid wooden box,six heated enclosures will be packed in one group.
2. Optional packing: can be packed according to customer's request
Shandong Huaning Electric Heating Technology Co.,Ltd
Shandong Huaning specializes in the manufacturing of high-quality instrument insulation enclosures. We provide a comprehensive range of products, including durable carbon steel, corrosion-resistant stainless steel, and lightweight FRP (Fiberglass Reinforced Plastic) models.
Our core service is a complete one-stop solution, integrating professional design, precise manufacturing, and reliable installation. This integrated approach streamlines your project, ensuring optimal cost-effectiveness and maximum satisfaction with the final result.
All our enclosures meet stringent international standards and hold the EAC certification, facilitating market access within the Eurasian Economic Union. We are confident in delivering reliable performance and value, and we look forward to building a successful partnership with you.
Our core service is a complete one-stop solution, integrating professional design, precise manufacturing, and reliable installation. This integrated approach streamlines your project, ensuring optimal cost-effectiveness and maximum satisfaction with the final result.
All our enclosures meet stringent international standards and hold the EAC certification, facilitating market access within the Eurasian Economic Union. We are confident in delivering reliable performance and value, and we look forward to building a successful partnership with you.
1. Q: What is the primary function of an instrument insulation enclosure?
A: Its primary function is to provide a controlled, stable thermal environment for sensitive field instruments (like transmitters and pressure gauges) in harsh outdoor or cold-weather conditions. It prevents internal components from freezing, condensing moisture, or exceeding their operating temperature range, ensuring accurate measurements and reliable process control.
A: Its primary function is to provide a controlled, stable thermal environment for sensitive field instruments (like transmitters and pressure gauges) in harsh outdoor or cold-weather conditions. It prevents internal components from freezing, condensing moisture, or exceeding their operating temperature range, ensuring accurate measurements and reliable process control.
2. Q: What are the main material options (carbon steel, stainless steel, FRP) and how do I choose?
A: Carbon Steel is cost-effective for standard environments. Stainless Steel offers superior corrosion resistance for chemical, marine, or food/pharma applications. FRP (Fiberglass Reinforced Plastic) is ideal for highly corrosive or humid settings and is electrically non-conductive. The choice depends on your specific environmental conditions and budget.
A: Carbon Steel is cost-effective for standard environments. Stainless Steel offers superior corrosion resistance for chemical, marine, or food/pharma applications. FRP (Fiberglass Reinforced Plastic) is ideal for highly corrosive or humid settings and is electrically non-conductive. The choice depends on your specific environmental conditions and budget.
3. Q: What is included in your "one-stop" design, manufacturing, and installation service?
A: Our integrated service handles everything from initial design consultation based on your instrument layout and ambient conditions, to precise manufacturing of the enclosure and internal mounting structures, and finally to on-site installation and commissioning support. This ensures a seamless, efficient process and optimal system performance.
A: Our integrated service handles everything from initial design consultation based on your instrument layout and ambient conditions, to precise manufacturing of the enclosure and internal mounting structures, and finally to on-site installation and commissioning support. This ensures a seamless, efficient process and optimal system performance.
4. Q: What does EAC certification mean for your products?
A: The EAC (Eurasian Conformity) mark certifies that our enclosures meet the technical, safety, and quality standards of the Eurasian Economic Union (EAEU). This certification is mandatory for legal market access and commercial distribution in Russia, Kazakhstan, Belarus, Armenia, and Kyrgyzstan, ensuring compliance and smooth import processes.
A: The EAC (Eurasian Conformity) mark certifies that our enclosures meet the technical, safety, and quality standards of the Eurasian Economic Union (EAEU). This certification is mandatory for legal market access and commercial distribution in Russia, Kazakhstan, Belarus, Armenia, and Kyrgyzstan, ensuring compliance and smooth import processes.
5. Q: Can the enclosures be customized for specific project needs?
A: Yes. While we offer standard series, we frequently provide customizations. This includes non-standard dimensions, special mounting panel layouts, specific heater capacities for extreme climates, additional cable entries, viewing window placement, and tailored protective coatings or materials to suit unique project specifications.
A: Yes. While we offer standard series, we frequently provide customizations. This includes non-standard dimensions, special mounting panel layouts, specific heater capacities for extreme climates, additional cable entries, viewing window placement, and tailored protective coatings or materials to suit unique project specifications.
