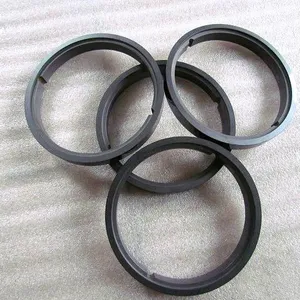

Help CenterProfessional Production Sintered Silicon Carbide Ceramic (SSIC) Seal Ring
Related Products
-
(SSIC) Ceramic Mechanical SealNegotiableMOQ: 50 Pieces -
OEM Precision Silicone Carbide Ssic Ceramic Seal RingsNegotiableMOQ: 50 Pieces
-
Sintered Silicon Caribde Ceramic Mehcanical Seal Ssic Pump ShaftNegotiableMOQ: 50 Pieces
-
Sintered Silicon Carbide Ceramic (SSIC) Bushing Magnetic Pump Mechanical SealNegotiableMOQ: 50 Pieces
-
Advanced Fine Ceramic Sintered Silicon Carbide Ceramic SSIC Chemical Pump Shaft Sleeve ManufacturerNegotiableMOQ: 50 Pieces
Pressureless sintered silicon carbide (SSIC) is produced using very fine SiC powder containing sintering additives. It is processed using forming methods typical for other ceramics and sintered at 2,000 to 2,200° C in an inert gas atmosphere. As well as fine-grained versions, with grain sizes
This material displays an extremely high corrosion resistance in acidic and basic media, and this too is maintained up to very high temperatures. The coarse-grained versions offer particular advantages. These properties are outstanding among high-temperature ceramics, and are complemented by high thermal shock resistance, high thermal conductivity, high resistance to wear, and a hardness close to that of diamond. Thus, SSIC is ideal for extremely demanding applications, for example, slip ring seals in chemical pumps, bearing bushes, high temperature burner nozzles, or as kiln furniture for very high application temperatures. The use of SSIC with graphite inclusions improves the performance of tribological systems.
Property
| Items | Unit | Date |
| Hardness | HS | ≥110 |
| Porosity Rate | % | |
| Density | g/cm3 | 3.10-3.15 |
| Compressive | MPa | >2200 |
| Fractural Strength | MPa | >350 |
| Coefficient of expansion | 10/°C | 4.0 |
| Content of Sic | % | ≥99 |
| Thermal conductivity | Cal/cm.s. °C | 0.30 |
| Elastic Modulus | GPa | ≥400 |
| Temperature | °C | 1600 |
