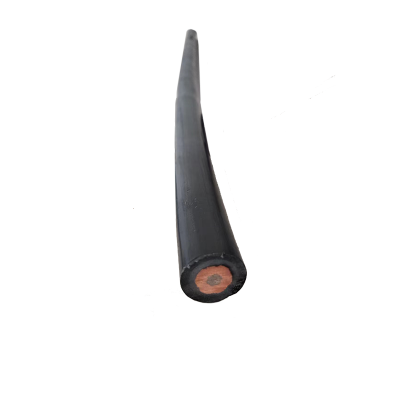

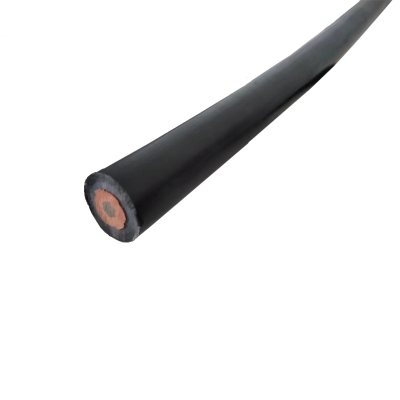

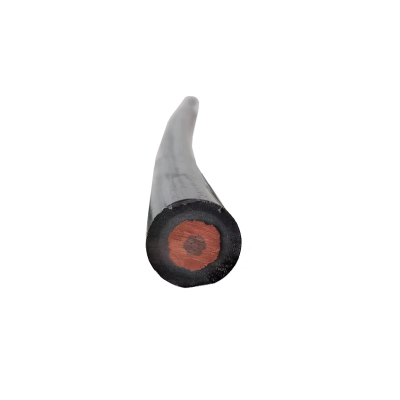

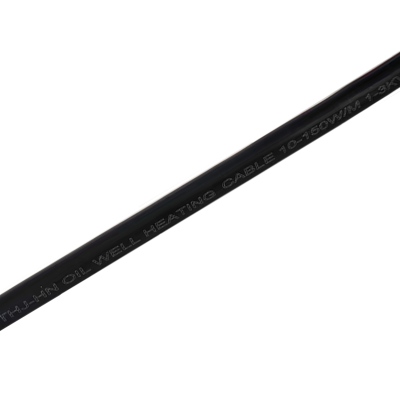

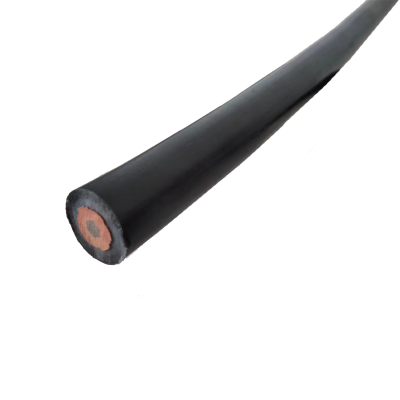

Self-Regulating Heat Trace Cable for Oil Pipelines, -40°C to 205°C, IP68 Waterproof Rating

Engineered for extreme conditions in oil transportation infrastructure, our Self-Regulating Heat Trace Cable delivers precise temperature management to prevent pipeline freezing and maintain optimal fluid viscosity. With its automatic power adjustment capability, this system eliminates overheating risks while reducing energy consumption by up to 40% compared to constant-wattage alternatives. The robust IP68-rated construction ensures reliable operation in submerged or corrosive environments, making it ideal for offshore platforms, refineries, and arctic pipeline networks.

Core Technical Specifications:

• Self-Regulating Technology: Conductive polymer core increases/resists power output based on ambient temperature
• Hazardous Area Certification: Compliant with IECEx and ATEX standards for Zone 1 & 2 installations
• Thermal Output: 30W/m at 10°C with 15W/m minimum maintenance output at -40°C
• Dielectric Strength: 2500V AC withstand voltage for 1 minute

Installation Advantages:

• Overlap installation capability without burnout risk
• Field-cuttable to exact length requirements (±10% tolerance)
• Stainless steel braid provides 360° mechanical protection
• Cold-lead connection kits available for explosion-proof enclosures

The fluoropolymer insulation maintains flexibility at -50°C while resisting chemical degradation from crude oil residues, saltwater immersion, and UV exposure. When paired with our proprietary thermal controllers, the system achieves ±1°C temperature stability across pipeline elevation changes and flow variations.

Operational Benefits:

• Eliminates paraffin deposition in heavy crude pipelines
• Prevents hydrate formation in natural gas transmission lines
• Reduces pump cavitation risks during cold startups
• Extends pipeline maintenance intervals by 18-24 months

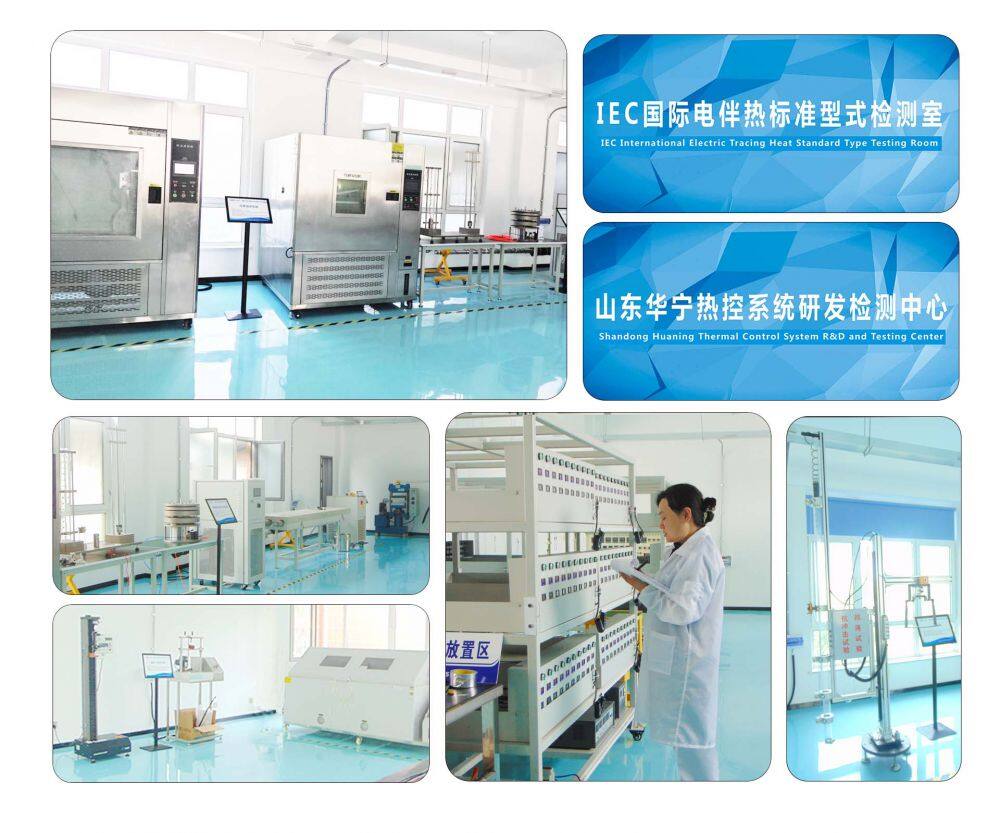

For challenging installations, our engineering team provides customized thermal modeling to determine optimal watt density, circuit layout, and power distribution. All cables undergo 100% quality verification including high-potential testing and thermal cycling from -60°C to 220°C.

Upgrade your pipeline integrity management with our field-proven heating solution that has demonstrated 99.6% uptime in Siberian oil fields over 5-year operational periods. Contact our technical specialists today for project-specific performance data sheets and installation guidelines.

Frequently Asked Questions

Q1: Can this cable be installed on existing pipelines without shutdown?

A: Yes, our clamps allow retrofit installation during normal operation. Specialized hot-tapping procedures available for pressurized lines.

Q2: What monitoring systems are compatible?

A: Compatible with MODBUS RTU, HART, and Foundation Fieldbus protocols. Optional fiber optic temperature sensing available.

Q3: How does the self-regulating feature reduce energy costs?

A: The cable automatically decreases wattage as ambient temperature rises, consuming only necessary power. Typical savings range from 30-60% versus constant-watt systems.

Q4: Is explosion-proof termination available?

A: Yes, we offer ATEX-certified Ex d junction boxes with double-compression glands for Zone 1 hazardous locations.

Q5: What is the expected service life?

A: Designed for 15+ years operation when properly installed. The tinned copper bus wires resist corrosion while fluoropolymer jacket prevents polymer aging.
